94 GETTING TO KNOW YOUR VEHICLE
WINDOWS
Power Windows
Power Window ControlsPower Window Switches
The power window controls located on the driver's door trim
panel have up-down switches that give you fingertip control
of all power windows. There is a single opening and closing
switch on the front passenger door for passenger window
control and on the rear doors for rear window control. The windows will operate when the ignition switch is turned to
the ON/RUN or ACC position, and for up to 10 minutes
after the ignition is turned OFF or until a front door is
opened.
NOTE:
The Key Off Power Delay feature will allow the power
windows to operate for up to 10 minutes after the ignition is
turned OFF. This feature is cancelled when either front door
is opened.
WARNING!
Never leave children unattended in a vehicle. Do not
leave the key fob in or near the vehicle or in a location
accessible to children, and do not leave the ignition of a
vehicle equipped with Keyless Enter-N-Go in the ACC
or ON/RUN mode. Occupants, particularly unattended
children, can become entrapped by the windows while
operating the power window switches. Such entrapment
may result in serious injury or death.

98 GETTING TO KNOW YOUR VEHICLE
Opening Sunroof
Express
Push the switch rearward and release it within one-half
second. The sunroof and sunshade will open automatically
and stop when the full open position is reached. This is called
“Express Open.” During Express Open operation, any other
actuation of the sunroof switch will stop the sunroof.
Manual Mode
To open the sunroof, push and hold the switch rearward. The
sunroof will move rearward and automatically stop at full
open position. Any release of the switch will stop the move-
ment. The sunroof and sunshade will remain in a partially
opened condition until the sunroof switch is pushed again.WARNING!
• Never leave children unattended in a vehicle, or with access to an unlocked vehicle. Never leave the key fob
in or near the vehicle, or in a location accessible to chil -
dren. Do not leave the ignition of a vehicle equipped
with Keyless Enter-N-Go in the ACC or ON/RUN
mode. Occupants, particularly unattended children,
can become entrapped by the power sunroof while
operating the power sunroof switch. Such entrapment
may result in serious injury or death.
• In a collision, there is a greater risk of being thrown from a vehicle with an open sunroof. You could also be
seriously injured or killed. Always fasten your seat belt
properly and make sure all passengers are also properly
secured.
• Do not allow small children to operate the sunroof. Never allow your fingers, other body parts, or any
object, to project through the sunroof opening. Injury
may result.

102 GETTING TO KNOW YOUR VEHICLE
To Close The Hood
Lower the hood to approximately 12 inches (30 cm) from the
engine compartment and drop it. Make sure that the hood is
completely closed.
TAILGATE
Opening
The power tailgate may be opened by pushing the tailgate
release pad located on the tailgate door.
The tailgate damper strut will lower the tailgate to the open
position (if equipped).
Electronic Tailgate Release — If Equipped The key fob may be equipped with an electronic
release feature for the tailgate, allowing hands-free
tailgate opening. To activate, push and release the
Tailgate Release button on the key fob twice within five
seconds. The tailgate door will unlatch, and slowly lower
into the open position.
If equipped, a button on the center overhead console inside
the vehicle can be used to release the tailgate.
NOTE:
The Tri-Fold Tonneau Cover (if equipped) may prevent Elec -
tronic Tailgate Release if installed. The Tonneau Cover must
be removed or folded up before releasing the tailgate. Refer
to “Tri-Fold Tonneau Cover — If Equipped” in “Getting To
Know Your Vehicle” for further information.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the front center of
the hood to ensure that both latches engage.

124 GETTING TO KNOW YOUR VEHICLE
Some vehicles may be equipped with a rear cupholder that
consists of two cup wells for rear passenger convenience.Rear Cup WellsElectrical Power Outlets
The auxiliary 12 Volt (13 Amp) power outlet can provide
power for in-cab accessories designed for use with the stan -
dard “cigar lighter” plug. The 12 Volt power outlets and 5
Volt (2.5 Amp) USB Port (Charge Only) have a cap attached
to the outlet indicating “12V DC,” together with either a key
symbol, battery symbol, or USB symbol.
A key symbol indicates that the key must be in the ON/RUN
or ACC positions for the outlet to provide power. The battery
symbol indicates that the outlet is connected to the battery,
and can provide power at all times.
CAUTION!

• Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watts (13 Amps) power rating is
exceeded, the fuse protecting the system will need to be
replaced.

• Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlets as this
will damage the outlet and blow the fuse. Improper use
of the power outlet can cause damage not covered by
your New Vehicle Limited Warranty.

GETTING TO KNOW YOUR VEHICLE 129
Wireless Charging Pad — If Equipped
Wireless Charging PadYour vehicle may be equipped with a 15W 3A Qi wireless
charging pad located inside of the center console just below
the CD player (if equipped). This charging pad is designed to
wirelessly charge your Qi enabled mobile phone. Qi is a stan
-
dard that uses magnetic induction to transfer power to your
mobile device.
Your mobile phone must be designed for Qi wireless
charging. If the phone is not equipped with Qi wireless
charging functionality, an aftermarket sleeve or a specialized
back plate can be purchased from your mobile phone
provider or an local electronics retailer. Please see your
phone’s owner’s manual for further information.
The wireless charging pad is equipped with an anti-slip mat,
an adjustable cradle to hold your mobile phone in place and
an LED indicator light.
WARNING!
To avoid serious injury or death:
• Do not insert any objects into the receptacles.
• Do not touch with wet hands.
• Close the lid when not in use.
• If this outlet is mishandled, it may cause an electric shock and failure.
CAUTION!
The key fob should not be placed on the charging pad or
within 15 cm (150 mm) of it. Doing so can cause excessive
heat buildup and damage to the fob. Placing the fob in
close proximity of the charging pad blocks the fob from
being detected by the vehicle and prevents the vehicle
from starting.
2

136 GETTING TO KNOW YOUR VEHICLE
RamBox Light Switch
Cargo bins feature two removable drain plugs (to allow
water to drain from bins). To remove plug, pull up on the
edge. To install push plug downward into drain hole.
NOTE:
Provisions are provided in the bins for cargo dividers and
shelf supports. These accessories (in addition to other
RamBox accessories) are available from Mopar. Locking And Unlocking RamBox
Push and release the lock or unlock button on the key fob to
lock and unlock all doors, the tailgate and the RamBox (if
equipped). Refer to “Keys” in “Getting To Know Your
Vehicle” for further details. The RamBox storage bins can be
locked using the vehicle key. To lock and unlock the storage
bin, insert the key into the keyhole on the push button and
turn clockwise to lock or counterclockwise to unlock.
Always return the key to the upright (vertical) position
before removing the key from the push button.CAUTION!
• Ensure cargo bin lids are closed and latched before moving or driving vehicle.
• Loads applied to the top of the bin lid should be mini -
mized to prevent damage to the lid and latching/
hinging mechanisms.
• Damage to the RamBox bin may occur due to heavy/ sharp objects placed in bin that shift due to vehicle
motion. In order to minimize potential for damage,
secure all cargo to prevent movement and protect inside
surfaces of bin from heavy/sharp objects with appro -
priate padding.

138 GETTING TO KNOW YOUR VEHICLE

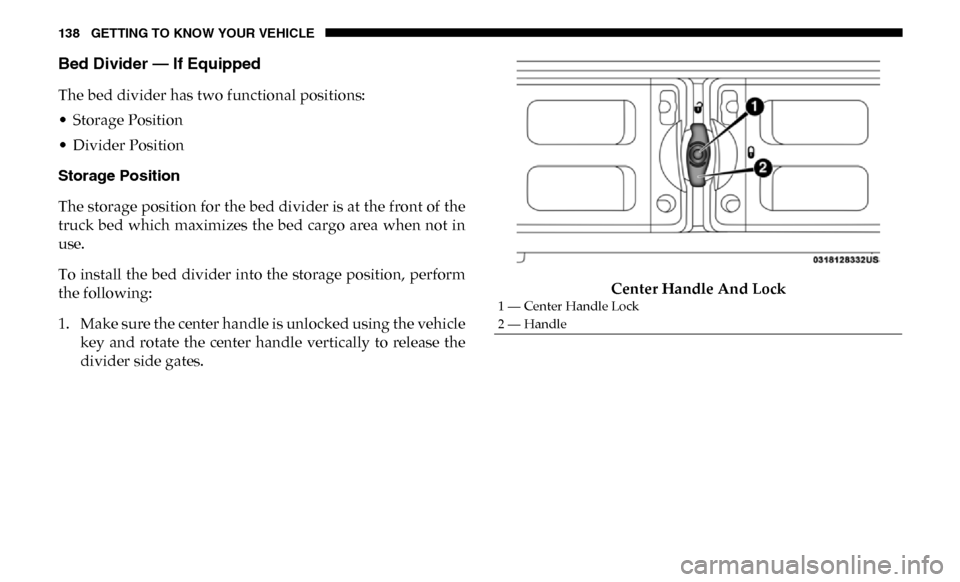

Bed Divider — If Equipped
The bed divider has two functional positions:
• Storage Position
• Divider Position
Storage Position
The storage position for the bed divider is at the front of the
truck bed which maximizes the bed cargo area when not in
use.
To install the bed divider into the storage position, perform
the following:
1. Make sure the center handle is unlocked using the vehiclekey and rotate the center handle vertically to release the
divider side gates. Center Handle And Lock
1 — Center Handle Lock
2 — Handle

140 GETTING TO KNOW YOUR VEHICLE
4. Rotate the center handle horizontally to secure the sidegates in the closed position.
Side Gates Closed
5. Lock the center handle using the vehicle key to secure the panel into place.
Divider Position
The divider position is intended for managing your cargo
and assisting in keeping cargo from moving around the bed.
There are 11 divider slots along the bed inner panels which
allow for various positions to assist in managing your cargo. To install the bed divider into a divider position, perform the
following:
1. Make sure the center handle is unlocked using the vehicle
key and rotate the center handle vertically to release the
divider side gates.
Center Handle And Lock
1 — Center Handle Lock
2 — Handle
