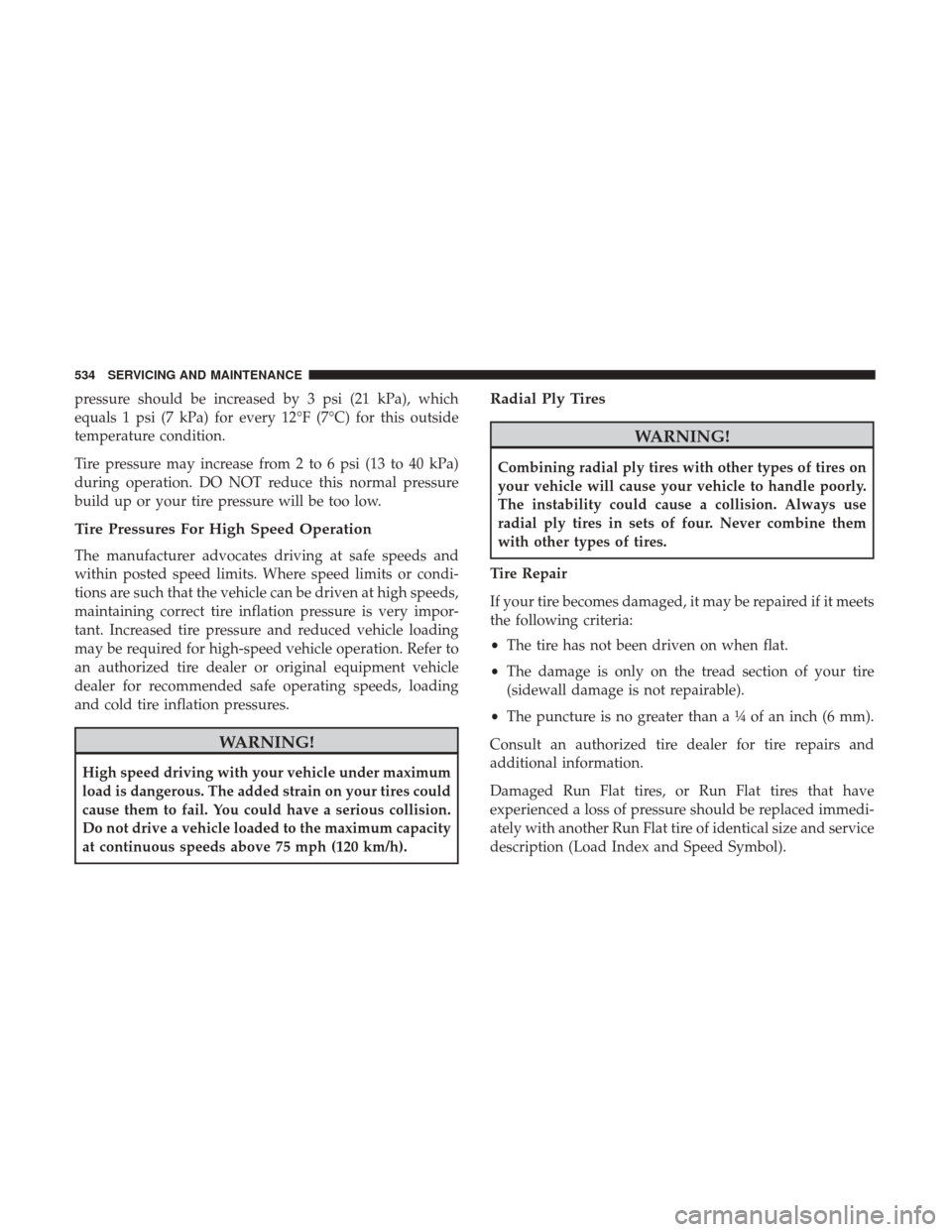

2019 Ram 1500 load capacity

pressure should be increased by 3 psi (21 kPa), which
equals 1 psi (7 kPa) for every 12°F (7°C) for this outside
temperature condition.
Tire pressure may increase from 2 to 6 psi (13 to 40 kPa)
during operation. DO NOT reduce this normal pressure
build up or your tire pressure will be too low.
Tire Pressures For High Speed Operation
The manufacturer advocates driving at safe speeds and
within posted speed limits. Where speed limits or condi-
tions are such that the vehicle can be driven at high speeds,
maintaining correct tire inflation pressure is very impor-
tant. Increased tire pressure and reduced vehicle loading
may be required for high-speed vehicle operation. Refer to
an authorized tire dealer or original equipment vehicle
dealer for recommended safe operating speeds, loading
and cold tire inflation pressures.
WARNING!
High speed driving with your vehicle under maximum
load is dangerous. The added strain on your tires could
cause them to fail. You could have a serious collision.
Do not drive a vehicle loaded to the maximum capacity
at continuous speeds above 75 mph (120 km/h).
Radial Ply Tires
WARNING!
Combining radial ply tires with other types of tires on
your vehicle will cause your vehicle to handle poorly.
The instability could cause a collision. Always use
radial ply tires in sets of four. Never combine them
with other types of tires.
Tire Repair
If your tire becomes damaged, it may be repaired if it meets
the following criteria:
• The tire has not been driven on when flat.
• The damage is only on the tread section of your tire
(sidewall damage is not repairable).
• The puncture is no greater thana¼ofaninch (6 mm).
Consult an authorized tire dealer for tire repairs and
additional information.
Damaged Run Flat tires, or Run Flat tires that have
experienced a loss of pressure should be replaced immedi-
ately with another Run Flat tire of identical size and service
description (Load Index and Speed Symbol).
534 SERVICING AND MAINTENANCE

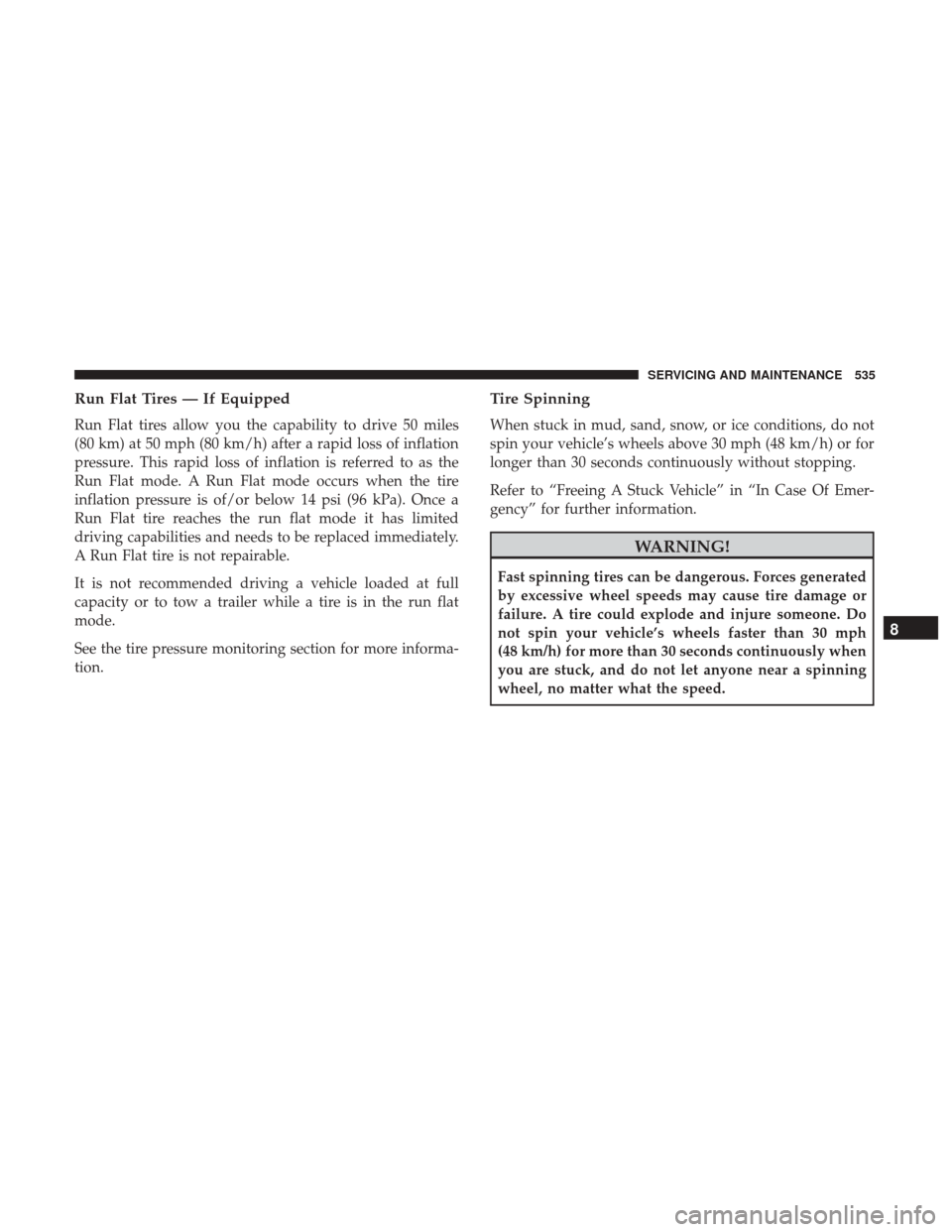

Run Flat Tires — If Equipped
Run Flat tires allow you the capability to drive 50 miles
(80 km) at 50 mph (80 km/h) after a rapid loss of inflation
pressure. This rapid loss of inflation is referred to as the
Run Flat mode. A Run Flat mode occurs when the tire
inflation pressure is of/or below 14 psi (96 kPa). Once a
Run Flat tire reaches the run flat mode it has limited
driving capabilities and needs to be replaced immediately.
A Run Flat tire is not repairable.
It is not recommended driving a vehicle loaded at full
capacity or to tow a trailer while a tire is in the run flat
mode.
See the tire pressure monitoring section for more informa-
tion.
Tire Spinning
When stuck in mud, sand, snow, or ice conditions, do not
spin your vehicle’s wheels above 30 mph (48 km/h) or for
longer than 30 seconds continuously without stopping.
Refer to “Freeing A Stuck Vehicle” in “In Case Of Emer-
gency” for further information.
WARNING!
Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause tire damage or
failure. A tire could explode and injure someone. Do
not spin your vehicle’s wheels faster than 30 mph
(48 km/h) for more than 30 seconds continuously when
you are stuck, and do not let anyone near a spinning
wheel, no matter what the speed.
8
SERVICING AND MAINTENANCE 535

WARNING!(Continued)
and suspension components. You could lose control
and have a collision resulting in serious injury or
death. Use only the tire and wheel sizes with load
ratings approved for your vehicle.
• Never use a tire with a smaller load index or capacity,
other than what was originally equipped on your
vehicle. Using a tire with a smaller load index could
result in tire overloading and failure. You could lose
control and have a collision.
• Failure to equip your vehicle with tires having ad-
equate speed capability can result in sudden tire
failure and loss of vehicle control.
CAUTION!
Replacing original tires with tires of a different size
may result in false speedometer and odometer read-
ings.
Tire Types
All Season Tires — If Equipped
All Season tires provide traction for all seasons (Spring,
Summer, Fall, and Winter). Traction levels may vary be-
tween different all season tires. All season tires can be
identified by the M+S, M&S, M/S or MS designation on the
tire sidewall. Use all season tires only in sets of four; failure
to do so may adversely affect the safety and handling of
your vehicle.
Summer Or Three Season Tires — If Equipped
Summer tires provide traction in both wet and dry condi-
tions, and are not intended to be driven in snow or on ice.
If your vehicle is equipped with Summer tires, be aware
these tires are not designed for Winter or cold driving
conditions. Install Winter tires on your vehicle when am-
bient temperatures are less than 40°F (5°C) or if roads are
covered with ice or snow. For more information, contact an
authorized dealer.
Summer tires do not contain the all season designation or
mountain/snowflake symbol on the tire sidewall. Use
Summer tires only in sets of four; failure to do so may
adversely affect the safety and handling of your vehicle.
538 SERVICING AND MAINTENANCE

New Vehicle Break-In Period..................299
Occupant Restraints ........................ .231
Octane Rating, Gasoline (Fuel) ..............558, 559
Off-Pavement Driving (Off-Road) ...............431
Off-Road Driving (Off-Pavement) ...............431
Oil, Engine ........................... .499, 564
Capacity .............................. .563
Change Interval ........................ .499
Dipstick .............................. .497
Disposal .............................. .500
Filter ............................. .501, 564
Filter Disposal .......................... .500
Identification Logo ...................... .499
Materials Added To ...................... .500
Pressure Warning Light ....................181
Recommendation .....................499, 563
Synthetic ............................. .500
Viscosity ....................... .499, 500, 563
Oil Filter, Change ......................... .501
Oil Filter, Selection ......................... .501
Oil Pressure Light ......................... .181
Onboard Diagnostic System ...................194
Operating Precautions ...................... .194Operator Manual
Owner’s Manual .......................5,678
Outside Rearview Mirrors .....................62
Overheating, Engine ....................... .477
Paint Care ............................... .547
Panic Alarm ...............................21
Parking Brake ............................ .300
ParkSense System, Rear ..................... .364
Passive Entry ..............................38
Pedals, Adjustable ...........................60
Personalized Main Menu .....................569
Pets ................................... .284
Pickup Box ........................... .134, 135
Placard, Tire And Loading Information ...........528
Power Distribution

Center (Fuses) ..............450, 454
Door Locks ..............................37
Mirrors ................................63
Outlet (Auxiliary Electrical Outlet) .........127, 130
Seats ..................................46
Side Steps ..............................37
Sliding Rear Window ......................98
Steering ............................ .63, 336
Sunroof ............................ .99, 102
688 INDEX

TiltDown .................................47
Up....................................47
Tilt Steering Column .........................58
Tip Start ................................ .294
Tire And Loading Information Placard ............528
Tire Markings ............................ .523
Tires......................... .287, 532, 539, 545
Aging (Life Of Tires) ..................... .536
Air Pressure ........................... .532
Chains ............................... .543
Compact Spare ......................... .540
Dual ................................ .557
General Information ...................532, 539
High Speed ............................ .534
Inflation Pressure ....................... .533
Life Of Tires ........................... .536
Load Capacity ...................... .528, 529
Pressure Monitoring System (TPMS) ........186, 225
Quality Grading ........................ .545
Radial ............................... .534
Replacement ........................... .537
Rotation .............................. .544
Safety ............................ .522, 532
Sizes ................................ .524Snow Tires
............................ .539
Spare Tires ......................... .539, 541
Spinning .............................. .535
Trailer Towing .......................... .416
Tread Wear Indicators .....................536
Wheel Nut Torque ....................... .556
Tire Safety Information ...................... .522
Tongue Weight/Trailer Weight .................414
Tonneau Cover ........................ .150, 547
Tonneau Cover Cleaning .....................547
To Open Hood ........................... .106
Towing ............................. .407,
481
Disabled Vehicle ........................ .481
Guide ................................ .414
Recreational ........................... .424
Weight ............................... .414
Towing Behind A Motorhome ..................424
Traction ................................ .429
Traction Control .......................... .202
Trailer Sway Control (TSC) ....................207
Trailer Towing ............................ .407
Cooling System Tips ..................... .422
Hitches ............................... .413
Minimum Requirements ....................414
Mirrors ................................66
692 INDEX
