Changing the settings of the locking
system
You can change the settings of the locking sys-tem. This means that only the driver's door andthe fuel filler flap are unlocked when the vehicleis unlocked. This is useful if you frequently travelon your own.
XTo change the setting:press and hold the6and7buttons simultaneously forapproximately six seconds until the batteryindicator lamp flashes twice (Ypage 73).
If the setting of the locking system is changedwithin the signal range of the vehicle, pressingthe7or6button:
Rlocks or
Runlocks the vehicle
The SmartKey now functions as follows:
XTo unlock:press the6button once.
XTo unlock centrally:press the6buttontwice.
XTo lock centrally:press the7button.
The KEYLESS-GO function is changed as fol-lows:
XTo unlock the driver's door:touch the innersurface of the door handle on the driver'sdoor.
XTo unlock centrally:touch the inner surfaceof the door handle on the front-passengerdoor or the rear door.
XTo lock centrally:touch the outer sensorsurface on one of the door handles.
XTo restore the factory settings:press andhold the6and7buttons simultane-ously for approximately six seconds until thebattery check lamp flashes twice(Ypage 73).
Mechanical key
General notes
If the vehicle can no longer be locked orunlocked with the SmartKey or KEYLESS-GO,use the mechanical key.
If you use the mechanical key to unlock andopen the driver's door or the trunk lid, the anti-theft alarm system will be triggered (Ypage 68).
There are several ways to turn off the alarm:
XTo deactivate the alarm with the key:pressthe6or7button on the key.
or
XInsert the SmartKey into the ignition lock.
or
XTo deactivate the alarm with KEYLESS-GO:press the Start/Stop button in the ignitionlock. The SmartKey must be in the vehicle.
or
XLock or unlock the vehicle using KEYLESS-GO. The SmartKey must be outside the vehi-cle.
If you unlock the vehicle using the mechanicalkey, the fuel filler flap will not be unlocked auto-matically.
XTo unlock the fuel filler flap:insert theSmartKey into the ignition lock.
Removing the mechanical key
XPush release catchCin the direction of thearrow and at the same time remove mechan-ical keyDfrom the SmartKey.
For further information about:
RUnlocking the driver's door (Ypage 77)
RUnlocking the trunk (Ypage 82)
RLocking the vehicle (Ypage 77)
Inserting the mechanical key
XPush mechanical keyDcompletely into theSmartKey until it engages and releasecatchCis back in its basic position.
72SmartKey
Opening and closing

HANDS-FREE ACCESS
Important safety notes
GWARNING
The vehicle exhaust system can become very
hot. If you use HANDS-FREE ACCESS, you
could burn yourself by touching the exhaust
system. There is a risk of injury. Always
ensure that you make the kicking movement
only within the detection range of the sensors.
!If the SmartKey is within the rear detectionrange of KEYLESS-GO, the following situa-tions, for example, could lead to the uninten-tional opening of the trunk lid:
Rwhen using an automatic car wash
Rwhen using a power washer
Make sure that the SmartKey is at least 10 ft(3 m) away from the vehicle.
iYou can also deactivate KEYLESS-GO. Fur-ther information on deactivating and activat-ing KEYLESS-GO (Ypage 71).
General notes
With KEYLESS-GO and HANDS-FREE ACCESS,you can open the trunk lid without using yourhands. This is useful if you have your hands full.To do this, make a kicking movement under thebumper with your foot.
Observe the following points:
RCarry your KEYLESS-GO key about your per-son. The SmartKey must be at the rear of thevehicle in the detection range of KEYLESS-GO.
RWhen making the kicking movement, makesure that you are standing firmly on theground and that there is sufficient clearanceto the rear of the vehicle. You could otherwiselose your balance, for example on ice.
RAlways ensure that you only make the kickingmovement within the detection range of sen-sorsC.
RStand at least 12 in (30 cm) away from therear area while doing so.
RDo not come into contact with the bumperwhile making the kicking movement. Other-wise, the sensors may not function correctly.
RHANDS-FREE ACCESS does not function dur-ing engine start.
RDirt caused by road salt or snow around sen-sorsCmay restrict functionality.
Using the HANDS-FREE ACCESS with a pros-thetic leg may restrict functionality.
RIf a KEYLESS-GO key is at the rear of the vehi-cle in the detection range of KEYLESS-GO,HANDS-FREE ACCESS could be triggered.The trunk lid could thus be opened uninten-tionally, for example, when you:
-set something down or lift something upbehind the vehicle.
-polish the rear of the vehicle.
Do not carry the KEYLESS-GO key about yourperson in these situations or in situations sim-ilar to these. This will prevent the uninten-tional opening of the trunk lid.
80Trunk
Opening and closing

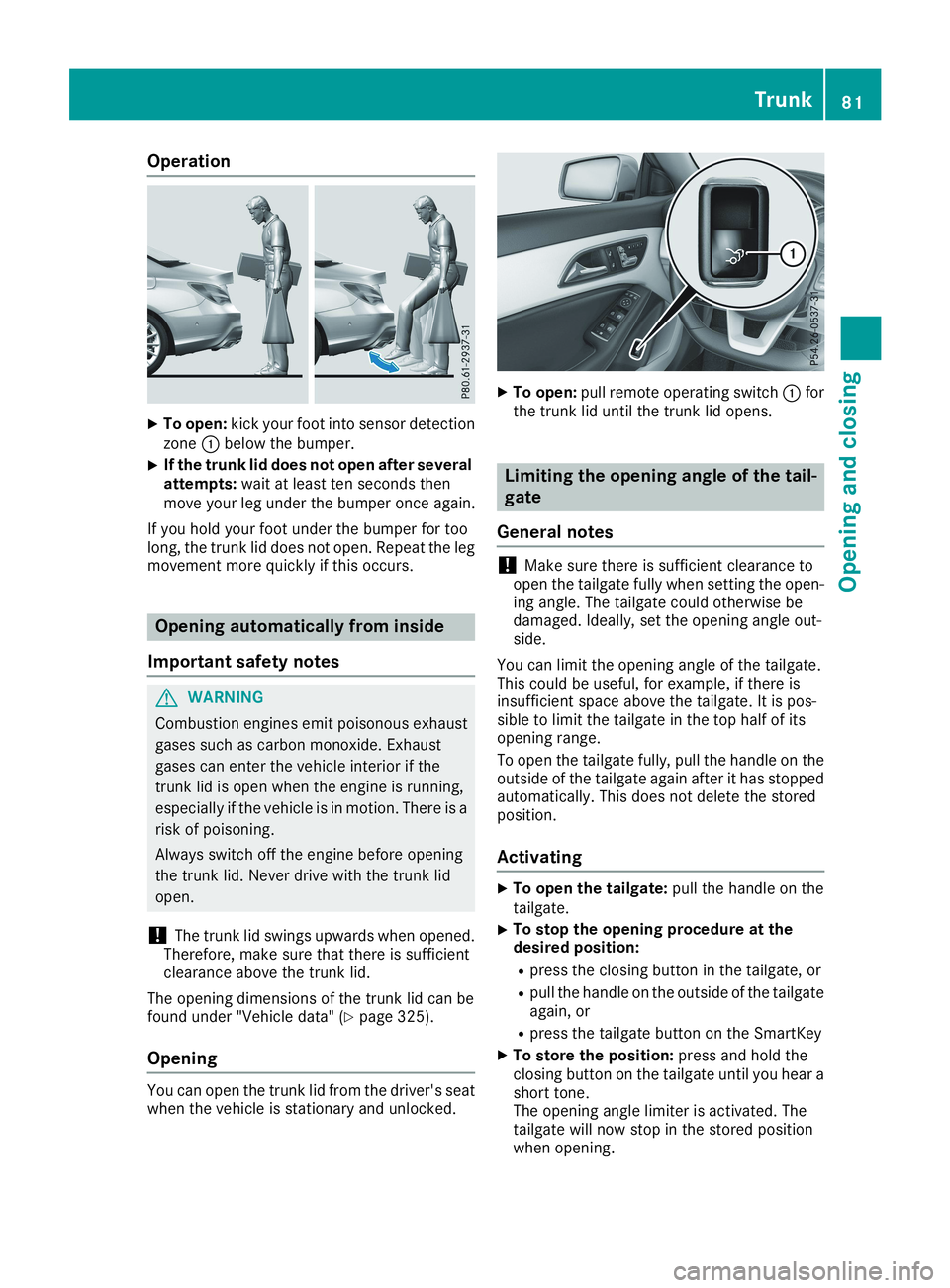

Operation
XTo open:kick your foot into sensor detectionzoneCbelow the bumper.
XIf the trunk lid does not open after severalattempts:wait at least ten seconds thenmove your leg under the bumper once again.
If you hold your foot under the bumper for toolong, the trunk lid does not open. Repeat the legmovement more quickly if this occurs.
Opening automatically from inside
Important safety notes
GWARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Exhaust
gases can enter the vehicle interior if the
trunk lid is open when the engine is running,
especially if the vehicle is in motion. There is a
risk of poisoning.
Always switch off the engine before opening
the trunk lid. Never drive with the trunk lid
open.
!The trunk lid swings upwards when opened.Therefore, make sure that there is sufficientclearance above the trunk lid.
The opening dimensions of the trunk lid can befound under "Vehicle data" (Ypage 325).
Opening
You can open the trunk lid from the driver's seatwhen the vehicle is stationary and unlocked.
XTo open:pull remote operating switchCforthe trunk lid until the trunk lid opens.
Limiting the opening angle of the tail-
gate
General notes
!Make sure there is sufficient clearance toopen the tailgate fully when setting the open-ing angle. The tailgate could otherwise bedamaged. Ideally, set the opening angle out-side.
You can limit the opening angle of the tailgate.This could be useful, for example, if there isinsufficient space above the tailgate. It is pos-sible to limit the tailgate in the top half of itsopening range.
To open the tailgate fully, pull the handle on theoutside of the tailgate again after it has stoppedautomatically. This does not delete the storedposition.
Activating
XTo open the tailgate:pull the handle on thetailgate.
XTo stop the opening procedure at thedesired position:
Rpress the closing button in the tailgate, or
Rpull the handle on the outside of the tailgateagain, or
Rpress the tailgate button on the SmartKey
XTo store the position:press and hold theclosing button on the tailgate until you hear ashort tone.The opening angle limiter is activated. Thetailgate will now stop in the stored positionwhen opening.
Trunk81
Opening and closing
Z

XTouch recessed sensor surfaceCon thedoor handle until the side windows and thepanorama roof with power tilt/sliding panelare fully closed.
iMake sure you only touch recessed sensorsurfaceC.
XMake sure that all the side windows areclosed.
XMake sure that all the side windows and thepanorama roof with power tilt/sliding panelare closed.
On vehicles with a panorama roof with powertilt/sliding panel:
XTouch recessed sensor surfaceCon thedoor handle again until the roller sunblind ofthe panorama roof with power tilt/slidingpanel closes.
XTo interrupt convenience closing:releaserecessed sensor surfaceCon the door han-dle.
Resetting the side windows
If a side window can no longer be closed fully,you must reset it.
XClose all the doors.
XTurn the SmartKey to positionGorHin theignition lock (Ypage 123).
XPull the corresponding switch on the doorcontrol panel until the side window is com-pletely closed (Ypage 83).
XHold the switch for an additional second.
If the side window opens again slightly:
XImmediately pull the corresponding switch onthe door control panel until the side window iscompletely closed (Ypage 83).
XHold the switch for an additional second.
XIf the respective side window remains closedafter the button is released, then it has beenset correctly. If this is not the case, repeat thesteps above.
Problems with the side windows
GWARNING
If you close a side window again immediately after it has been blocked or reset, the side window
closes with increased or maximum force. The reversing feature is then not active. Parts of the
body could be trapped in the closing area in the process. This poses an increased risk of injury or
even fatal injury.
Make sure that no parts of the body are in the closing area. To stop the closing process, release
the switch or push the switch again to reopen the side window.
Side windows85
Opening and closing
Z

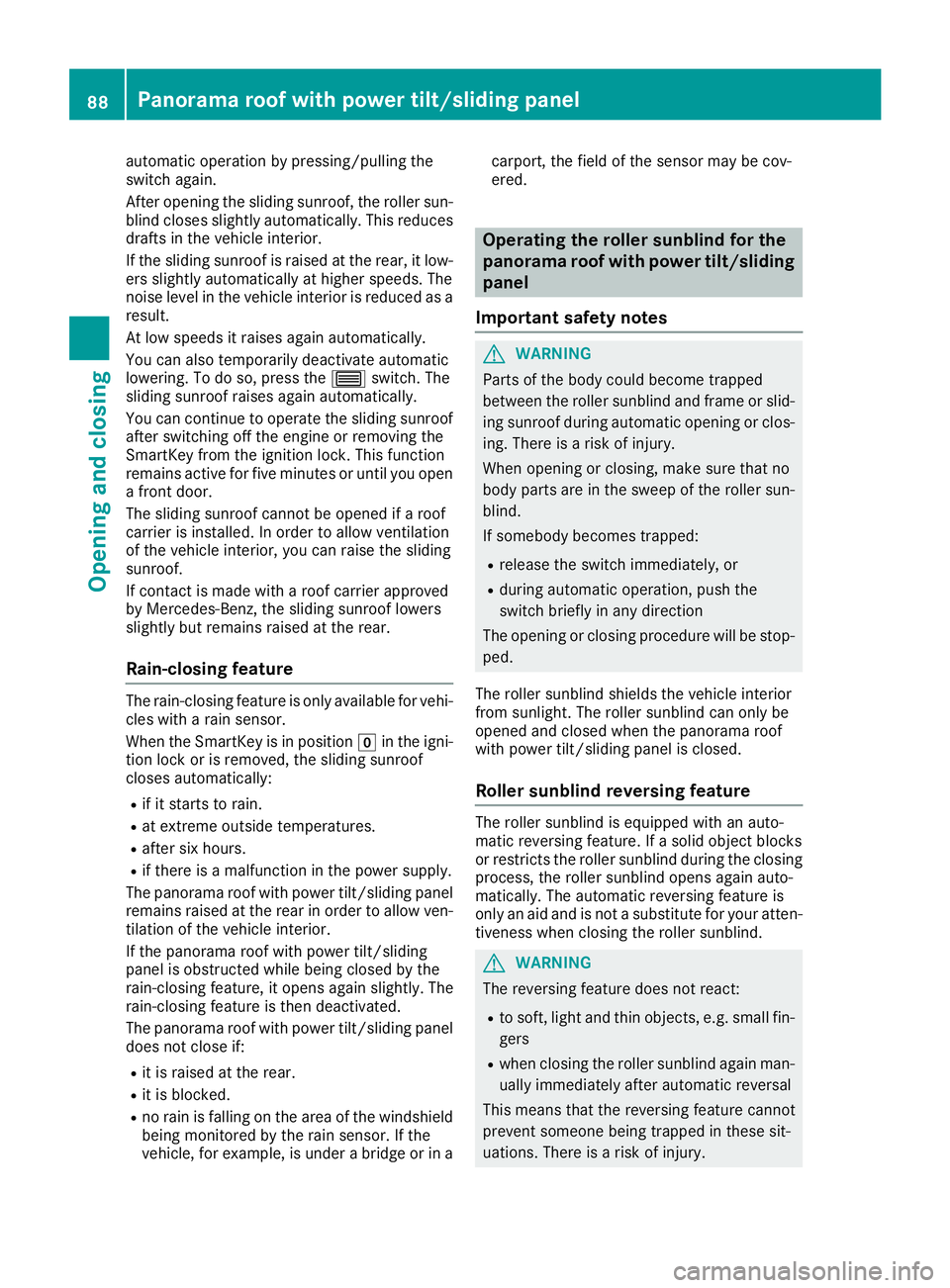

automatic operation by pressing/pulling theswitch again.
After opening the sliding sunroof, the roller sun-blind closes slightly automatically. This reducesdrafts in the vehicle interior.
If the sliding sunroof is raised at the rear, it low-ers slightly automatically at higher speeds. Thenoise level in the vehicle interior is reduced as aresult.
At low speeds it raises again automatically.
You can also temporarily deactivate automaticlowering. To do so, press theWswitch. Thesliding sunroof raises again automatically.
You can continue to operate the sliding sunroofafter switching off the engine or removing theSmartKey from the ignition lock. This functionremains active for five minutes or until you opena front door.
The sliding sunroof cannot be opened if a roofcarrier is installed. In order to allow ventilationof the vehicle interior, you can raise the slidingsunroof.
If contact is made with a roof carrier approvedby Mercedes-Benz, the sliding sunroof lowersslightly but remains raised at the rear.
Rain-closing feature
The rain-closing feature is only available for vehi-cles with a rain sensor.
When the SmartKey is in positionZin the igni-tion lock or is removed, the sliding sunroofcloses automatically:
Rif it starts to rain.
Rat extreme outside temperatures.
Rafter six hours.
Rif there is a malfunction in the power supply.
The panorama roof with power tilt/sliding panelremains raised at the rear in order to allow ven-tilation of the vehicle interior.
If the panorama roof with power tilt/slidingpanel is obstructed while being closed by therain-closing feature, it opens again slightly. Therain-closing feature is then deactivated.
The panorama roof with power tilt/sliding paneldoes not close if:
Rit is raised at the rear.
Rit is blocked.
Rno rain is falling on the area of the windshieldbeing monitored by the rain sensor. If thevehicle, for example, is under a bridge or in a
carport, the field of the sensor may be cov-ered.
Operating the roller sunblind for the
panorama roof with power tilt/sliding
panel
Important safety notes
GWARNING
Parts of the body could become trapped
between the roller sunblind and frame or slid-
ing sunroof during automatic opening or clos-
ing. There is a risk of injury.
When opening or closing, make sure that no
body parts are in the sweep of the roller sun-
blind.
If somebody becomes trapped:
Rrelease the switch immediately, or
Rduring automatic operation, push the
switch briefly in any direction
The opening or closing procedure will be stop-
ped.
The roller sunblind shields the vehicle interiorfrom sunlight. The roller sunblind can only beopened and closed when the panorama roofwith power tilt/sliding panel is closed.
Roller sunblind reversing feature
The roller sunblind is equipped with an auto-matic reversing feature. If a solid object blocksor restricts the roller sunblind during the closingprocess, the roller sunblind opens again auto-matically. The automatic reversing feature isonly an aid and is not a substitute for your atten-tiveness when closing the roller sunblind.
GWARNING
The reversing feature does not react:
Rto soft, light and thin objects, e.g. small fin-
gers
Rwhen closing the roller sunblind again man-
ually immediately after automatic reversal
This means that the reversing feature cannot
prevent someone being trapped in these sit-
uations. There is a risk of injury.
88Panorama roof with power tilt/sliding panel
Opening and closing

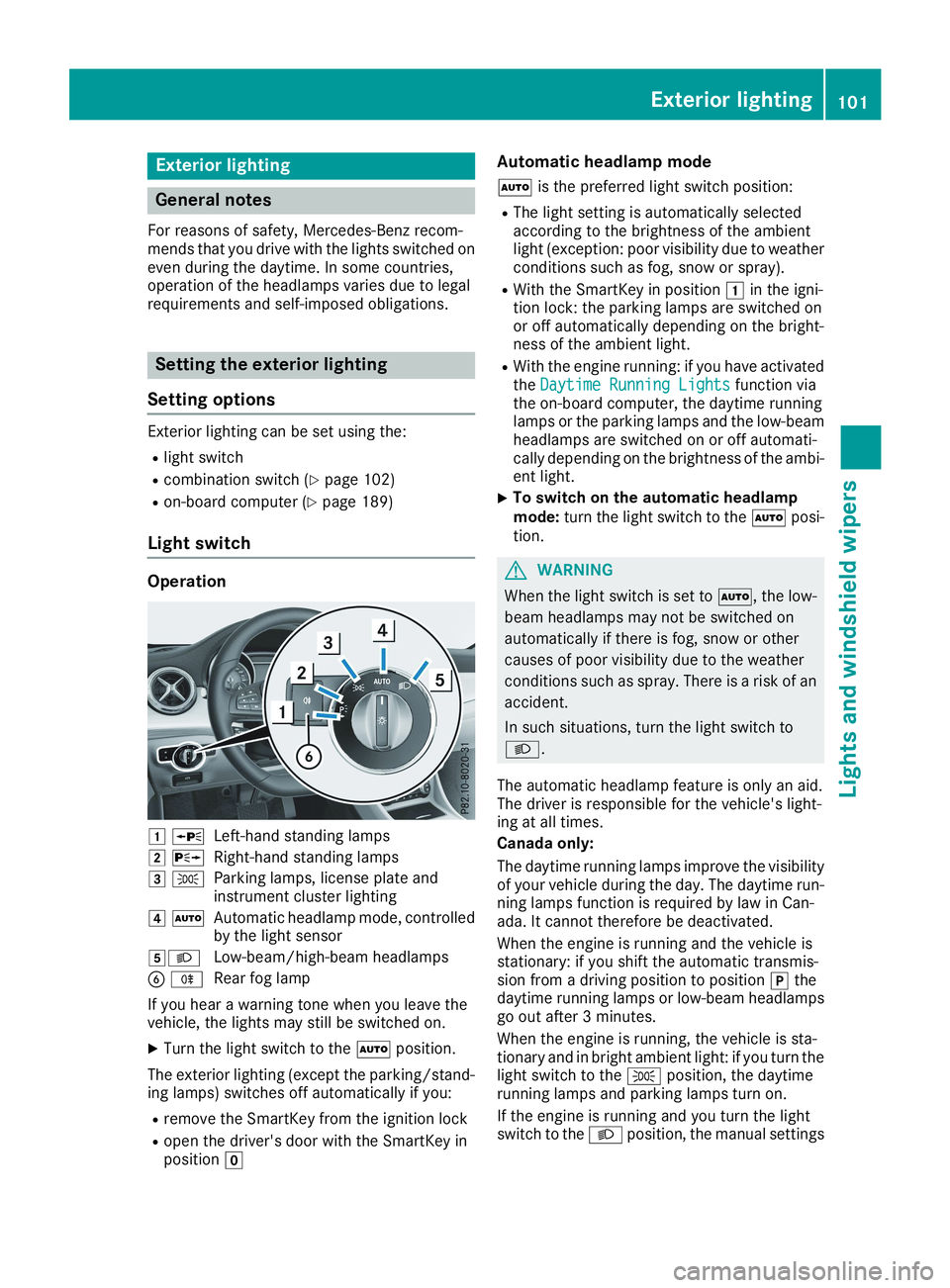

Exterior lighting
General notes
For reasons of safety, Mercedes-Benz recom-mends that you drive with the lights switched oneven during the daytime. In some countries,operation of the headlamps varies due to legalrequirements and self-imposed obligations.
Setting the exterior lighting
Setting options
Exterior lighting can be set using the:
Rlight switch
Rcombination switch (Ypage 102)
Ron-board computer (Ypage 189)
Light switch
Operation
GcLeft-hand standing lamps
HdRight-hand standing lamps
I`Parking lamps, license plate andinstrument cluster lighting
JXAutomatic headlamp mode, controlledby the light sensor
KXLow-beam/high-beam headlamps

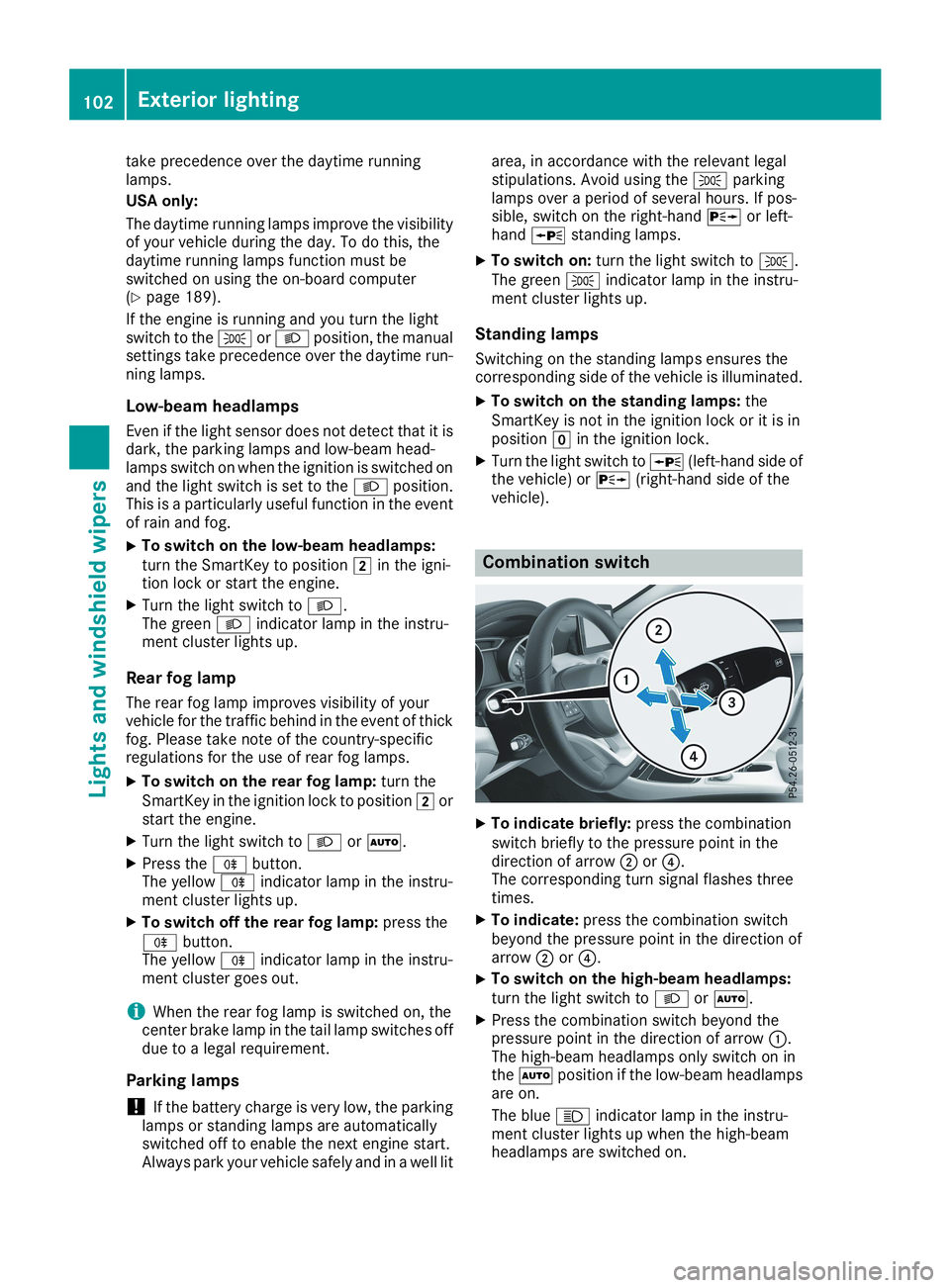

take precedence over the daytime runninglamps.
USA only:
The daytime running lamps improve the visibilityof your vehicle during the day. To do this, thedaytime running lamps function must beswitched on using the on-board computer(Ypage 189).
If the engine is running and you turn the lightswitch to the`orXposition, the manualsettings take precedence over the daytime run-ning lamps.
Low-beam headlamps
Even if the light sensor does not detect that it isdark, the parking lamps and low-beam head-lamps switch on when the ignition is switched onand the light switch is set to theXposition.This is a particularly useful function in the eventof rain and fog.
XTo switch on the low-beam headlamps:turn the SmartKey to positionHin the igni-tion lock or start the engine.
XTurn the light switch toX.The greenXindicator lamp in the instru-ment cluster lights up.
Rear fog lamp
The rear fog lamp improves visibility of yourvehicle for the traffic behind in the event of thickfog. Please take note of the country-specificregulations for the use of rear fog lamps.
XTo switch on the rear fog lamp:turn theSmartKey in the ignition lock to positionHorstart the engine.
XTurn the light switch toXorX.
XPress the^button.The yellow^indicator lamp in the instru-ment cluster lights up.
XTo switch off the rear fog lamp:press the^button.The yellow^indicator lamp in the instru-ment cluster goes out.
iWhen the rear fog lamp is switched on, thecenter brake lamp in the tail lamp switches offdue to a legal requirement.
Parking lamps
!If the battery charge is very low, the parkinglamps or standing lamps are automaticallyswitched off to enable the next engine start.Always park your vehicle safely and in a well lit
area, in accordance with the relevant legalstipulations. Avoid using the`parkinglamps over a period of several hours. If pos-sible, switch on the right-handdor left-handcstanding lamps.
XTo switch on:turn the light switch to`.The green`indicator lamp in the instru-ment cluster lights up.
Standing lamps
Switching on the standing lamps ensures thecorresponding side of the vehicle is illuminated.
XTo switch on the standing lamps:theSmartKey is not in the ignition lock or it is inpositionZin the ignition lock.
XTurn the light switch toc(left-hand side ofthe vehicle) ord(right-hand side of thevehicle).
Combination switch
XTo indicate briefly:press the combinationswitch briefly to the pressure point in thedirection of arrowDor

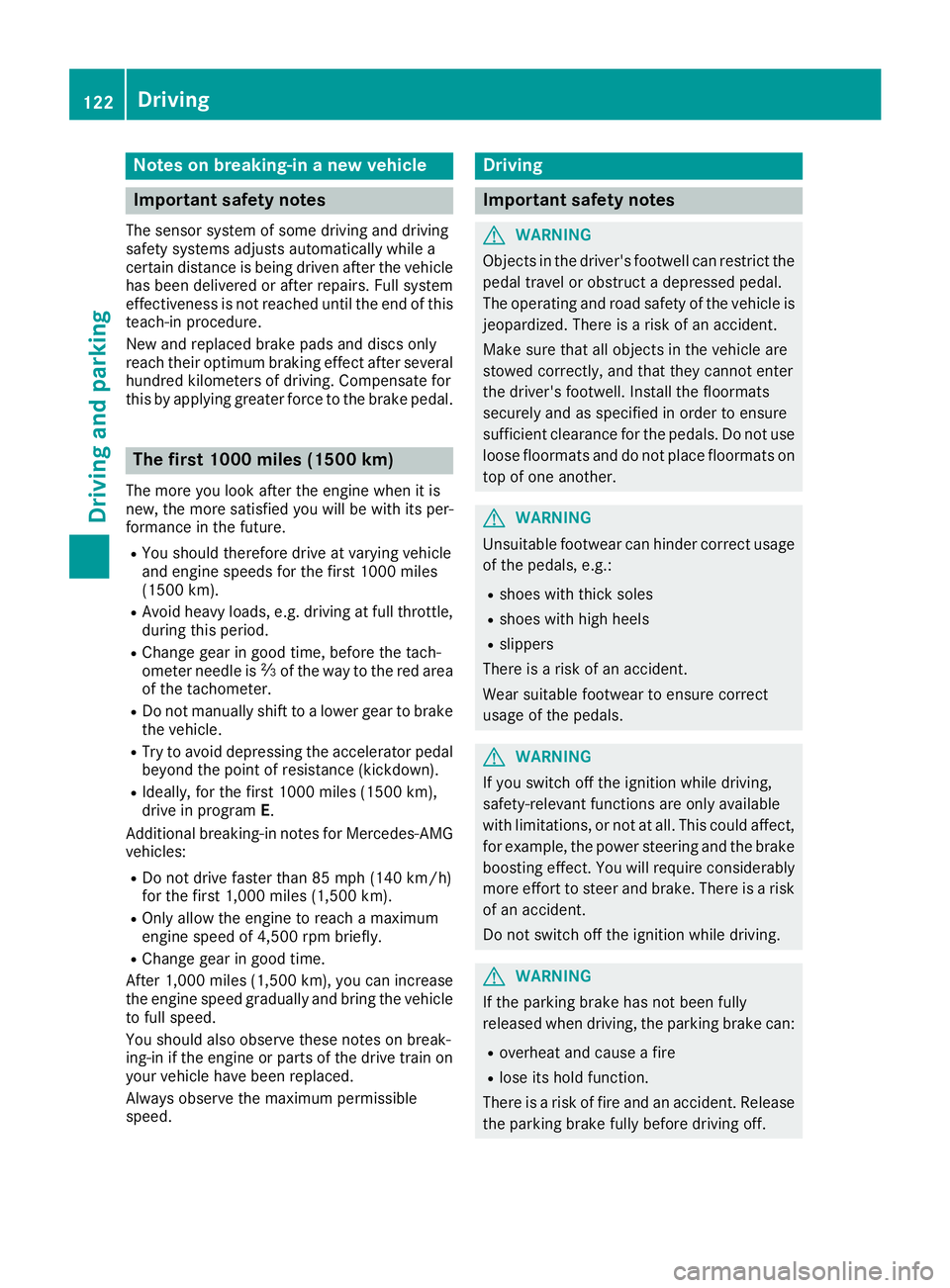

Notes on breaking-in a new vehicle
Important safety notes
The sensor system of some driving and drivingsafety systems adjusts automatically while acertain distance is being driven after the vehiclehas been delivered or after repairs. Full systemeffectiveness is not reached until the end of thisteach-in procedure.
New and replaced brake pads and discs onlyreach their optimum braking effect after severalhundred kilometers of driving. Compensate forthis by applying greater force to the brake pedal.
The first 1000 miles (1500 km)
The more you look after the engine when it isnew, the more satisfied you will be with its per-formance in the future.
RYou should therefore drive at varying vehicleand engine speeds for the first 1000 miles(1500 km).
RAvoid heavy loads, e.g. driving at full throttle,during this period.
RChange gear in good time, before the tach-ometer needle is
