2019 MERCEDES-BENZ CLA warning

Display messagesPossible causes/consequences andPPSolutions
Check TiresCheck TiresUSA only:
The tire pressure in one or more tires has dropped significantly. Thewheel position appears in the multifunction display.
A warning tone also sounds.
GWARNING
Tire pressures that are too low pose the following hazards:
Rthey may burst, especially as the load and vehicle speed increase.
Rthey may wear excessively and/or unevenly, which may greatlyimpair tire traction.
Rthe driving characteristics, as well as steering and braking, may begreatly impaired.
There is a risk of an accident.
XStop the vehicle without making any sudden steering or brakingmaneuvers. Pay attention to the traffic conditions as you do so.
XSecure the vehicle against rolling away (Ypage 142).
XCheck the tires and, if necessary, follow the instructions for a flattire (Ypage 274).
XCheck the tire pressure (Ypage 297).
XIf necessary, correct the tire pressure.
Warning Tire Mal‐Warning Tire Mal‐functionfunctionUSA only:
The tire pressure in one or more tires has dropped suddenly. The wheelposition appears in the multifunction display.
GWARNING
Driving with a flat tire poses a risk of the following hazards:
Ra flat tire affects the ability to steer or brake the vehicle
Ryou could lose control of the vehicle
Rcontinued driving with a flat tire will cause excessive heat build-upand possibly a fire
There is a risk of an accident.
XStop the vehicle without making any sudden steering or brakingmaneuvers. Pay attention to the traffic conditions as you do so.
XSecure the vehicle against rolling away (Ypage 142).
XCheck the tires and, if necessary, follow the instructions for a flattire (Ypage 274).
TireTirePress.Press.MonitorMonitorCurrently Unavaila‐Currently Unavaila‐bleble
USA only:
Because there is interference from a strong source of radio waves, nosignals from the tire pressure sensors are detected. The tire pressuremonitor is temporarily malfunctioning.
XDrive on.The tire pressure monitor restarts automatically as soon as theproblem has been resolved.
214Displaymessages
On-b oard computer and displays

Display messagesPossible causes/consequences andPPSolutions

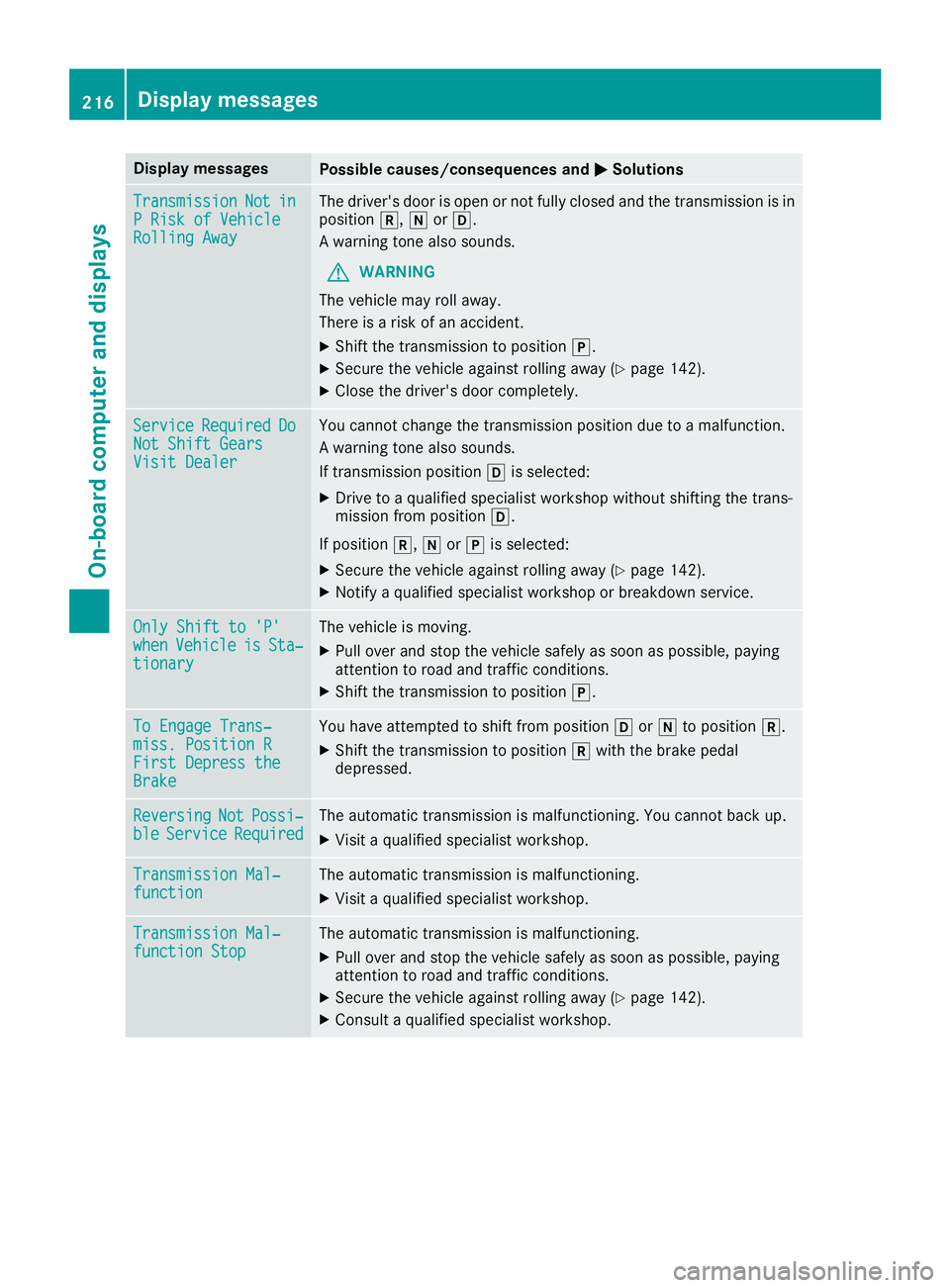

TransmissionTransmissionNotNotininP Risk of VehicleP Risk of VehicleRolling AwayRolling Away
The driver's door is open or not fully closed and the transmission is inposition^,\\or[.
A warning tone also sounds.
GWARNING
The vehicle may roll away.
There is a risk of an accident.
XShift the transmission to position].
XSecure the vehicle against rolling away (Ypage 142).
XClose the driver's door completely.
ServiceServiceRequiredRequiredDoDoNot Shift GearsNot Shift GearsVisit DealerVisit Dealer
You cannot change the transmission position due to a malfunction.
A warning tone also sounds.
If transmission position[is selected:
XDrive to a qualified specialist workshop without shifting the trans-mission from position[.
If position^,\\or]is selected:
XSecure the vehicle against rolling away (Ypage 142).
XNotify a qualified specialist workshop or breakdown service.
Only Shift to 'P'Only Shift to 'P'whenwhenVehicleVehicleisisSta‐Sta‐tionarytionary
The vehicle is moving.
XPull over and stop the vehicle safely as soon as possible, payingattention to road and traffic conditions.
XShift the transmission to position].
To Engage Trans‐To Engage Trans‐miss. Position Rmiss. Position RFirst Depress theFirst Depress theBrakeBrake
You have attempted to shift from position[or\\to position^.
XShift the transmission to position^with the brake pedaldepressed.
ReversingReversingNotNotPossi‐Possi‐blebleServiceServiceRequiredRequiredThe automatic transmission is malfunctioning. You cannot back up.
XVisit a qualified specialist workshop.
Transmission Mal‐Transmission Mal‐functionfunctionThe automatic transmission is malfunctioning.
XVisit a qualified specialist workshop.
Transmission Mal‐Transmission Mal‐function Stopfunction StopThe automatic transmission is malfunctioning.
XPull over and stop the vehicle safely as soon as possible, payingattention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 142).
XConsult a qualified specialist workshop.
216Displaymessages
On-b oard computer and displays

Display messagesPossible causes/consequences andPPSolutions
QAt least one door is open. A warning tone also sounds.
XClose all the doors.

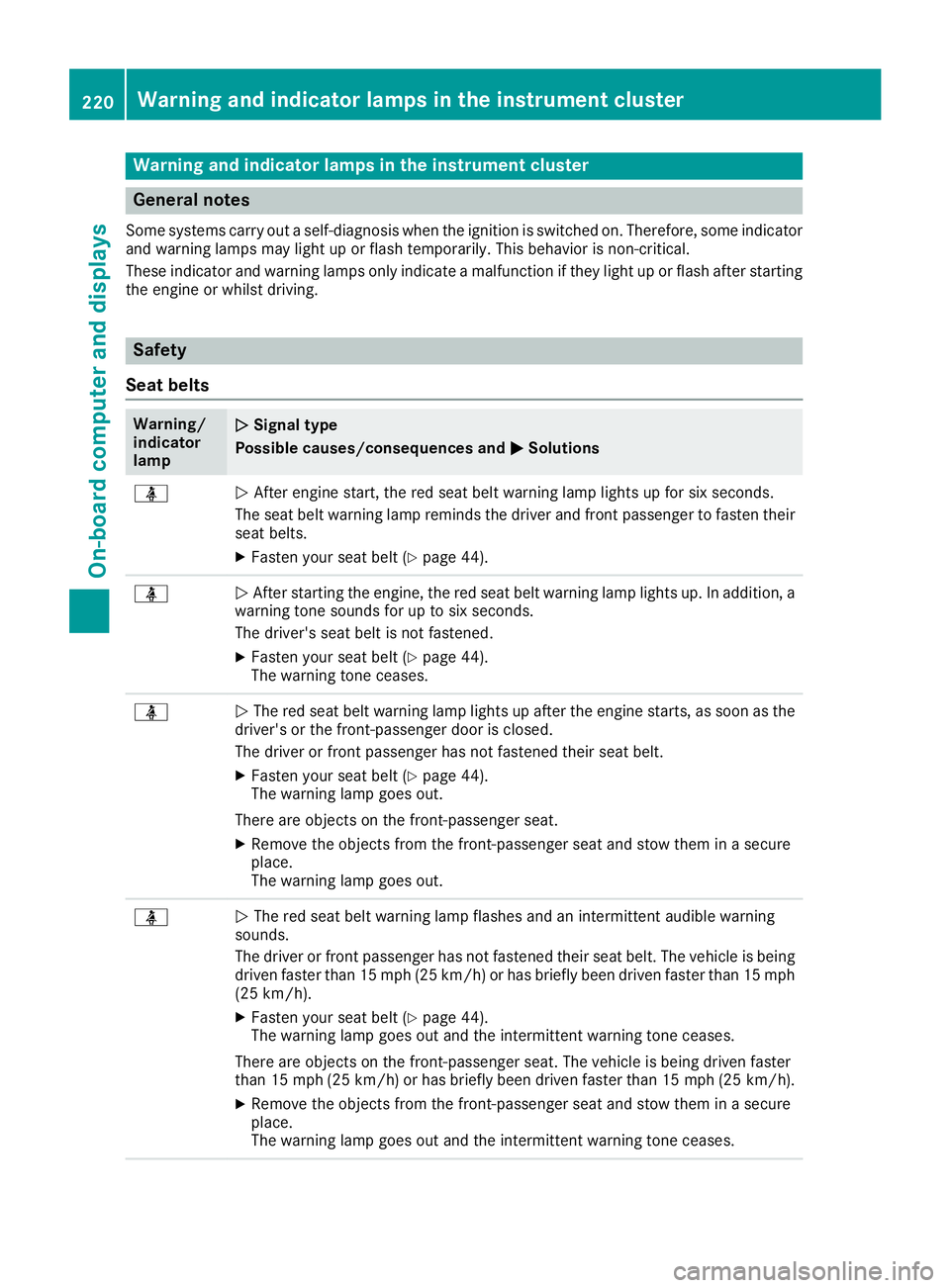

Warning and indicator lamps in the instrument cluster
General notes
Some systems carry out a self-diagnosis when the ignition is switched on. Therefore, some indicatorand warning lamps may light up or flash temporarily. This behavior is non-critical.
These indicator and warning lamps only indicate a malfunction if they light up or flash after startingthe engine or whilst driving.
Safety
Seat belts
Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

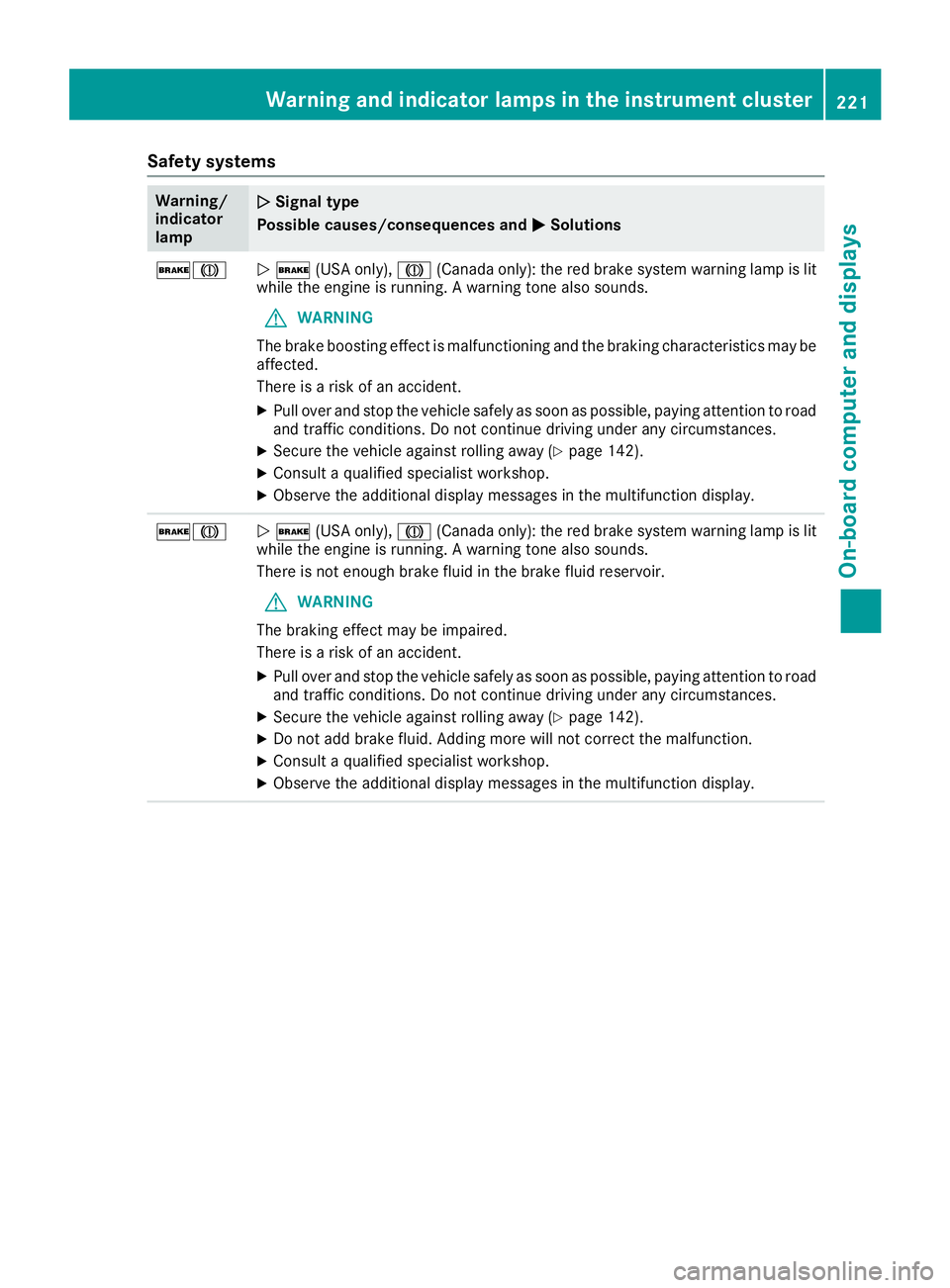

Safety systems
Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions
'MQ'(USA only),M(Canada only): the red brake system warning lamp is litwhile the engine is running. A warning tone also sounds.
GWARNING
The brake boosting effect is malfunctioning and the braking characteristics may beaffected.
There is a risk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying attention to roadand traffic conditions. Do not continue driving under any circumstances.
XSecure the vehicle against rolling away (Ypage 142).
XConsult a qualified specialist workshop.
XObserve the additional display messages in the multifunction display.
'MQ'(USA only),M(Canada only): the red brake system warning lamp is litwhile the engine is running. A warning tone also sounds.
There is not enough brake fluid in the brake fluid reservoir.
GWARNING
The braking effect may be impaired.
There is a risk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying attention to roadand traffic conditions. Do not continue driving under any circumstances.
XSecure the vehicle against rolling away (Ypage 142).
XDo not add brake fluid. Adding more will not correct the malfunction.
XConsult a qualified specialist workshop.
XObserve the additional display messages in the multifunction display.
Warning and indicator lamps in the instrument cluster221
On-board computer and displays
Z

Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions
%QThe yellow ABS warning lamp is lit while the engine is running.
ABS (Anti-lock Braking System) is deactivated due to a malfunction. Therefore,
BAS (Brake Assist), Active Brake Assist, ESP®(Electronic Stability Program), theHOLD function and hill start assist, for example, are also deactivated.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the functions listedabove. The wheels could therefore lock if you brake hard, for example.
The steerability and braking characteristics may be severely affected. The brakingdistance in an emergency braking situation can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction display.
XDrive on carefully.
XVisit a qualified specialist workshop immediately.
If the ABS control unit is defective, there is also a possibility that other systems,such as the navigation system or the automatic transmission, will not be available.
%QThe yellow ABS warning lamp is lit while the engine is running.
ABS is temporarily unavailable. Therefore, BAS, Active Brake Assist, ESP®, EBD(electronic brake force distribution), the HOLD function and hill start assist, forexample, are also deactivated.
Possible causes are:
Rself-diagnosis is not yet complete
Rthe on-board voltage may be insufficient
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the functions listedabove. The front and rear wheels could therefore lock if you brake hard, for exam-ple.
The steerability and braking characteristics may be severely affected. The brakingdistance in an emergency braking situation can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is a risk of an accident.
XCarefully drive a suitable distance, making slight steering movements at a speedabove 12 mph (20 km/h).The functions mentioned above are available again when the warning lamp goesout.
If the warning lamp is still on:
XObserve the additional display messages in the multifunction display.
XDrive on carefully.
XVisit a qualified specialist workshop immediately.
222Warning and indicator lamps in the instrument cluster
On-board computer and displays

Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions

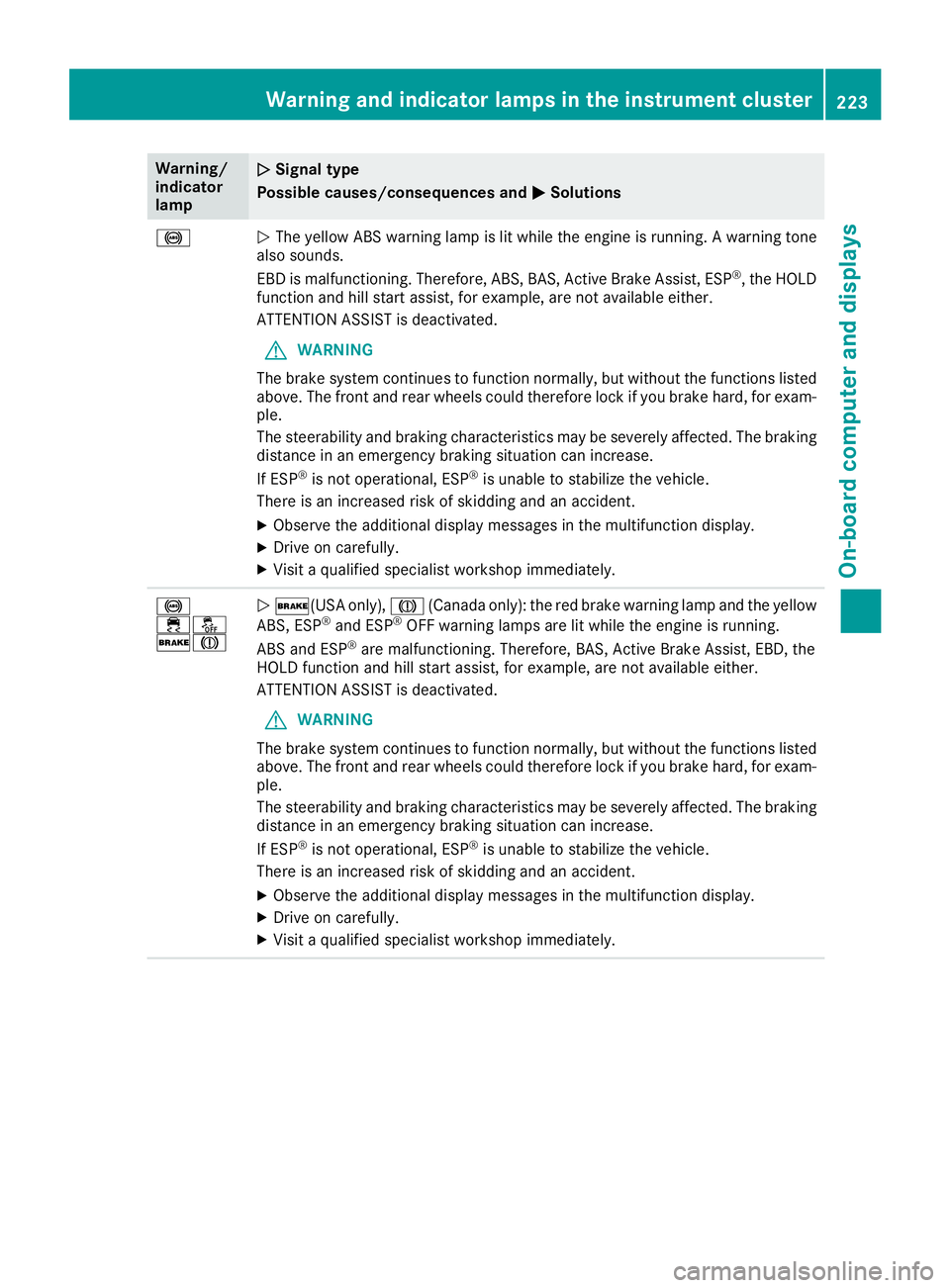

%QThe yellow ABS warning lamp is lit while the engine is running. A warning tonealso sounds.
EBD is malfunctioning. Therefore, ABS, BAS, Active Brake Assist, ESP®, the HOLDfunction and hill start assist, for example, are not available either.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the functions listedabove. The front and rear wheels could therefore lock if you brake hard, for exam-ple.
The steerability and braking characteristics may be severely affected. The brakingdistance in an emergency braking situation can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction display.
XDrive on carefully.
XVisit a qualified specialist workshop immediately.
%

Warning/indicatorlamp
QQSignal type
Possible causes/consequences andPPSolutions
