▼Stop Hold Control (Automatic
Transmission)
While in headway control using the CTS,
your vehicle will stop when a vehicle
ahead stops. When the vehicle is stopped
and the stop hold control operates, the
CTS indicator light turns on.
NOTE
If the CTS is temporarily canceled
during stop hold control, the vehicle is
held in its stopped position.
The parking brake is automatically
applied and the vehicle is held in its
stopped position when 10 minutes or
longer have passed since the stop hold
control operated. When this occurs, the
CTS is temporarily canceled.
The brake lights turn on during stop
hold control.

To resume driving
After the vehicle ahead starts moving
while your vehicle is stopped under stop
hold control, press the RE S switch or
depress the accelerator pedal to cancel the
stop hold control and start driving.
NOTE
When you resume driving by pressing
the RES switch, your vehicle does not
start moving until the distance between
your vehicle and the vehicle ahead
lengthens to the specified distance or
farther.
If the CTS is temporarily canceled,
depress the accelerator pedal and start
driving the vehicle. If the CTS is
temporarily canceled, you cannot
resume driving by pressing the RES
switch when there are no vehicles in
front of your vehicle.
If the vehicle ahead starts moving within
3 seconds after your vehicle is stopped
by the stop hold control, headway
control will continue even if you do not
resume driving your vehicle, such as by
depressing the accelerator pedal.

Vehicle departure information
If you do not resume driving within a few
seconds after the vehicle ahead starts
moving during stop hold control, the
multi-information display vehicle-ahead
indication flashes to urge the driver to
resume driving. If you do not resume
driving after the indicator light flashes, a
sound is activated to urge you to resume
driving.
When Driving
i-ACTIVSENSE
4-149
Mazda3_8HE9-EA-18K_Edition1 2018-10-17 19:05:10

Lane-keep Assist System(LAS)
*
▼Lane-keep Assist System (LAS)
The LAS provides steering assistance to
help the driver stay within the vehicle lane
if the vehicle might be deviating.
The forward sensing camera (FSC) detects
the white lines (ye
llow lines) of the
vehicle lane in which the vehicle is
traveling and if the system determines that
the vehicle may deviate from its lane, it
operates the electri c power steering to
assist the driver’s steering operation. The
system also alerts the driver by displaying
an alert on the mult i-information display
or the active driving display. Use the
system when you drive the vehicle on
roads with white (ye llow) lines such as
expressways and highways.
1. Forward sensing camera (FSC)
WA R N I N G
Do not rely completely on the LAS.
 The LAS is not an automated driving
system. In addition, the system is not
designed to compensate for a driver’s
lack of caution, and over-reliance on the
system could lead to an accident.
The functions of the LAS have limitations.
Always stay on course using the steering
wheel and drive with care.
 Do not use the LAS under the following
circumstances, otherwise it may result in
an accident.
 The vehicle is driven on slippery roads
such as icy or snow-covered roads, and
unpaved roads.
 Tires of a different specified size are
used, such as a temporary spare tire.
 Tires with insufficient tread are used.
 The tire pressures are not adjusted to
the specified pressure.
 The vehicle is being used to tow a
camper or boat trailer.
 Tire chains are used.
 The vehicle is driven on roads with lane
lines other than white (yellow) lines,
such as an expressway.
CAUTION
Heed the following cautions so that the LAS
can operate normally.
Do not modify the vehicle's suspensions.
 Always use wheels of the
specified type
and size for the front and rear wheels.
Consult an Authorized Mazda Dealer for
tire replacement.
NOTE
The system may not operate normally
under the following conditions.
The white (yellow) lane lines are less
visible because of dirt or paint flaking.
White (yellow) lane lines are less visible
because of bad weather (rain, fog, or
snow).
When Driving
i-ACTIVSENSE
4-150*Some models.
Mazda3_8HE9-EA-18K_Edition1 2018-10-17 19:05:10

The vehicle is driven on a temporary
lane or section with a closed lane
resulting from construction where there
might be multiple white (yellow) lane
lines, or they are interrupted.
The camera picks up an obscure line,
such as a temporary line being used for
construction, or because of shade,
unmelted snow, or grooves filled with
water.
The surrounding brightness suddenly
changes such as when entering or
exiting a tunnel.
Back-light is reflected off the road
surface.
The road surface is wet and shiny after
rain, or there are puddles on the road.
The width of a lane is excessively
narrow.
The vehicle is driven on roads with tight
curves.
Heavy luggage is loaded in the luggage
compartment or on the rear seat causing
the vehicle to tilt.
The vehicle is driven through a fork in
the road or a junction.
The shade of a guardrail parallel to a
white (yellow) lane line is cast on the
road.
The illumination of the headlights is
weakened because of dirt or the optical
axis is deviated at night.
The road is excessively uneven.
The vehicle is shaken after hitting a
road bump.
A vehicle in front of your vehicle is
running near a white (yellow) lane line
making it less visible.
The windshield is dirty or foggy.
Strong light is directed from the front of
the vehicle (such as sunlight, or
headlights (high-beam) of on-coming
vehicles).
▼System Operation
When the ignition is switched ON, the
i-ACTIVSENSE status symbol (warning/
risk avoidance suppor
t system) (white)
turns on and the system goes on standby.
NOTE
If the i-ACTIVSENSE status symbol
(warning/risk avoidance support system)
(white) does not turn on, the system is
canceled using the i-ACTIVSENSE switch
or the personalization feature.
Operation conditions
When all of the foll owing conditions are
met, the i-ACTIVSENSE status symbol
(warning/risk avoidance support system)
on the multi-information display changes
from white to green and the system
becomes operational.
The ignition is switched ON.
The vehicle speed is about 64 km/h (40
mph) or faster.
The system detects white (yellow) lane
lines.
When Driving
i-ACTIVSENSE
4-151
Mazda3_8HE9-EA-18K_Edition1 2018-10-17 19:05:10

NOTE
When the system does not detect a white
(yellow) lane line on one side only, the
system does not operate on the side that is
not being detected.
When temporarily canceling the system
The LAS goes on standby in the following
cases: The LAS opera tion is automatically
restored when the system's operation
conditions are met.
The system cannot detect white (yellow)
lane lines.
The vehicle speed is less than about 56
km/h (35 mph).
The turn signal lever is operated.
The accelerator pedal is depressed
abruptly.
The TCS/DSC is operating.
The DSC is turned off.
The steering wheel is operated.
The brake pedal is operated.
The function is temporarily stopped.
The LAS stops functioning in the
following cases:
The temperature in the forward sensing
camera (FSC) is high or low.
The windshield around the forward
sensing camera (FSC) is foggy.
The windshield around the forward
sensing camera (FSC) is blocked by an
obstruction, causing poor forward
visibility.
Strong light (such as sunlight, or
headlights (high-beam) of on-coming
vehicles) is directed at the forward
sensing camera (FSC).
System malfunction
If there is a problem w ith the system, the
i-ACTIVSENSE status symbol (warning/
risk avoidance suppo rt system) (white)
and the i-ACTIVSENSE warning
indication/warning light on the
multi-information di splay turns on and a
message is indicated.
Refer to i-ACTIVSENSE Status Symbol
(Warning/Risk Avoidance Support
System) on page 4-84.
▼ Steering Wheel Operation Assist
When the system determines that the
vehicle might be deviating from its lane,
the steering wheel operation assist
operates.
The system notifies
the driver of the
direction in which t he system provided
steering wheel operation assistance on the
multi-information di splay and the active
driving display.
Multi-information display
Active drivin g display
When Driving
i-ACTIVSENSE
4-152
Mazda3_8HE9-EA-18K_Edition1 2018-10-17 19:05:10

NOTE
When the driver operates the steering
wheel while the steering wheel operation
assist is operating, the steering wheel
operation assistance is canceled.
▼System Canceling
The LAS can be set to inoperable.
(If only the LAS is turned off)
Refer to the Settings section in the
Mazda Connect Owner's Manual.
(If the LAS is turned off by operating
the i-ACTIVSENSE switch)
Refer to i-ACTIVSENSE Switch on
page 4-85.
NOTE
When the ignition is switched OFF, the
system status before it was turned off is
maintained. For example, if the ignition is
switched OFF with th
e LAS operable, the
LAS remains operationa l the next time the
ignition is switched ON.
Smart Brake Support
(SBS)
*
▼Smart Brake Support (SBS)
The SBS alerts the driver of a possible
collision using the wa
rning indications in
the display and a warning sound if the
front radar sensor and Forward Sensing
Camera (FSC) determine that there is the
possibility of a collision with a vehicle
ahead, pedestrian, or a bicycle.
Furthermore, if a collision is unavoidable,
the automatic brake control is performed
to reduce damage in the event of a
collision. In addition, when the driver
depresses the brake pe dal, the brakes are
applied firmly and quickly to assist.
(Vehicles with Driver Monitoring (DM))
When the SBS determines that the driver
is not paying attention to the road using
the driver monitoring camera and it
determines that there is the possibility of a
collision with an obs truction, the SBS
activates the collision warning earlier than
normal.
WA R N I N G
Do not rely completely on the SBS.
The SBS is only designed to reduce damage
in the event of a collision.
The ability to detect obstructions is limited
depending on the obstructions, weather
conditions, or traffic conditions. Over
reliance on the system leading to the
accelerator pedal or brake pedal being
mistakenly operated could result in an
accident.
When Driving
i-ACTIVSENSE
*Some models.4-153
Mazda3_8HE9-EA-18K_Edition1 2018-10-17 19:05:10

CAUTION
In the following cases, turn the system off
to prevent an unexpected operation.
The vehicle is being towed or when
towing another vehicle.
 The vehicle is on a chassis roller.
 When driving on rough roads such as in
areas of dense grass or off-road.
See the next page on how to turn off the
system.
Refer to Stopping the Smart Brake
Support (SBS) System Operation on page
4-155.
Operation conditions
The SBS operates when all of the
following conditions are met.
The ignition i s switched ON.
The SBS is on.
The i-ACTIVSENSE warning
indication/warning light is not turned
on.
(Object is vehicle ahead)
The vehicle speed is about 4 km/h (2
mph) or higher.
(Object is a pedestrian or bicycle)
The vehicle speed is between about 10
to 80 km/h (6.2 to 50 mph).
The DSC does not operate.
NOTE
Under the following conditions, the SBS
may not operate.
If there is the possib ility of hitting only
a part of a vehicle or obstruction
ahead.
You are driving your vehicle at the
same speed as the vehicle ahead.
When the driver deliberately performs
driving operations (accelerator
operation, steering wheel operation).
The accelerator pedal is depressed
abruptly.
The brake pedal is being depressed.
The steering wheel is being operated.
The selector lever is being shifted.
The turn signal lever is being
operated.
When warnings and messages, such
as a dirty windshield, related to the
Forward Sensing Camera (FSC) or
front radar sensor are being displayed
on the multi-information display.
The SBS may operate under the
following conditions.
There is an object in the road at the
entrance to a curve (including
guardrails and snow banks).
Passing an approaching vehicle while
rounding a curve.
When crossing a narrow bridge, and
passing through low gates, narrow
gates, car washing machines, or
tunnels.
When passing through a toll gate.
When entering an underground
parking area.
There is a metal object, bump, or a
protruding object on the road.
If you suddenly come close to a
vehicle ahead.
There is an animal, wall, or tree.
Notifies the driver with a warning
indication on the multi-information
display and the active driving display
(vehicles with active driving display)
while the system is operating.
When Driving
i-ACTIVSENSE
4-154
Mazda3_8HE9-EA-18K_Edition1 2018-10-17 19:05:10

If a malfunction is detected or the
system temporarily stops the function
due to dirty sensors (such as radar
sensor or Forward Sensing Camera
(FSC)), the i-ACTIVSENSE warning
indication/warning light turns on and a
message is displayed on the
multi-information display and active
driving display.
On a manual transmission vehicle, the
engine stops if the clutch pedal is not
depressed when the vehicle is stopped by
the SBS brake operation.
If the vehicle is stopped by the SBS
brake operation and the brake pedal is
not depressed, the SBS brake is
automatically released after about 2
seconds.
▼ Collision Warning
When there is a possib
ility of a collision
with a vehicle ahead, the collision warning
sound is activated continuously and a
warning is displayed on the
multi-information display and the active
driving display.
Multi-information display
1. “BRAKE!” message is displayed

Active driving display
1. “BRAKE!” message is displayed
NOTE
The collision warning sound is activated
intermittently while the SBS brake or
brake assist (SBS brake assist) is
operating.
The operation distance and volume of
the collision warning can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼ Stopping the Smart Brake Support
(SBS) System Operation
The SBS can be changed to inoperable.
(If only the SBS is turned off)
Refer to the Settings section in the
Mazda Connect Owner's Manual.
(If the SBS is turned off by operating
the i-ACTIVSENSE switch)
Refer to i-ACTIV
SENSE Switch on
page 4-85.
When turning off the SBS, the SBS OFF
indicator light turns on.
NOTE
If the engine is stopped with the SBS
turned off, the SBS becomes operational
when the engine is started the next time.
When Driving
i-ACTIVSENSE
4-155
Mazda3_8HE9-EA-18K_Edition1 2018-10-17 19:05:10

Smart Brake Support[Rear] (SBS-R)
*
▼Smart Brake Support [Rear]
(SBS-R)

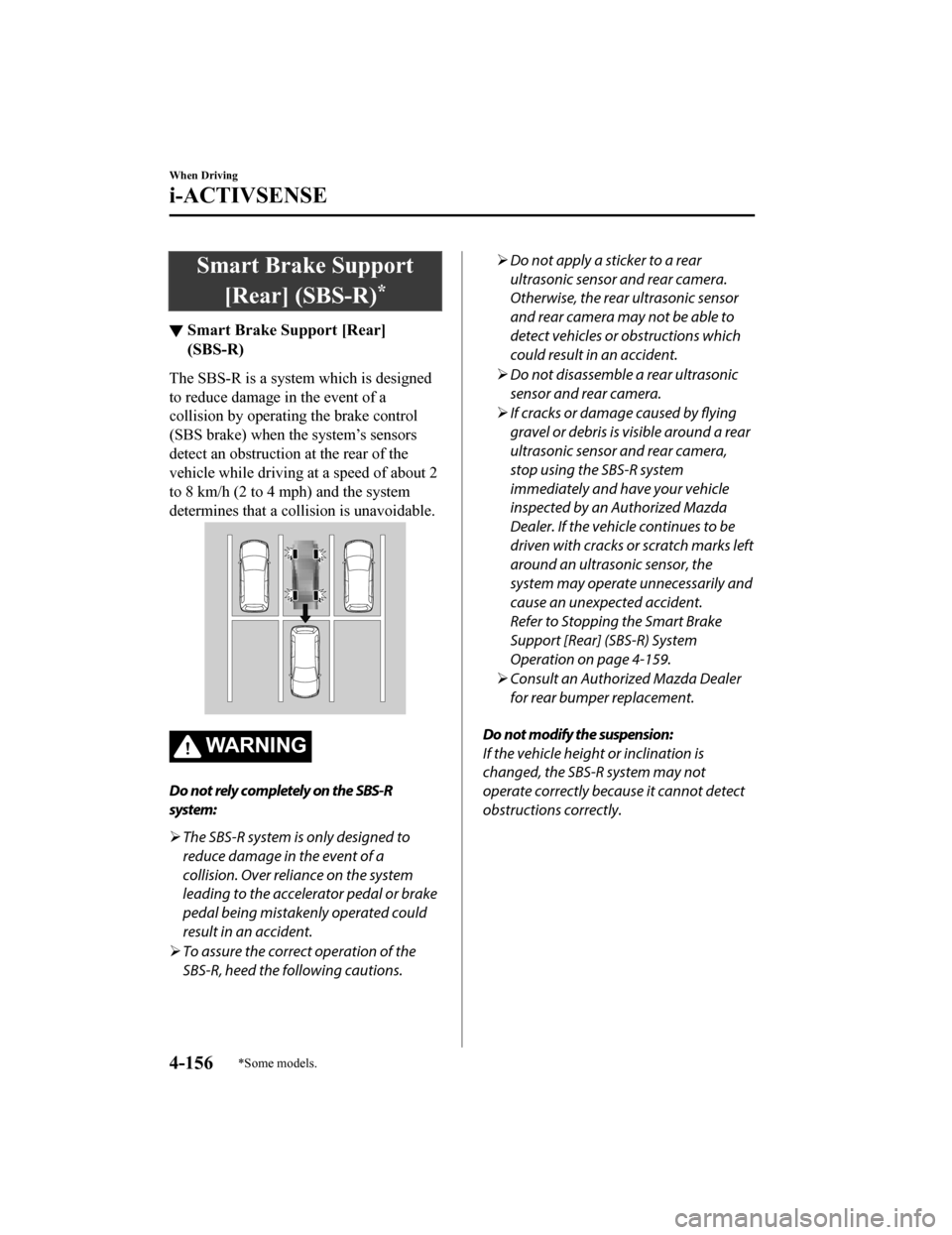

The SBS-R is a syste m which is designed
to reduce damage in the event of a
collision by operating the brake control
(SBS brake) when the system’s sensors
detect an obstruction at the rear of the
vehicle while driving at a speed of about 2
to 8 km/h (2 to 4 mph) and the system
determines that a collision is unavoidable.
WARNING
Do not rely completely on the SBS-R
system:
 The SBS-R system is only designed to
reduce damage in the event of a
collision. Over reliance on the system
leading to the accelerator pedal or brake
pedal being mistakenly operated could
result in an accident.
 To assure the correct operation of the
SBS-R, heed the following cautions.
 Do not apply a sticker to a rear
ultrasonic sensor and rear camera.
Otherwise, the rear ultrasonic sensor
and rear camera may not be able to
detect vehicles or obstructions which
could result in an accident.
 Do not disassemble a rear ultrasonic
sensor and rear camera.
 If cracks or damage caused by flying
gravel or debris is visible around a rear
ultrasonic sensor and rear camera,
stop using the SBS-R system
immediately and have your vehicle
inspected by an Authorized Mazda
Dealer. If the vehicle continues to be
driven with cracks or scratch marks left
around an ultrasonic sensor, the
system may operate unnecessarily and
cause an unexpected accident.
Refer to Stopping the Smart Brake
Support [Rear] (SBS-R) System
Operation on page 4-159.
 Consult an Authorized Mazda Dealer
for rear bumper replacement.
Do not modify the suspension:
If the vehicle height or inclination is
changed, the SBS-R system may not
operate correctly because it cannot detect
obstructions correctly.
When Driving
i-ACTIVSENSE
4-156*Some models.
Mazda3_8HE9-EA-18K_Edition1 2018-10-17 19:05:10
