2019 LEXUS RCF Owners Manual

4577-2. Steps to take in an emergency
RC F_U 7
When trouble arises ■
SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors, side
impact sensors (door), side impact sensors (front), side im pact sensors (rear), driver’s
seat position sensor, driver’s seat belt buckle switch, front passenger occupant classifica-
tion system, “AIR BAG ON” indicator light, “A IR BAG OFF” indicator light, front passen-
ger’s seat belt buckle switch, seat belt pretensioners, airbags, interconnecting wiring and
power sources. (  P. 41) ■
Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passenger
is not sitting in the seat. ■
If the malfunction indicator lamp comes on while driving
First check the following: ●
Is the fuel tank empty?
If it is, fill the fu el tank immediately.●
Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after severa l trips, contact your Lexus dealer as soon as
possible. ■
Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficien t or the voltage temporarily drops, the
electric power steering system warning li ght may come on and the warning buzzer may
sound. ■
When the tire pressure warning light comes on
Check the tire inflation pressu re and adjust to the approp riate level. Pushing the tire
pressure warning reset switch will not tu rn off the tire pressure warning light.■
The tire pressure warning light ma y come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air
leaks and tire inflation pressure changes caus ed by temperature. In this case, adjusting
the tire inflation pressure will turn off the warning light (aft er a few minutes).■
When a tire is replaced with the spare tire (if equipped)
The spare tire is not equipped with a tire pr essure warning valve and transmitter. If a tire
goes flat, the tire pressure warning light will not turn off even though the flat tire has been
replaced with the spare tire. ■
Conditions that the tire pressure wa rning system may not function properly
 P. 417 ■
If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mo de, have it checked by your Lexus dealer.■
Warning buzzer
In some cases, the buzzer ma y not be heard due to being in a noisy location or audio
sound.

458 7-2. Steps to take in an emergency
RC F_U WARNING ■
If both the ABS and the brake sy stem warning lights remain on
Stop your vehicle in a safe place immediat ely and contact your Lexus dealer. The vehi-
cle will become extremely unstable during br aking, and the ABS system may fail, which
could cause an accident resultin g in death or serious injury.■
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
When steering wheel operations are heavier than usual, grip the steering wheel firmly
and operate it using more force than usual. ■
If the tire pressure warning light comes on
Be sure to observe the following precaution s. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
Vehicles with a spare tire ●
Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately. ●
If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire . Check the tires. If a tire is flat, change it
with the spare tire and have the flat tire repaired by the nearest Lexus dealer. ●
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes. 
Vehicles with an emergency tire puncture repair kit ●
Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately. ●
If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you ha ve a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit. ●
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes. ■
If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

4597-2. Steps to take in an emergency
RC F_U 7
When trouble arises WARNING ■
Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle ha s been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should st op and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a si gnificantly under-inflat ed tire causes the
tire to overheat and can lead to tire failure . Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is th e driver’s responsibility to ma intain correct tire pressure,
even if under-inflation has not reached the le vel to trigger illumina tion of the TPMS low
tire pressure telltale (tir e pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one mi nute and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicl e start-ups as long as the
malfunction exists. When the malfunction in dicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning system) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressu re warning system) to continue to function
properly.
NOTICE ■
To ensure the tire pressure warning system operates properly
Do not install tires with different specificatio ns or makers, as the tire pressure warning
system may not operate properly.

460 7-2. Steps to take in an emergency
RC F_U Master warning light
The master warning light also comes on or flashes in order to indicate that a
message is currently being displaye d on the multi-information display.
Multi-information display
If any of the warning messages is show n again after the following actions have
been performed, contact your Lexus dealer.If a warning message is displayed If a warning is shown on the multi-info rmation display, stay calm and perform
the following actions: 
RC350/RC300
(except F SPORT models) 
RC350/RC300
(F SPORT models: main meter in
center position) 
RC350/RC300
(F SPORT models: main meter
moved to the right) 
RC F
1
2

4617-2. Steps to take in an emergency
RC F_U 7
When trouble arises Warning message and warning buzzer list Warning message Details/Actions
Indicates that there is a high possibility of a frontal colli-
sion, or that the pre-collision braking function is operat-
ing
A buzzer also sounds.
 Avoid the collision by decelerating using the brakes
or taking other evasive actions.
Indicates that the engine was stopped with the shift lever
not in P
A buzzer also sounds.
 Shift the shift lever to P.
Indicates that the engine was stopped while driving
A buzzer also sounds.
 Stop the vehicle in a safe place such as the shoulder
of a road.
Indicates that your vehicle is nearing the vehicle ahead
(in vehicle-to-vehicle distance control mode)
A buzzer also sounds.
 Slow the vehicle by applying the brakes.(Flashes)
(Flashes)

462 7-2. Steps to take in an emergency

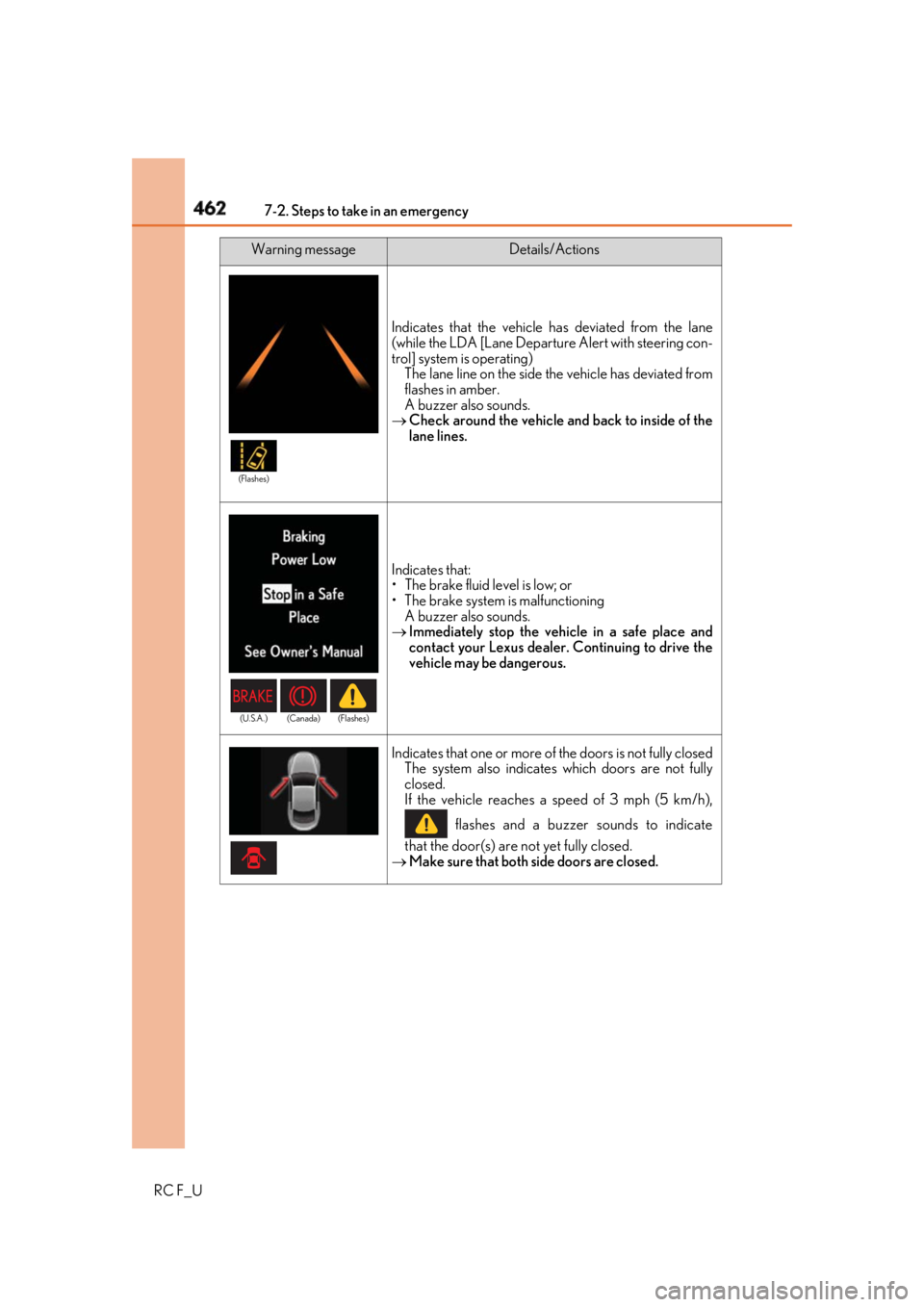

RC F_U Indicates that the vehicle has deviated from the lane
(while the LDA [Lane Departure Alert with steering con-
trol] system is operating)
The lane line on the side the vehicle has deviated from
flashes in amber.
A buzzer also sounds.
 Check around the vehicle and back to inside of the
lane lines.
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer. Continuing to drive the
vehicle may be dangerous.
Indicates that one or more of the doors is not fully closed
The system also indicates which doors are not fully
closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the door(s) are not yet fully closed.
 Make sure that both side doors are closed.Warning message Details/Actions(Flashes)
(U.S.A.) (Canada) (Flashes)

4637-2. Steps to take in an emergency
RC F_U 7
When trouble arises Indicates that the hood is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the hood is not yet fully closed.
 Close the hood.
Indicates that the trunk is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the trunk is not yet fully closed.
 Close the trunk. (If equipped)
Indicates a malfunction in the intuitive parking assist-sen-
sor
The assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer. (If equipped)
Indicates that an intuitive par king assist sensor is dirty or
covered with ice
A buzzer also sounds.
 Clean the sensor.Warning message Details/Actions

464 7-2. Steps to take in an emergency

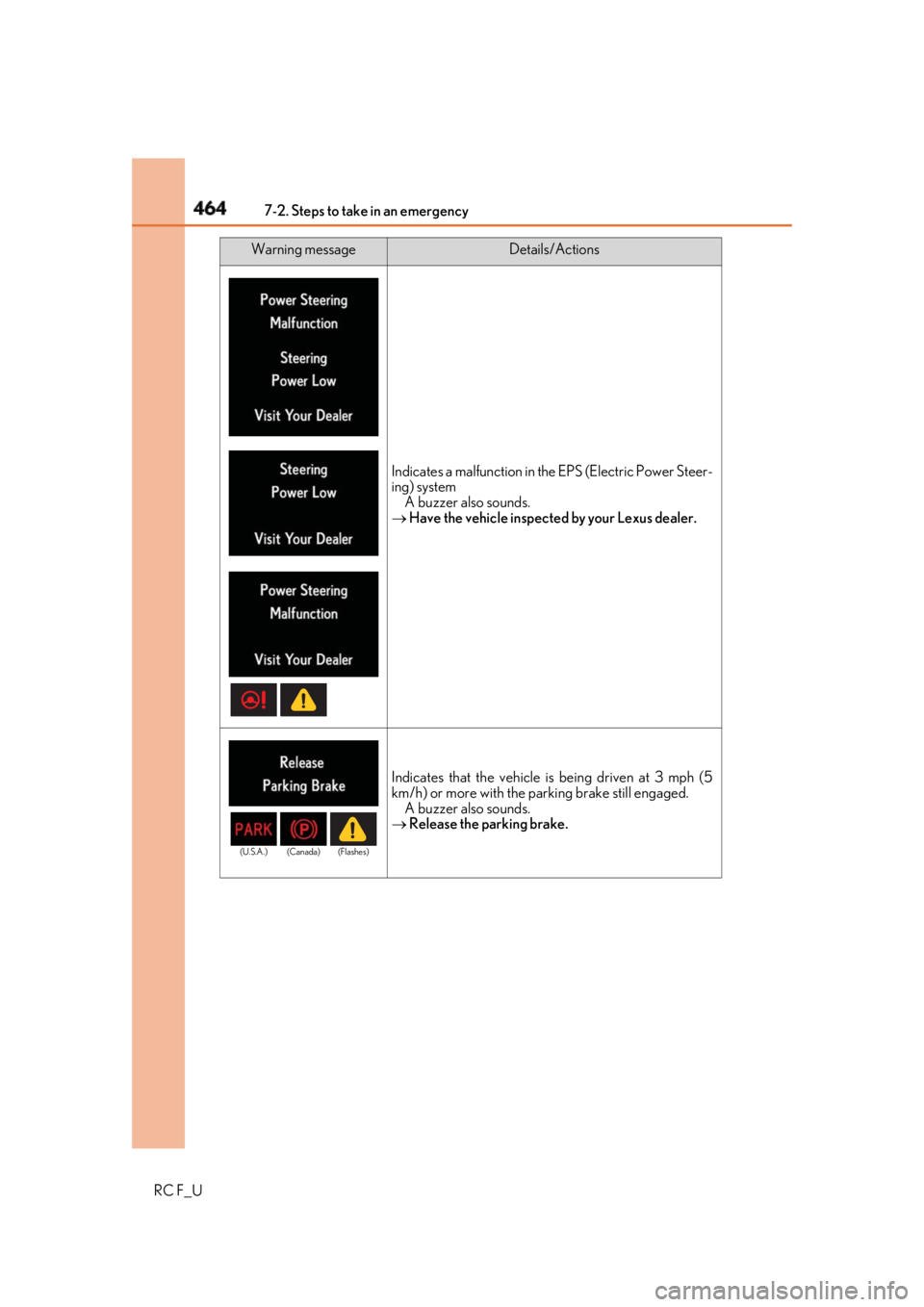

RC F_U Indicates a malfunction in th e EPS (Electric Power Steer-
ing) system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates that the vehicle is being driven at 3 mph (5
km/h) or more with the pa rking brake still engaged.
A buzzer also sounds.
 Release the parking brake.Warning message Details/Actions
(U.S.A.) (Canada) (Flashes)
