2019 Lexus ES300h Owner's Manual (OM33D00U)

3056-1. Maintenance and care
6
Maintenance and care
tion display, the filter may be clogged.
Remove the air intake vent cover and
clean the filter.
1Turn the power switch off.
2 Using a Phillips screwdriver,
remove the clip.
3 Remove the air intake vent cover.
1 Pull the cover as shown in the illus-
tration to disengage the 7 claws,
starting from the claw in the upper
right corner.
2 Pull the cover toward the front of
the vehicle to remove it. 4
Remove the air intake vent filter.
1 Disengage the 3 claws as shown in
the illustration.
2 Remove the filter from the cover.
5 Remove the dust and clogs from
the filter using a vacuum cleaner,
etc.
Make sure to also remove the dust and
clogs from the inside of the air intake vent
cover.

3066-1. Maintenance and care
6Reinstall the filter to the cover.
1 Engage the filter to the 2 claws as
shown in the illustration.
2 Engage the 3 claws to install the fil-
ter.
Make sure that the filter is not crooked or
deformed when installing it.
7Install the air intake vent cover.
1 Insert the tab of the cover as shown
in the illustration.
2 Push the cover to engage the 7
claws. 8
Using a Phillips screwdriver, install
the clip.
■Scheduled maintenance of the air
intake vent filter is necessary when
In some situations such as when the vehicle
is used frequently or in heavy traffic or dusty
areas, the air intake vent filter may need to
be cleaned more regularly.
For details, refer to “Owner’s Manual Sup-
plement” or “Scheduled Maintenance”.
■Air intake vent maintenance
●If the vehicle is driven with the air intake
vent clogged, the hybrid battery (traction
battery) may overheat and the fuel con-
sumption may increase.
●Depending on the conditions under
which the vehicle is used, the air intake
vent may need to be cleaned more regu-
larly.
■Cleaning the air intake vent filter
●Improper handling of the air intake vent
cover and filter may result in damage to
them. If you have any concerns about
cleaning the filter, contact your Lexus
dealer.
●If the vehicle is driven with the air intake
vent filter clogged, the hybrid battery
(traction battery) may overheat and the
fuel consumption may increase.
●Depending on the conditions under
which the vehicle is used, the air intake
vent filter may need to be cleaned more
regularly.

3076-1. Maintenance and care
6
Maintenance and care
■If “Maintenance required for Traction
battery cooling parts See owner’s man-
ual” is displayed on the multi-informa-
tion display
●If this warning message is displayed on
the multi-information display, remove the
air intake vent cover and clean the filter.
●After cleaning the air intake vent, start
the hybrid system and check that the
warning message is no longer displayed.
After the hybrid system is started, it may
be necessary to drive the vehicle up to
approximately 20 minutes before the
warning message disappears. If the warn-
ing message does not disappear after
driving for appropriately 20 minutes,
have the vehicle inspected by your Lexus
dealer.
 Remove dirt using a water-damp-
ened soft cloth or synthetic chamois.
 Wipe the surface with a dry soft
cloth to remove any remaining
moisture.
WARNING
■When cleaning the hybrid battery
(traction battery) air intake vent/fil-
ter
●Do not use water or other liquids to
clean the air intake vent/filter. If water
is applied to the hybrid battery (trac-
tion battery) or other components, a
malfunction or fire may occur.
●When the air intake vent cover (under
the right side of the rear seat) is to be
removed, make sure to turn the power
switch off to stop the hybrid system.
■When removing the air intake vent
cover
Do not touch the service plug located
near the air intake vent. ( P.57)
NOTICE
■When cleaning the air intake vent
Observe the following precautions. Fail-
ure to do so may cause damage to the
vehicle.
●When cleaning the air intake vent,
make sure to only use a vacuum to
suck out dust and clogs. If a com-
pressed air blow gun, etc. is used to
blow out dust and clogs, the dust or
clogs may be pushed into the air intake
vent.
●Do not allow water or foreign matter to
enter the air intake vent when the
cover is removed.
●Carefully handle the removed filter so
that it will not to damage.
If the filter is damaged, have it replaced
with a new filter by your Lexus dealer.
●Make sure to reinstall the filter and
cover to its original positions after
cleaning.
●Do not install anything to the air intake
vent other than the exclusive filter for
this vehicle or use the vehicle without
the filter installed.
●Do not drive continuously with the
message “Maintenance Required for
Traction Battery Cooling Parts See
Owner’s Manual” displayed. If the
warning message is displayed, clean
the air intake vent immediately.
Cleaning the areas with satin-fin-
ish metal accents

3086-1. Maintenance and care
■Cleaning the areas with satin-finish
metal accents
The metal areas use a layer of real metal for
the surface. It is necessary to clean them
regularly. If dirty areas are left uncleaned for
long periods of time, they may be difficult to
clean.
 Remove dirt and dust using a vac-
uum cleaner.
 Wipe off any excess dirt and dust
with a soft cloth dampened with
diluted detergent.
Use a diluted water so lution of approxi-
mately 5% neutral wool detergent.
 Wring out any excess water from
the cloth and thoroughly wipe off all
remaining traces of detergent.
 Wipe the surface with a dry soft
cloth to remove any remaining
moisture. Allow the leather to dry in
a shaded and ventilated area.
■Caring for leather areas
Lexus recommends cleaning the interior of
the vehicle at least twice a year to maintain
the quality of the vehicle’s interior.
 Remove dirt and dust using a vac-
uum cleaner.
 Wipe it off with a soft cloth damp-
ened with neutral detergent diluted
to approximately 1%.
 Wring out any excess water from
the cloth and thoroughly wipe off remaining traces of detergent and
water.
Cleaning the leather areas
Cleaning the synthetic leather
areas

3096-2. Maintenance
6
Maintenance and care
6-2.Maintenance
■Repair and replacement
It is recommended that genuine Lexus parts
be used for repairs to ensure performance
of each system. If non-Lexus parts are used
in replacement or if a repair shop other than
a Lexus dealer perfor ms repairs, confirm
the warranty coverage.
■Allow inspection and repairs to be per-
formed by a Lexus dealer
●Lexus technicians are well-trained spe-
cialists and are kept up to date with the
latest service information. They are well
informed about the operations of all sys-
tems on your vehicle.
●Keep a copy of the repa ir order. It proves
that the maintenance that has been per-
formed is under warra nty coverage. If any
problem should arise while your vehicle is
under warranty, your Lexus dealer will
promptly take care of it.
General maintenance should be per-
formed on a daily basis. This can be
done by yourself or by a Lexus dealer.
Scheduled maintenance should be
performed at specified intervals
according to the maintenance sched-
ule.
For details about ma intenance items and
schedules, refer to the “Warranty and Ser-
vice Guide”, “Owner’s Manual Supple-
ment” or “Scheduled Maintenance”.
■Resetting the message indicating main-
tenance is required
After the required maintenance is per-
formed according to the maintenance
schedule, please reset the message.
To reset the message, follow the procedure
described below:
1 Press or of the meter control
switches and select .
2 Press or of the meter control
switches and select “Vehicle Settings”.
Then press “OK”.
Maintenance requirements
To ensure safe and economical driv-
ing, day-to-day care and regular
maintenance are essential. It is the
owner’s responsibility to perform
regular checks. Lexus recommends
the following maintenance:
WARNING
■If your vehicle is not properly main-
tained
Improper maintenanc e could result in
serious damage to the vehicle and possi-
ble death or serious injury.
■Handling of the 12-volt battery
●Engine exhaust, some of its constitu-
ents, and a wide variety of automobile
components contain or emit chemicals
known to the State of California to
cause cancer and birth defects and
other reproductive harm. Work in a
well ventilated area.
●Oils, fuels and fluids contained in vehi-
cles as well as waste produced by
component wear contain or emit
chemicals known to the State of Cali-
fornia to cause cancer and birth
defects or other re productive harm.
Avoid exposure and wash any affected
area immediately.
●12-volt battery post s, terminals and
related accessories contain lead and
lead compounds which are known to
cause brain damage. Wash your hands
after handling. ( P.323)
General maintenance
Scheduled maintenance

3106-2. Maintenance
3Press or of the meter control
switches and select “Scheduled Mainte-
nance”. Then press “OK”.
4 Select “Yes” and press “OK”.
A message will be disp layed when the reset
procedure has been completed.
You can perform some maintenance
procedures by yourself.
Please be aware that do-it-yourself
maintenance may affect warranty cov-
erage.
The use of Lexus repair manuals is recom-
mended.
For details about warra nty coverage, refer
to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Man-
ual Supplement” or “Warranty Booklet”.
Do-it-yourself maintenance
General maintenance
Listed below are the general main-
tenance items that should be per-
formed at the intervals specified in
the “Warranty and Service Guide”
or “Owner’s Manual Supplement”.
It is recommended that any prob-
lem you notice should be brought to
the attention of your Lexus dealer
or qualified service shop for advice.
WARNING
■If the hybrid system is operating
Turn the hybrid system off and ensure
that there is adequate ventilation before
performing maintenance checks.
Engine compartment
ItemsCheck points
Brake fluid
Is the brake fluid at the
correct level?
(  P.322)
Engine/power
control unit cool-
antIs the engine/power
control unit coolant at
the correct level?
( P.320)
Engine oil
Is the engine oil at the
correct level?
( P.318)
Exhaust system
There should not be
any fumes or strange
sounds.

3116-2. Maintenance
6
Maintenance and care

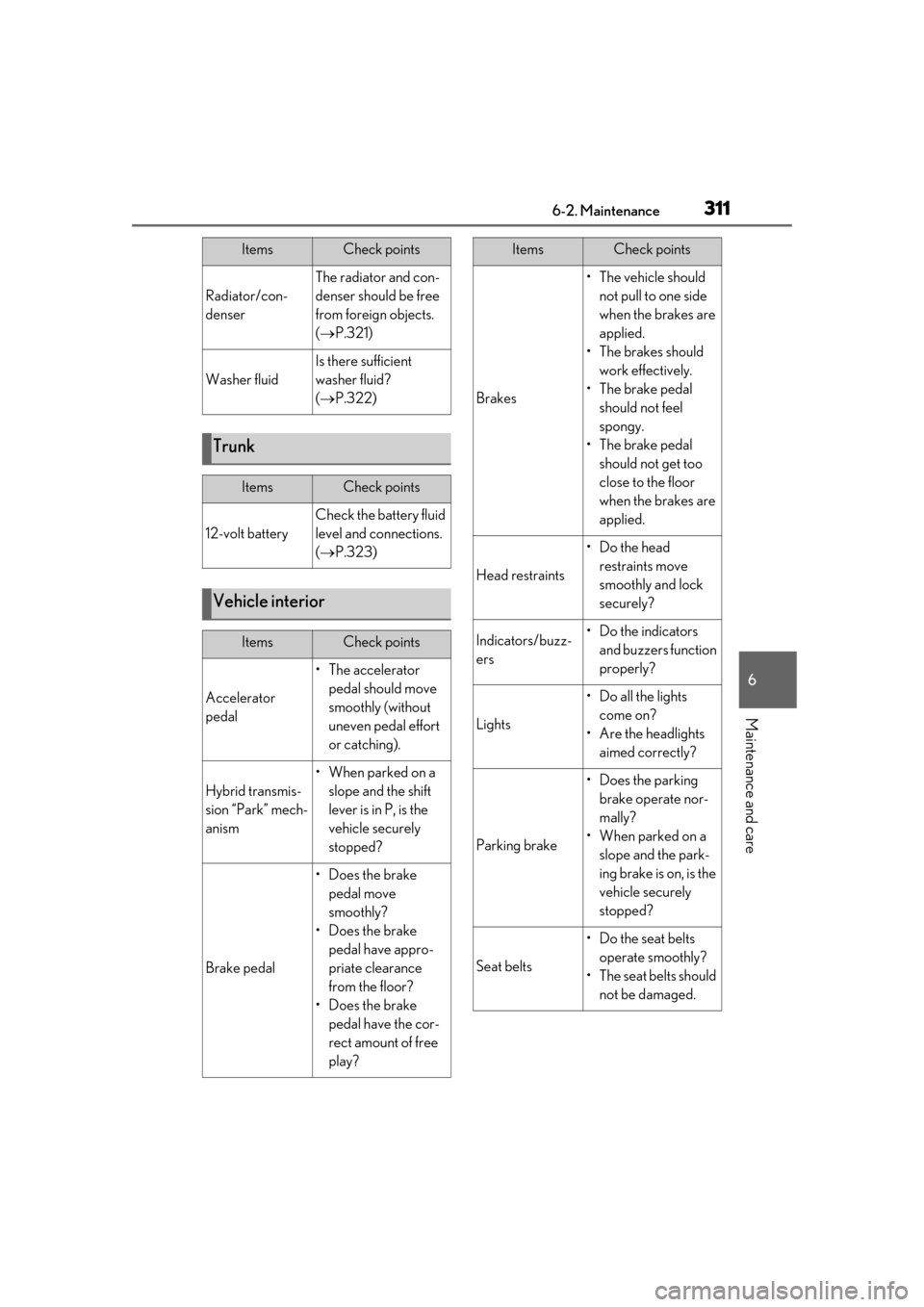

Radiator/con-
denser
The radiator and con-
denser should be free
from foreign objects.
( P.321)
Washer fluid
Is there sufficient
washer fluid?
( P.322)
Trunk
ItemsCheck points
12-volt battery
Check the battery fluid
level and connections.
( P.323)
Vehicle interior
ItemsCheck points
Accelerator
pedal
• The accelerator
pedal should move
smoothly (without
uneven pedal effort
or catching).
Hybrid transmis-
sion “Park” mech-
anism
•When parked on a slope and the shift
lever is in P, is the
vehicle securely
stopped?
Brake pedal
•Does the brake pedal move
smoothly?
•Does the brake
pedal have appro-
priate clearance
from the floor?
•Does the brake pedal have the cor-
rect amount of free
play?
ItemsCheck points
Brakes
•The vehicle should not pull to one side
when the brakes are
applied.
• The brakes should work effectively.
• The brake pedal should not feel
spongy.
• The brake pedal should not get too
close to the floor
when the brakes are
applied.
Head restraints
•Do the head restraints move
smoothly and lock
securely?
Indicators/buzz-
ers•Do the indicators and buzzers function
properly?
Lights
• Do all the lights come on?
• Are the headlights aimed correctly?
Parking brake
• Does the parking brake operate nor-
mally?
• When parked on a slope and the park-
ing brake is on, is the
vehicle securely
stopped?
Seat belts
• Do the seat belts operate smoothly?
• The seat belts should not be damaged.
ItemsCheck points

3126-2. Maintenance
Seats• Do the seat controls operate properly?
Steering wheel
• Does the steering wheel rotate
smoothly?
• Does the steering wheel have the cor-
rect amount of free
play?
•There should not be any strange sounds
coming from the
steering wheel.
Vehicle exterior
ItemsCheck points
Doors/trunk• Do the doors/trunk operate smoothly?
Engine hood
•Does the engine hood lock system
work properly?
Fluid leaks
•There should not be any signs of fluid
leakage after the
vehicle has been
parked.
ItemsCheck points
Tires
• Is the tire inflation pressure correct?
• The tires should not be damaged or
excessively worn.
• Have the tires been rotated according to
the maintenance
schedule?
• The wheel nuts should not be loose.
Windshield wip-
ers
• The wiper blades should not show any
signs of cracking,
splitting, wear, con-
tamination or defor-
mation.
• The wiper blades should clear the
windshield without
streaking or skip-
ping.
ItemsCheck points
