2019 KIA SPORTAGE Owners Manual

Maintenance
72
8
Fuse NameFuse ratingCircuit Protected
FUSE
B+ 450ASmart Junction Block (Fuse - AWD, P/SEAT (DRV), P/SEAT (PASS), TAIL GATE OPEN, DOOR
LOCK, Leak Current Autocut Device Relay)
COOLING FAN 150ACooling Fan 1 Relay
ABS 140AESC Control Module, Multipurpose Check Connector
POWER
TAIL GATE40APower Tail Gate Module
ABS 240AESC Module
COOLING FAN 340ACooling Fan 1 Relay
E-CVVT 120APCM
E-CVVT 220APCM
WIPER FRT 130A[W/O Smart Key] Ignition Switch, [With Smart Key] PDM (IG2) Relay
TCU 115APCM
WIPER FRT 210ABCM, PCM

873
Maintenance
Fuse NameFuse ratingCircuit Protected
FUSE
ECU 320APCM
HORN15AHorn Relay
BATTERY
MANAGEMENT10ABattery Sensor
SENSOR 210AFuel Pump Relay, Oil Control Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, RCV
Control Solenoid Valve
SENSOR 115AOxygen Sensor (Up/Down)
ECU 2 20AIgnition Coil #1/#2/#3/#4
ECU 415APCM
SENSOR 310AE/R Junction Block (Cooling Fan 1 Relay), Canister Close Valve
FUEL PUMP20AFuel Pump Relay
AEB10AAEB Sensor
MODULE7.5AStop Lamp Switch

Maintenance
74
8
Fuse NameFuse ratingCircuit Protected
FUSE
B/ALARM
HORN10AE/R Junction Block (B/Alarm Horn Relay)
H/LAMP HI10ABI-Function H/LP Relay
ABS 310AESC Module
POWER
OUTLET 120AFront Power Outlet #2
ECU 610APCM
TCU 215ATransaxle Range Switch
B/UP LAMP10ARear Bumper Lamp LH/RH, Electro Chromic Mirror
POWER
OUTLET 220ARear Power Outlet
ECU 130AEngine Control Relay
DEICER15AE/R Junction Block (Deicer Relay)
VACUUM PUMP 120AVacuum Pump
VACUUMPUMP 215AVacuum Pump, Cooling Fan Motor, Vacuum Switch

875
Maintenance
Relay NameType
Cooling Fan 1 RelayMINI
Rear Defogger RelayMICRO
B/A Horn RelayMICRO
Deicer RelayMICRO
Cooling Fan 2 RelayMICRO
Start RelayMICRO
Blower RelayMICRO
Relay

Maintenance
76
8

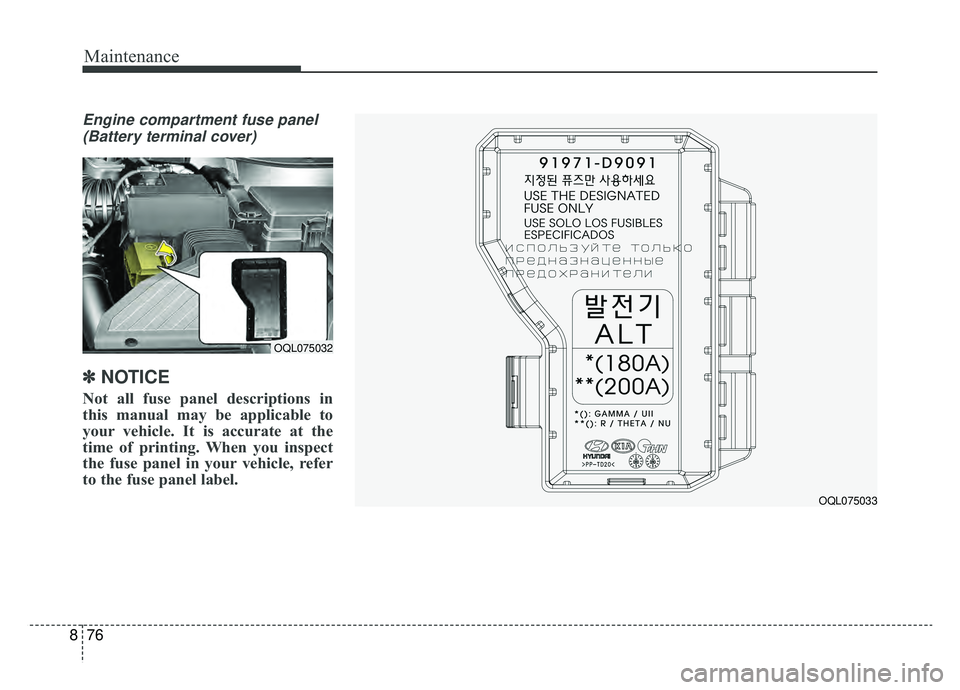

Engine compartment fuse panel
(Battery terminal cover)
✽ ✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OQL075032
OQL075033

877
Maintenance
LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 9.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
Use only bulbs of the specifiedwattage.✽ ✽ NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
WARNING- Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.

Maintenance
78
8
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.Light bulb position (Front)
OQLA075038
OQLA075039
■ Head lamp - Type A
■Head lamp - Type BOQLA075040
OQLA075041
■Fog lamp - Type A
■Fog lamp - Type B
(1) Headlamp (Low/High)
(2) Front turn signal lamp
(3) Day time running lamp
/Position lamp (Bulb type)
(4) Day time running lamp /Position lamp (LED type) (5) Side marker
(6) Front fog lamp (Bulb type)
(7) Front fog lamp (LED type)

879
Maintenance
Light bulb position (Rear)(1) Tail lamp (BULB type)
(2) Stop and tail lamp (BULB type)
(3) Stop lamp (LED type)
(4) Stop and tail lamp (LED type)
(5) Side marker
(6) Rear turn signal lamp
(7) Back up lamp
(8) License plate lamp
(9) High mounted stop lamp
OQLA075042
OQLA075043
OQLA075044
■Rear combination lamp - Type A
■Rear combination lamp - Type B
■Rear turn signal & Back up lamp
OQL075046
OQLE075084
■License plate lamp
■High mounted stop lamp
