2019 KIA SORENTO Owners Manual

Maintenance
102
7

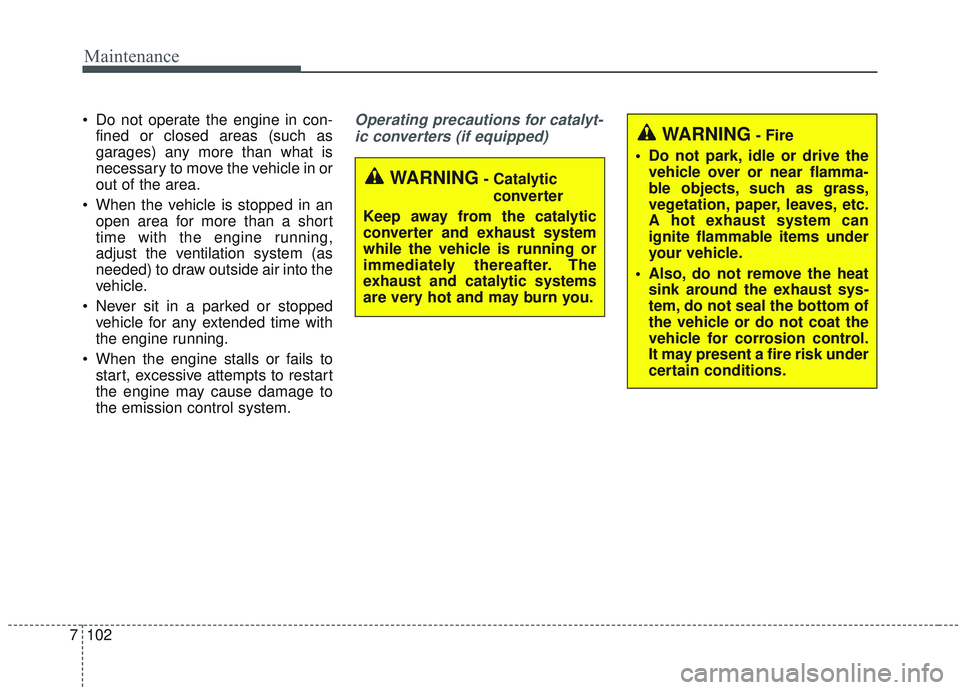

Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-
ic converters (if equipped)
WARNING- Catalytic converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.
WARNING- Fire
Do not park, idle or drive the vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.

7103
Maintenance

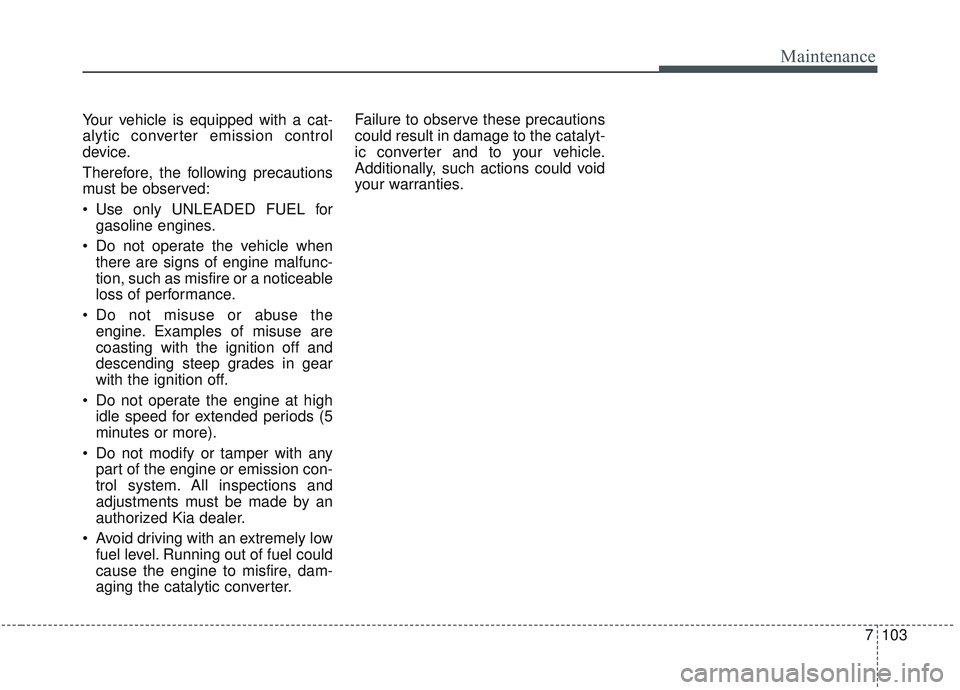

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.

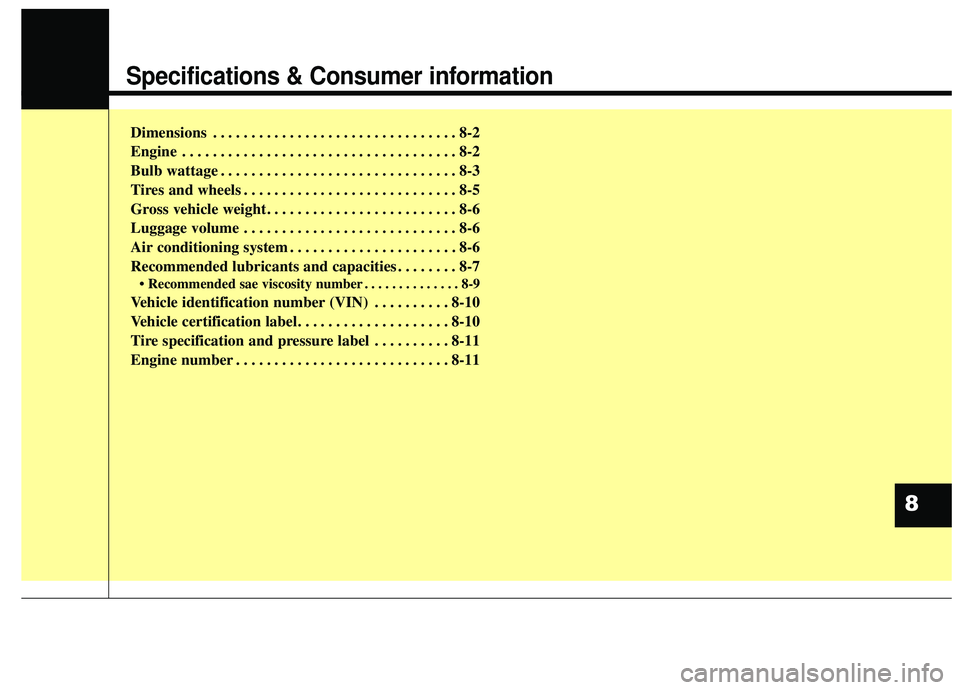

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-6
Recommended lubricants and capacities . . . . . . . . 8-7
• Recommended sae viscosity number . . . . . . . . . . . . . . 8-9
Vehicle identification number (VIN) . . . . . . . . . . 8-10
Vehicle certification label. . . . . . . . . . . . . . . . . . . . 8-10
Tire specification and pressure label . . . . . . . . . . 8-11
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
8

28
DIMENSIONS Specifications & Consumer information
ENGINE
ITEM5 Seats7 Seats
Overall length [mm (in.)]4,800 (189.0)←
Overall width [mm (in.)]1,890 (74.4)←
Overall height[mm (in.)]Without Roof rack1,685 (66.3)←
With Roof rack1,690 (66.5)←
Tread [mm (in.)]
Front
235/65 R171,633 (64.3)←
235/60 R181,628 (64.1)←
235/55 R191,628 (64.1)←
Rear
235/65 R171,644 (64.7)←
235/60 R181,639 (64.5)←
235/55 R191,639 (64.5)←
Wheelbase [mm (in.)]2,780 (109.4)←
ITEMGasoline
Theta II 2.4Gasoline
Lambda II 3.3
Displacement [cc (cu. in)]2,359 (143.95)3,342 (203.94)
Bore x Stroke [mm (in.)]88x97 (3.46x3.81)92x83.8 (3.62x3.29)
Firing order 1-3-4-2 1-2-3-4-5-6
No. of cylinders 4. In-line V - type

83
BULB WATTAGESpecifications & Consumer information
* If equipped
Light BulbWattage (W)Bulb type
Front
Headlamps (Low)55H7LL
Headlamps (High)609005
Headlamps (Low/High )LEDLED
Front turn signal lampsLEDLED
282357NA
Front position lamps LED typeLEDLED
Daytime running light*LEDLED
Front fog lamps
Type A559006
Type B559006
Type CLEDLED
Side Repeater lamps LED typeLEDLED
Rear
Rear Stop/Tail lamps (outside)Bulb type21/5P21/5
Rear tail lamps (Inside)5P21/5
Rear Stop/Tail lamps (outside)LED typeLEDLED
Rear tail lamps (Inside)LEDLED
Rear turn signal lamps27PY27W
Back-up lamps16W16W
High mounted stop lampLEDLED
License plate lamps10WC5W x 2
(Continued)

48

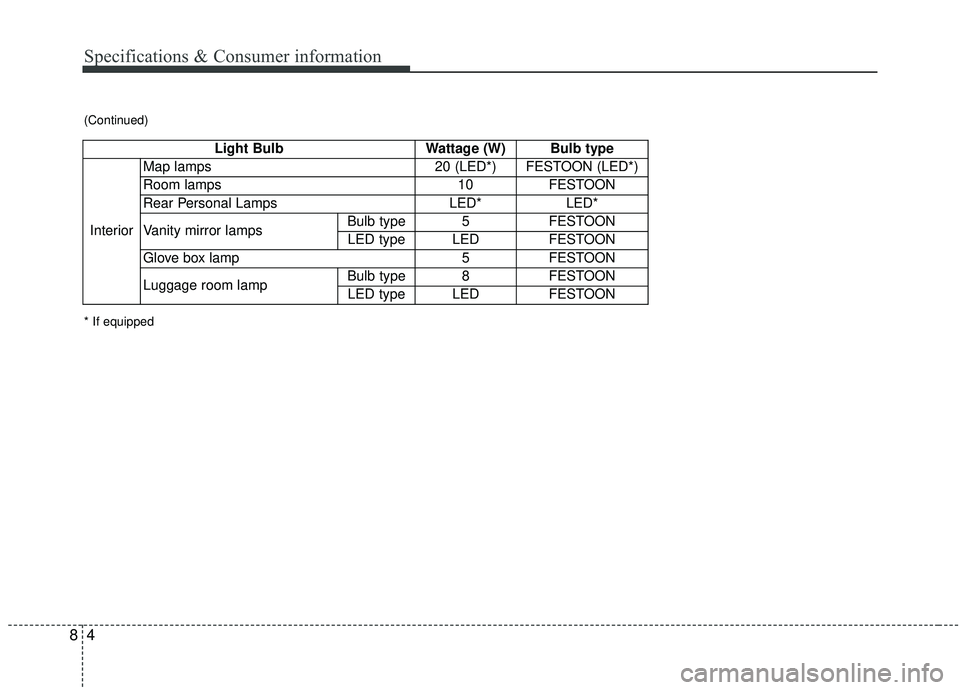

Specifications & Consumer information
Light BulbWattage (W)Bulb type
Interior
Map lamps 20 (LED*)FESTOON (LED*)
Room lamps10FESTOON
Rear Personal LampsLED*LED*
Vanity mirror lampsBulb type5FESTOON
LED typeLEDFESTOON
Glove box lamp5FESTOON
Luggage room lamp Bulb type8FESTOON
LED typeLEDFESTOON
* If equipped (Continued)

85
Specifications & Consumer information

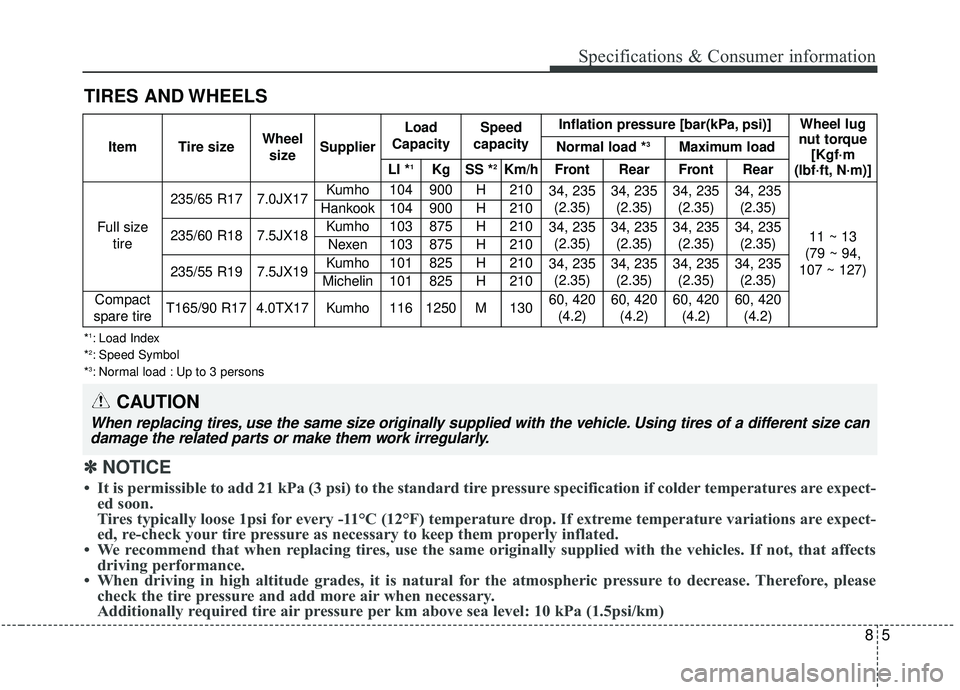

TIRES AND WHEELS
CAUTION
When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size candamage the related parts or make them work irregularly.
*1: Load Index
*2: Speed Symbol
*3: Normal load : Up to 3 persons
✽ ✽ NOTICE
• It is permissible to add 21 kPa (3 psi) to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1psi for every -11°C (12°F) temperature drop. If extreme temperature variations are expect-
ed, re-check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 10 kPa (1.5psi/km)
ItemTire sizeWheel
sizeSupplier
Load
CapacitySpeed
capacityInflation pressure [bar(kPa, psi)]Wheel lug
nut torque [Kgf·m
(lbf·ft, N·m)]
Normal load *3Maximum load
LI *1KgSS *2Km/hFront RearFront Rear
Full size
tire
235/65 R177.0JX17Kumho104900H21034, 235(2.35)34, 235(2.35)34, 235(2.35)34, 235(2.35)
11 ~ 13
(79 ~ 94,
107 ~ 127)
Hankook104900H210
235/60 R187.5JX18Kumho103875H21034, 235 (2.35)34, 235(2.35)34, 235(2.35)34, 235(2.35)
Nexen103875H210
235/55 R197.5JX19Kumho101825H21034, 235(2.35)34, 235(2.35)34, 235(2.35)34, 235(2.35)
Michelin101825H210
Compact
spare tireT165/90 R174.0TX17Kumho1161250M13060, 420 (4.2)60, 420(4.2)60, 420(4.2)60, 420(4.2)

68
Specifications & Consumer information

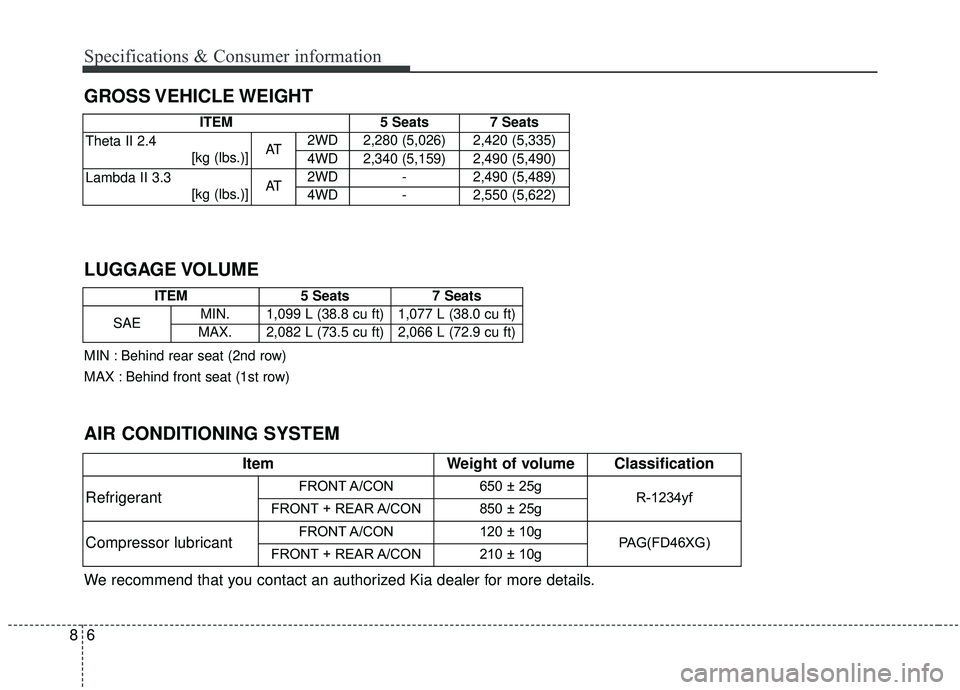

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
ItemWeight of volume Classification
Refrigerant
FRONT A/CON650 ± 25g R-1234yf
FRONT + REAR A/CON850 ± 25g
Compressor lubricantFRONT A/CON120 ± 10gPAG(FD46XG)FRONT + REAR A/CON210 ± 10g
We recommend that you contact an authorized Kia dealer for more details.
ITEM5 Seats7 Seats
Theta II 2.4
[kg (lbs.)]AT2WD2,280 (5,026)2,420 (5,335)
4WD2,340 (5,159)2,490 (5,490)
Lambda II 3.3[kg (lbs.)]AT2WD-2,490 (5,489)
4WD-2,550 (5,622)
ITEM5 Seats7 Seats
SAEMIN.1,099 L (38.8 cu ft)1,077 L (38.0 cu ft)
MAX.2,082 L (73.5 cu ft)2,066 L (72.9 cu ft)
MIN : Behind rear seat (2nd row)
MAX : Behind front seat (1st row)
