2019 KIA SORENTO Owners Manual

Page 481 of 573

KIA SORENTO 2019  Owners Manual Maintenance
38
7

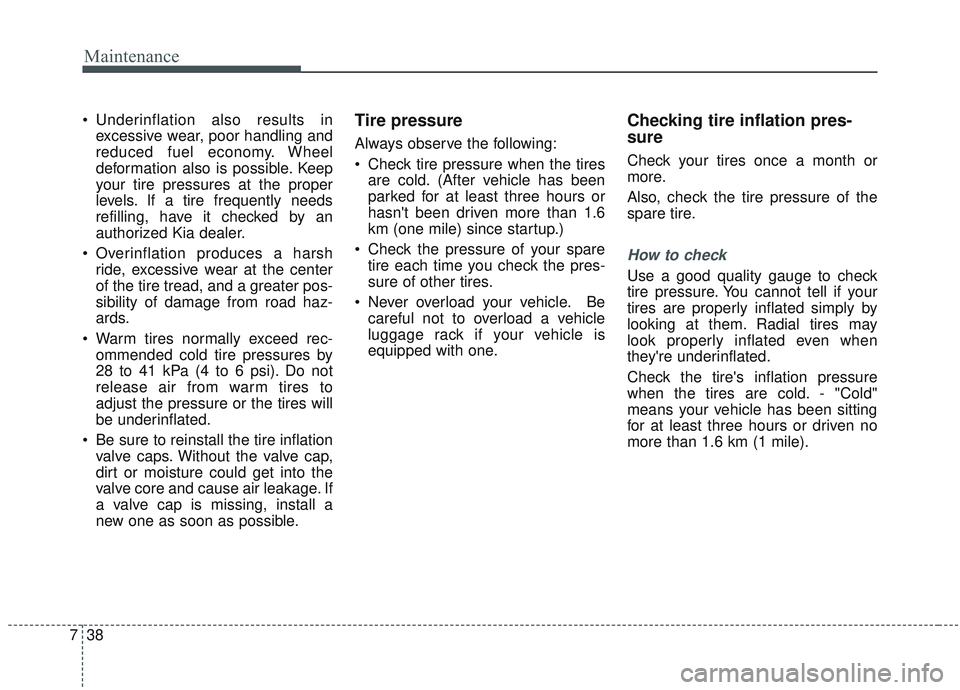

 Underinflation also results in
excessive wear, poor handling and
reduced fuel economy. Wheel
deformation also is possible. Keep
your tire pressures at the proper
levels. If a tire fr

Page 482 of 573

KIA SORENTO 2019  Owners Manual 739
Maintenance

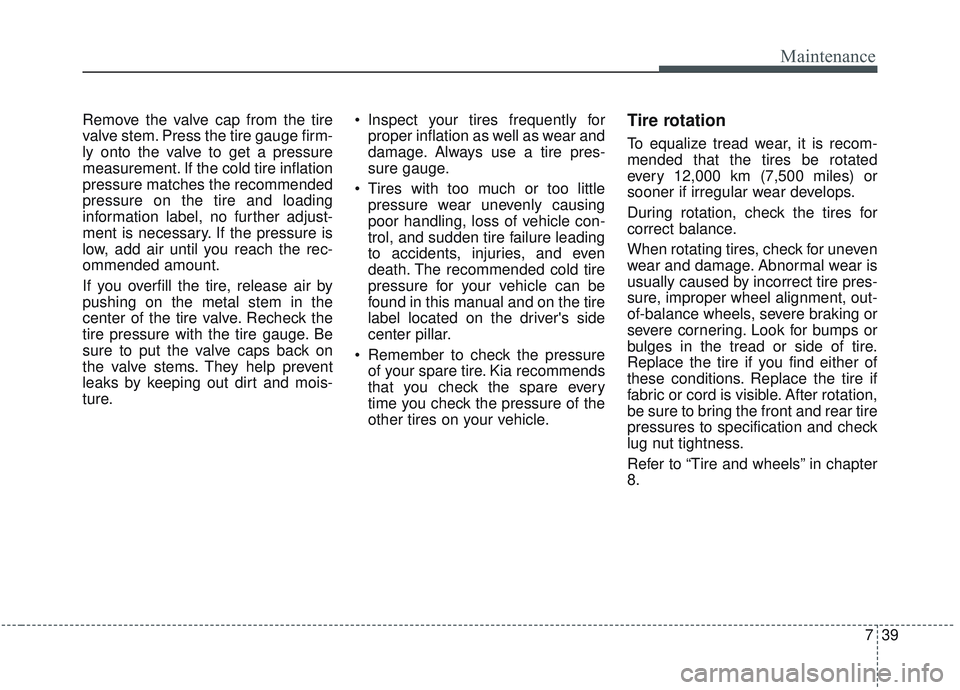

Remove the valve cap from the tire
valve stem. Press the tire gauge firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflation
pressure matches the recommended
p

Page 483 of 573

KIA SORENTO 2019  Owners Manual Maintenance
40
7

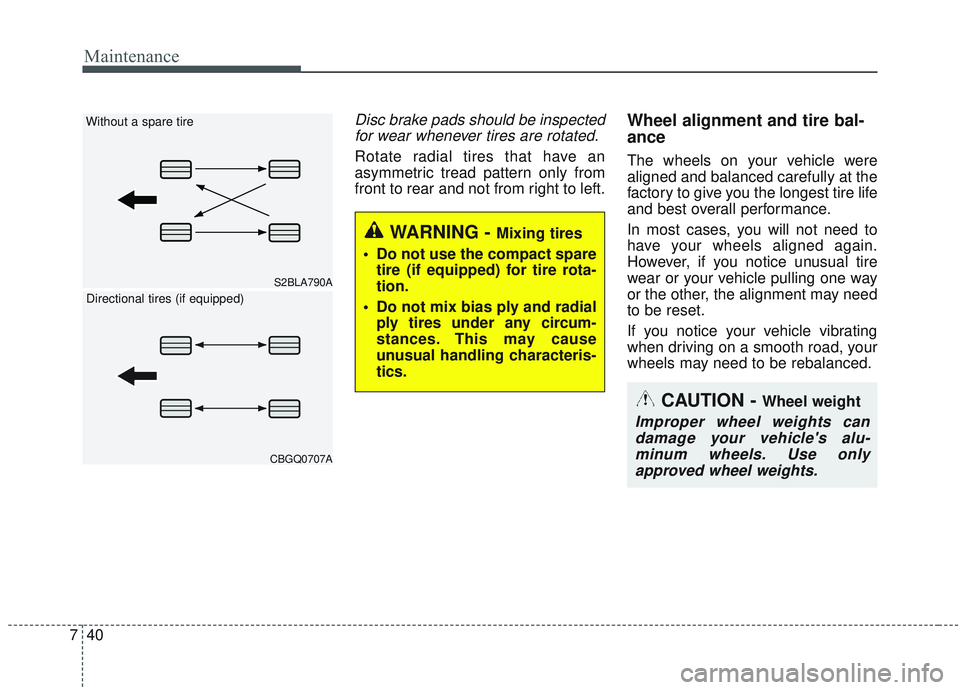

Disc brake pads should be inspected
for wear whenever tires are rotated.
Rotate radial tires that have an
asymmetric tread pattern only from
front to rear and not from right to left.

Page 484 of 573

KIA SORENTO 2019  Owners Manual 741
Maintenance

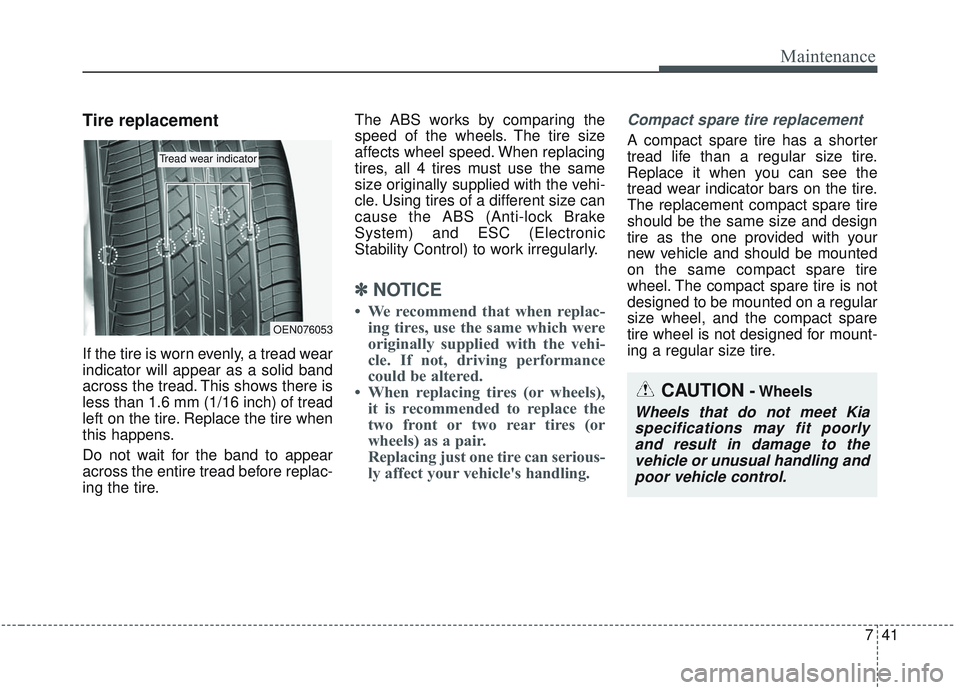

Tire replacement
If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is
less than 1.6 mm (1/16 inch) of tread
left on the

Page 485 of 573

KIA SORENTO 2019  Owners Manual Maintenance
42
7
Wheel replacement
When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim width
and offset.
A wheel tha

Page 486 of 573

KIA SORENTO 2019  Owners Manual 743
Maintenance
2. Tire size designation
A tire’s sidewall is marked with a tire
size designation. You will need this
information when selecting replace-
ment tires for your vehicle. The fol-
lowi

Page 487 of 573

KIA SORENTO 2019  Owners Manual Maintenance
44
7
Tire speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger vehicle tires. The
speed rating is part of the tire size
designatio

Page 488 of 573

KIA SORENTO 2019  Owners Manual 745
Maintenance
4. Tire ply composition and mate-rial
The number of layers or plies of rub-
ber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, which includ
