2019 KIA SEDONA window

755
Maintenance
✽ ✽NOTICE- Remodeling
Prohibited
Do not rewire your vehicle in any
way as doing so may affect the per-
formance of several safety features
in your vehicle. Rewiring your vehi-
cle may also void your warranty and
cause you to be responsible for any
subsequent vehicle damage which
may result.
✽ ✽ NOTICE- Window tinting pre-
caution
Window tint (especially metallic
film) might cause communication
errors or poor radio reception, and
malfunctioning automatic lighting
system due to reflections from the
mirror tint inside the vehicle. The
solution used might also leak into
the electronic components, causing
malfunctions or damage.
Inner panel fuse replacement
1. Turn the ignition switch and all other switches off.
2. Open the fuse panel cover.
CAUTION
Visually inspect the battery cap to ensure it is securely closed.If the battery cap is not securelyclosed, moisture may enter thesystem and damage the electri-cal components.
WARNING
- Electrical wiring repairs
All electrical repairs should be
performed by authorized Kia
dealerships using approved Kia
parts. Using other wiring com-
ponents, especially when retro-
fitting AVN or theft alarm sys-
tem, remote engine control, car
phone or radio may cause vehi-
cle damage and increase the
risk of a vehicle fire.
OYP076009

Maintenance
60
7
Inner fuse panel
Fuse Name Fuse rating Circuit Protected
ECU 10A PCM, Smart Key Control Module/Immobilizer Module
MODULE4 7.5AHead Lamp Leveling Device Actuator LH/RH, Multipurpose Check Connector, Bezel Switch, Electro
Chromic, A/V & Navigation Head Unit, A/C Control Module, Heater Control Module, Passenger
Ventilation Seat Control Module, Driver IMS Control Module, Rear Seat Heater Control Module, Auto
Head Leveling Device Module, ATM Shift Lever ILL.
MODULE3 10A LDWS Module, Stop Lamp, Front Parking Assist Sensor LH/RH, Front Parking Assist Sensor LH/RH
(CENTER), Rear Parking Assist Buzzer, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor
LH/RH (CENTER), Blind Spot Detection Radar LH/RH, FCA(Forward Collision-Avoidance Assist)
MODULE5 7.5A Rear Seat Heater Control Module, AC Inverter Unit, Heater Control Module, Passenger Ventilation Seat
Control Module, Portable Lamp, Around View Unit
MODULE6 7.5A BCM, Smart Key Control Module
WIPER RR 15A Rear Wiper Motor, Wiper RR Relay
CLUSTER 7.5A Instrument Cluster
MODULE8 10A DBL UNIT
A/CON1 7.5A A/C Control Module, Ionizer, Rear A/C Control Switch, PCB Block (Blower Relay, Blower RR Relay)
MEMORY2 10A Data Link Connector, Instrument Cluster, Digital Clock, A/C Control Module, BCM, Power Sliding Door
Module, Driver Door Module, Passenger Safety Power Window Switch, Driver IMS Control Module
SMART KEY3 10A Start/Stop Button Switch, Immobilizer Module
POWER OUTLET2 20A Console Power Outlet A/BAG IND 7.5A Instrument Cluster, Digital Clock, A/C Control Module(Auto)
WASHER 15A Multifunction Switch, BCM
HEATED STEERING 15A Clock Spring (Steering Wheel Switch) MEMORY1 10A Clock Spring (Steering Wheel Switch)
SMART KEY1 25A Smart Key Control Module
POWER OUTLET3 20A Rear Power Outlet MODULE2 7.5A BCM, Driver Door Module, Passenger Door Module

761
Maintenance
Fuse Name Fuse ratingCircuit Protected
MULTIMEDIA 15A USB Charger #1/#2, A/V & Navigation Head Unit S/ROOF FRT 20A Front Sunroof Motor AMP 25A AMP IG1 20A PCB BLOCK (Fuse - ABS3, TCU, MDPS, CRUISE)
SMART KEY2 7.5A Smart Key Control Module
INTERIOR LAMP 10A Portable Lamp, Overhead Console Lamp, Cargo Lamp, Front Vinity Lamp Switch LH/RH, Glove Box
Lamp, Key Warning Switch
START 7.5A With IMMO./Smart Key : Transmission Range Switch, W/O IMMO. : PCB Block (B/Alarm Relay)
S/ROOF RR 25A Rear Sunroof Motor
DOOR LOCK 20A Tail Gate Relay, Door Lock/Unlock Relay, Sliding Door Lock/Unlock Relay
FOG LAMP REAR 10A -
MODULE1 10A Audio, A/V & Navigation Head Unit, Around View Unit, BCM, Overhead Console Lamp, MTS Module,
Digital Clock, USB Charger #1/#2
AIR BAG 15A SRS Control Module, Passenger Occupant Detection Sensor
A/CON2 7.5A A/C Control Module, Blower Resistor (Manual)
HEATED MIRROR 10A Passenger Power Outside Mirror, A/C Control Module BRAKE SWITCH 7.5A Smart Key Control Module, Stop Lamp Switch S/HEATER RR 25A Rear Seat Heater Control Module
P/WINDOW LH 25ADriver Safety Window Module, Driver Door Module, Rear Power Window Switch LH, Rear Safety Power
Window Switch LH, Rear Safety Power Window Module LH
MODULE7 7.5A Key Inter Lock Solenoid, Fuel Lid Switch, ATM Lever Switch, Rear A/C Control Switch, Electro Chromic Mirror
POWER OUTLET1 20A Front Power Outlet P/SEAT (DRV) 30A Driver Manual Switch, Driver Lumbar Support Switch, Driver IMS Control Module
P/WINDOW RH 25APassenger Safety Window Module, Passenger Power Window Motor, Passenger Door Module, Rear Power
Window Switch RH, Rear Safety Power Window Switch RH, Rear Safety Power Window Module RH
S/HEATER FRT 20A Heater Control Module, Passenger Ventilation Seat Control Module

Maintenance
66
7
✽ ✽
NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
✽ ✽ NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is rein-
stalled at an authorized Kia dealer.
✽ ✽NOTICE
After driving in heavy rain or wash-
ing, headlamp and taillamp lenses
could appear frosty. This condition is
caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the
lamp bulb circuitry, we recommend
that you have the vehicle checked by
an authorized Kia dealer.
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.

797
Maintenance

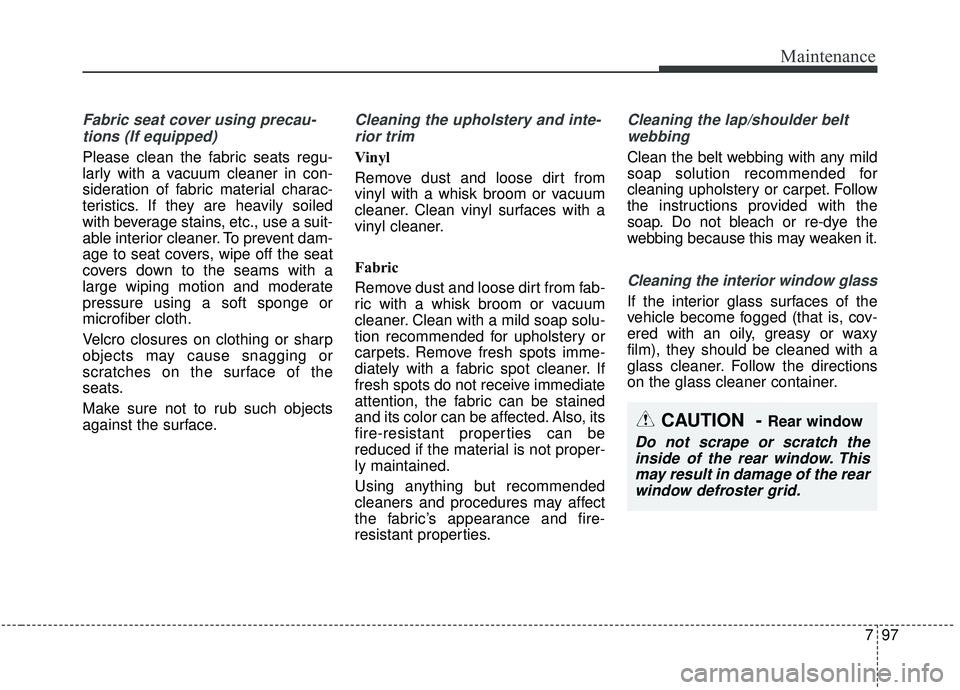

Fabric seat cover using precau-tions (If equipped)
Please clean the fabric seats regu-
larly with a vacuum cleaner in con-
sideration of fabric material charac-
teristics. If they are heavily soiled
with beverage stains, etc., use a suit-
able interior cleaner. To prevent dam-
age to seat covers, wipe off the seat
covers down to the seams with a
large wiping motion and moderate
pressure using a soft sponge or
microfiber cloth.
Velcro closures on clothing or sharp
objects may cause snagging or
scratches on the surface of the
seats.
Make sure not to rub such objects
against the surface.
Cleaning the upholstery and inte-rior trim
Vinyl
Remove dust and loose dirt from
vinyl with a whisk broom or vacuum
cleaner. Clean vinyl surfaces with a
vinyl cleaner.
Fabric
Remove dust and loose dirt from fab-
ric with a whisk broom or vacuum
cleaner. Clean with a mild soap solu-
tion recommended for upholstery or
carpets. Remove fresh spots imme-
diately with a fabric spot cleaner. If
fresh spots do not receive immediate
attention, the fabric can be stained
and its color can be affected. Also, its
fire-resistant properties can be
reduced if the material is not proper-
ly maintained.
Using anything but recommended
cleaners and procedures may affect
the fabric’s appearance and fire-
resistant properties.
Cleaning the lap/shoulder beltwebbing
Clean the belt webbing with any mild
soap solution recommended for
cleaning upholstery or carpet. Follow
the instructions provided with the
soap. Do not bleach or re-dye the
webbing because this may weaken it.
Cleaning the interior window glass
If the interior glass surfaces of the
vehicle become fogged (that is, cov-
ered with an oily, greasy or waxy
film), they should be cleaned with a
glass cleaner. Follow the directions
on the glass cleaner container.
CAUTION - Rear window
Do not scrape or scratch theinside of the rear window. Thismay result in damage of the rearwindow defroster grid.

Index
4I
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-53Placing a passenger seat belt into the auto lock mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-55
Securing a child restraint seat with child seat lower anchor system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-59
Securing a child restraint seat with tether anchor system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
58
Using a child restraint system . . . . . . . . . . . . . . . . . 3-54
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-30
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
191
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 7-30 Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20\
5
Combined instrument, see instrument cluster . . . . . . . 4-89
Conversation mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84
Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
194
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-22
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 7-22
Crankcase emission control system . . . . . . . . . . . . . . . 7-98
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-59 To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . 5-61
To decrease the cruising speed . . . . . . . . . . . . . . . . . 5-60
To increase cruise control set speed . . . . . . . . . . . . . 5-60
To resume cruising speed at more than approximately 20mph (30 km/h) . . . . . . . . . . . . . . . . . . . . . . . . . . 5-62
To set cruise control speed . . . . . . . . . . . . . . . . . . . . 5-59
To temporarily accelerate with the cruise control on . 5-61
To turn cruise control off . . . . . . . . . . . . . . . . . . . . . 5-62 Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-195
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-80
Dashboard illumination, see instrument panel
illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-90
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-74
Defogging (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-186
Defroster (Rear window) . . . . . . . . . . . . . . . . . . . . . . 4-151
Defrosting (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-186
Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
2
Display illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Displays, see instrument cluster . . . . . . . . . . . . . . . . . . 4-89
Distance to empty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Door lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
25 Central door lock switch . . . . . . . . . . . . . . . . . . . . . 4-28
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-30
Door lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
from inside the vehicle . . . . . . . . . . . . . . . . . . . . . . . 4-27
from outside the vehicle . . . . . . . . . . . . . . . . . . . . . . 4-25
Drinks holders, see cup holders . . . . . . . . . . . . . . . . . 4-195
D

Index
12I
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-198
Power sliding door and power liftgate . . . . . . . . . . . . . 4-34How to reset the power sliding door and power liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37\
Power door ON/OFF button . . . . . . . . . . . . . . . . . . . 4-38
Power liftgate opening heigh user setting . . . . . . . . 4-45
Power liftgate operation . . . . . . . . . . . . . . . . . . . . . . 4-42
Power sliding door operation . . . . . . . . . . . . . . . . . . 4-39
Power steering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-70
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26 Checking the power steering fluid level . . . . . . . . . 7-26
Checking the power steering hose . . . . . . . . . . . . . . 7-26
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49\
Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17 Folding the rear seat . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Forward and backward (2nd row seat). . . . . . . . . . . 3-17
Headrest (for rear seat). . . . . . . . . . . . . . . . . . . . . . . 3-31
Installing the tumble seat (for 8 passenger vehicle) 3-24
Left and right (2nd row seat, SXL package) . . . . . . 3-17
Leg support (2nd row seat for SXL package) . . . . . 3-20
Removing the tumble seat (for 8 passenger vehicle) . 3-22
Seatback angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Stowing the rear seat- 3rd row seat . . . . . . . . . . . . . 3-26 Walk-in seat (2nd row seat for SXL package) . . . . . 3-19
Walk-in seat (2nd row seat) . . . . . . . . . . . . . . . . . . . 3-19
Rear sunroof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Rear turn signal lamp (Bulb type) bulb replacement (Rear combination lamp Type A) . . . . . . . . . . . . . . . 7-77
Rear turn signal lamp (Bulb type) bulb replacement (Rear combination lamp Type B) . . . . . . . . . . . . . . . 7-82
Rear view monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-133
Rear window wiper and washer switch . . . . . . . . . . . 4-147
Recommended lubricants and capacities . . . . . . . . . . . . 8-6 Recommended SAE viscosity number. . . . . . . . . . . . 8-7
Record your key number (Folding key) . . . . . . . . . . . . . 4-5
Record your key number (Smart key) . . . . . . . . . . . . . 4-14
Reducing the risk of a rollover . . . . . . . . . . . . . . . . . . 5-105
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Remote control (Outside rear view mirror) . . . . . . . . . 4-85
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Reverse parking aid function . . . . . . . . . . . . . . . . . . . . 4-86
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 5-106
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20\
8
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-148
Room lamp bulb replacement . . . . . . . . . . . . . . . . . . . . 7-85
Rotation (Tire) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
Safety chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-115
R
S

Index
16I
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Vanity mirror lamp (Bulb type) bulb replacement . . . . 7-87
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . . 8-8
Vehicle data collection and event data recorders . . . . . . 1-7
Vehicle handling instructions . . . . . . . . . . . . . . . . . . . . . 1-6
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 8-8
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-123Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 5-127
Tire and loading information label. . . . . . . . . . . . . 5-123
Vehicle stability management (VSM) . . . . . . . . . . . . . 5-40
Vehicle weight glossary . . . . . . . . . . . . . . . . . . . . . . . 5-129
Warning and Indicator lights . . . . . . . . . . . . . . . . . . . 4-108
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Warning messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27 Checking the washer fluid level . . . . . . . . . . . . . . . . 7-27
Wheel alignment and tire balance . . . . . . . . . . . . . . . . 7-42
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-52 Power window lock button and rear sunroof lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55 Windshield defrosting and defogging. . . . . . . . . . . . . 4-186
Automatic climate control system . . . . . . . . . . . . . 4-189
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-190
Manual climate control system . . . . . . . . . . . . . . . 4-186
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-113 Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-113
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145 Rear window wiper and washer switch . . . . . . . . . 4-147
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Wireless smart phone charging system . . . . . . . . . . . 4-201
360° camera monitoring system . . . . . . . . . . . . . . . . . 4-134
W
V
ETC
