FUSES
A vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 (or 3) fuse panels,
one located in the driver’s side panel
bolster, the other in the engine com-
partment near the battery.
If any of your vehicle’s lights, acces-
sories, or controls do not work, check
the appropriate circuit fuse. If a fuse
has blown, the element inside the
fuse will be melted.
If the electrical system does not work,
first check the driver’s side fuse
panel. Before replacing a blown fuse,
turn the engine and all switches off,
and then disconnect the negative bat-
tery cable. Always replace a blown
fuse with one of the same rating.
If the replacement fuse blows, this indi-
cates an electrical problem. Avoid
using the system involved and immedi-
ately consult a HYUNDAI authorised
repairer.Information
Four kinds of fuses are used : blade type
for lower amperage rating, cartridge
type/Multi fuse/Battery fuse terminal for
higher amperage ratings.
i■Blade type
Normal
■ Cartridge type Blown
Normal
Blown
■ Multi fuse
Normal Blown
■
Battery fuse terminal
Normal Blown
OLF074075
TLe UK 7.qxp 5/10/2018 1:35 PM Page 49

7-51
7
Maintenance
Inner panel fuse replacement
1. Turn the engine and all otherswitches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight
out. Use the removal tool provided
in the engine compartment fuse
panel.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips.
If it fits loosely, we recommend that
you consult a HYUNDAI authorised
repairer.
Information
If you do not have a spare, use a fuse
of the same rating from a circuit you
may not need for operating the vehi-
cle, such as the cigar lighter fuse.
If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse block in
the engine compartment. If a fuse is
blown, it must be replaced with the
same rating.
i
OTLE078026
OTLE078023R
TLe UK 7.qxp 5/10/2018 1:35 PM Page 51

7-68
Maintenance
LIGHT BULBS
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch is
in the LOCK/OFF position and
turn off the lights to avoid sud-
den movement of the vehicle and
burning your fingers or receiving
an electric shock.
WARNING
Consult a HYUNDAI authorised
repairer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.Be sure to replace the burned-out
bulb with one of the same wattage
rating. Otherwise, it may cause
damage to the fuse or electric
wiring system.
Information
After heavy driving, rain or washing,
headlamp and tail lamp lenses could
appear frosty. This condition is caused
by the temperature difference between
the lamp inside and outside. This is
similar to the condensation on your
windows inside your vehicle during the
rain and doesn’t indicate a problem
with your vehicle. If the water leaks
into the lamp bulb circuitry, we rec-
ommend that the system be checked
by a HYUNDAI authorised repairer.
Information - Desiccant
(if equipped)
This vehicle is equipped with desic-
cant to reduce fogging inside the head-
lamp due to moisture.
The desiccant is consumable and its
performance may change based on the
used period or environment.
If fogging inside the headlamp due to
moisture continues for a long time, we
recommend that you consult a
HYUNDAI authorised repairer.
Information - Traffic Change
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direc-
tion, this asymmetric part will dazzle
oncoming car driver. To prevent daz-
zle, ECE regulation demand several
technical solutions (ex. automatic
change system, adhesive sheet, down
aiming). These headlamps are
designed not to dazzle opposite driv-
ers. So, you need not change your
headlamps in a country with opposite
traffic direction.i
i
i
NOTICE
TLe UK 7.qxp 5/10/2018 1:38 PM Page 68

I-8
IndexKey ignition switch.........................................................5-6
Lane keeping assist(LKA) system..............................5-108
LCD display..................................................................3-68 LCD modes ................................................................3-69
Warning messages ....................................................3-79
Light ........................................................................\
....3-110 Exterior lights ..........................................................3-110
Interior lights ...........................................................3-121
Low Beam Assist-Static light ..................................3-120
Welcome system ......................................................3-120
Light bulbs ....................................................................7-68\
Front fog lamp ...........................................................7-71
Headlamp and front fog lamp aiming........................7-73
Headlamp, low beam assist - static, position lamp, turn signal lamp and fog lamp light bulb
replacement ..............................................................7-69
High mounted stop lamp replacement .......................7-80
Interior light bulb replacement ..................................7-81
License plate light bulb replacement .........................7-80
Rear combination light bulb replacement..................7-77
Side repeater lamp replacement.................................7-72 Load and speed capacity tyres........................................8-6
Low urea warning message ..........................................7-99
Luggage net (holder) ..................................................3-179
Luggage tray ...............................................................3-182
Luggage volume .............................................................8-8
Maintenance services......................................................7-6
Owner maintenance precautions ..................................7-6
Owner's responsibility .................................................7-6
Malfunction with the SCR system .............................7-100
Manual climate control system...................................3-140 Heating and air conditioning ...................................3-141
System maintenance ................................................3-148
System operation .....................................................3-145
Manual transaxle...........................................................5-20
Media player .................................................................4-25 Using the AUX mode ................................................4-31
Using the iPod mode .................................................4-28
Using the media player ..............................................4-25
Using the USB mode .................................................4-26
M
K
L
TLe UK Index.qxp 6/12/2018 3:27 PM Page 8

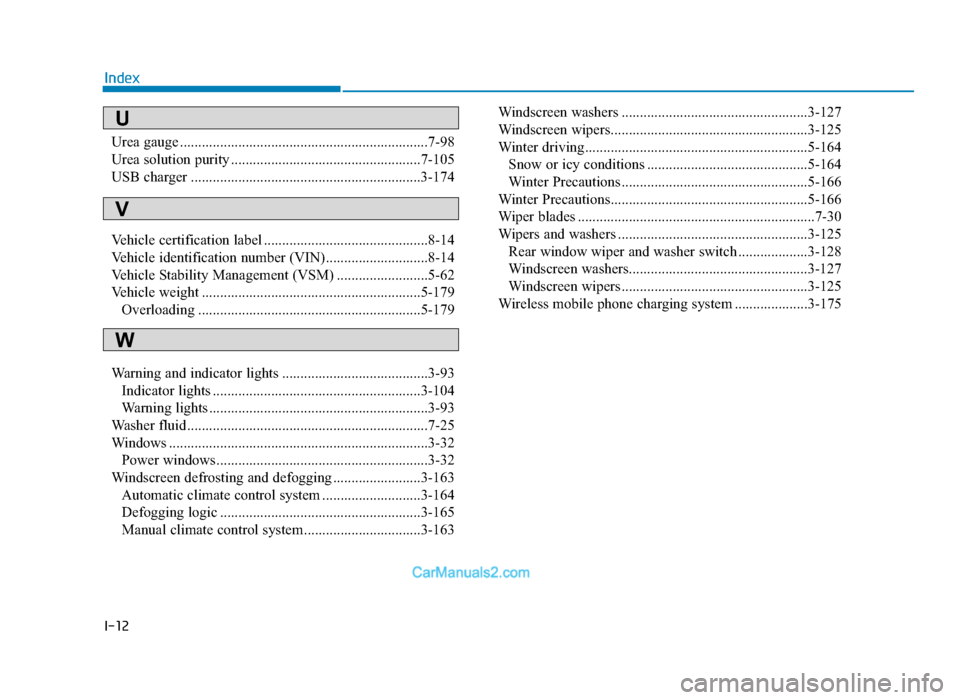

Urea gauge ....................................................................7-98\
