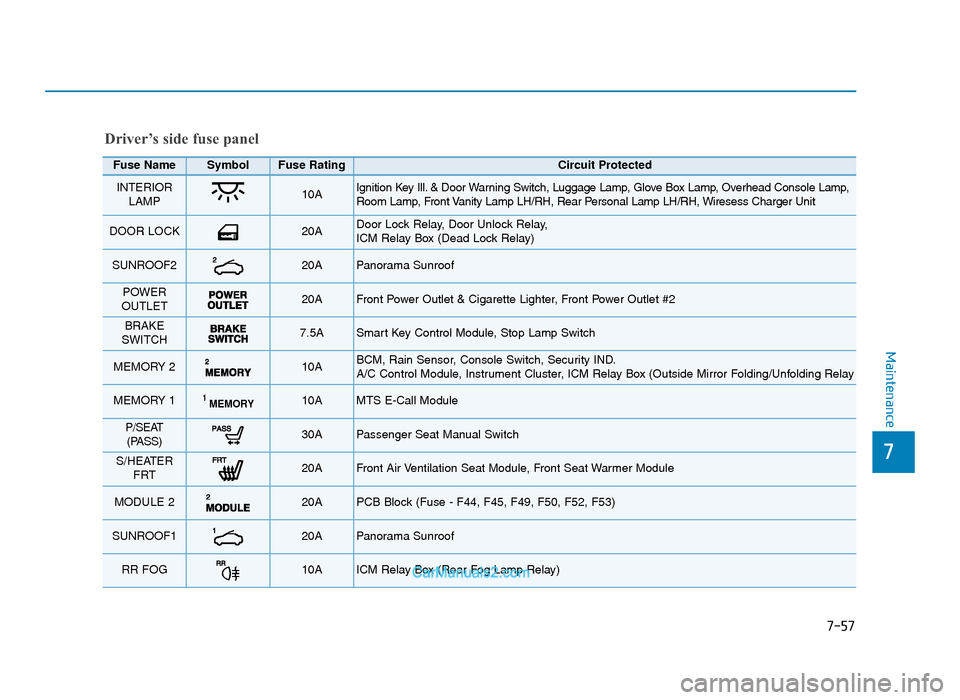

Driver’s side fuse panel
Fuse Name SymbolFuse RatingCircuit Protected
INTERIORLAMP10A Ignition Key Ill. & Door Warning Switch, Luggage Lamp, Glove Box Lamp, Overhead Console Lamp,
Room Lamp, Front Vanity Lamp LH/RH, Rear Personal Lamp LH/RH, Wiresess Charger Unit
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay,
ICM Relay Box (Dead Lock Relay)
SUNROOF220A Panorama Sunroof
POWER
OUTLET 20A Front Power Outlet & Cigarette Lighter, Front Power Outlet #2
BRAKE
SWITCH 7.5A Smart Key Control Module, Stop Lamp Switch
MEMORY 2 10A BCM, Rain Sensor, Console Switch, Security IND.
A/C Control Module, Instrument Cluster, ICM Relay Box (Outside Mirror Folding/Unfolding Relay
MEMORY 1MEMORY110A MTS E-Call Module
P/SEAT (PASS)30A Passenger Seat Manual Switch
S/HEATER FRT 20A Front Air Ventilation Seat Module, Front Seat Warmer Module
MODULE 2 20A PCB Block (Fuse - F44, F45, F49, F50, F52, F53)
SUNROOF120A Panorama Sunroof
RR FOG10A ICM Relay Box (Rear Fog Lamp Relay)
