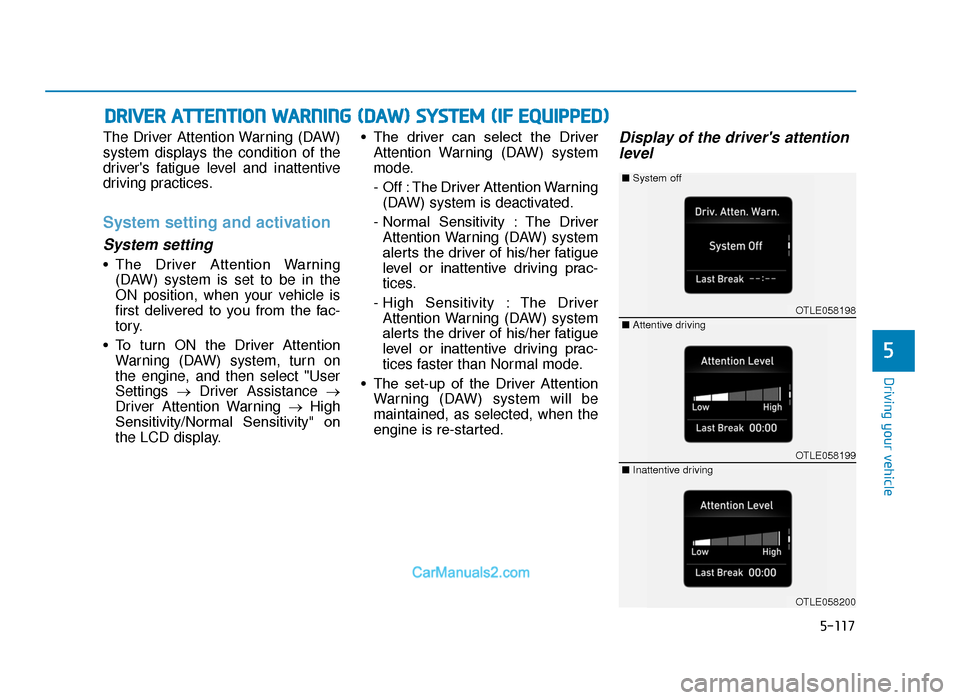

2019 Hyundai Tucson engine

5-117
Driving your vehicle
5
The Driver Attention Warning (DAW)
system displays the condition of the
driver's fatigue level and inattentive
driving practices.
System setting and activation
System setting
• The Driver Attention Warning(DAW) system is set to be in the
ON position, when your vehicle is
first delivered to you from the fac-
tory.
• To turn ON the Driver Attention Warning (DAW) system, turn on
the engine, and then select "User
Settings →Driver Assistance →
Driver Attention Warning →High
Sensitivity/Normal Sensitivity" on
the LCD display. • The driver can select the Driver
Attention Warning (DAW) system
mode.
- Off : The Driver Attention Warning(DAW) system is deactivated.
- Normal Sensitivity : The Driver Attention Warning (DAW) system
alerts the driver of his/her fatigue
level or inattentive driving prac-
tices.
- High Sensitivity : The Driver Attention Warning (DAW) system
alerts the driver of his/her fatigue
level or inattentive driving prac-
tices faster than Normal mode.
• The set-up of the Driver Attention Warning (DAW) system will be
maintained, as selected, when the
engine is re-started.
Display of the driver's attentionlevel
DRIVER ATTENTION WARNING (DAW) SYSTEM (IF EQUIPPED)
OTLE058198
OTLE058199
OTLE058200
■ Attentive driving
■
System off
■ Inattentive driving
TLe UK 5.qxp 5/10/2018 12:27 PM Page 117

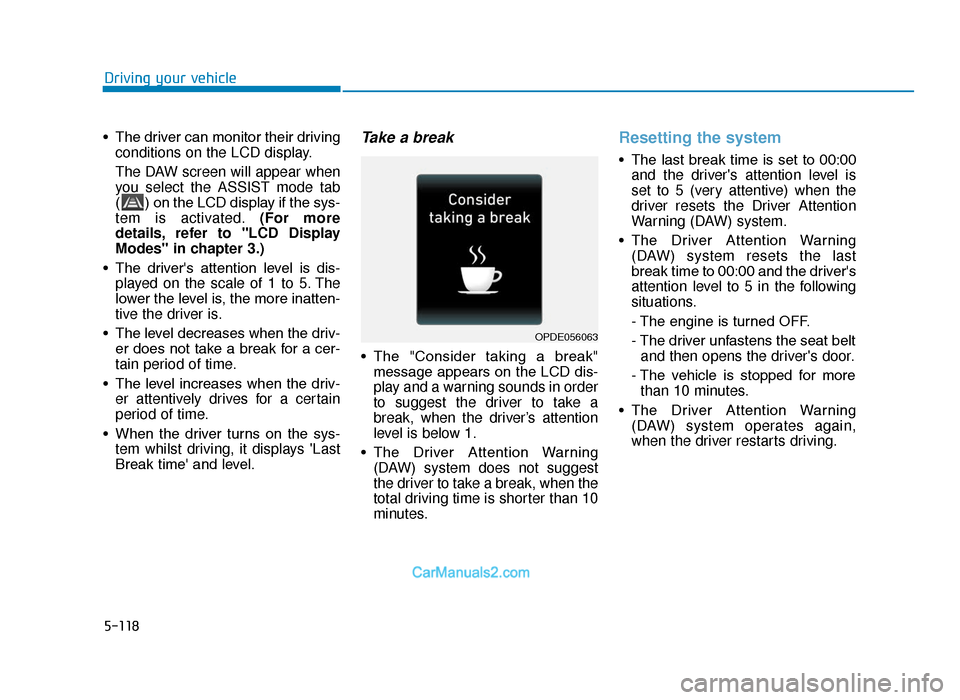

5-118
Driving your vehicle
• The driver can monitor their driving conditions on the LCD display.
The DAW screen will appear when
you select the ASSIST mode tab
( ) on the LCD display if the sys-
tem is activated. (For more
details, refer to "LCD Display
Modes" in chapter 3.)
• The driver's attention level is dis- played on the scale of 1 to 5. The
lower the level is, the more inatten-
tive the driver is.
• The level decreases when the driv- er does not take a break for a cer-
tain period of time.
• The level increases when the driv- er attentively drives for a certain
period of time.
• When the driver turns on the sys- tem whilst driving, it displays 'Last
Break time' and level.
Take a break
• The "Consider taking a break"message appears on the LCD dis-
play and a warning sounds in order
to suggest the driver to take a
break, when the driver’s attention
level is below 1.
• The Driver Attention Warning (DAW) system does not suggest
the driver to take a break, when the
total driving time is shorter than 10
minutes.
Resetting the system
• The last break time is set to 00:00and the driver's attention level is
set to 5 (very attentive) when the
driver resets the Driver Attention
Warning (DAW) system.
• The Driver Attention Warning (DAW) system resets the last
break time to 00:00 and the driver's
attention level to 5 in the following
situations.
- The engine is turned OFF.
- The driver unfastens the seat beltand then opens the driver's door.
- The vehicle is stopped for more than 10 minutes.
• The Driver Attention Warning (DAW) system operates again,
when the driver restarts driving.
OPDE056063
TLe UK 5.qxp 5/10/2018 12:27 PM Page 118

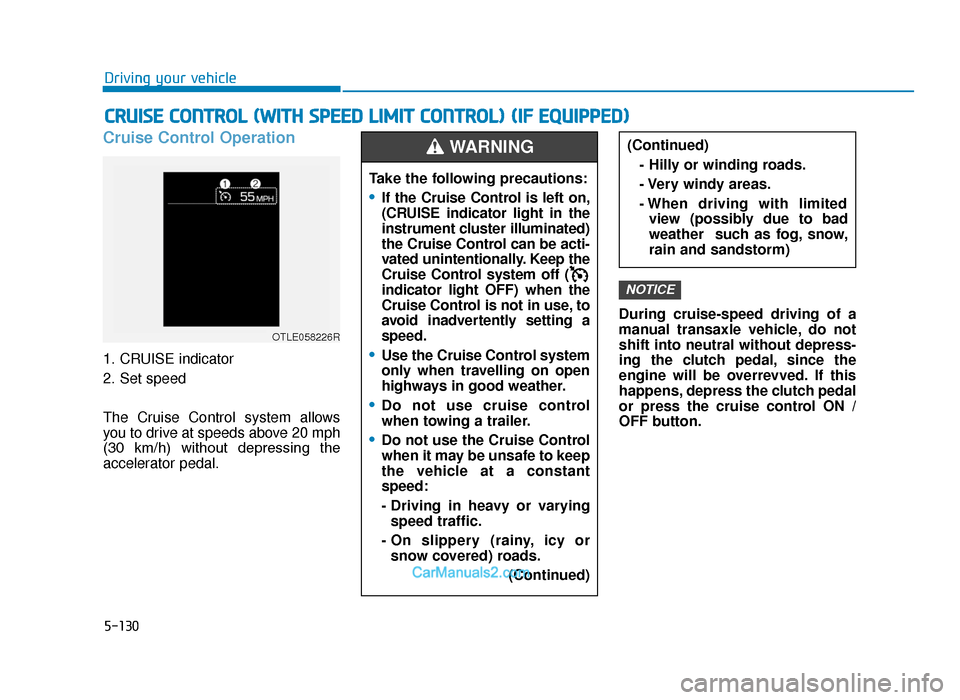

5-130
Driving your vehicle
Cruise Control Operation
1. CRUISE indicator
2. Set speed
The Cruise Control system allows
you to drive at speeds above 20 mph
(30 km/h) without depressing the
accelerator pedal.During cruise-speed driving of a
manual transaxle vehicle, do not
shift into neutral without depress-
ing the clutch pedal, since the
engine will be overrevved. If this
happens, depress the clutch pedal
or press the cruise control ON /
OFF button.
NOTICE
CRUISE CONTROL (WITH SPEED LIMIT CONTROL) (IF EQUIPPED)
OTLE058226R
Take the following precautions:
•If the Cruise Control is left on,
(CRUISE indicator light in the
instrument cluster illuminated)
the Cruise Control can be acti-
vated unintentionally. Keep the
Cruise Control system off (
indicator light OFF) when the
Cruise Control is not in use, to
avoid inadvertently setting a
speed.
•Use the Cruise Control system
only when travelling on open
highways in good weather.
•Do not use cruise control
when towing a trailer.
•Do not use the Cruise Control
when it may be unsafe to keep
the vehicle at a constant
speed:
- Driving in heavy or varying
speed traffic.
- On slippery (rainy, icy or snow covered) roads.
(Continued)
(Continued)- Hilly or winding roads.
- Very windy areas.
- When driving with limitedview (possibly due to bad
weather such as fog, snow,
rain and sandstorm)WARNING
TLe UK 5.qxp 5/10/2018 12:28 PM Page 130

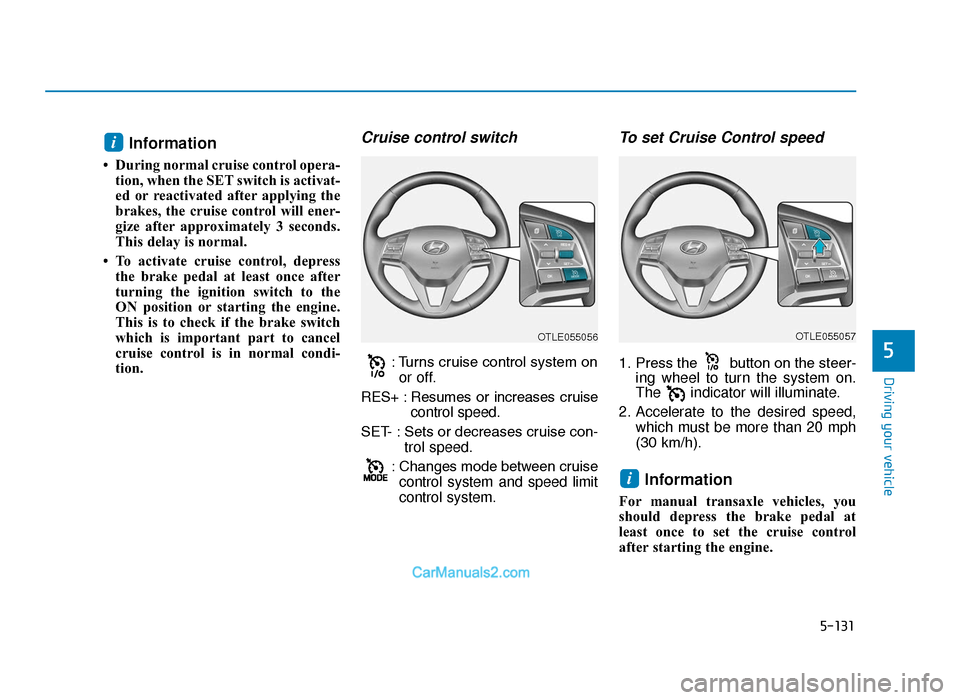

5-131
Driving your vehicle
5
Information
• During normal cruise control opera-tion, when the SET switch is activat-
ed or reactivated after applying the
brakes, the cruise control will ener-
gize after approximately 3 seconds.
This delay is normal.
• To activate cruise control, depress the brake pedal at least once after
turning the ignition switch to the
ON position or starting the engine.
This is to check if the brake switch
which is important part to cancel
cruise control is in normal condi-
tion.
Cruise control switch
: Turns cruise control system onor off.
RES+ : Resumes or increases cruise control speed.
SET- : Sets or decreases cruise con- trol speed.
: Changes mode between cruise control system and speed limit
control system.
To set Cruise Control speed
1. Press the button on the steer- ing wheel to turn the system on.
The indicator will illuminate.
2. Accelerate to the desired speed, which must be more than 20 mph
(30 km/h).
Information
For manual transaxle vehicles, you
should depress the brake pedal at
least once to set the cruise control
after starting the engine.
i
i
OTLE055056OTLE055057
TLe UK 5.qxp 5/10/2018 12:28 PM Page 131

5-134
Driving your vehicle
• Decreasing the vehicle speed lower than the memory speed by
12 mph (20 km/h).
• Decreasing the vehicle speed to less than approximately 20 mph
(30 km/h).
• The ESC (Electronic Stability Control) is operating.
• Downshifting to the 2nd gear in Sports Mode.
Information
Each of the above actions will cancel
Cruise Control operation (The set
speed on the instrument cluster will go
off), but only pressing the button
will turn the system off. If you wish to
resume Cruise Control operation,
push the lever up (RES+) located on
your steering wheel. You will return to
your previously preset speed, unless
the system was turned off using the
button.
To resume preset Cruisingspeed
Push the lever (1) up (RES+). If the
vehicle speed is over 20 mph (30
km/h), the vehicle will resume the
preset speed.
To turn Cruise Control off
• Press the button (the indi-
cator will go off).
• Turn the engine OFF.
i
OTLE055059
OTLE055057
TLe UK 5.qxp 5/10/2018 12:29 PM Page 134

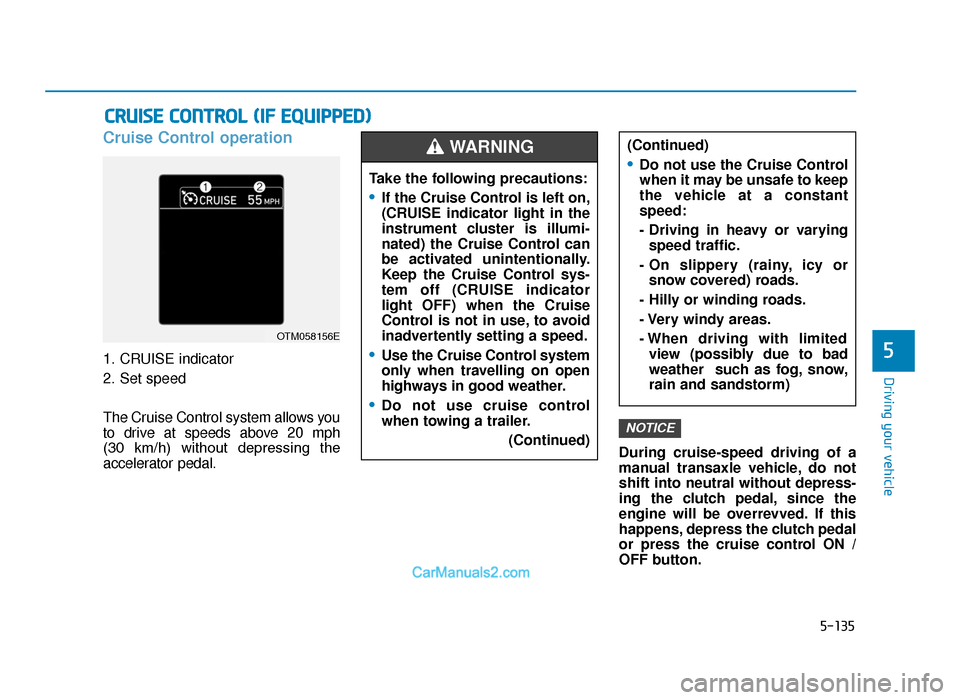

5-135
Driving your vehicle
5
Cruise Control operation
1. CRUISE indicator
2. Set speed
The Cruise Control system allows you
to drive at speeds above 20 mph
(30 km/h) without depressing the
accelerator pedal.During cruise-speed driving of a
manual transaxle vehicle, do not
shift into neutral without depress-
ing the clutch pedal, since the
engine will be overrevved. If this
happens, depress the clutch pedal
or press the cruise control ON /
OFF button.
NOTICE
CRUISE CONTROL (IF EQUIPPED)
Take the following precautions:
•If the Cruise Control is left on,
(CRUISE indicator light in the
instrument cluster is illumi-
nated) the Cruise Control can
be activated unintentionally.
Keep the Cruise Control sys-
tem off (CRUISE indicator
light OFF) when the Cruise
Control is not in use, to avoid
inadvertently setting a speed.
•Use the Cruise Control system
only when travelling on open
highways in good weather.
•Do not use cruise control
when towing a trailer.
(Continued)
(Continued)
•Do not use the Cruise Control
when it may be unsafe to keep
the vehicle at a constant
speed:
- Driving in heavy or varyingspeed traffic.
- On slippery (rainy, icy or snow covered) roads.
- Hilly or winding roads.
- Very windy areas.
- When driving with limited view (possibly due to bad
weather such as fog, snow,
rain and sandstorm)
WARNING
OTM058156E
TLe UK 5.qxp 5/10/2018 12:29 PM Page 135

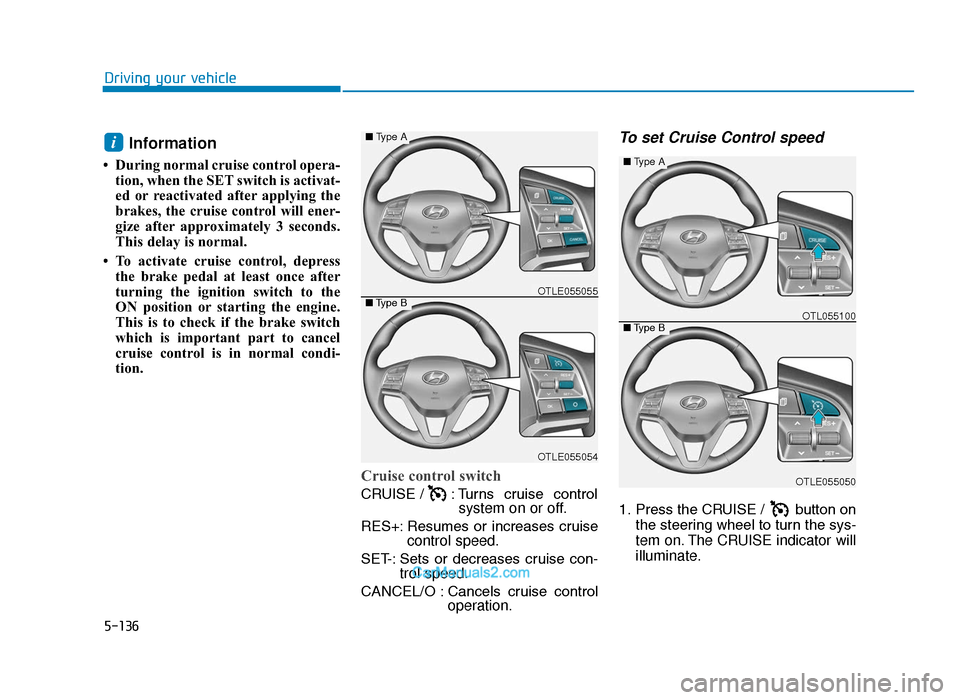

5-136
Driving your vehicle
Information
• During normal cruise control opera-tion, when the SET switch is activat-
ed or reactivated after applying the
brakes, the cruise control will ener-
gize after approximately 3 seconds.
This delay is normal.
• To activate cruise control, depress the brake pedal at least once after
turning the ignition switch to the
ON position or starting the engine.
This is to check if the brake switch
which is important part to cancel
cruise control is in normal condi-
tion.
Cruise control switch
CRUISE / : Turns cruise control system on or off.
RES+: Resumes or increases cruise control speed.
SET-: Sets or decreases cruise con- trol speed.
CANCEL/O : Cancels cruise control operation.
To set Cruise Control speed
1. Press the CRUISE / button on
the steering wheel to turn the sys-
tem on. The CRUISE indicator will
illuminate.
i
OTLE055050
■Type A
■Type BOTL055100
OTLE055054
■Type A
■Type BOTLE055055
TLe UK 5.qxp 5/10/2018 12:29 PM Page 136

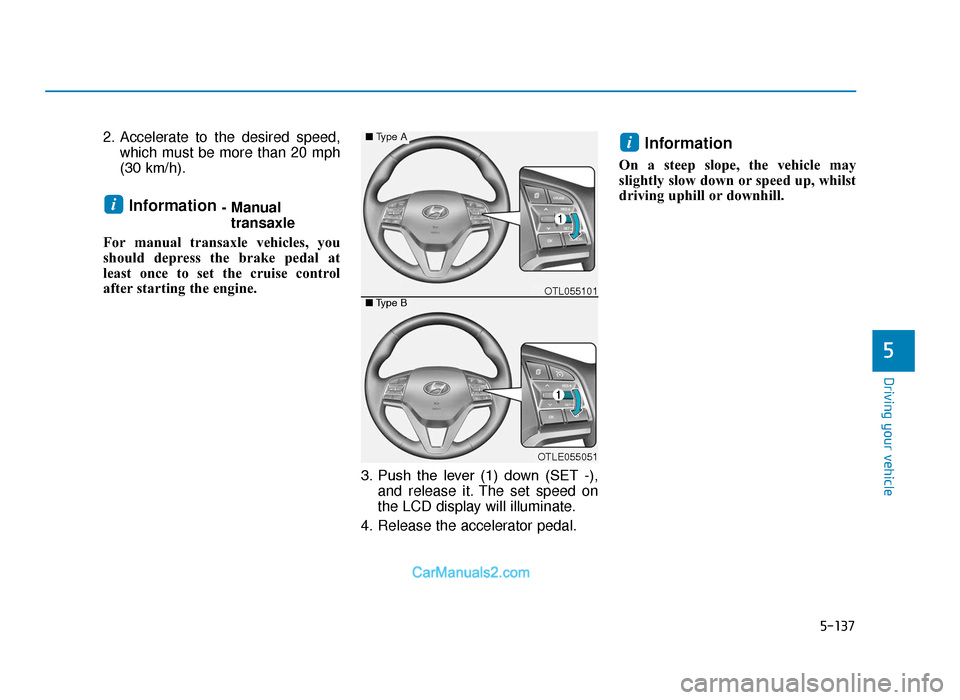

5-137
Driving your vehicle
5
2. Accelerate to the desired speed,which must be more than 20 mph
(30 km/h).
Information - Manualtransaxle
For manual transaxle vehicles, you
should depress the brake pedal at
least once to set the cruise control
after starting the engine.
3. Push the lever (1) down (SET -),and release it. The set speed on
the LCD display will illuminate.
4. Release the accelerator pedal.
Information
On a steep slope, the vehicle may
slightly slow down or speed up, whilst
driving uphill or downhill.
i
i
OTLE055051
■ Type A
■Type BOTL055101
TLe UK 5.qxp 5/10/2018 12:29 PM Page 137
