2019 Hyundai Tucson fuel type

3-67
Convenient features of your vehicle
3
Manual Transaxle Shift Indicator(if equipped)
This indicator informs which gear is
desired whilst driving to save fuel.
• Shifting up : ▲
2, ▲
3, ▲
4, ▲
5, ▲
6
• Shifting down : ▼1,
▼2,
▼3,
▼4,
▼5
For example : Indicates that shifting up to the3rd gear is desired (currently
the shift lever is in the 2nd or
1st gear).
: Indicates that shifting down to the 3rd gear is desired (current-
ly the shift lever is in the 4th,
5th, or 6th gear).
When the system is not working prop-
erly, the indicator is not displayed.
Shift Indicator Pop-up (if equipped)
The pop-up that indicates the current
gear position is displayed in the clus-
ter for about 2 seconds when shifting
into other positions (P/R/N/D).
Odometer
The odometer indicates the total dis-
tance that the vehicle has been driv-
en and should be used to determine
when periodic maintenance should
be performed.OTLE045134/OTLE045135
■ Type A ■Type B
OTL045134/OTL045135
■Type A ■Type B
OTL045136/OTL045137
■Type A ■Type B
TLe UK 3a(~109).qxp 6/12/2018 2:26 PM Page 67

3-68
LCD DISPLAY
Convenient features of your vehicle
Distance to empty
• The distance to empty is the esti-mated distance the vehicle can be
driven with the remaining fuel.
• If the estimated distance is below 1 mi. (1 km), the trip computer will
display “---” as distance to empty.
Information
• If the vehicle is not on level groundor the battery power has been inter-
rupted, the distance to empty func-
tion may not operate correctly.
• The distance to empty may differ from the actual driving distance as
it is an estimate of the available
driving distance.
• The trip computer may not register additional fuel if less than 6 litres
(1.6 gallons) of fuel are added to the
vehicle.
• The distance to empty may vary sig- nificantly based on driving condi-
tions, driving habits, and condition
of the vehicle.
LCD display control
[A] : Type A, [B] : Type B, [C] : Type C
The LCD display modes can be
changed by using the control buttons.
i
OPD046138
OTLE048112
OTLE048603
TLe UK 3a(~109).qxp 6/12/2018 2:26 PM Page 68

3-87
Convenient features of your vehicle
The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
[A] : Type A, [B] : Type B, [C] : Type C
To change the trip mode, toggle the
“ , ” switch on the steering wheel.
i
TRIP COMPUTER
3• Tripmeter
• Average Fuel Economy
• Elapsed Time
Accumulated Info
• Tripmeter
• Average Fuel Economy
• Elapsed Time
Drive Info
• Average Fuel Economy
• Instant Fuel Economy
Fuel Economy
Digital Speedometer
Auto stop (if equipped)
DCT temperature (if equipped)
↕
↕
↕
↕
↕
↕
↕
Urea level (if equipped)
Energy flow (if equipped)
OTLE048112
OTLE048603
TLe UK 3a(~109).qxp 6/12/2018 2:27 PM Page 87

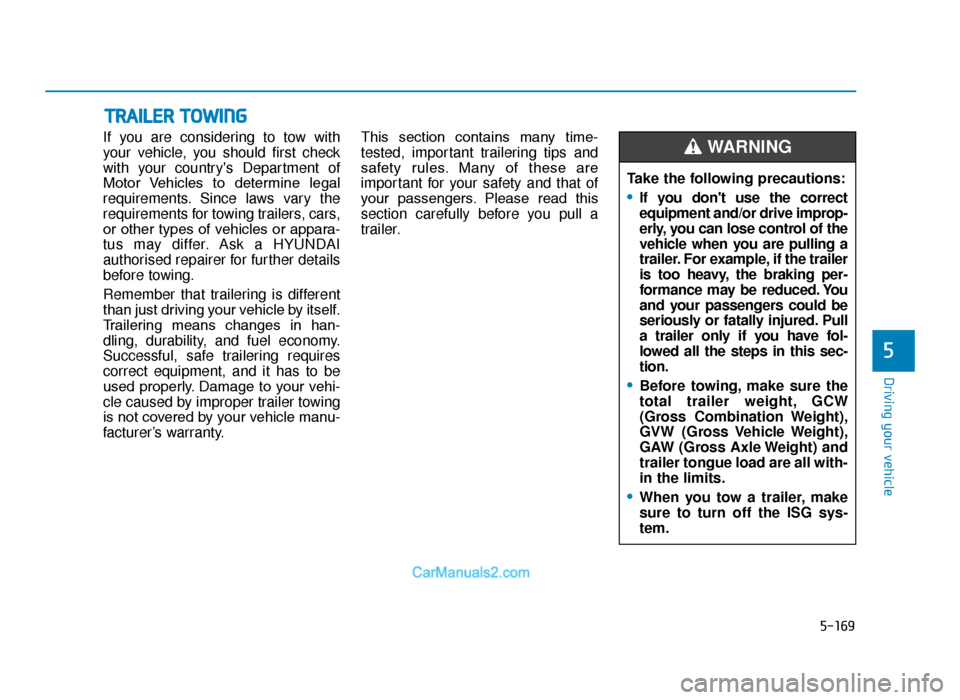

5-169
Driving your vehicle
5
If you are considering to tow with
your vehicle, you should first check
with your country's Department of
Motor Vehicles to determine legal
requirements. Since laws vary the
requirements for towing trailers, cars,
or other types of vehicles or appara-
tus may differ. Ask a HYUNDAI
authorised repairer for further details
before towing.
Remember that trailering is different
than just driving your vehicle by itself.
Trailering means changes in han-
dling, durability, and fuel economy.
Successful, safe trailering requires
correct equipment, and it has to be
used properly. Damage to your vehi-
cle caused by improper trailer towing
is not covered by your vehicle manu-
facturer’s warranty.This section contains many time-
tested, important trailering tips and
safety rules. Many of these are
important for your safety and that of
your passengers. Please read this
section carefully before you pull a
trailer.
TRAILER TOWING
Take the following precautions:
•If you don't use the correct
equipment and/or drive improp-
erly, you can lose control of the
vehicle when you are pulling a
trailer. For example, if the trailer
is too heavy, the braking per-
formance may be reduced. You
and your passengers could be
seriously or fatally injured. Pull
a trailer only if you have fol-
lowed all the steps in this sec-
tion.
•Before towing, make sure the
total trailer weight, GCW
(Gross Combination Weight),
GVW (Gross Vehicle Weight),
GAW (Gross Axle Weight) and
trailer tongue load are all with-
in the limits.
•When you tow a trailer, make
sure to turn off the ISG sys-
tem.
WARNING
TLe UK 5.qxp 5/10/2018 12:32 PM Page 169

Petrol engine
Use unleaded Petrol according to the
fuel label attached to the fuel filler
door.
A. Octane rating of unleaded Petrol1) RON/ROZ : Research OctaneNumber
2) (R+M)/2, AKI : Anti Knock Index
B. Identifiers for Petrol-type fuels ❈This symbol means usable fuel.
Do not use any other fuel.
C. For further details, refer to the owner’s manual.
Diesel engine
Use diesel according to the fuel label
attached to the fuel filler door.
A. Fuel : Diesel
B. Identifiers for FAME containingDiesel-type Fuels
❈ This symbol means usable fuel.
Do not use any other fuel.
C. For further details, refer to the owner’s manual.
8-17
8
Specifications & Consumer information
FUEL LABEL (IF EQUIPPED)
OTM048455L
OTM048456L
TLe UK 8.qxp 6/12/2018 3:18 PM Page 17

I-6
IndexFlat tyre (with spare tyre) .............................................6-17 Changing tyres ...........................................................6-18
EC Declaration of conformity for Jack .....................6-24
Jack and tools ...........................................................6-17
Jack label ...................................................................6-23
Flat tyre (with Tyre Mobility Kit) .......................6-25, 6-33
Flex steering wheel .......................................................5-82
Floor mat anchor(s) ....................................................3-178
Forward collision-avoidance assist (FCA) system - sensor fusion type (front radar + front camera) .........5-85
Four wheel drive (4WD) ..............................................5-68 4WD operation...........................................................5-69
Emergency precautions ..............................................5-73
Reducing the risk of a rollover ..................................5-74
Front seats .......................................................................2\
-6
Fuel filler door ..............................................................3-44
Fuel filter (For Diesel)..................................................7-26
Fuel label ......................................................................8-\
17 Diesel engine .............................................................8-17
Petrol engine ..............................................................8-17
Fuses ........................................................................\
.....7-49 Fuse/Relay panel description .....................................7-54 Gauges ........................................................................\
..3-62
Glove box ...................................................................3-169\
Gross vehicle weight ......................................................8-7
Hazard warning flasher...................................................6-2
Head restraint ...............................................................2-15
Heated steering wheel...................................................3-24
Hill-Start Assist Control (HAC) ...................................5-63
Horn ........................................................................\
......3-24
Idle Stop and Go (ISG) system ....................................5-76
If the engine overheats ...................................................6-8
Ignition switch ................................................................5-6
Engine start/Stop button.............................................5-11
Key ignition switch......................................................5-6
Immobiliser system......................................................\
.3-13
G
H
I
F
TLe UK Index.qxp 6/12/2018 3:27 PM Page 6
