1-6
Your vehicle at a glance

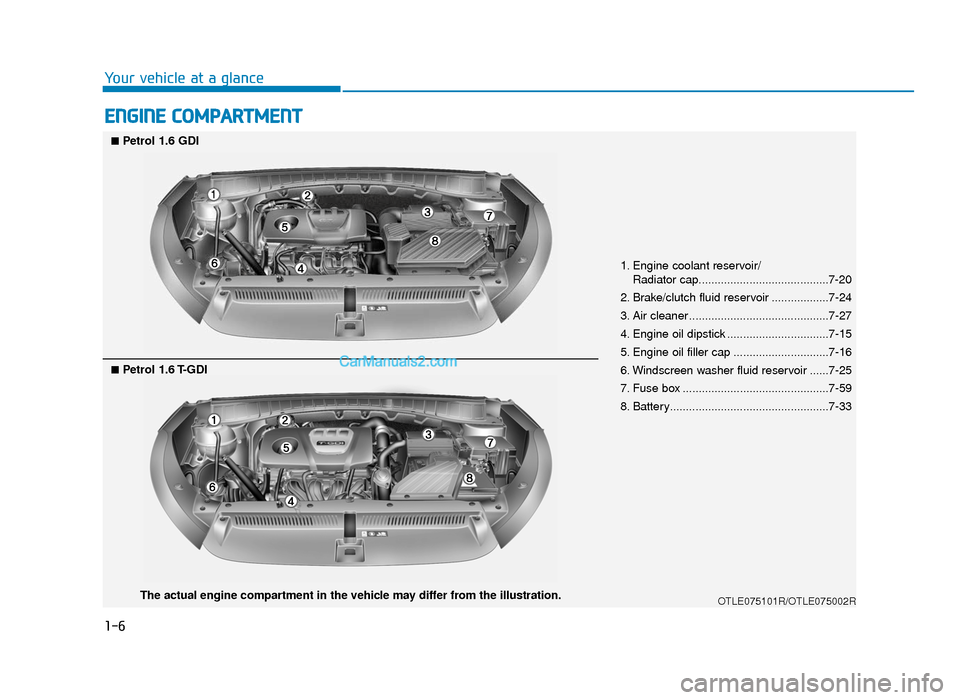

ENGINE COMPARTMENT
1. Engine coolant reservoir/Radiator cap.........................................7-20
2. Brake/clutch fluid reservoir ..................7-24
3. Air cleaner ............................................7-27
4. Engine oil dipstick ................................7-15
5. Engine oil filler cap ..............................7-16
6. Windscreen washer fluid reservoir ......7-25
7. Fuse box ..............................................7-59
8. Battery..................................................7-33
OTLE075101R/OTLE075002R
■Petrol 1.6 GDI
■Petrol 1.6 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
TLe UK 1.qxp 5/10/2018 11:28 AM Page 6

1-7
Your vehicle at a glance
1

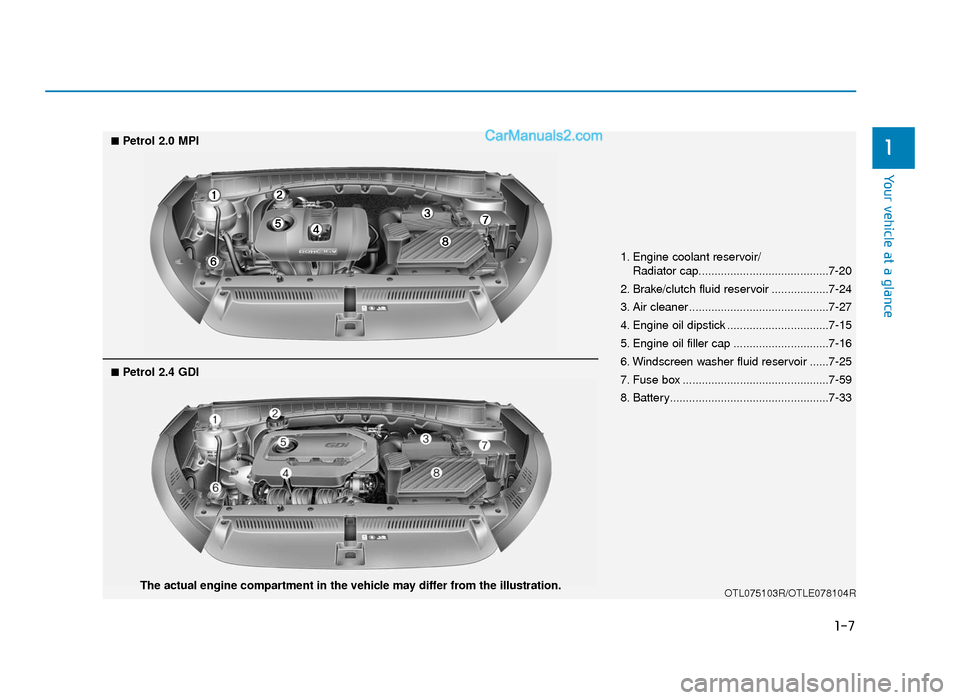

1. Engine coolant reservoir/Radiator cap.........................................7-20
2. Brake/clutch fluid reservoir ..................7-24
3. Air cleaner ............................................7-27
4. Engine oil dipstick ................................7-15
5. Engine oil filler cap ..............................7-16
6. Windscreen washer fluid reservoir ......7-25
7. Fuse box ..............................................7-59
8. Battery..................................................7-33
OTL075103R/OTLE078104R
■Petrol 2.0 MPI
■Petrol 2.4 GDI
The actual engine compartment in the vehicle may differ from the illustration.
TLe UK 1.qxp 5/10/2018 11:28 AM Page 7

1-8
Your vehicle at a glance

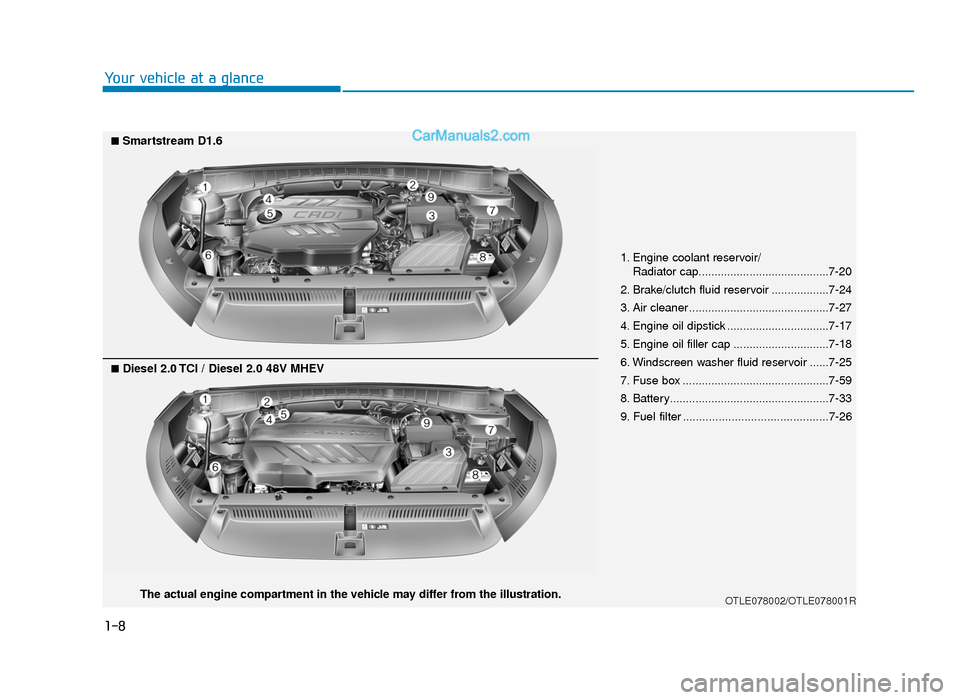

1. Engine coolant reservoir/Radiator cap.........................................7-20
2. Brake/clutch fluid reservoir ..................7-24
3. Air cleaner ............................................7-27
4. Engine oil dipstick ................................7-17
5. Engine oil filler cap ..............................7-18
6. Windscreen washer fluid reservoir ......7-25
7. Fuse box ..............................................7-59
8. Battery..................................................7-33
9. Fuel filter .............................................7-26
OTLE078002/OTLE078001R
■Smartstream D1.6
■Diesel 2.0 TCI / Diesel 2.0 48V MHEV
The actual engine compartment in the vehicle may differ from the illustration.
TLe UK 1.qxp 5/10/2018 11:28 AM Page 8

2-9
Safety system of your vehicle

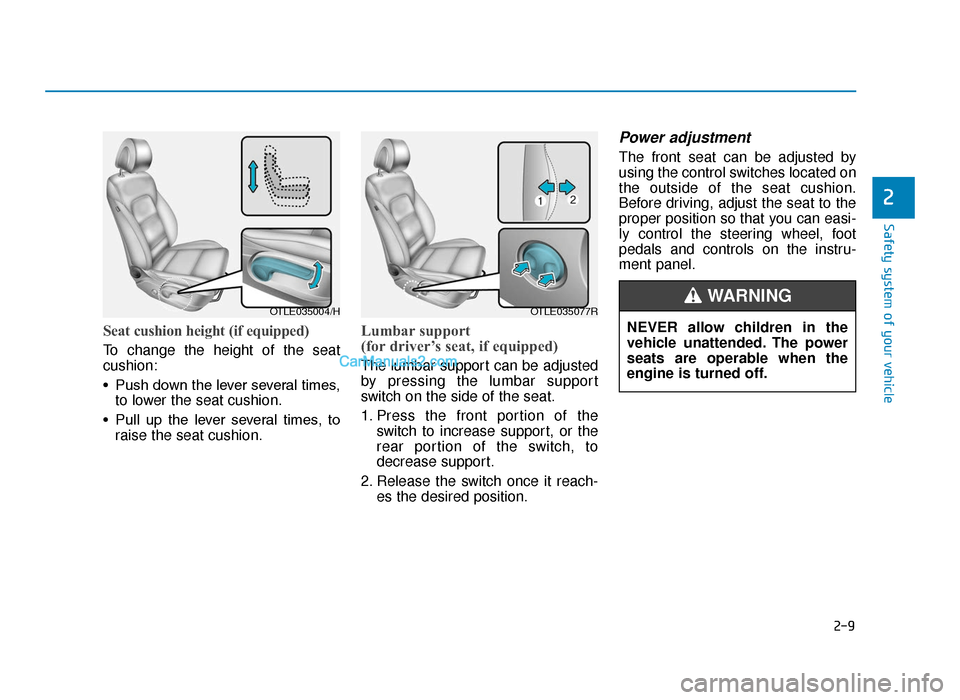

Seat cushion height (if equipped)
To change the height of the seat
cushion:
• Push down the lever several times,to lower the seat cushion.
• Pull up the lever several times, to raise the seat cushion.
Lumbar support
(for driver’s seat, if equipped)
The lumbar support can be adjusted
by pressing the lumbar support
switch on the side of the seat.
1. Press the front portion of the switch to increase support, or the
rear portion of the switch, to
decrease support.
2. Release the switch once it reach- es the desired position.
Power adjustment
The front seat can be adjusted by
using the control switches located on
the outside of the seat cushion.
Before driving, adjust the seat to the
proper position so that you can easi-
ly control the steering wheel, foot
pedals and controls on the instru-
ment panel.
2
OTLE035004/HOTLE035077R
NEVER allow children in the
vehicle unattended. The power
seats are operable when the
engine is turned off.
WARNING
TLe UK 2.qxp 6/12/2018 2:03 PM Page 9

2-10
To prevent damage to the seats:
• Always stop adjusting the seatswhen the seat has been adjust-
ed as far forward or rearward as
possible.
• Do not adjust the seats longer than necessary when the engine
is turned off. This may result in
unnecessary battery drain.
• Do not operate two or more seats at the same time. This may result
in an electrical malfunction.
Forward and rearward adjustment
To move the seat forward or rearward:
1. Push the control switch forward or rearward.
2. Release the switch once the seat reaches the desired position.
Seatback angle
To recline the seatback:
1. Push the control switch forward orrearward.
2. Release the switch once the seat- back reaches the desired position.
NOTICE
Safety system of your vehicle
OTL035005/HOTL035006/H
TLe UK 2.qxp 6/12/2018 2:03 PM Page 10

2-14
5. To use the rear seat, lift and pushthe seatback rearward by lifting up
the front portion of the folding
lever.
Push the seatback firmly until it
clicks into place. Make sure the
seatback is locked in place.
Safety system of your vehicle
OTLE035025
Do not place objects in the rear
seats, since they cannot be
properly secured and may hit
vehicle occupants in a collision
causing serious injury or death.
WARNING
When returning the rear seat-
back from a folded to an upright
position, hold the seatback and
return it slowly. Ensure that the
seatback is completely locked
into its upright position by
pushing on the top of the seat-
back. In an accident or sudden
stop, the unlocked seatback
could allow cargo to move for-
ward with great force and enter
the passenger compartment,
which could result in serious
injury or death.
WARNING
Make sure the engine is off, the
shift lever is in P (Park), and the
parking brake is securely
applied whenever loading or
unloading cargo. Failure to take
these steps may allow the vehi-
cle to move if the shift lever is
inadvertently moved to another
position.
WARNING
TLe UK 2.qxp 6/12/2018 2:04 PM Page 14

2-21
Safety system of your vehicle
2

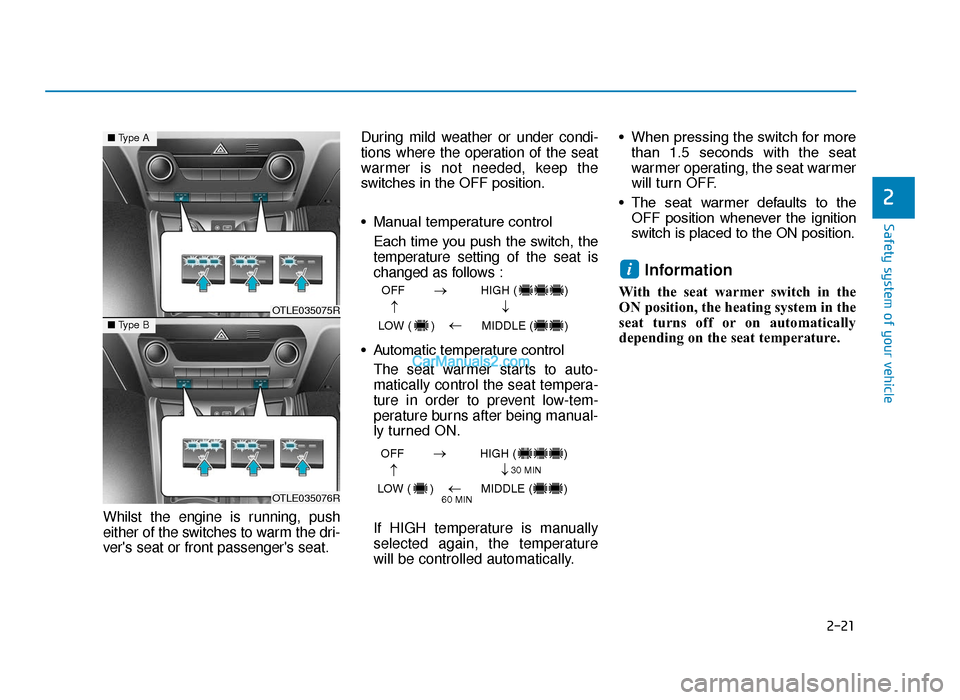

Whilst the engine is running, push
either of the switches to warm the dri-
ver's seat or front passenger's seat.During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.
• Manual temperature control
Each time you push the switch, the
temperature setting of the seat is
changed as follows :
• Automatic temperature control The seat warmer starts to auto-
matically control the seat tempera-
ture in order to prevent low-tem-
perature burns after being manual-
ly turned ON.
If HIGH temperature is manually
selected again, the temperature
will be controlled automatically. • When pressing the switch for more
than 1.5 seconds with the seat
warmer operating, the seat warmer
will turn OFF.
• The seat warmer defaults to the OFF position whenever the ignition
switch is placed to the ON position.
Information
With the seat warmer switch in the
ON position, the heating system in the
seat turns off or on automatically
depending on the seat temperature.
i
OTLE035075R
OTLE035076R
■ Type A
■Type B
OFF HIGH ( )
LOW ( ) MIDDLE ( )
→→
→
→
OFF HIGH ( )
LOW ( ) MIDDLE ( )
→→
→
→
30 MIN
60 MIN
TLe UK 2.qxp 6/12/2018 2:05 PM Page 21

2-22
Safety system of your vehicle

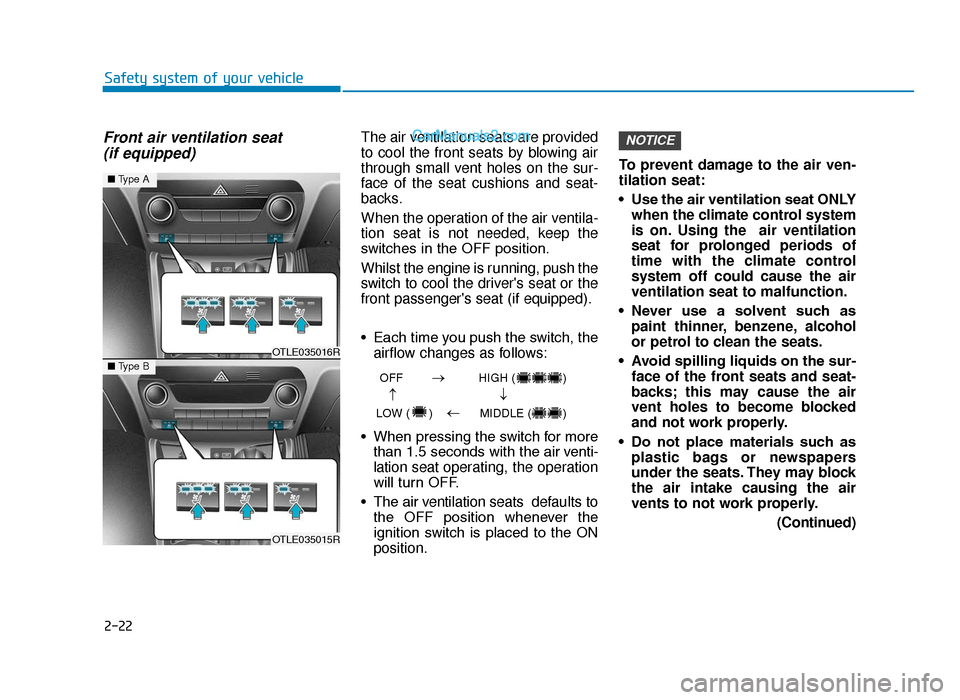

Front air ventilation seat (if equipped)The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the sur-
face of the seat cushions and seat-
backs.
When the operation of the air ventila-
tion seat is not needed, keep the
switches in the OFF position.
Whilst the engine is running, push the
switch to cool the driver's seat or the
front passenger's seat (if equipped).
• Each time you push the switch, the
airflow changes as follows:
• When pressing the switch for more than 1.5 seconds with the air venti-
lation seat operating, the operation
will turn OFF.
• The air v entilation seats def aults to
the OFF position whenever the
ignition switch is placed to the ON
position. To prevent damage to the air ven-
tilation seat:
• Use the air ventilation seat ONLY
when the climate control system
is on. Using the air ventilation
seat for prolonged periods of
time with the climate control
system off could cause the air
ventilation seat to malfunction.
• Never use a solvent such as paint thinner, benzene, alcohol
or petrol to clean the seats.
• Avoid spilling liquids on the sur- face of the front seats and seat-
backs; this may cause the air
vent holes to become blocked
and not work properly.
• Do not place materials such as plastic bags or newspapers
under the seats. They may block
the air intake causing the air
vents to not work properly.
(Continued)NOTICE
OTLE035016R
OTLE035015R
■Type A
■Type BOFF HIGH ( )
LOW ( ) MIDDLE ( )
→→
→
→
TLe UK 2.qxp 6/12/2018 2:05 PM Page 22
