2019 Hyundai Santa Fe key

7-79
7
Maintenance

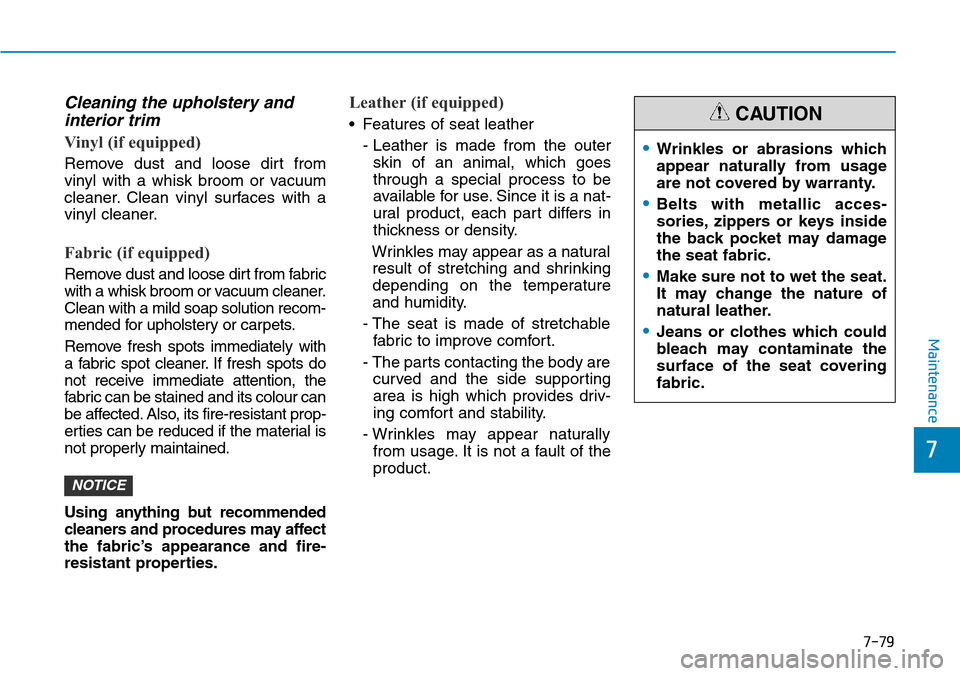

Cleaning the upholstery and
interior trim
Vinyl (if equipped)
Remove dust and loose dirt from
vinyl with a whisk broom or vacuum
cleaner. Clean vinyl surfaces with a
vinyl cleaner.
Fabric (if equipped)
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean with a mild soap solution recom-
mended for upholstery or carpets.
Remove fresh spots immediately with
a fabric spot cleaner. If fresh spots do
not receive immediate attention, the
fabric can be stained and its colour can
be affected. Also, its fire-resistant prop-
erties can be reduced if the material is
not properly maintained.
Using anything but recommended
cleaners and procedures may affect
the fabric’s appearance and fire-
resistant properties.
Leather (if equipped)
• Features of seat leather
- Leather is made from the outer
skin of an animal, which goes
through a special process to be
available for use. Since it is a nat-
ural product, each part differs in
thickness or density.
Wrinkles may appear as a natural
result of stretching and shrinking
depending on the temperature
and humidity.
- The seat is made of stretchable
fabric to improve comfort.
- The parts contacting the body are
curved and the side supporting
area is high which provides driv-
ing comfort and stability.
- Wrinkles may appear naturally
from usage. It is not a fault of the
product.
NOTICE
•Wrinkles or abrasions which
appear naturally from usage
are not covered by warranty.
•Belts with metallic acces-
sories, zippers or keys inside
the back pocket may damage
the seat fabric.
•Make sure not to wet the seat.
It may change the nature of
natural leather.
•Jeans or clothes which could
bleach may contaminate the
surface of the seat covering
fabric.
CAUTION

7-86
Maintenance

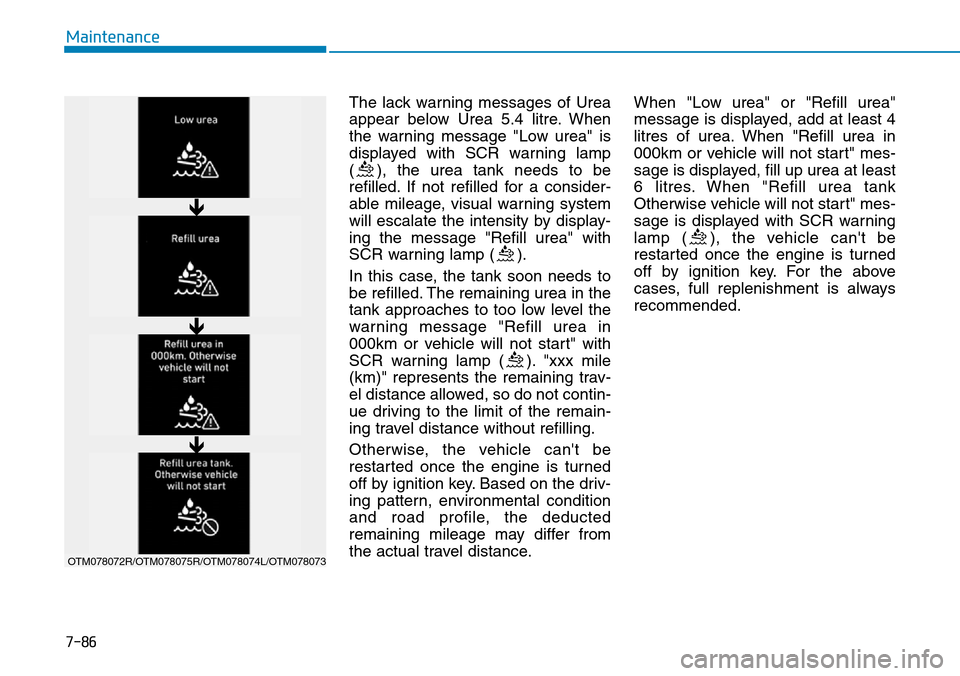

The lack warning messages of Urea
appear below Urea 5.4 litre. When
the warning message "Low urea" is
displayed with SCR warning lamp
( ), the urea tank needs to be
refilled. If not refilled for a consider-
able mileage, visual warning system
will escalate the intensity by display-
ing the message "Refill urea" with
SCR warning lamp ( ).
In this case, the tank soon needs to
be refilled. The remaining urea in the
tank approaches to too low level the
warning message "Refill urea in
000km or vehicle will not start" with
SCR warning lamp ( ). "xxx mile
(km)" represents the remaining trav-
el distance allowed, so do not contin-
ue driving to the limit of the remain-
ing travel distance without refilling.
Otherwise, the vehicle can't be
restarted once the engine is turned
off by ignition key. Based on the driv-
ing pattern, environmental condition
and road profile, the deducted
remaining mileage may differ from
the actual travel distance.When "Low urea" or "Refill urea"
message is displayed, add at least 4
litres of urea. When "Refill urea in
000km or vehicle will not start" mes-
sage is displayed, fill up urea at least
6 litres. When "Refill urea tank
Otherwise vehicle will not start" mes-
sage is displayed with SCR warning
lamp ( ), the vehicle can't be
restarted once the engine is turned
off by ignition key. For the above
cases, full replenishment is always
recommended.
OTM078072R/OTM078075R/OTM078074L/OTM078073


7-87
7
Maintenance
Upon detecting a malfunctionDriving 50 km after detecting
a malfunction
Urea system failure
(= no fuel injection)
Incorrect urea detected
(= abnormal urea)
Abnormal urea-solution
consumption
(= post treatment failure)
Malfunction with the SCR system (if equipped)
SCR system has malfunction due to disconnected electrical components, incorrect urea and so on.
"xxx km(mile)" represents the remaining travel distance allowed, so do not continue driving to the limit of the remain-
ing travel distance without fixing the source of the malfunction. Otherwise, the vehicle can't be restarted once the
engine is turned off by ignition key. In this case, we recommend that the system be inspected by a HYUNDAI autho-
rised repairer.
