5-157
Driving your vehicle
5
The Driver Attention Warning
(DAW) system utilizes the camera
sensor on the front windscreen for
its operation. To keep the camera
sensor in the best condition, you
should observe the followings:
• NEVER install any accessories
or stickers on the front wind-
screen, nor tint the front wind-
screen.
• NEVER locate any reflective
objects (i.e. white paper, mirror)
over the dashboard. Any light
reflection may cause a malfunc-
tion of the Driver Attention
Warning (DAW) system.
• Pay extreme caution to keep the
camera sensor out of water.
• NEVER disassemble the camera
assembly, nor apply any impact
on the camera assembly.• Do not disassemble the camera
temporarily for tinted window or
attaching any types of coatings
and accessories. If you disas-
semble a camera and assemble
it again, we recommend that you
take your vehicle to a HYUNDAI
authorised repairer and have the
system checked for calibration.
NOTICE
The Driver Attention Warning
(DAW) system may not properly
operate with limited alerting in
the following situations:
•The lane detection perform-
ance is limited. (For more
information, refer to "Lane
Keeping Assist (LKA) system"
in this chapter.)
•The vehicle is violently driven
or is abruptly turned for
obstacle avoidance (e.g. con-
struction area, other vehicles,
fallen objects, bumpy road).
CAUTION
•Forward drivability of the
vehicle is severely under-
mined (possibly due to wide
variation in tyre pressures,
uneven tyre wear-out, toe-
in/toe-out alignment).
•The vehicle drives on a curvy
road.
•The vehicle drives through a
windy area.
•The vehicle drives on a
bumpy road.
•The vehicle is controlled by
the following driving assist
systems:
- Lane Keeping Assist (LKA)
system
- Forward Collision-Avoidance
Assist (FCA) system
- Smart Cruise Control (SCC)
system
Playing the vehicle audio sys-
tem at high volume may offset
the Driver Attention Warning
(DAW) system warning sounds.
CAUTION

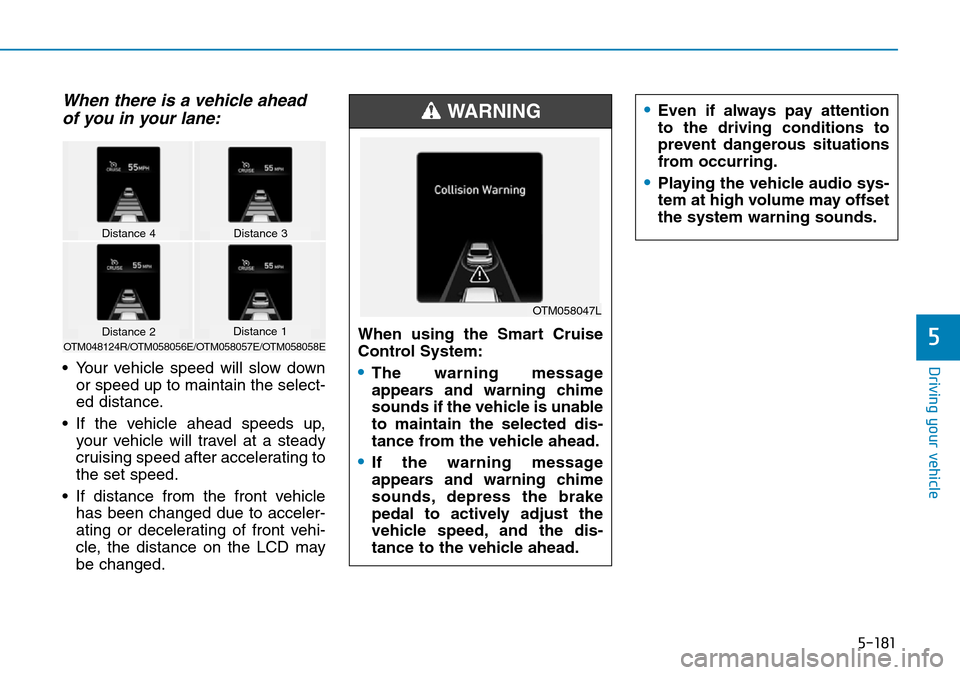

5-181
Driving your vehicle
5
When there is a vehicle ahead
of you in your lane:
• Your vehicle speed will slow down
or speed up to maintain the select-
ed distance.
• If the vehicle ahead speeds up,
your vehicle will travel at a steady
cruising speed after accelerating to
the set speed.
• If distance from the front vehicle
has been changed due to acceler-
ating or decelerating of front vehi-
cle, the distance on the LCD may
be changed.When using the Smart Cruise
Control System:•The warning message
appears and warning chime
sounds if the vehicle is unable
to maintain the selected dis-
tance from the vehicle ahead.
•If the warning message
appears and warning chime
sounds, depress the brake
pedal to actively adjust the
vehicle speed, and the dis-
tance to the vehicle ahead.
•Even if always pay attention
to the driving conditions to
prevent dangerous situations
from occurring.
•Playing the vehicle audio sys-
tem at high volume may offset
the system warning sounds.
WARNING
OTM058047L
Distance 4Distance 3
Distance 1Distance 2OTM048124R/OTM058056E/OTM058057E/OTM058058E

7-31
7
Maintenance
By jump starting
After a jump start from a good bat-
tery, drive the vehicle for 20-30 min-
utes before it is shutoff. The vehicle
may not restart if you shut it off
before the battery had a chance to
adequately recharge. See “Jump
Starting” in chapter 6 for more infor-
mation on jump starting procedures.
Information
An inappropriately disposed
of battery can be harmful to
the environment and human
health.
Dispose of the battery according to
your local law(s) or regulations.
Reset items
The following items may need to be
reset after the battery has been dis-
charged or the battery has been dis-
connected.
• Auto up/down window
• Sunroof
• Trip computer
• Climate control system
• Driver position memory system
• Clock
• Audio system
i
AGM battery (if equipped)
•Absorbent Glass Matt (AGM)
batteries are maintenance-
free and we recommend that
the AGM battery be serviced
by a HYUNDAI authorised
repairer. For charging your
AGM battery, use only fully
automatic battery chargers
that are specially developed
for AGM batteries.
•When replacing the AGM bat-
tery, we recommend that you
use parts for replacement
from a HYUNDAI authorised
repairer.
•Do not open or remove the
cap on top of the battery. This
may cause leaks of internal
electrolyte that could result in
severe injury.
CAUTION

7-46
Maintenance
Driver's side fuse Panel
Fuse NameSymbolFuse RatingCircuit Protected
MODULE 4MODULE47.5AStop Lamp, Low Beam Assist-Dynamic, Driver Door Module
AIR BAG 1115ASRS Control Module
BRAKE
SWITCHBRAKE
SWITCH7.5AIBU, Stop Lamp Switch
MODULE 9MODULE915A
Audio, A/V & Navigation Head Unit, Instrument Cluster, Low DC-DC Converter (Audio/AMP),
A/C Control Module, Head Up Display, Auto Light & Photo Sensor, Rain Sensor,
Rear Seat Alert, Driver IMS Control Module, Driver Door Module,
Driver/Passenger Power Outside Mirror, Power Tail Gate Module
E-CALLE-CALL7.5AMTS E-Call Module
MODULE 10MODULE1010AData Link Connector, Blind-Spot Collision Warning Unit LH/RH,
Front Wireless Charger, Rear A/C Control Module
MODULE 7MODULE710AAuto Head Lamp Levelling Device Module, Head Lamp LH/RH
DCUDCU15ADosing Control Unit
AIR BAG IND.IND10AA/C Control Module, Instrument Cluster

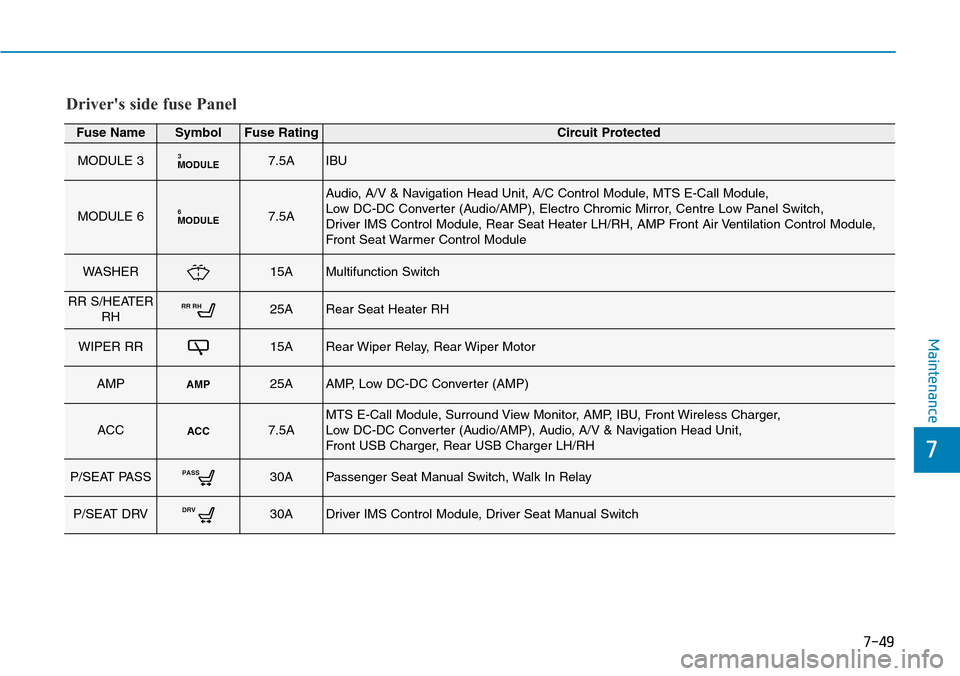

7-49
7
Maintenance
Driver's side fuse Panel
Fuse NameSymbolFuse RatingCircuit Protected
MODULE 3MODULE37.5AIBU
MODULE 6MODULE67.5A
Audio, A/V & Navigation Head Unit, A/C Control Module, MTS E-Call Module,
Low DC-DC Converter (Audio/AMP), Electro Chromic Mirror, Centre Low Panel Switch,
Driver IMS Control Module, Rear Seat Heater LH/RH, AMP Front Air Ventilation Control Module,
Front Seat Warmer Control Module
WASHER15AMultifunction Switch
RR S/HEATER
RHRR RH25ARear Seat Heater RH
WIPER RR15ARear Wiper Relay, Rear Wiper Motor
AMPAMP25AAMP, Low DC-DC Converter (AMP)
ACCACC7.5AMTS E-Call Module, Surround View Monitor, AMP, IBU, Front Wireless Charger,
Low DC-DC Converter (Audio/AMP), Audio, A/V & Navigation Head Unit,
Front USB Charger, Rear USB Charger LH/RH
P/SEAT PASSPASS30APassenger Seat Manual Switch, Walk In Relay
P/SEAT DRVDRV30ADriver IMS Control Module, Driver Seat Manual Switch
