2019 Hyundai Santa Fe child restraint

2-42
Safety system of your vehicle

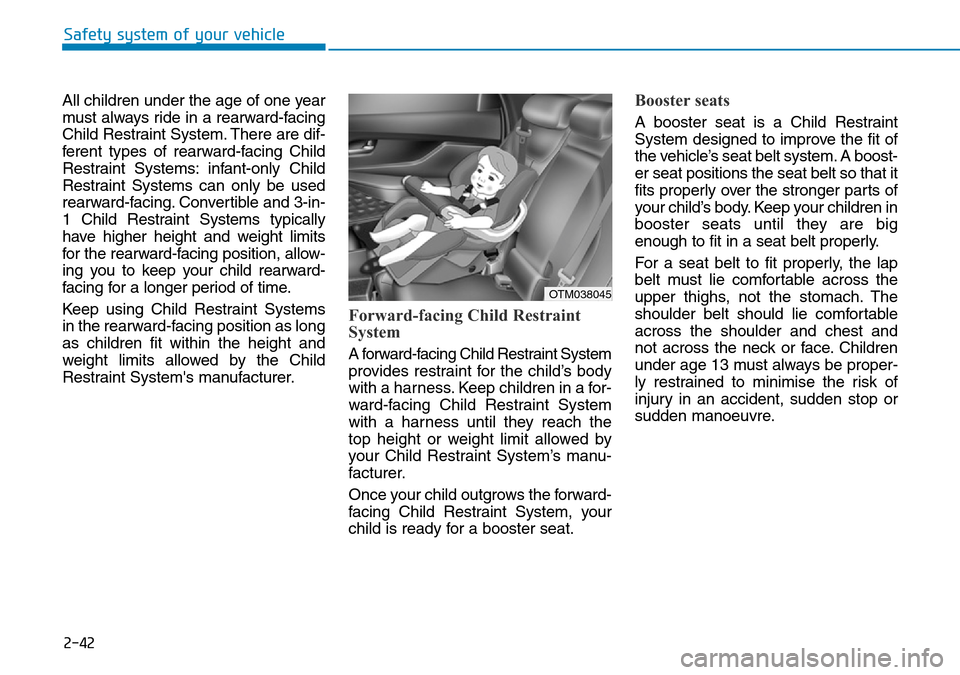

All children under the age of one year
must always ride in a rearward-facing
Child Restraint System. There are dif-
ferent types of rearward-facing Child
Restraint Systems: infant-only Child
Restraint Systems can only be used
rearward-facing. Convertible and 3-in-
1 Child Restraint Systems typically
have higher height and weight limits
for the rearward-facing position, allow-
ing you to keep your child rearward-
facing for a longer period of time.
Keep using Child Restraint Systems
in the rearward-facing position as long
as children fit within the height and
weight limits allowed by the Child
Restraint System's manufacturer.
Forward-facing Child Restraint
System
A forward-facing Child Restraint System
provides restraint for the child’s body
with a harness. Keep children in a for-
ward-facing Child Restraint System
with a harness until they reach the
top height or weight limit allowed by
your Child Restraint System’s manu-
facturer.
Once your child outgrows the forward-
facing Child Restraint System, your
child is ready for a booster seat.
Booster seats
A booster seat is a Child Restraint
System designed to improve the fit of
the vehicle’s seat belt system. A boost-
er seat positions the seat belt so that it
fits properly over the stronger parts of
your child’s body. Keep your children in
booster seats until they are big
enough to fit in a seat belt properly.
For a seat belt to fit properly, the lap
belt must lie comfortable across the
upper thighs, not the stomach. The
shoulder belt should lie comfortable
across the shoulder and chest and
not across the neck or face. Children
under age 13 must always be proper-
ly restrained to minimise the risk of
injury in an accident, sudden stop or
sudden manoeuvre.
OTM038045

2-43
Safety system of your vehicle
2

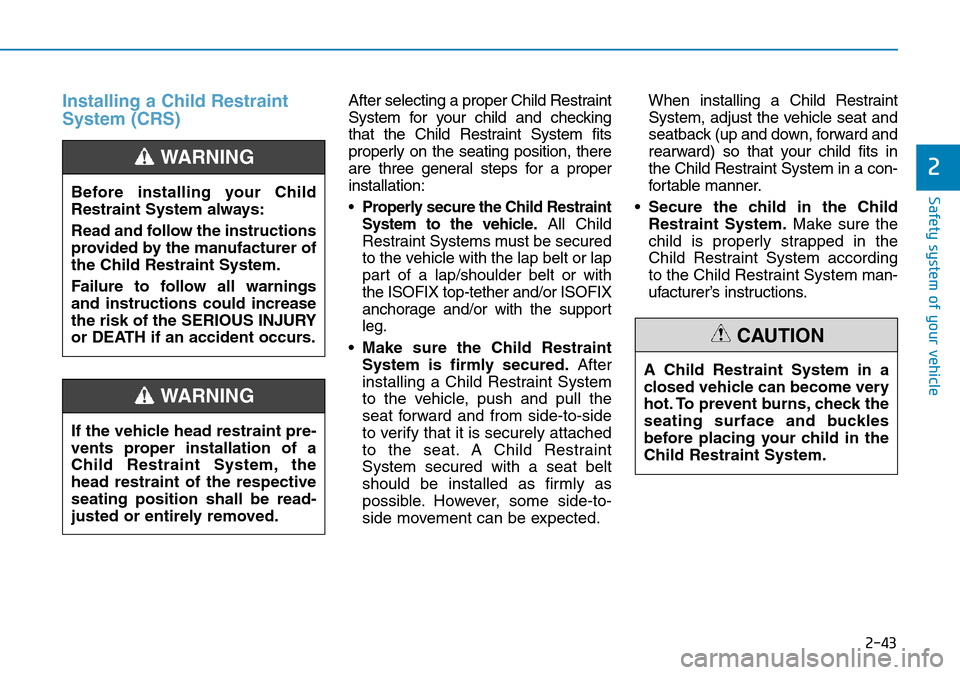

Installing a Child Restraint
System (CRS)After selecting a proper Child Restraint
System for your child and checking
that the Child Restraint System fits
properly on the seating position, there
are three general steps for a proper
installation:
•Properly secure the Child Restraint
System to the vehicle.
All Child
Restraint Systems must be secured
to the vehicle with the lap belt or lap
part of a lap/shoulder belt or with
the ISOFIX top-tether and/or ISOFIX
anchorage and/or with the support
leg.
•Make sure the Child Restraint
System is firmly secured.After
installing a Child Restraint System
to the vehicle, push and pull the
seat forward and from side-to-side
to verify that it is securely attached
to the seat. A Child Restraint
System secured with a seat belt
should be installed as firmly as
possible. However, some side-to-
side movement can be expected.When installing a Child Restraint
System, adjust the vehicle seat and
seatback (up and down, forward and
rearward) so that your child fits in
the Child Restraint System in a con-
fortable manner.
•Secure the child in the Child
Restraint System.Make sure the
child is properly strapped in the
Child Restraint System according
to the Child Restraint System man-
ufacturer’s instructions. Before installing your Child
Restraint System always:
Read and follow the instructions
provided by the manufacturer of
the Child Restraint System.
Failure to follow all warnings
and instructions could increase
the risk of the SERIOUS INJURY
or DEATH if an accident occurs.
WARNING
If the vehicle head restraint pre-
vents proper installation of a
Child Restraint System, the
head restraint of the respective
seating position shall be read-
justed or entirely removed.
WARNING
A Child Restraint System in a
closed vehicle can become very
hot. To prevent burns, check the
seating surface and buckles
before placing your child in the
Child Restraint System.
CAUTION

2-44
Safety system of your vehicle

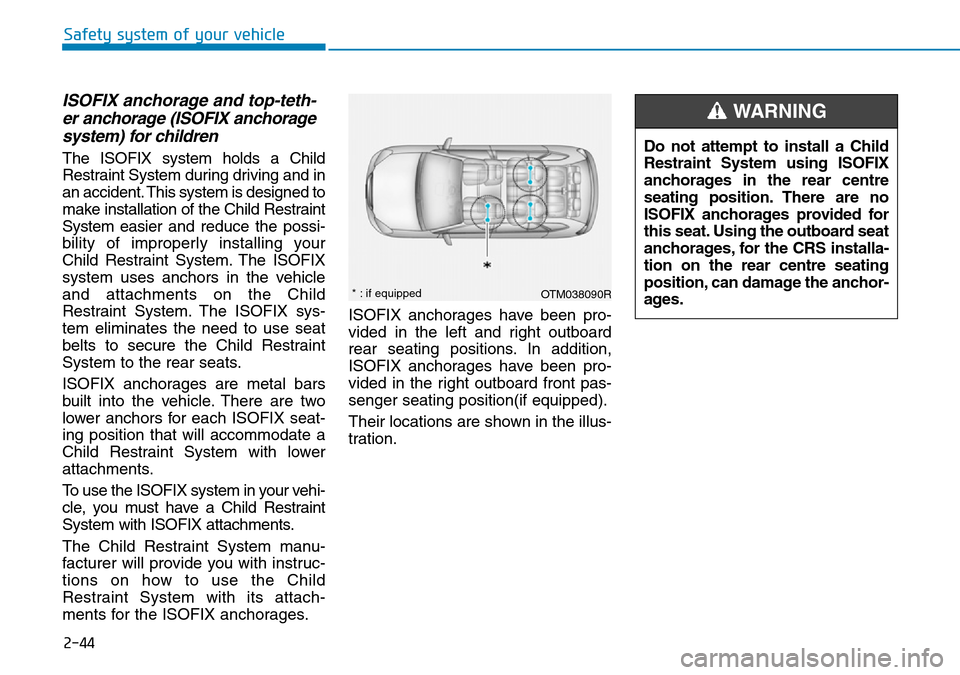

ISOFIX anchorage and top-teth-
er anchorage (ISOFIX anchorage
system) for children
The ISOFIX system holds a Child
Restraint System during driving and in
an accident. This system is designed to
make installation of the Child Restraint
System easier and reduce the possi-
bility of improperly installing your
Child Restraint System. The ISOFIX
system uses anchors in the vehicle
and attachments on the Child
Restraint System. The ISOFIX sys-
tem eliminates the need to use seat
belts to secure the Child Restraint
System to the rear seats.
ISOFIX anchorages are metal bars
built into the vehicle. There are two
lower anchors for each ISOFIX seat-
ing position that will accommodate a
Child Restraint System with lower
attachments.
To use the ISOFIX system in your vehi-
cle, you must have a Child Restraint
System with ISOFIX attachments.
The Child Restraint System manu-
facturer will provide you with instruc-
tions on how to use the Child
Restraint System with its attach-
ments for the ISOFIX anchorages.ISOFIX anchorages have been pro-
vided in the left and right outboard
rear seating positions. In addition,
ISOFIX anchorages have been pro-
vided in the right outboard front pas-
senger seating position(if equipped).
Their locations are shown in the illus-
tration.Do not attempt to install a Child
Restraint System using ISOFIX
anchorages in the rear centre
seating position. There are no
ISOFIX anchorages provided for
this seat. Using the outboard seat
anchorages, for the CRS installa-
tion on the rear centre seating
position, can damage the anchor-
ages.
WARNING
OTM038090R * : if equipped

2-45
Safety system of your vehicle
2

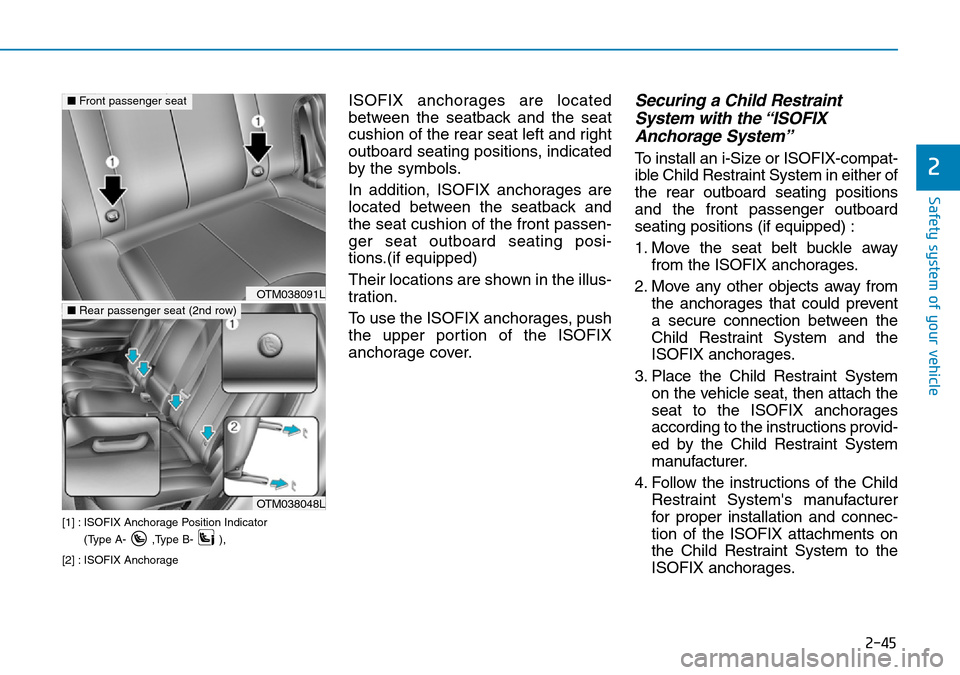

[1] : ISOFIX Anchorage Position Indicator
(Type A- ,Type B- ),
[2] : ISOFIX Anchorage
ISOFIX anchorages are located
between the seatback and the seat
cushion of the rear seat left and right
outboard seating positions, indicated
by the symbols.
In addition, ISOFIX anchorages are
located between the seatback and
the seat cushion of the front passen-
ger seat outboard seating posi-
tions.(if equipped)
Their locations are shown in the illus-
tration.
To use the ISOFIX anchorages, push
the upper portion of the ISOFIX
anchorage cover.Securing a Child Restraint
System with the “ISOFIX
Anchorage System”
To install an i-Size or ISOFIX-compat-
ible Child Restraint System in either of
the rear outboard seating positions
and the front passenger outboard
seating positions (if equipped) :
1. Move the seat belt buckle away
from the ISOFIX anchorages.
2. Move any other objects away from
the anchorages that could prevent
a secure connection between the
Child Restraint System and the
ISOFIX anchorages.
3. Place the Child Restraint System
on the vehicle seat, then attach the
seat to the ISOFIX anchorages
according to the instructions provid-
ed by the Child Restraint System
manufacturer.
4. Follow the instructions of the Child
Restraint System's manufacturer
for proper installation and connec-
tion of the ISOFIX attachments on
the Child Restraint System to the
ISOFIX anchorages.
OTM038091L
OTM038048L
■Front passenger seat
■Rear passenger seat (2nd row)

2-46
Safety system of your vehicle

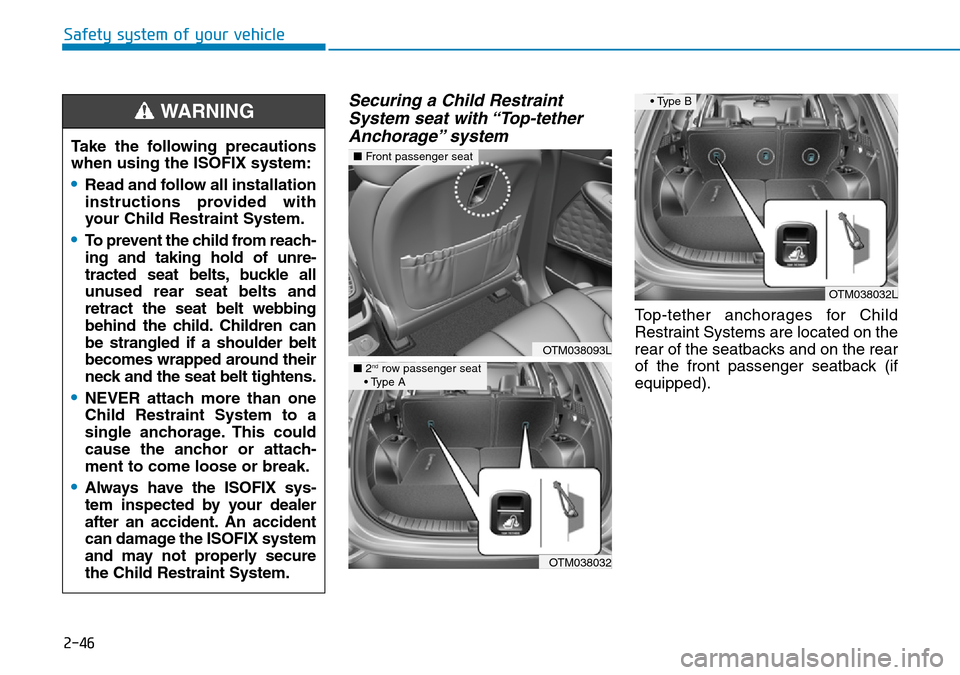

Securing a Child Restraint
System seat with “Top-tether
Anchorage” system
Top-tether anchorages for Child
Restraint Systems are located on the
rear of the seatbacks and on the rear
of the front passenger seatback (if
equipped). Take the following precautions
when using the ISOFIX system:
•Read and follow all installation
instructions provided with
your Child Restraint System.
•To prevent the child from reach-
ing and taking hold of unre-
tracted seat belts, buckle all
unused rear seat belts and
retract the seat belt webbing
behind the child. Children can
be strangled if a shoulder belt
becomes wrapped around their
neck and the seat belt tightens.
•NEVER attach more than one
Child Restraint System to a
single anchorage. This could
cause the anchor or attach-
ment to come loose or break.
•Always have the ISOFIX sys-
tem inspected by your dealer
after an accident. An accident
can damage the ISOFIX system
and may not properly secure
the Child Restraint System.
WARNING
OTM038093L
OTM038032
■Front passenger seat
■2ndrow passenger seat
• Type A
OTM038032L
• Type B

2-47
Safety system of your vehicle
2

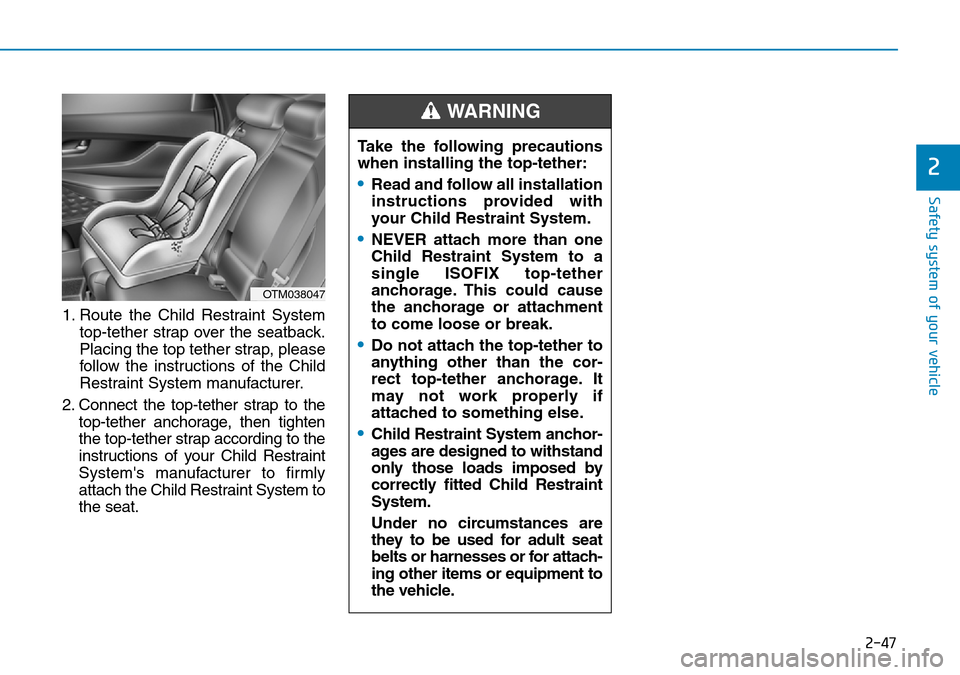

1. Route the Child Restraint System
top-tether strap over the seatback.
Placing the top tether strap, please
follow the instructions of the Child
Restraint System manufacturer.
2. Connect the top-tether strap to the
top-tether anchorage, then tighten
the top-tether strap according to the
instructions of your Child Restraint
System's manufacturer to firmly
attach the Child Restraint System to
the seat.
OTM038047
Take the following precautions
when installing the top-tether:
•Read and follow all installation
instructions provided with
your Child Restraint System.
•NEVER attach more than one
Child Restraint System to a
single ISOFIX top-tether
anchorage. This could cause
the anchorage or attachment
to come loose or break.
•Do not attach the top-tether to
anything other than the cor-
rect top-tether anchorage. It
may not work properly if
attached to something else.
•Child Restraint System anchor-
ages are designed to withstand
only those loads imposed by
correctly fitted Child Restraint
System.
Under no circumstances are
they to be used for adult seat
belts or harnesses or for attach-
ing other items or equipment to
the vehicle.
WARNING

2-48
Safety system of your vehicle
CRS categoriesSeating positionSeating position123456789
Universal belted CRS--Ye s1)
F, R
Yes
F, RYes
F, RYe s
F, RYe s2)
F, R-Ye s2)
F, R
i-size CRS--Yes
F, RYes
F, RNOYes
F, RNO-NO
ISOFIX infant CRS
(i.e. CRS for a baby)ISOFIX
(R1)--Ye s
RYe s
RNOYe s
RNO-NO
Carry cot
(ISOFIX lateral facing CRS)ISOFIX
(L1,L2)--NONoNONoNO-NO
ISOFIX toddler CRS - small ISOFIX
(F2,F2X,R2,R2X)--Yes
F, RYes
F, RNOYes
F, RNO-NO
ISOFIX toddler CRS –
large* (* : not booster seats)ISOFIX
(F3, R3)--Yes
F, RYes
F, RNOYe s
F, RNO-NO
Booster Seat – reduced
WidthISO CRF : B2--Ye sYe sNoYe sNo-NO
Booster Seat – full WidthISO CRF : B3--NoNoNoNoNo-NO

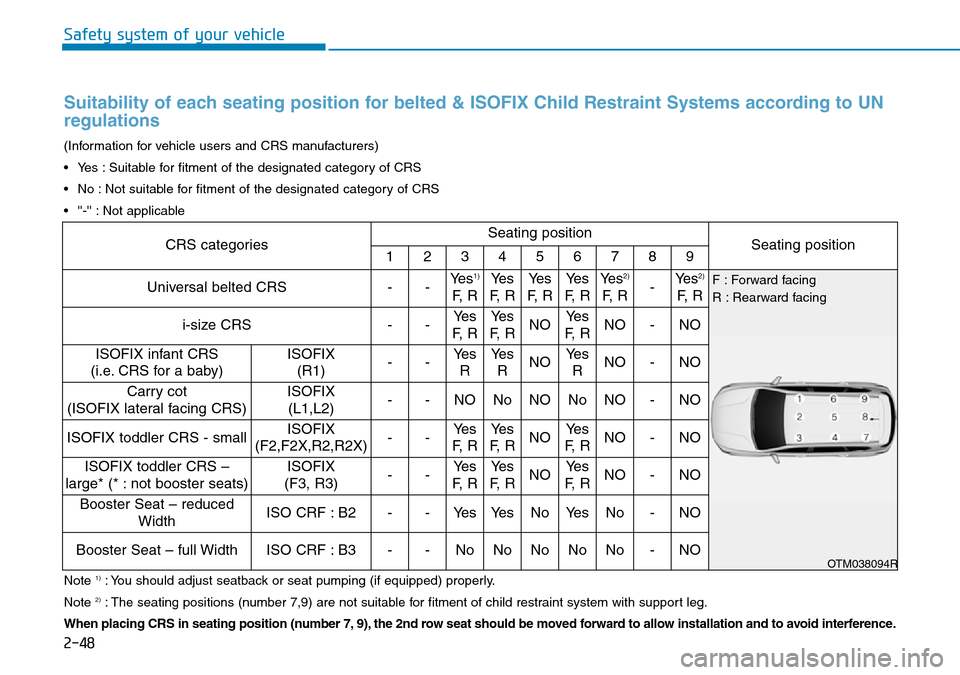

Suitability of each seating position for belted & ISOFIX Child Restraint Systems according to UN
regulations
(Information for vehicle users and CRS manufacturers)
• Yes : Suitable for fitment of the designated category of CRS
• No : Not suitable for fitment of the designated category of CRS
• ''-'' : Not applicable
OTM038094R
F : Forward facing
R : Rearward facing
Note
1): You should adjust seatback or seat pumping (if equipped) properly.
Note
2): The seating positions (number 7,9) are not suitable for fitment of child restraint system with support leg.
When placing CRS in seating position (number 7, 9), the 2nd row seat should be moved forward to allow installation and to avoid interference.

2-49
Safety system of your vehicle
2

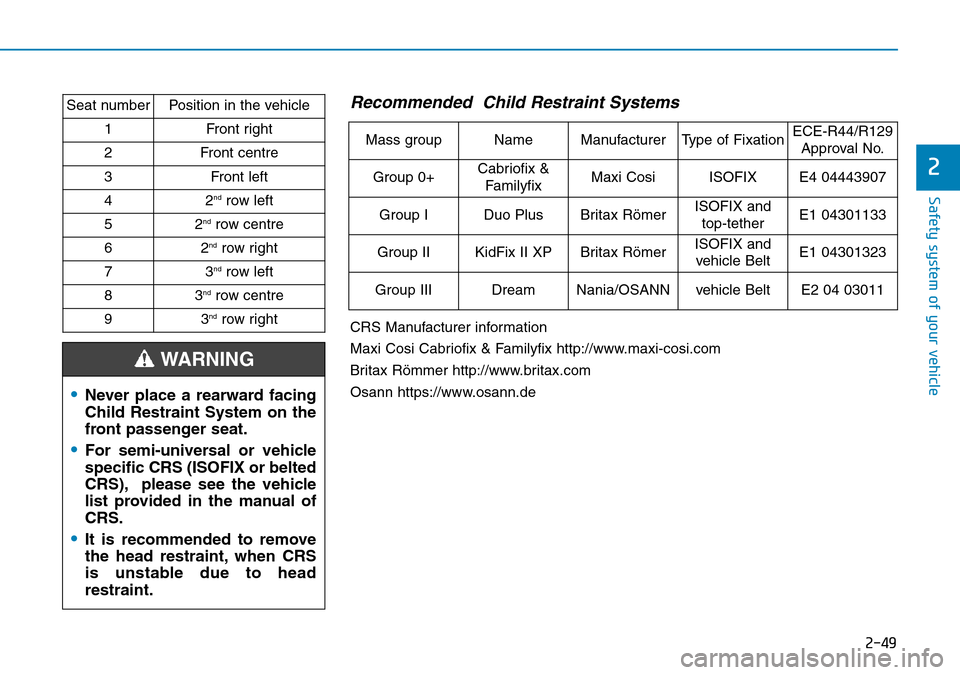

Seat numberPosition in the vehicle
1Front right
2Front centre
3Front left
42ndrow left
52ndrow centre
62ndrow right
73ndrow left
83ndrow centre
93ndrow right
•Never place a rearward facing
Child Restraint System on the
front passenger seat.
•For semi-universal or vehicle
specific CRS (ISOFIX or belted
CRS), please see the vehicle
list provided in the manual of
CRS.
•It is recommended to remove
the head restraint, when CRS
is unstable due to head
restraint.
WARNING
Recommended Child Restraint Systems
Mass groupNameManufacturerType of FixationECE-R44/R129
Approval No.
Group 0+Cabriofix &
FamilyfixMaxi CosiISOFIXE4 04443907
Group IDuo PlusBritax RömerISOFIX and
top-tetherE1 04301133
Group IIKidFix II XP Britax RömerISOFIX and
vehicle BeltE1 04301323
Group IIIDreamNania/OSANNvehicle BeltE2 04 03011
CRS Manufacturer information
Maxi Cosi Cabriofix & Familyfix http://www.maxi-cosi.com
Britax Römmer http://www.britax.com
Osann https://www.osann.de
