2019 Hyundai Kona Owner's Manual

D
DI
IM
M E
EN
N S
SI
IO
O N
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
E
EN
N G
GI
IN
N E
E

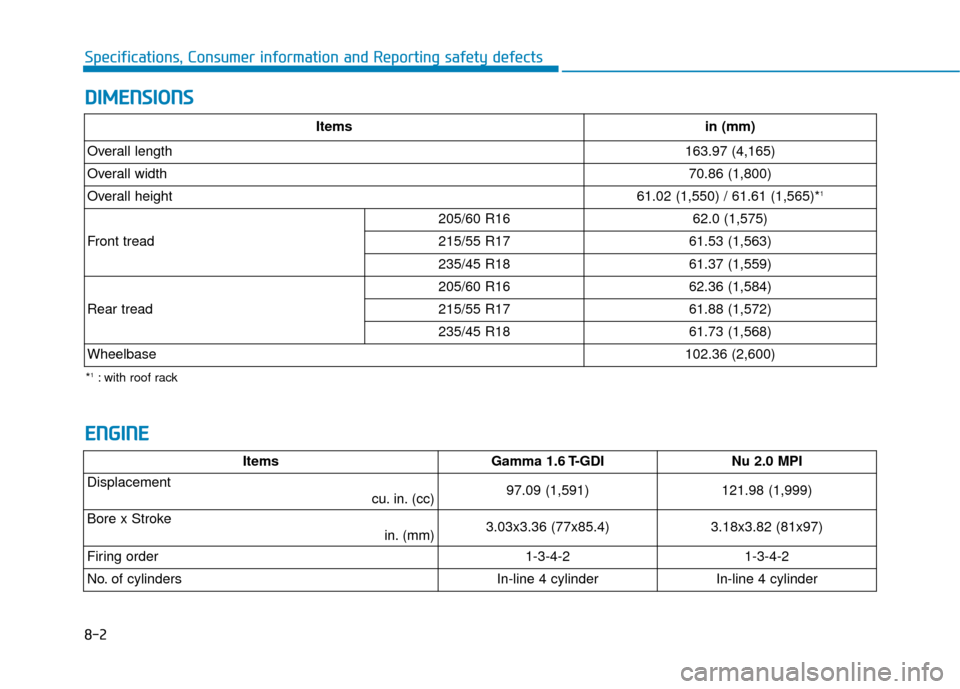

Items Gamma 1.6 T-GDINu 2.0 MPI
Displacement
cu. in. (cc)97.09 (1,591)121.98 (1,999)
Bore x Stroke in. (mm)3.03x3.36 (77x85.4)3.18x3.82 (81x97)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
*1: with roof rack
Itemsin (mm)
Overall length163.97 (4,165)
Overall width70.86 (1,800)
Overall height61.02 (1,550) / 61.61 (1,565)*1
Front tread
205/60 R1662.0 (1,575)
215/55 R1761.53 (1,563)
235/45 R1861.37 (1,559)
Rear tread
205/60 R1662.36 (1,584)
215/55 R1761.88 (1,572)
235/45 R1861.73 (1,568)
Wheelbase102.36 (2,600)

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
88
Specifications, Consumer information and Reporting safety defects

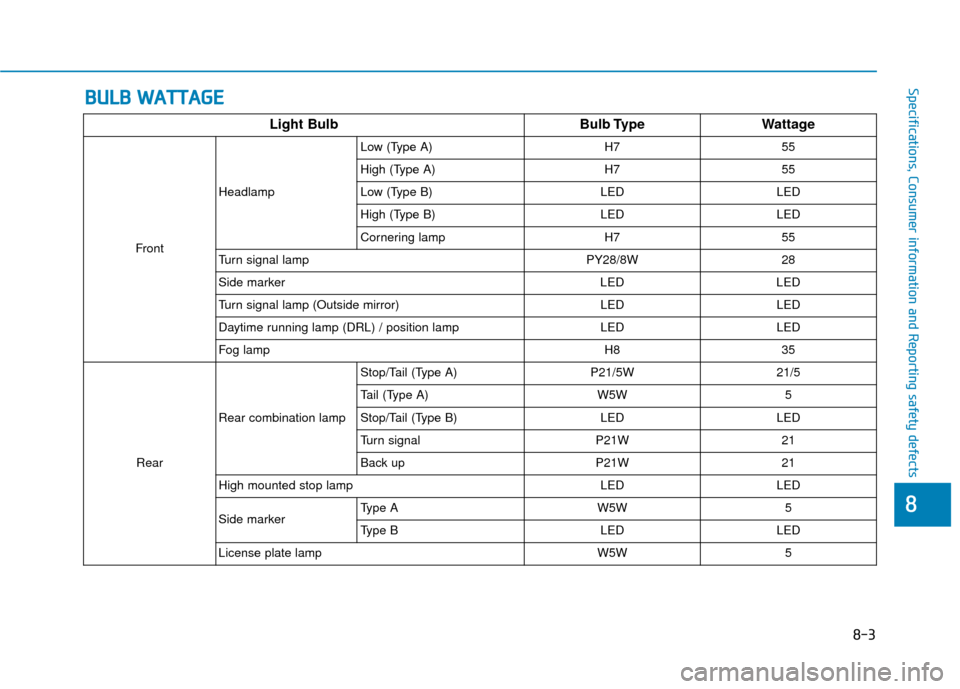

Light Bulb Bulb TypeWattage
FrontHeadlamp
Low (Type A) H7 55
High (Type A) H7 55
Low (Type B) LED LED
High (Type B) LED LED
Cornering lamp H7 55
Turn signal lamp PY28/8W28
Side marker LEDLED
Turn signal lamp (Outside mirror) LEDLED
Daytime running lamp (DRL) / position lamp LEDLED
Fog lamp H835
Rear Rear combination lamp Stop/Tail (Type A)
P21/5W21/5
Tail (Type A) W5W5
Stop/Tail (Type B) LEDLED
Turn signal P21W21
Back up P21W21
High mounted stop lamp LEDLED
Side marker Type A
W5W5
Type B LEDLED
License plate lamp W5W5
8-3

8-4
Specifications, Consumer information and Reporting safety defects

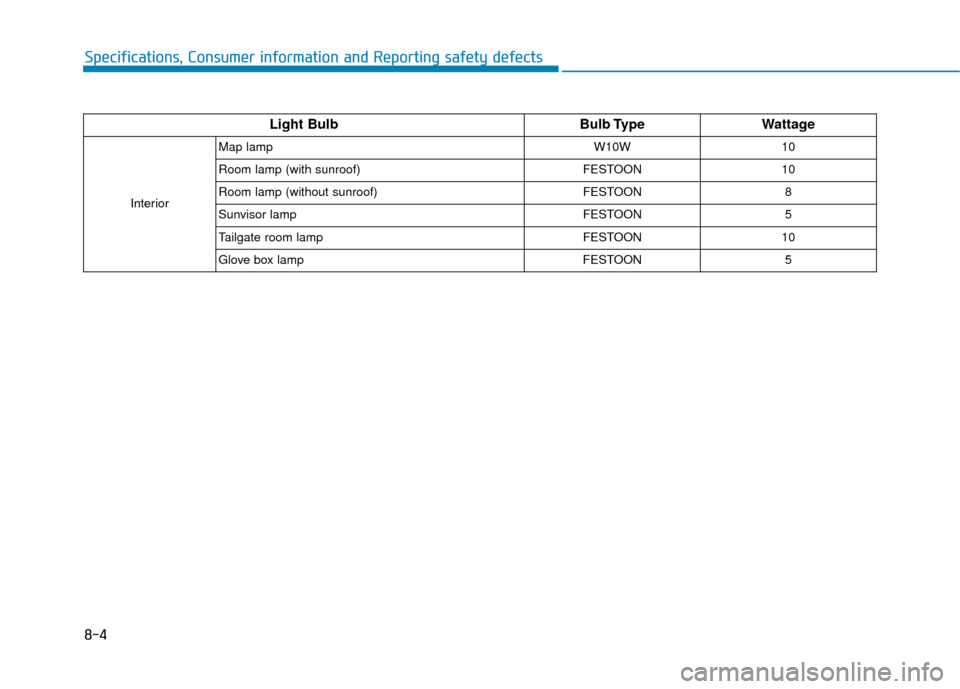

Light BulbBulb TypeWattage
InteriorMap lamp W10W 10
Room lamp (with sunroof) FESTOON 10
Room lamp (without sunroof) FESTOON 8
Sunvisor lamp FESTOON 5
Tailgate room lampFESTOON10
Glove box lamp FESTOON5

T
TI
IR
R E
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S
8-5
88
Specifications, Consumer information and Reporting safety defects

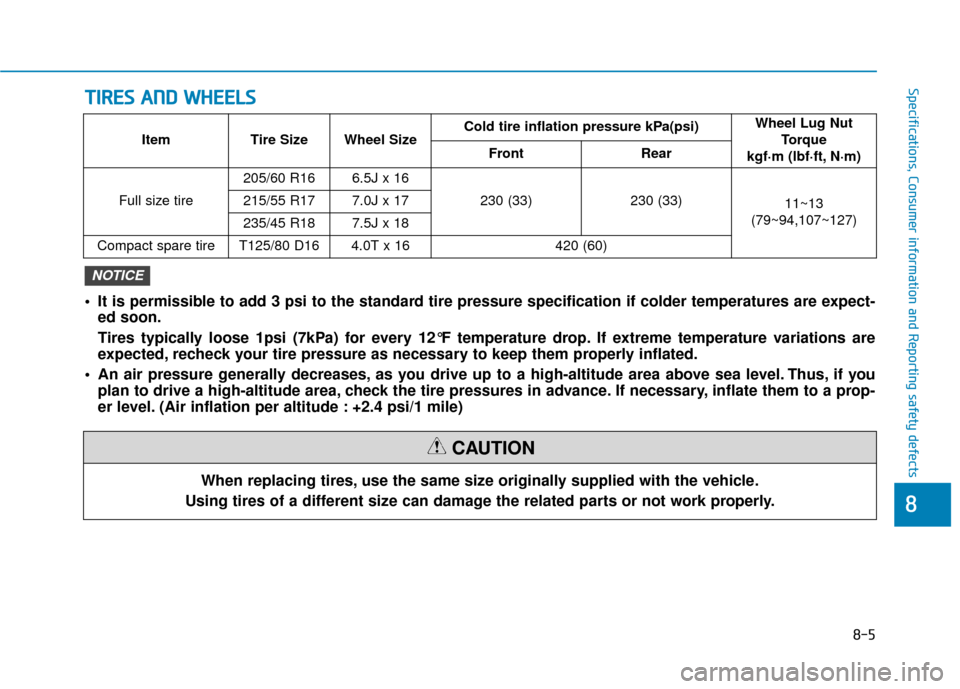

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect- ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
NOTICE
Item Tire Size Wheel Size Cold tire inflation pressure kPa(psi)
Wheel Lug Nut
Torque
kgf·m (lbf·ft, N·m)
Front
Rear
Full size tire 205/60 R16 6.5J x 16
230 (33)230 (33)
11~13
(79~94,107~127)
215/55 R17 7.0J x 17
235/45 R18 7.5J x 18
Compact spare tire T125/80 D16 4.0T x 16 420 (60)

8-6
Specifications, Consumer information and Reporting safety defects
V
VO
O L
LU
U M
M E
E
A
A N
N D
D
W
W E
EI
IG
G H
H T
T
A
A I
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M

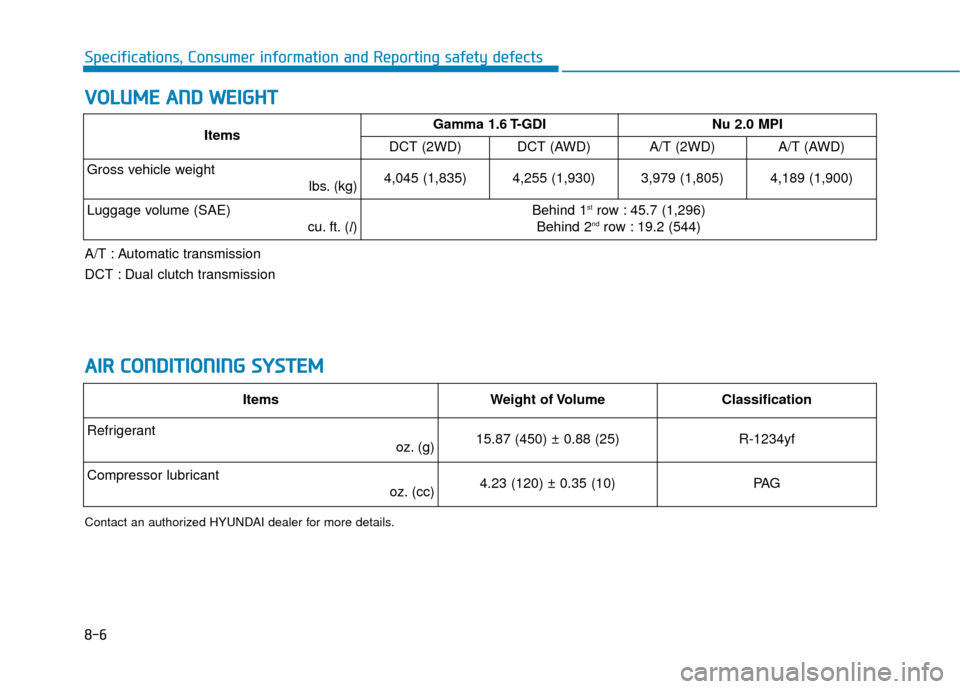

Contact an authorized HYUNDAI dealer for more details.
ItemsGamma 1.6 T-GDINu 2.0 MPI
DCT (2WD)DCT (AWD)A/T (2WD)A/T (AWD)
Gross vehicle weight
lbs. (kg)4,045 (1,835)4,255 (1,930)3,979 (1,805)4,189 (1,900)
Luggage volume (SAE)cu. ft. (l)Behind 1strow : 45.7 (1,296)
Behind 2ndrow : 19.2 (544)
ItemsWeight of VolumeClassification
Refrigerant oz. (g) 15.87 (450) ± 0.88 (25) R-1234yf
Compressor lubricantoz. (cc) 4.23 (120) ± 0.35 (10)PA G
A/T : Automatic transmission
DCT : Dual clutch transmission

8-7
88
Specifications, Consumer information and Reporting safety defects

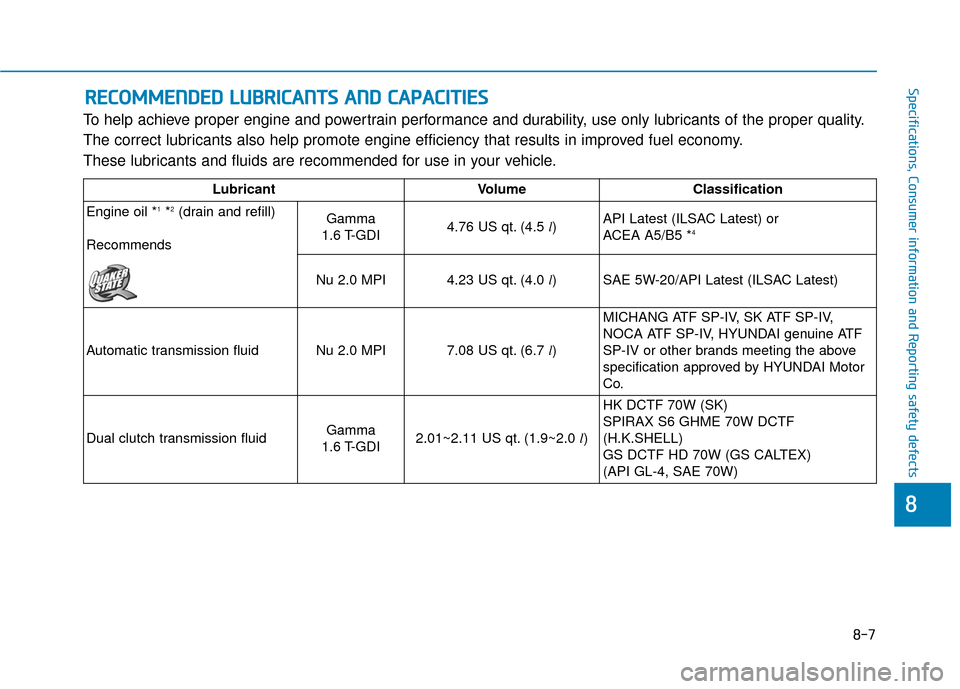

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
R RE
EC
CO
O M
M M
ME
EN
N D
DE
ED
D
L
L U
U B
BR
RI
IC
C A
A N
N T
TS
S
A
A N
N D
D
C
C A
A P
PA
A C
CI
IT
T I
IE
E S
S
LubricantVolume Classification
Engine oil *
1*2(drain and refill)
RecommendsGamma
1.6 T-GDI4.76 US qt. (4.5 l)API Latest (ILSAC Latest) or
ACEA A5/B5 *4
Nu 2.0 MPI4.23 US qt. (4.0
l)
SAE 5W-20/API Latest (ILSAC Latest)
Automatic transmission fluidNu 2.0 MPI7.08 US qt. (6.7 l)
MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine ATF
SP-IV or other brands meeting the above
specification approved by HYUNDAI Motor
Co.
Dual clutch transmission fluidGamma
1.6 T-GDI2.01~2.11 US qt. (1.9~2.0 l)
HK DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF
(H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W)

8-8
Specifications, Consumer information and Reporting safety defects

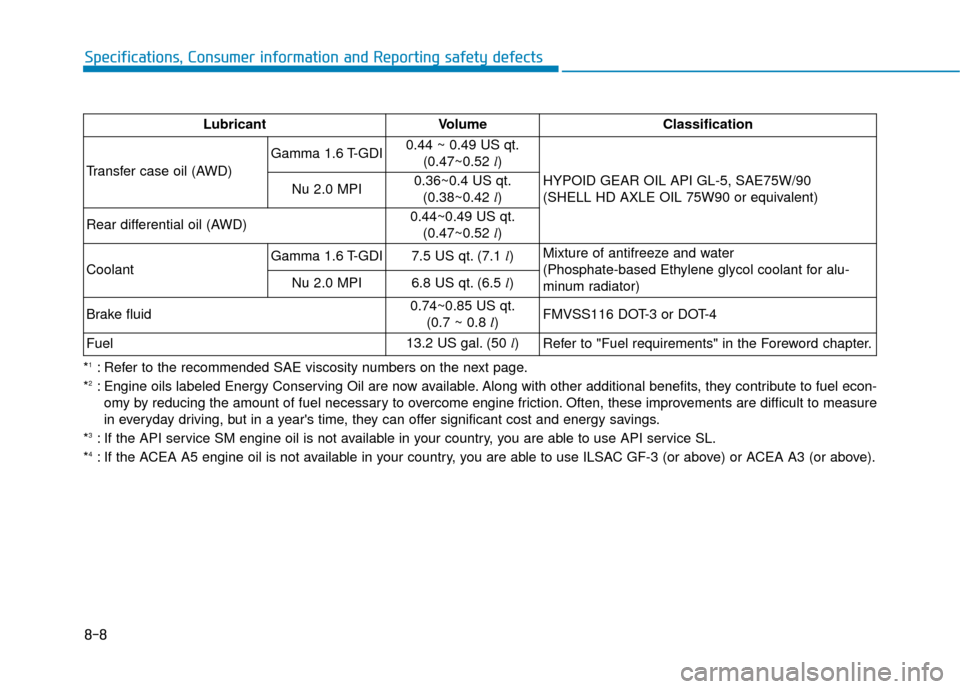

*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year's time, they can offer significant cost and energy savings.
*
3: If the API service SM engine oil is not available in your country, you are able to use API service SL.
*4: If the ACEA A5 engine oil is not available in your country, you are able to use ILSAC GF-3 (or above) or ACEA A3 (or above). Lubricant
Volume
Classification
Transfer case oil (AWD) Gamma 1.6 T-GDI
0.44 ~ 0.49 US qt.
(0.47~0.52 l)
HYPOID GEAR OIL API GL-5, SAE75W/90
(SHELL HD AXLE OIL 75W90 or equivalent)
Nu 2.0 MPI
0.36~0.4 US qt.
(0.38~0.42 l)
Rear differential oil (AWD)
0.44~0.49 US qt. (0.47~0.52 l)
Coolant Gamma 1.6 T-GDI
7.5 US qt. (7.1
l)Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for alu-
minum radiator)
Nu 2.0 MPI
6.8 US qt. (6.5
l)
Brake fluid
0.74~0.85 US qt. (0.7 ~ 0.8 l) FMVSS116 DOT-3 or DOT-4
Fuel13.2 US gal. (50 l)Refer to "Fuel requirements" in the Foreword chapter.

8-9
88
Specifications, Consumer information and Reporting safety defects

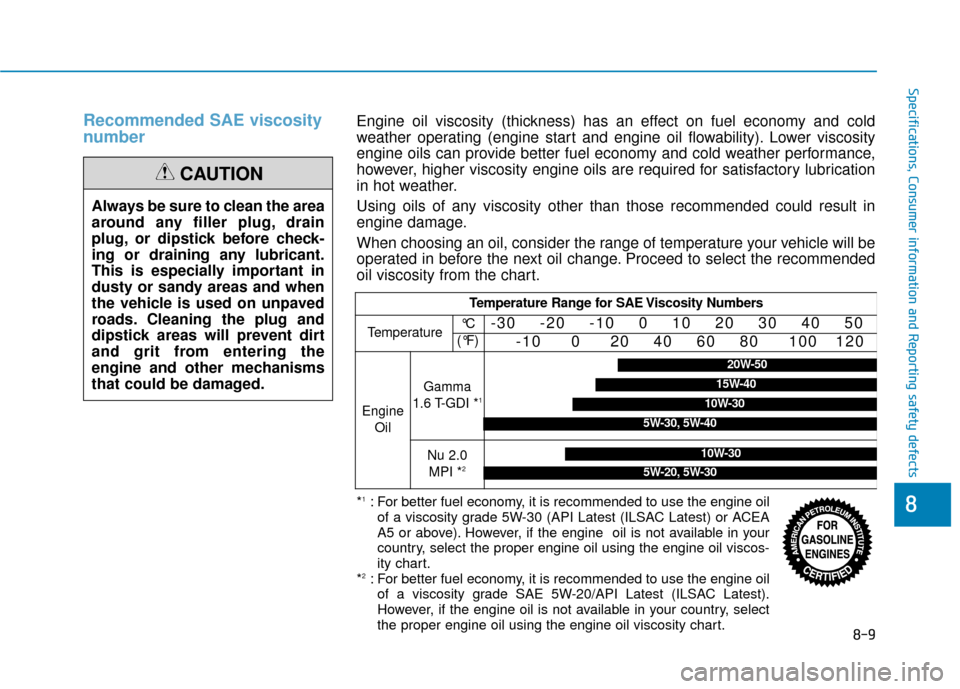

Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil
Gamma
1.6 T-GDI *1
Nu 2.0 MPI *2
°C
(°F)
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity grade 5W-30 (API Latest (ILSAC Latest) or ACEA
A5 or above). However, if the engine oil is not available in your
country, select the proper engine oil using the engine oil viscos-
ity chart.
*
2: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-20/API Latest (ILSAC Latest).
However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
5W-30, 5W-40
10W-30
15W-40
20W-50
10W-30
5W-20, 5W-30
Engine oil viscosity (thickness) has an effect on fuel economy and cold
weather operating (engine start and engine oil flowability). Lower viscosity
engine oils can provide better fuel economy and cold weather performance,
however, higher viscosity engine oils are required for satisfactory lubrication
in hot weather.
Using oils of any viscosity other than those recommended could result in
engine damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.
