2019 Hyundai Ioniq Plug-in Hybrid Owner's Manual - RHD (UK, Australia)

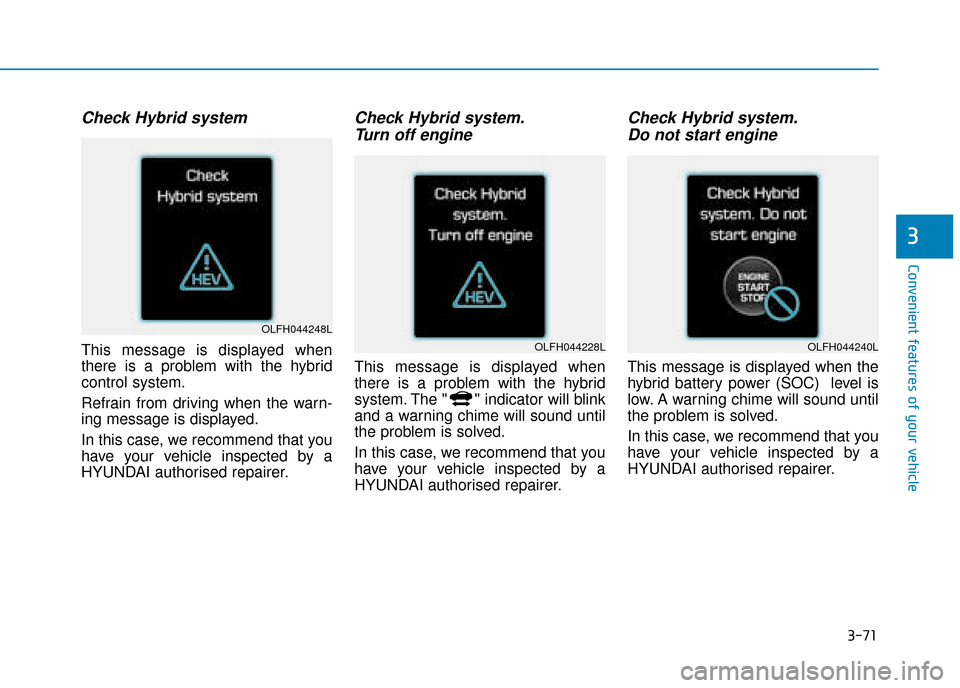

3-71
Convenient features of your vehicle
3
Check Hybrid system
This message is displayed when
there is a problem with the hybrid
control system.
Refrain from driving when the warn-
ing message is displayed.
In this case, we recommend that you
have your vehicle inspected by a
HYUNDAI authorised repairer.
Check Hybrid system.Turn off engine
This message is displayed when
there is a problem with the hybrid
system. The " " indicator will blink
and a warning chime will sound until
the problem is solved.
In this case, we recommend that you
have your vehicle inspected by a
HYUNDAI authorised repairer.
Check Hybrid system.Do not start engine
This message is displayed when the
hybrid battery power (SOC) level is
low. A warning chime will sound until
the problem is solved.
In this case, we recommend that you
have your vehicle inspected by a
HYUNDAI authorised repairer.
OLFH044228LOLFH044240L
OLFH044248L

3-72
Convenient features of your vehicle
Stop vehicle and check powersupply
This message is displayed when a
failure occurs in the power supply
system.
In this case, park the vehicle in a
safe location and we recommend
that you tow your vehicle to the near-
est HYUNDAI authorised repairer
and have the vehicle inspected.
Stop vehicle to charge battery
This message is displayed when the
hybrid battery power (SOC) level is
low.
In this case, park the vehicle in a
safe location and wait until the hybrid
battery is charged.
Refuel to prevent Hybrid batterydamage
This message is displayed when the
fuel tank is nearly empty.
You should refill the fuel tank to pre-
vent hybrid battery damage.
OLFH044232L
OLFH044242LOLFH044230L

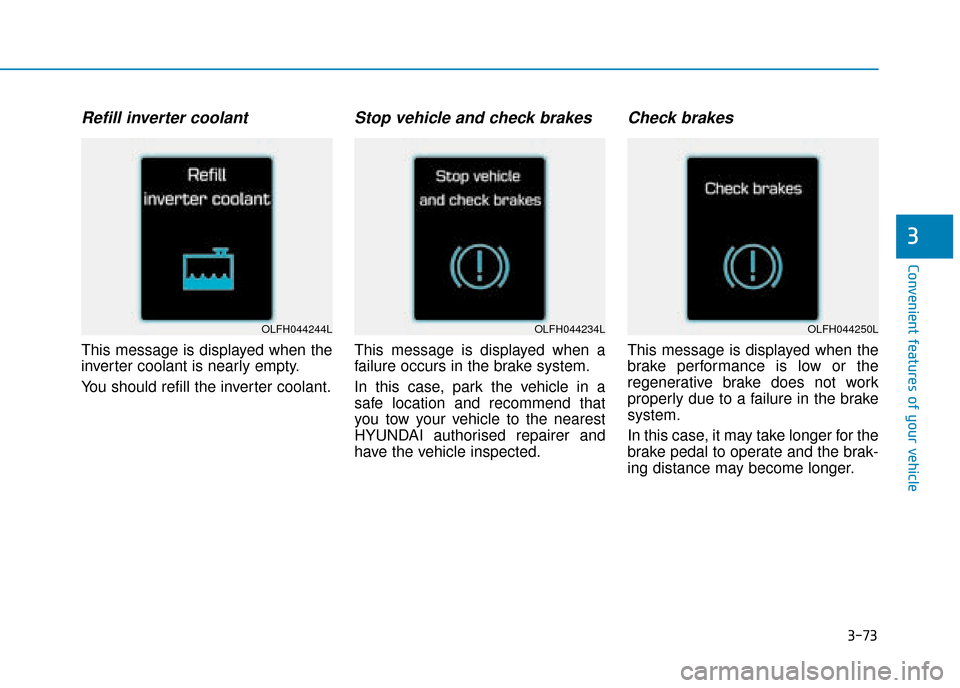

3-73
Convenient features of your vehicle
3
Refill inverter coolant
This message is displayed when the
inverter coolant is nearly empty.
You should refill the inverter coolant.
Stop vehicle and check brakes
This message is displayed when a
failure occurs in the brake system.
In this case, park the vehicle in a
safe location and recommend that
you tow your vehicle to the nearest
HYUNDAI authorised repairer and
have the vehicle inspected.
Check brakes
This message is displayed when the
brake performance is low or the
regenerative brake does not work
properly due to a failure in the brake
system.
In this case, it may take longer for the
brake pedal to operate and the brak-
ing distance may become longer.
OLFH044234LOLFH044250LOLFH044244L

3-74
Check Virtual Engine SoundSystem
This message is displayed when
there is a problem with the Virtual
Engine Sound System (VESS).
In this case, we recommend that you
have your vehicle inspected by a
HYUNDAI authorised repairer.
Unplug vehicle to start (Plug-in hybrid vehicle)
This message is displayed when you
start the engine without unplugging
the charging cable. Unplug the
charging cable, and then start the
vehicle.
Remaining charge time (Plug-in hybrid vehicle)
This message is displayed to notify
the remaining time to fully charge the
battery.
Convenient features of your vehicle
OLFP045258NOAEPH047193LOLFH044543L

3-75
Convenient features of your vehicle
Wait until fuel door opens(Plug-in hybrid vehicle)
This message is displayed when you
attempt to open the fuel filler door
with the fuel tank pressurized. Wait
until the fuel tank is depressurized.
Information
It may take up to 20 seconds to open
fuel filler door.
Check fuel door (Plug-in hybrid vehicle)
This message is displayed when
there is a problem with the fuel filler
door. Such as, when the fuel filler
door does not open after 20 seconds
at freezing temperature.
Information
When the fuel filler door is frozen and
does not open after 20 seconds at
freezing temperature, slightly tap the
fuel filler door and then attempt to
open it. In other cases, we recommend
that you have your vehicle inspected
by a HYUNDAI authorised repairer.
Fuel door open(Plug-in hybrid vehicle)
This message is displayed when the
fuel filler door opens after the fuel
tank is depressurized. If this mes-
sage is displayed, you can refuel the
fuel tank.
ii
3
OAEPH047201LOAEPH047526LOAEPH047525L

3-76
Check fuel door(Plug-in hybrid vehicle)
This message is displayed when the
vehicle is driven with the fuel filler
door opened. Close the fuel filler
door and then start driving.
Check DAW (Driver AttentionWarning) system (if equipped)
This warning message is displayed if
there is a problem with the Driver
Attention Warning (DAW) system.We
recommend that you have the vehi-
cle inspected by a HYUNDAI autho-
rised repairer.
For more information, refer to
“Driver Attention Warning (DAW)
system” in chapter 5.
Shift to P to charge (Plug-in hybrid vehicle)
This message is displayed when the
charging connector is plugged with
the shift lever in R (Reverse), N
(Neutral) or D (Drive). Move the shift
lever to P (Park) and re-start the
charging process.
Convenient features of your vehicle
OAEPH047202LOAEPH047526LOAEPH058237N

3-77
Convenient features of your vehicle
Charger Error! (Plug-in hybrid vehicle)
This message is displayed when
there is a problem with the charger.
Aux. Battery Saver+ used whileparked (Plug-in hybrid vehicle)
This message is displayed when the
Aux. Battery Saver+ function has
been completed when the vehicle is
turned ON.
For more information, refer to
“Hybrid System Overview” provided
in the front of the owner’s manual.
Switching to Hybrid mode toallow heating or air condition-ing (Plug-in hybrid vehicle)
This message is displayed when the
vehicle automatically switches to
HEV mode to allow heating or air
conditioning. It is when the coolant
temperature is low (below -14°C)
and the driver turns on the heating or
cooling system.
If the coolant temperature gets high-
er than -14°C or the driver turns off
the heating or cooling system the
vehicle returns to its default (EV)
mode.
3
OAEE046134OAEE046143L
OAEPH047207L

3-78
Maintaining Hybrid mode toallow heating or air condition-ing (Plug-in hybrid vehicle)
This message is displayed when the
vehicle maintains the HEV mode to
allow heating or air conditioning. The
mode does not change when the
driver presses the [EV/HEV] button
to switch from the HEV mode to EV
mode whilst the heating and cooling
system is on and the coolant temper-
ature is below -14°C.
Low/High System Temp.Maintaining Hybrid mode(Plug-in hybrid vehicle)
This message is displayed when the
temperature of the high-voltage
(hybrid) battery is too low or too high.
This warning message is to protect
the battery and the hybrid system.
Low/High System Temp.Switching to Hybrid mode (Plug-in hybrid vehicle)
This message is displayed when the
temperature of the high-voltage
(hybrid) battery is too low or high.
This warning message is to protect
the battery and the hybrid system.
Convenient features of your vehicle
OAEPH047205L/OAEPH047206LOAEPH047203L/OAEPH047204LOAEPH047527L
