2019 HONDA PILOT Owner's Manual (in English)

Continued231
uuHeating and Cooling*uUsing Vents, Heating and A/C
Controls
The heater uses heat from the engine coolant
to warm the air.
1. Adjust the fan speed using the fan control
switch.
2. Press the mode button to select .
3. Adjust the temperature using the
temperature control switch.
■To rapidly warm up the interior
1. Set the fan to the maximum speed.
2. Press the mode button to select .
3. Set the temperature to maximum heat.
4. Press the button (indicator on).
■To dehumidify the interior
When used in combination with the heat er, the air conditioning system makes the
interior warm and dry and can prev ent the windows from fogging up.
1. Adjust the fan speed using the fan control switch.
2. Press the A/C button to turn on the air conditioning.
3. Press the mode button to select .
4. Adjust the temperature using th e temperature control switch.
■Heating1Heating
When you select , th e mode automatically
switches to fresh air.
1 To rapidly warm up the interior
Change to fresh air mode as soon as the interior gets
warm enough. The windows may fog up if kept in
recirculation mode.
19 PILOT HMA ELP-31TG76310.book 231 ページ ２０１９年３月１５日　金曜日　午後６時８分

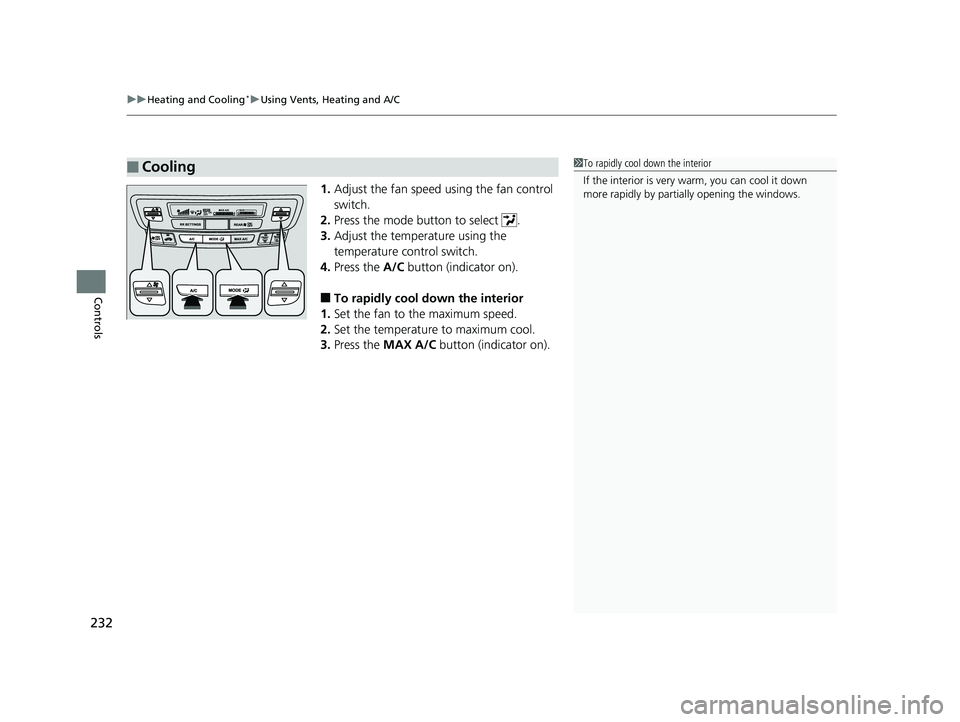

uuHeating and Cooling*uUsing Vents, Heating and A/C
232
Controls
1. Adjust the fan speed using the fan control
switch.
2. Press the mode button to select .
3. Adjust the temperature using the
temperature control switch.
4. Press the A/C button (indicator on).
■To rapidly cool down the interior
1. Set the fan to the maximum speed.
2. Set the temperature to maximum cool.
3. Press the MAX A/C button (indicator on).
■Cooling1To rapidly cool down the interior
If the interior is very warm, you can cool it down
more rapidly by parti ally opening the windows.
19 PILOT HMA ELP-31TG76310.book 232 ページ ２０１９年３月１５日　金曜日　午後６時８分

Continued233
uuHeating and Cooling*uUsing Vents, Heating and A/C
Controls
Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
■To rapidly defrost the windows
1. Set the fan to the maximum speed.
2. Press the button.
3. Press the button.
4. Set the temperature to maximum heat.
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode.
If you keep the system in recirculation mode, the
windows may fog up from humidity. This impedes
visibility.
19 PILOT HMA ELP-31TG76310.book 233 ページ ２０１９年３月１５日　金曜日　午後６時８分

234
uuHeating and Cooling*uUsing Vents, Heating and A/C
Controls
Use the system when the engine is ru nning and the heating and cooling is
operating.
1. Press the REAR (Rear On/Off) button.
2. Press the RR SETTINGS button.
u The system switches to the rear control mode for 10 seconds. The REAR
indicator appears on the display.
u The system adjusts the rear heating and cooling system.
3. To turn off the rear heating and cooling system, press the REAR (Rear On/
Off) button.
■Using the Rear Heating and Cooling From the Front Panel
Back of the center
console vents Rear floor
vents
Back of the center
console and floor
vents
RR SETTINGS
Button REAR
(Rear On/Off) Button
19 PILOT HMA ELP-31TG76310.book 234 ページ ２０１９年３月１５日　金曜日　午後６時８分

235Continued
Controls
Climate Control System*
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of h eated or cooled air that will as quickly as
possible, raise or lower the interior temperature to your preference.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control switch.
3. Press the ON/OFF button to cancel.1Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button th at was pressed will be
controlled automatically.
During idle-stops, air-conditioning is suspended, and
only the blower remains active.
If you do not want air-cond itioning suspended, press
the Auto Idle Stop OFF button to cancel idle-stop.
To prevent cold air from bl owing in from outside, the
fan may operate at low speed for a while after the
AUTO button has been pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Models with Auto Idle Stop
All models
Floor and
defroster
vents
Floor vents
Dashboard and floor,
and back of the
center console vents
Dashboard and
back of the center
console vents
AUTO Button
Driver’s Side
Temperature
Control Switch
(Recirculation) Button
Fan Control Button A/C
(Air Conditioning)
Button
Passenger’s Side
Temperature Control
Switch
(On/Off) Button
(Windshield Defroster)
Button
SYNC (Synchronization) Button
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 235 ページ ２０１９年３月１５日　金曜日　午後６時８分

uuClimate Control System*uUsing Automatic Climate Control
236
Controls
■Switching between the recirculation and fresh air modes
Press the button and switch the mode depending on environmental conditions.
Recirculation Mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
Pressing the button turns the air
conditioner system on and automatically
switches the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows
1 Using Automatic Climate Control
Pressing the ON/OFF button switches the
climate control system be tween on and off. When
turned on, the system returns to your last selection.
1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If you press the button during Auto Idle Stop, the
engine restarts automatically.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
Models with Auto Idle Stop
19 PILOT HMA ELP-31TG76310.book 236 ページ ２０１９年３月１５日　金曜日　午後６時８分

237
uuClimate Control System*uUsing Automatic Climate Control
Controls
■To rapidly defrost the windows
1.Press the button.
2. Press the button.1To rapidly defrost the windows
After defrosting or defogging the windows, switch
over to fresh air mode. If you keep the system in
recirculation mode, the windows may fog up from
humidity. This impedes visibility.
19 PILOT HMA ELP-31TG76310.book 237 ページ ２０１９年３月１５日　金曜日　午後６時８分

238
uuClimate Control System*uSynchronization Mode
Controls
Synchronization Mode
You can set the temperature synchronously for the driver side, front passenger side
and rear seats in synchronization mode.
1. Press the SYNC button.
u The system will switch to synchronization mode.
2. Adjust the temperature using driver’s side temperature control switch.
Press the SYNC button to return to synchronization mode off.
1Synchronization Mode
When you press the button, the system changes
to synchronization mode.
When the system is in synchronization mode off, the
temperature for the driver, front passenger, and rear
seats can be set separately.
