2019 HONDA PILOT Owner's Manual (in English)

7
Quick Reference Guide❙Accessory Power Socket* (P218)
❙LATCH to Secure a Child Seat (P65)
❙Seat Belt (Installing a Child Seat) (P69)
❙Third Row Seat (P199)
❙Second Row Seat (P198)
❙Seat Belt to Secure a Child Seat (P71)
❙Cargo Area Light (P212)
❙Side Curtain Airbags (P56)
❙Second Row Outer Seat Heater Buttons* (P226)
❙AC Power Outlet* (P218)
❙HDMITM Port* (P380)
❙USB Ports* (P246)
❙Sun Visors
❙Vanity Mirrors
❙Moonroof Switch* (P169)
❙Panoramic Roof Switch* (P170)
❙Map Lights (P210)
❙Sunglasses Holder (P222)
❙Seat Belt with Detachable Anchor (P44)
❙Side Airbags (P54)
❙Seat Belts (P39)
❙Blu-ray/DVD Rear Entertainment
System* (P377)
❙Grab Handle
❙Coat Hook (P221)
❙Front Seat (P194)
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 7 ページ ２０１９年３月１５日　金曜日　午後６時８分

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P643)
❙Windshield Wipers (P183, 660)
❙Tires (P664, 689)
❙Power Door Mirrors (P193)
❙Headlights (P175, 655)
❙Front Side Marker Lights (P175, 656)
❙Front Turn Signal Lights (P174, 657)
❙Side Turn Signal Lights* (P174, 658)
❙Daytime Running Lights/Parking Lights
(P175, 182, 656)
❙How to Refuel (P629)
❙High-Mount Brake Light (P659)
❙Rear Wiper (P185, 662)
❙Rear License Plate Lights (P659)
❙Rear Side Marker Lights (P658)
❙Taillights (P658)
❙Brake Lights and Rear Turn Signal Lights (P658)
❙Taillights (P659)
❙Tailgate Outer Handle (P161)
❙Multi-View Rear Camera (P626)
❙Opening/Closing the Tailgate (P153)
❙Door Lock/Unlock Control (P142)
❙Fog Lights* (P178, 657)
❙Back-Up Lights (P659)
❙Brake Lights (P659)
19 PILOT HMA ELP-31TG76310.book 8 ページ ２０１９年３月１５日　金曜日　午後６時８分

9
Quick Reference Guide
Auto Idle Stop Function*
To improve fuel economy, the engine stops and then restarts as detailed below. When Auto Idle Stop is on, the Auto Idle Stop in dicator
(green) comes on. (P545)
At Automatic transmissionEngine status
Deceleration
Stop the vehicle and depress the brake
pedal.
StopKeep the brake pedal depressed.
Start-up Release the brake pedal.
On
Off
Restarting
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 9 ページ ２０１９年３月１５日　金曜日　午後６時８分

10
Quick Reference Guide

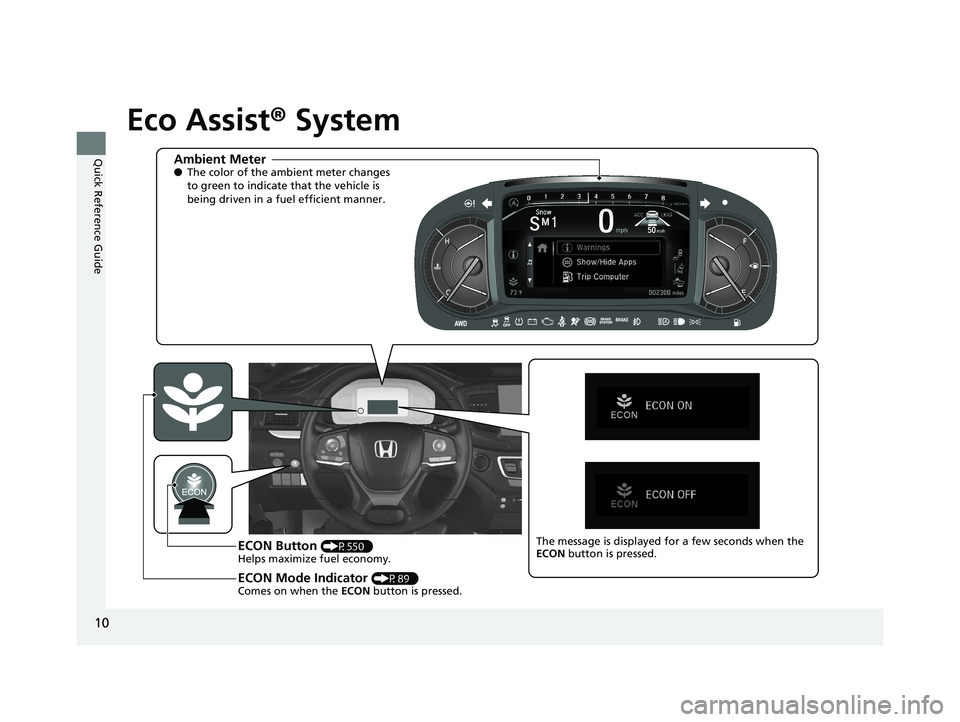

Eco Assist® System
Ambient Meter●The color of the ambient meter changes
to green to indicate that the vehicle is
being driven in a fuel efficient manner.
ECON Button (P550 )
Helps maximize fuel economy.
ECON Mode Indicator (P89 )
Comes on when the ECON button is pressed.
The message is displayed fo r a few seconds when the
ECON button is pressed.
19 PILOT HMA ELP-31TG76310.book 10 ページ ２０１９年３月１５日　金曜日　午後６時８分

11
Quick Reference Guide
Safe Driving (P33)
Airbags (P47)
● Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P60)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P76)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P508)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P39)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
19 PILOT HMA ELP-31TG76310.book 11 ページ ２０１９年３月１５日　金曜日　午後６時８分

12
Quick Reference Guide
Instrument Panel (P79)
System Indicators
Malfunction Indicator
Lamp
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist®

(VSA® ) System
Indicator
VSA ® OFF Indicator Low Tire Pressure/
TPMS Indicator
Immobilizer System
Indicator/Security
System Alarm Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
Lane Keeping Assist
System (
LKAS)
Indicator (Green/
Amber) Seat Belt Reminder
Indicator
System Indicators
Econ Mode Indicator
System Message
Indicator Parking Brake and
Brake System Indicator
(Red)
Supplemental
Restraint System
Indicator
Driver Information Interface Tachometer
M
(Sequential mode) Indicator/
Sequential Mode Gear Selection Indicator
Speedometer
Fuel Gauge
Gear Position Indicator/
Transmission System
Indicator Auto Idle Stop System
Indicator (Amber)
*/
Auto Idle Stop
Indicator (Green)
*
Gauges (P110)/Driver Information Interface (P111)/System
Indicators
(P80)
Adaptive Cruise
Control ( ACC)
Indicator (Green/
Amber) Turn Signal and
Hazard Warning
Indicators
Electric Power Steering
(EPS) System Indicator
Blind spot information
System Indicator
*
Temperature Gauge
Parking Brake and
Brake System Indicator
(Amber)U.S.
Canada
System Indicators
U.S.
Canada
Low Fuel Indicator
Auto High-Beam
Indicator
Road Departure
Mitigation (RDM)
Indicator
Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator
All-wheel drive
system (AWD)
Indicator
*
Intelligent Traction
Management
Indicator
19 PILOT HMA ELP-31TG76310.book 12 ページ ２０１９年３月１５日　金曜日　午後６時８分

13
Quick Reference Guide
Controls (P135)
Clock (P136)
aPress and hold the MENU/CLOCK
button for two seconds.
bSelect Adjust Clock , then press .
cRotate to adjust the hours.
dPress to switch to minute
adjustment.
eRotate to adjust the minutes.
fPress to switch to Set.
gPress to complete clock adjustment.
Models with color audio system
These indications are used to show how to
operate the selector knob.
●Rotate to select.
● Press to enter.
To adjust time
To adjust date
aSelect , then select Settings.
bSelect System , then Date & Time .
cSelect Set Date & Time .
Models with Display Audio
dSelect Automatic Date & Time , then
select OFF.
eSelect Set Date or Set Time.
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
ENGINE START/STOP
Button
(P171)
Press the button to change the vehicle’s
power mode.
34
Models with navigation system
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 13 ページ ２０１９年３月１５日　金曜日　午後６時８分

14
Quick Reference Guide
Turn Signals (P174)
Lights (P175)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P183)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:(+:
(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Steering Wheel (P191)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
pull up the lever back in place.
Models with automatic intermittent wipers
19 PILOT HMA ELP-31TG76310.book 14 ページ ２０１９年３月１５日　金曜日　午後６時８分
