2019 HONDA ODYSSEY Owner's Manual (in English)

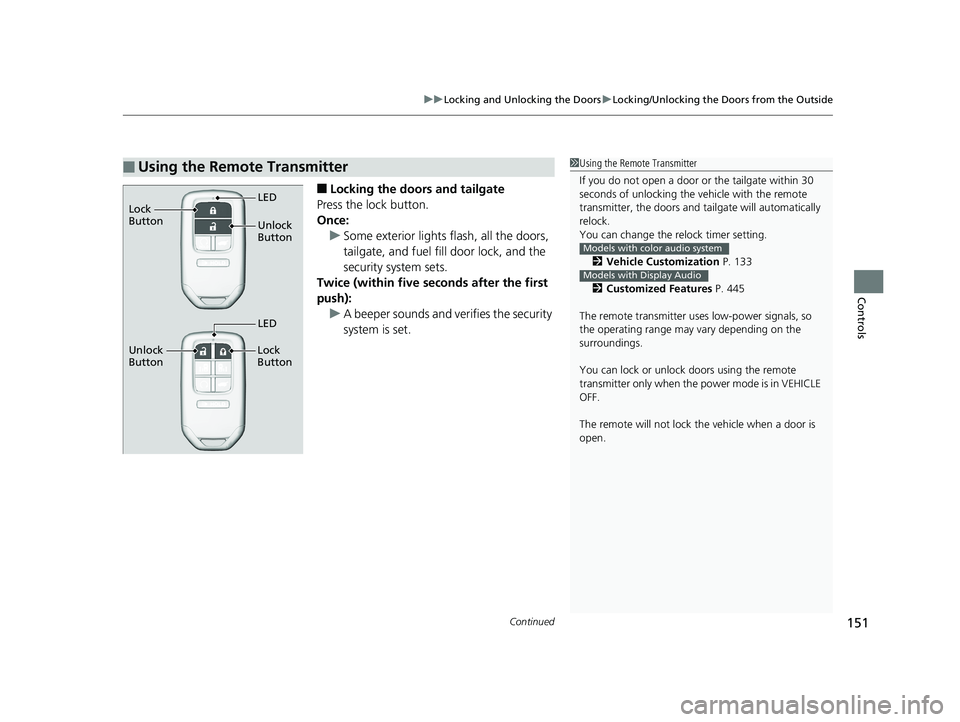

Continued151
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors and tailgate
Press the lock button.
Once: u Some exterior lights flash, all the doors,
tailgate, and fuel fill door lock, and the
security system sets.
Twice (within five se conds after the first
push):
u A beeper sounds and verifies the security
system is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the remote
transmitter, the doors and ta ilgate will automatically
relock.
You can change the relock timer setting.
2 Vehicle Customization P. 133
2 Customized Features P. 445
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote will not lock th e vehicle when a door is
open.
Models with color audio system
Models with Display Audio
Unlock
Button LED
Lock
Button
Unlock
Button Lock
Button
LED
19 ODYSSEY-31THR6120.book 151 ページ ２０１８年１２月６日　木曜日　午後４時３５分

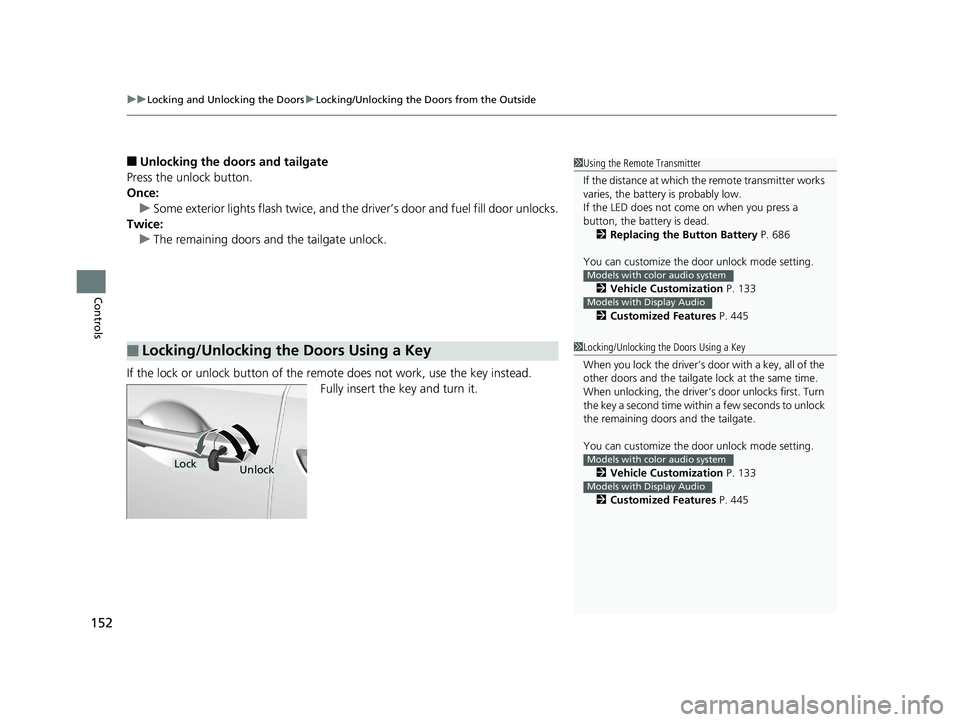

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
152
Controls
■Unlocking the doors and tailgate
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver’s door and fuel fill door unlocks.
Twice: u The remaining doors and the tailgate unlock.
If the lock or unlock button of the re mote does not work, use the key instead.
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key
1 Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 686
You can customize the door unlock mode setting. 2 Vehicle Customization P. 133
2 Customized Features P. 445
Models with color audio system
Models with Display Audio
1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all of the
other doors and the tailgate lock at the same time.
When unlocking, the driver’s door unlocks first. Turn
the key a second time within a few seconds to unlock
the remaining doors and the tailgate.
You can customize the door unlock mode setting.
2 Vehicle Customization P. 133
2 Customized Features P. 445
Models with color audio system
Models with Display Audio
LockUnlock
19 ODYSSEY-31THR6120.book 152 ページ ２０１８年１２月６日　木曜日　午後４時３５分

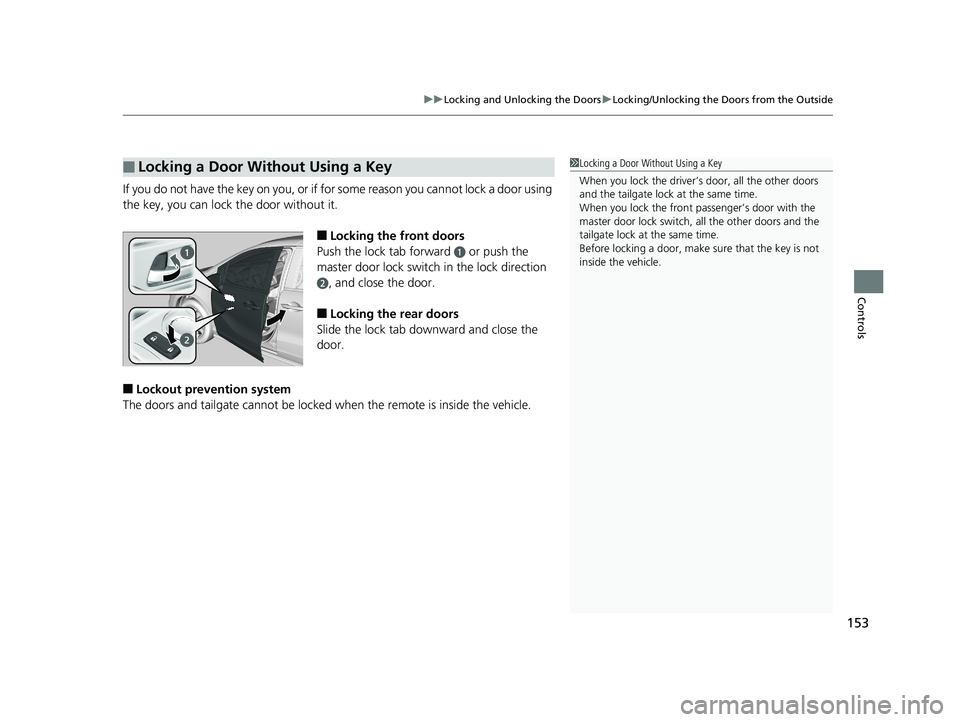

153
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
If you do not have the key on you, or if for some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Slide the lock tab downward and close the
door.
■Lockout prevention system
The doors and tailgate cannot be locked when the remote is inside the vehicle.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and the tailgate lock at the same time.
When you lock the front passenger’s door with the
master door lock switch, all the other doors and the
tailgate lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
19 ODYSSEY-31THR6120.book 153 ページ ２０１８年１２月６日　木曜日　午後４時３５分

154
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Locking a door
Slide the lock tab downward.
■Unlocking a door
Slide the lock tab upward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the ot her doors and the tailgate
lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock
Lock TabTo Lock
FrontFront
To Unlock
Lock Tab
To Lock
RearRear
19 ODYSSEY-31THR6120.book 154 ページ ２０１８年１２月６日　木曜日　午後４時３５分

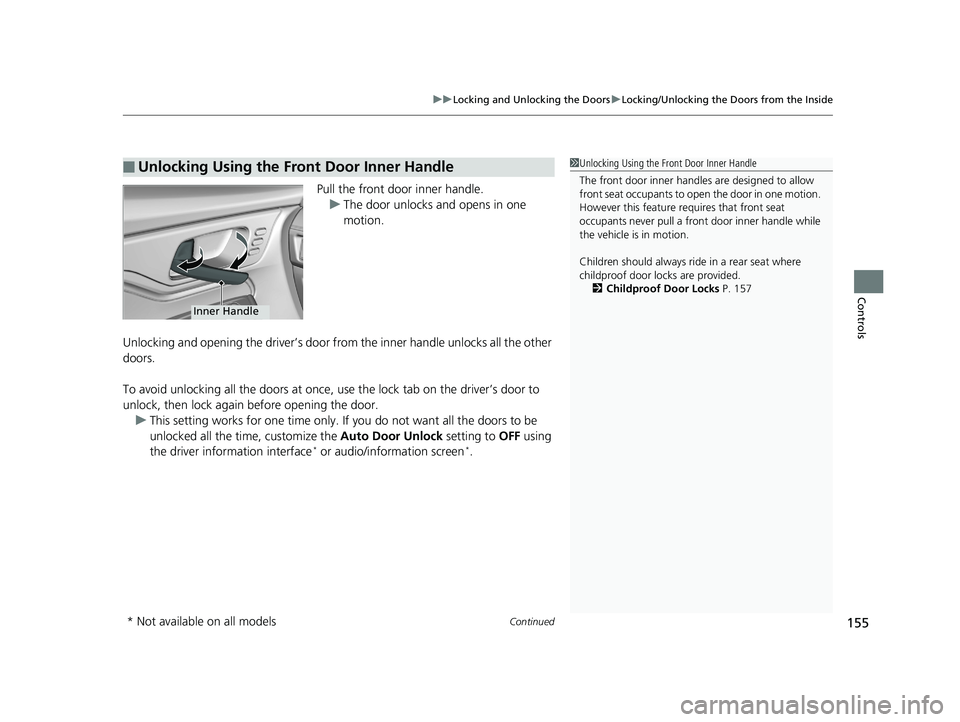

Continued155
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid unlocking all the doors at once, use the lock tab on the driver’s door to
unlock, then lock again before opening the door.
u This setting works for one time only. If you do not want all the doors to be
unlocked all the ti me, customize the Auto Door Unlock setting to OFF using
the driver information interface
* or audio/information screen*.
■Unlocking Using the Front Door Inner Handle1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 157
Inner Handle
* Not available on all models
19 ODYSSEY-31THR6120.book 155 ページ ２０１８年１２月６日　木曜日　午後４時３５分

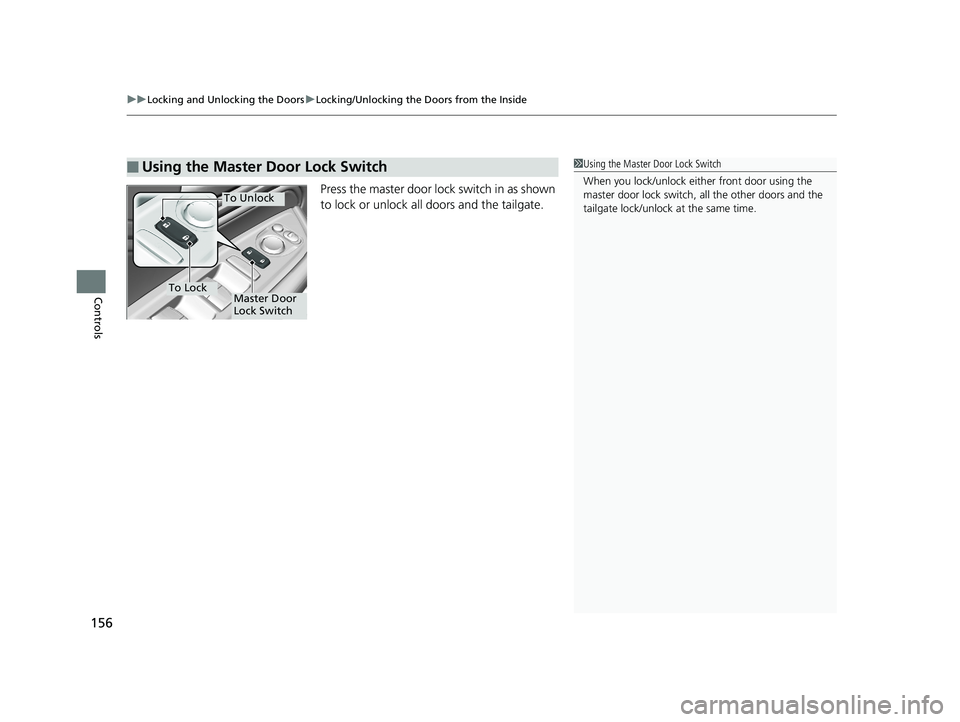

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
156
Controls
Press the master door lock switch in as shown
to lock or unlock all doors and the tailgate.
■Using the Master Door Lock Switch1Using the Master Door Lock Switch
When you lock/unlock eith er front door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.
To Unlock
Master Door
Lock SwitchTo Lock
19 ODYSSEY-31THR6120.book 156 ページ ２０１８年１２月６日　木曜日　午後４時３５分

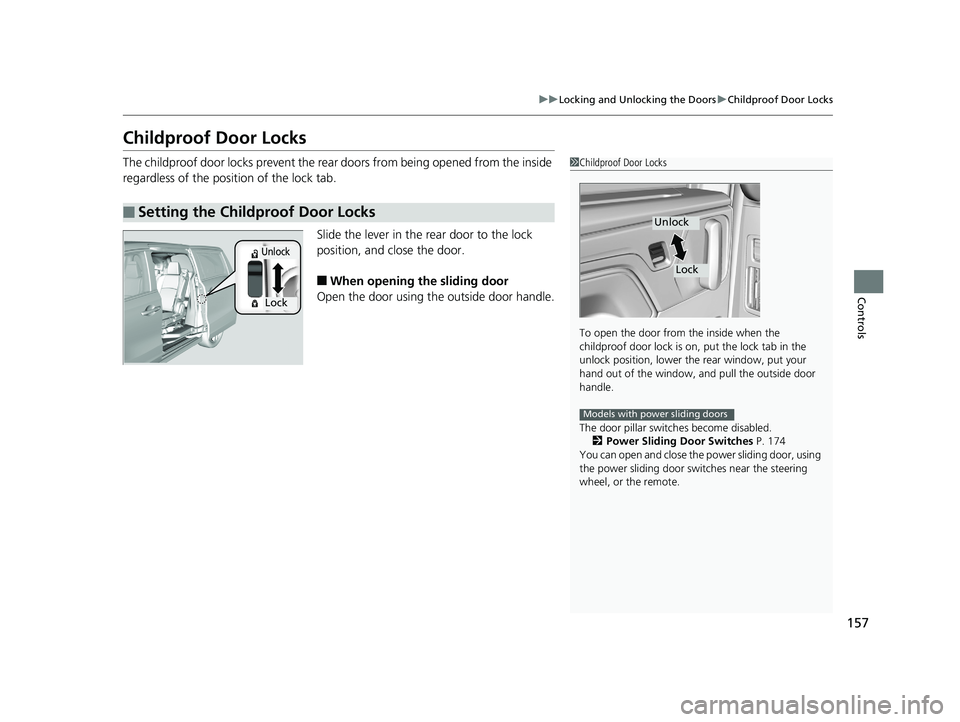

157
uuLocking and Unlocking the Doors uChildproof Door Locks
Controls
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the sliding door
Open the door using the outside door handle.
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
The door pillar switch es become disabled.
2 Power Sliding Door Switches P. 174
You can open and close the power sliding door, using
the power sliding door swit ches near the steering
wheel, or the remote.
Unlock
Lock
Models with power sliding doors
Lock
Unlock
19 ODYSSEY-31THR6120.book 157 ページ ２０１８年１２月６日　木曜日　午後４時３５分

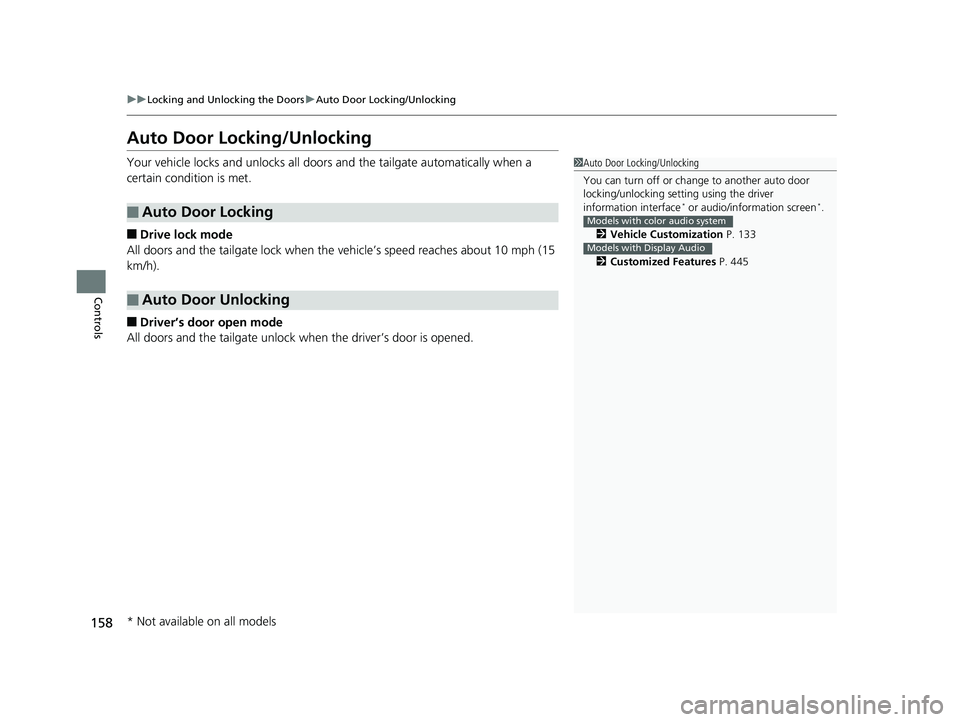

158
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks and unlocks all door s and the tailgate automatically when a
certain condition is met.
■Drive lock mode
All doors and the tailgate lock when the vehicle’s speed reaches about 10 mph (15
km/h).
■Driver’s door open mode
All doors and the tailgate unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the driver
information interface
* or audio/information screen*.
2 Vehicle Customization P. 133
2 Customized Features P. 445Models with color audio system
Models with Display Audio
* Not available on all models
