2019 HONDA ODYSSEY Owner's Manual (in English)

215
uuAdjusting the Seats uMaintain a Proper Sitting Position
Controls
Maintain a Proper Sitting Position
After all occupants have adjusted their s eats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safe ly parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of posi tion in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
19 ODYSSEY-31THR6120.book 215 ページ ２０１８年１２月６日　木曜日　午後４時３５分

216
uuAdjusting the Seats uSecond Row Seats
Controls
Second Row Seats
■Adjusting the Seat Positions1Second Row Seats
3WARNING
An unsecured seat or seat-back can move
out of position or collapse without warning
if there is sudden acce leration or stop or in
a crash.
A seat or seat-back that suddenly moves or
collapses can result in severe injury or
death.
Always make sure all seats and seat-backs
are securely locked in to position before
driving.
1 Adjusting the Seat Positions
Once the desired seat posit ion and seat back angles
are made, rock the seat back and forth to make sure
they are locked into position.
Second row center
seat*Second row outer
seat
Seat-back Angle
Adjustment
Pull up the strap to
change the angle. Seat-back
Angle
Adjustment
Pull up the
lever to change
the angle.
Second row
outer seat
Horizontal Position
Adjustment
Pull up the bar to
move the seat, then
release the bar.
* Not available on all models
19 ODYSSEY-31THR6120.book 216 ページ ２０１８年１２月６日　木曜日　午後４時３５分

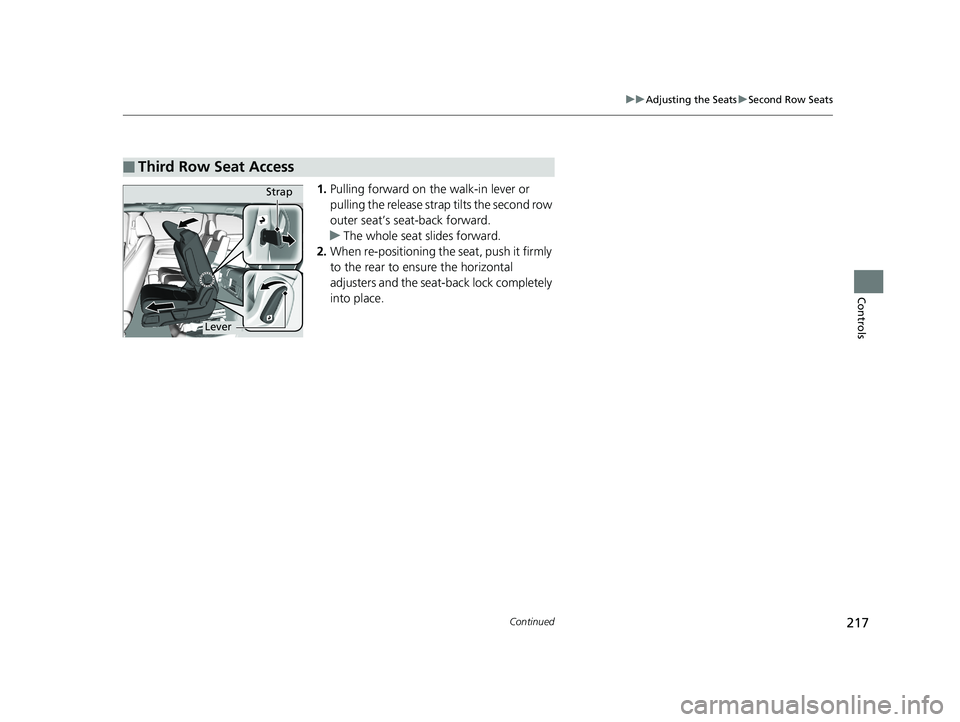

217
uuAdjusting the Seats uSecond Row Seats
Continued
Controls
1. Pulling forward on the walk-in lever or
pulling the release strap tilts the second row
outer seat’s seat-back forward.
u The whole seat slides forward.
2. When re-positioning the seat, push it firmly
to the rear to ensure the horizontal
adjusters and the seat-back lock completely
into place.
■Third Row Seat Access
Lever Strap
19 ODYSSEY-31THR6120.book 217 ページ ２０１８年１２月６日　木曜日　午後４時３５分

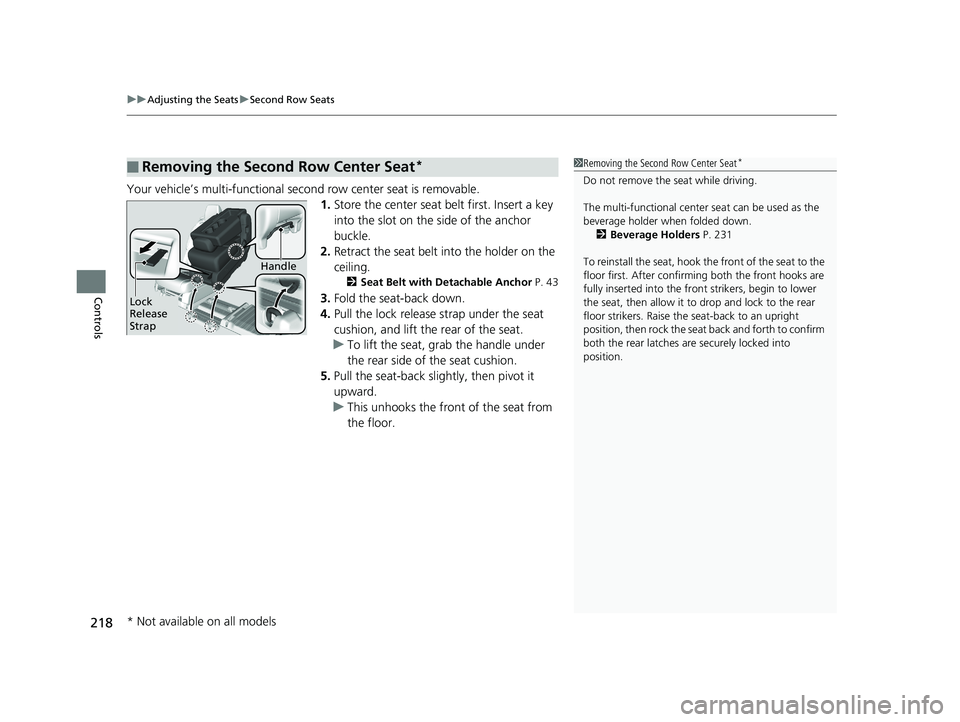

uuAdjusting the Seats uSecond Row Seats
218
Controls
Your vehicle’s multi-functional seco nd row center seat is removable.
1. Store the center seat belt first. Insert a key
into the slot on the side of the anchor
buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 43
3.Fold the seat-back down.
4. Pull the lock release strap under the seat
cushion, and lift the rear of the seat.
u To lift the seat, grab the handle under
the rear side of the seat cushion.
5. Pull the seat-back slig htly, then pivot it
upward.
u This unhooks the front of the seat from
the floor.
■Removing the Second Row Center Seat*1Removing the Second Row Center Seat*
Do not remove the seat while driving.
The multi-functional center seat can be used as the
beverage holder when folded down. 2 Beverage Holders P. 231
To reinstall the seat, hook the front of the seat to the
floor first. Afte r confirming both the front hooks are
fully inserted into the front strikers, begin to lower
the seat, then allow it to drop and lock to the rear
floor strikers. Raise the seat-back to an upright
position, then rock the seat back and forth to confirm
both the rear latches are securely locked into
position.
Lock
Release
Strap
Handle
* Not available on all models
19 ODYSSEY-31THR6120.book 218 ページ ２０１８年１２月６日　木曜日　午後４時３５分

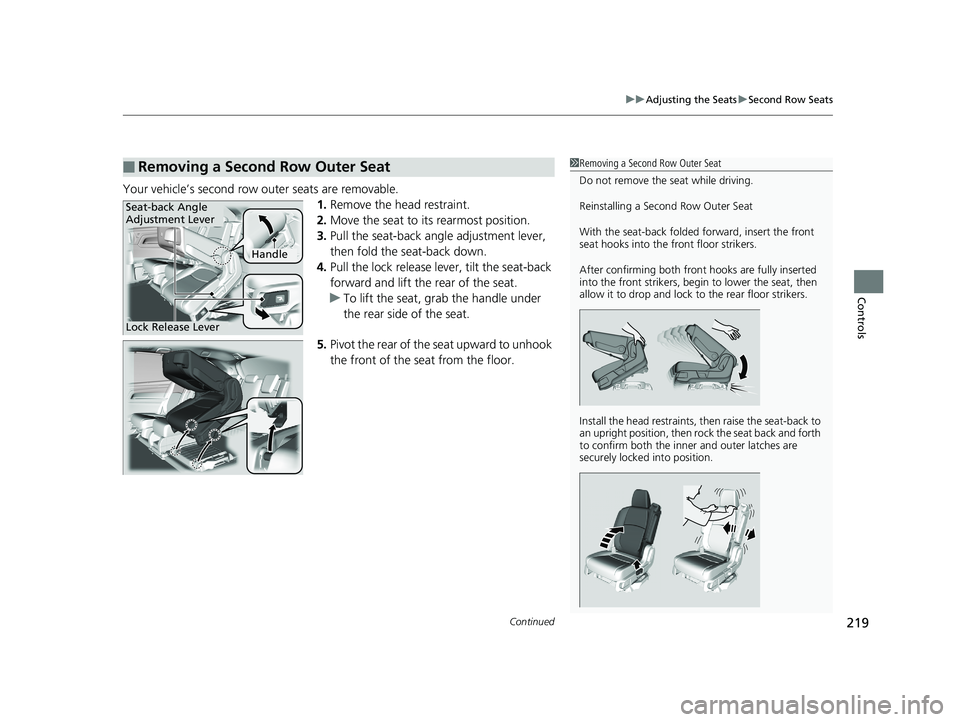

Continued219
uuAdjusting the Seats uSecond Row Seats
Controls
Your vehicle’s second row outer seats are removable.
1.Remove the head restraint.
2. Move the seat to its rearmost position.
3. Pull the seat-back angle adjustment lever,
then fold the seat-back down.
4. Pull the lock release le ver, tilt the seat-back
forward and lift the rear of the seat.
u To lift the seat, gr ab the handle under
the rear side of the seat.
5. Pivot the rear of the seat upward to unhook
the front of the seat from the floor.
■Removing a Second Row Outer Seat1Removing a Second Row Outer Seat
Do not remove the seat while driving.
Reinstalling a Second Row Outer Seat
With the seat-back folded forward, insert the front
seat hooks into the front floor strikers.
After confirming both front hooks are fully inserted
into the front strikers, begin to lower the seat, then
allow it to drop and lock to the rear floor strikers.
Install the head restraints, then raise the seat-back to
an upright position, then rock the seat back and forth
to confirm both the inner and outer latches are
securely locked into position.
Handle
Seat-back Angle
Adjustment Lever
Lock Release Lever
19 ODYSSEY-31THR6120.book 219 ページ ２０１８年１２月６日　木曜日　午後４時３５分

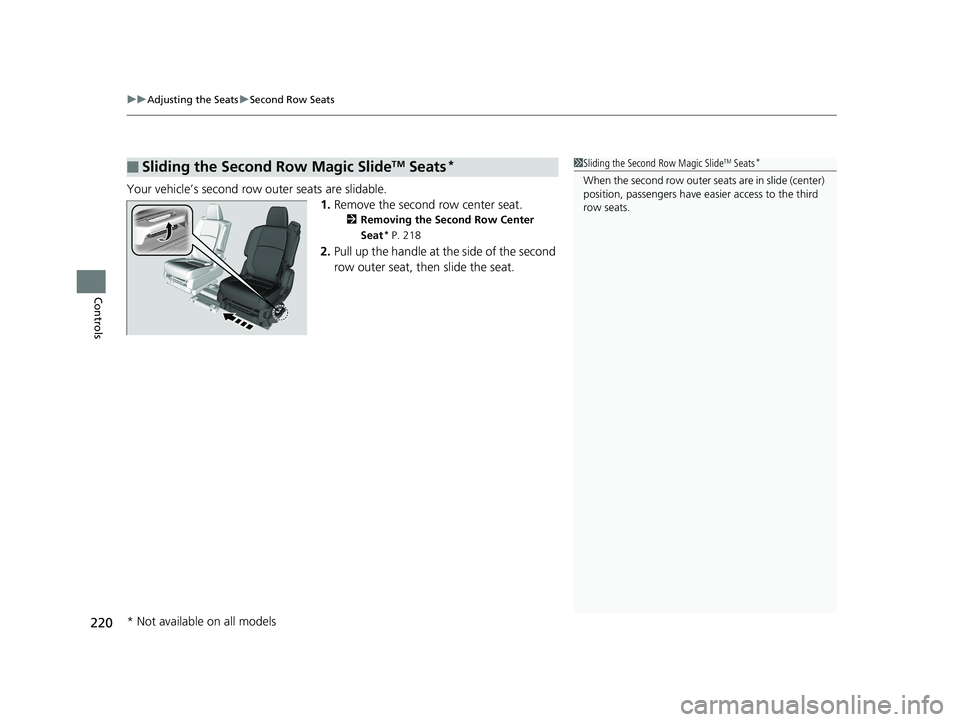

uuAdjusting the Seats uSecond Row Seats
220
Controls
Your vehicle’s second row outer seats are slidable.
1.Remove the second row center seat.
2 Removing the Second Row Center
Seat* P. 218
2.Pull up the handle at the side of the second
row outer seat, then slide the seat.
■Sliding the Second Row Magic SlideTM Seats*1Sliding the Second Row Magic SlideTM Seats*
When the second row outer seats are in slide (center)
position, passengers have eas ier access to the third
row seats.
* Not available on all models
19 ODYSSEY-31THR6120.book 220 ページ ２０１８年１２月６日　木曜日　午後４時３５分

221
uuAdjusting the Seats uThird Row Seats
Continued
Controls
Third Row Seats
■Adjusting the Seat Positions1Adjusting the Seat Positions
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Seat-back Angle
Adjustment
Pull up the strap to
change the angle.
19 ODYSSEY-31THR6120.book 221 ページ ２０１８年１２月６日　木曜日　午後４時３５分

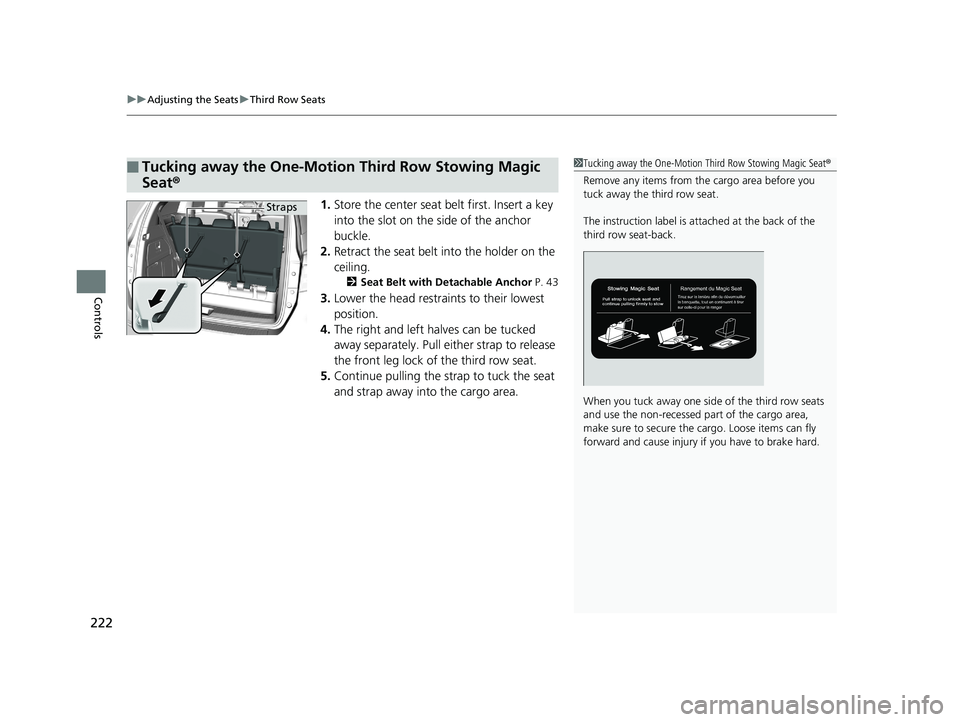

uuAdjusting the Seats uThird Row Seats
222
Controls
1. Store the center seat belt first. Insert a key
into the slot on the side of the anchor
buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 43
3.Lower the head restraints to their lowest
position.
4. The right and left halves can be tucked
away separately. Pull either strap to release
the front leg lock of the third row seat.
5. Continue pulling the strap to tuck the seat
and strap away in to the cargo area.
■Tucking away the One-Motion Third Row Stowing Magic
Seat®1Tucking away the One-Motion Third Row Stowing Magic Seat®
Remove any items from the cargo area before you
tuck away the third row seat.
The instruction label is atta ched at the back of the
third row seat-back.
When you tuck away one si de of the third row seats
and use the non-recessed pa rt of the cargo area,
make sure to secure the cargo. Loose items can fly
forward and cause injury if you have to brake hard.
Straps
19 ODYSSEY-31THR6120.book 222 ページ ２０１８年１２月６日　木曜日　午後４時３５分
