112 Seats and Restraints

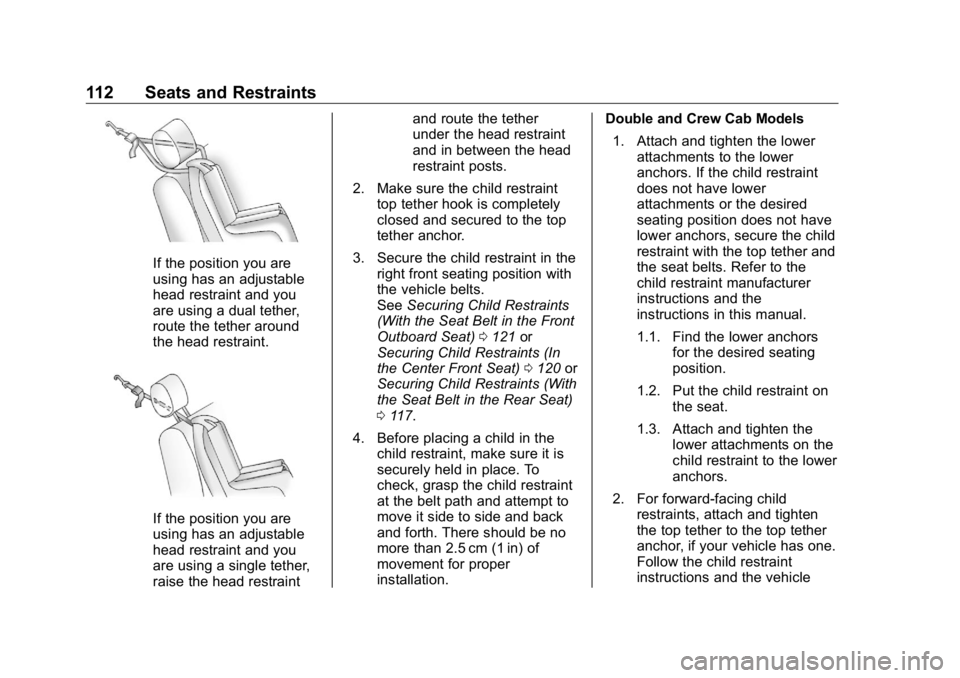

If the position you are
using has an adjustable
head restraint and you
are using a dual tether,
route the tether around
the head restraint.
If the position you are
using has an adjustable
head restraint and you
are using a single tether,
raise the head restraint and route the tether
under the head restraint
and in between the head
restraint posts.
2. Make sure the child restraint
top tether hook is completely
closed and secured to the top
tether anchor.
3. Secure the child restraint in the
right front seating position with
the vehicle belts.
See Securing Child Restraints
(With the Seat Belt in the Front
Outboard Seat) 0 121 or
Securing Child Restraints (In
the Center Front Seat) 0 120 or
Securing Child Restraints (With
the Seat Belt in the Rear Seat)
0 117 .
4. Before placing a child in the
child restraint, make sure it is
securely held in place. To
check, grasp the child restraint
at the belt path and attempt to
move it side to side and back
and forth. There should be no
more than 2.5 cm (1 in) of
movement for proper
installation. Double and Crew Cab Models
1. Attach and tighten the lower
attachments to the lower
anchors. If the child restraint
does not have lower
attachments or the desired
seating position does not have
lower anchors, secure the child
restraint with the top tether and
the seat belts. Refer to the
child restraint manufacturer
instructions and the
instructions in this manual.
1.1. Find the lower anchors
for the desired seating
position.
1.2. Put the child restraint on
the seat.
1.3. Attach and tighten the
lower attachments on the
child restraint to the lower
anchors.
2. For forward-facing child
restraints, attach and tighten
the top tether to the top tether
anchor, if your vehicle has one.
Follow the child restraint
instructions and the vehicle

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - crc - 5/15/18
Seats and Restraints 113LATCH anchor weight limits
described at the beginning of
this section, and the following
steps:

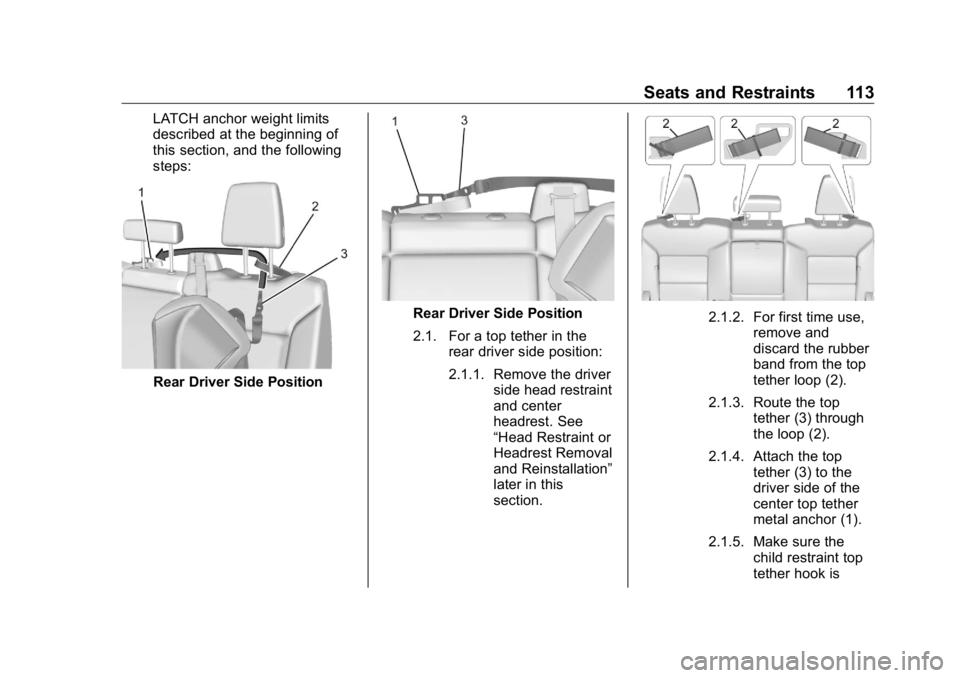

Rear Driver Side Position Rear Driver Side Position
2.1. For a top tether in the
rear driver side position:
2.1.1. Remove the driver
side head restraint
and center
headrest. See
“ Head Restraint or
Headrest Removal
and Reinstallation ”
later in this
section. 2.1.2. For first time use,
remove and
discard the rubber
band from the top
tether loop (2).
2.1.3. Route the top
tether (3) through
the loop (2).
2.1.4. Attach the top
tether (3) to the
driver side of the
center top tether
metal anchor (1).
2.1.5. Make sure the
child restraint top
tether hook is

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - crc - 5/15/18
114 Seats and Restraints completely closed
and secured to the
top tether anchor.

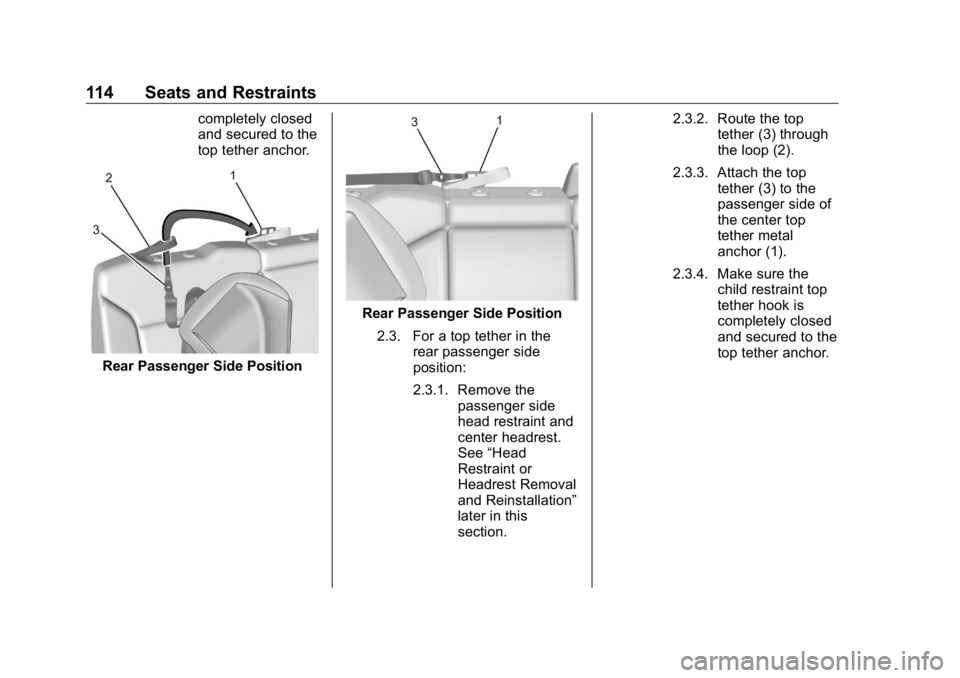

Rear Passenger Side Position Rear Passenger Side Position
2.3. For a top tether in the
rear passenger side
position:
2.3.1. Remove the
passenger side
head restraint and
center headrest.
See “ Head
Restraint or
Headrest Removal
and Reinstallation ”
later in this
section. 2.3.2. Route the top
tether (3) through
the loop (2).
2.3.3. Attach the top
tether (3) to the
passenger side of
the center top
tether metal
anchor (1).
2.3.4. Make sure the
child restraint top
tether hook is
completely closed
and secured to the
top tether anchor.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - crc - 5/15/18
Seats and Restraints 115
Rear Center Position
Rear Center Position
2.4. For a top tether in the
rear center position: 2.4.1. Remove the driver
side head restraint
and center
headrest. See
“ Head Restraint or
Headrest Removal
and Reinstallation ”
later in this
section.
2.4.2. Route the top
tether (1) through
the center loop (2).
2.4.3. Attach the top
tether (1) to the
driver side top
tether metal
anchor (3).
2.4.4. Make sure the
child restraint top
tether hook is
completely closed
and secured to the
top tether anchor.
3. Tighten the top tether per the
child restraint manufacturer's
instructions. When the top tether is properly
tightened, the loop may bend.
This is normal and will not
damage the vehicle.
If child restraints are installed
in both outboard positions, both
top tethers can be attached to
the center anchor. Top tethers
can be attached for child
restraints in all three rear
seating positions at the same
time, following the routing
instructions above.
4. Before placing a child in the
child restraint, make sure it is
securely held in place. To
check, grasp the child restraint
at the LATCH path and attempt
to move it side to side and
back and forth. There should
be no more than 2.5 cm (1 in)
of movement for proper
installation.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - crc - 5/15/18
116 Seats and Restraints Head Restraint or Headrest
Removal and Reinstallation The second row outboard head
restraints or center headrest can be
removed if they interfere with the
proper installation of the child
restraint.
To remove the second row head
restraints or center headrest:
1. Press both buttons on the head
restraint or headrest posts at
the same time, and pull up on
the head restraint or headrest.
2. Store the head restraint or
headrest in a secure place. 3. When the child restraint is
removed, reinstall the head
restraint or headrest before the
seating position is used.
{ WarningWith head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do not
drive until the head restraints for
all occupants are installed and
adjusted properly.
To reinstall the head restraint or
headrest: 1. Insert the head restraint or
headrest posts into the holes in
the top of the seatback. The
notches on the posts must face
the driver side of the vehicle.
2. Push the head restraint or
headrest down.
3. Try to move the head restraint
or headrest to make sure that it
is locked in place.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - crc - 5/15/18
Seats and Restraints 117
Replacing LATCH System
Parts After a Crash
{ WarningA crash can damage the LATCH
system in the vehicle. A damaged
LATCH system may not properly
secure the child restraint,
resulting in serious injury or even
death in a crash. To help make
sure the LATCH system is
working properly after a crash,
see your dealer to have the
system inspected and any
necessary replacements made as
soon as possible.
If the vehicle has the LATCH system
and it was being used during a
crash, new LATCH system parts
may be needed.
New parts and repairs may be
necessary even if the LATCH
system was not being used at the
time of the crash. Securing Child Restraints
(With the Seat Belt in the
Rear Seat) When securing a child restraint with
the seat belts in a rear seat position,
study the instructions that came with
the child restraint to make sure it is
compatible with this vehicle.
If the child restraint has the LATCH
system, see Lower Anchors and
Tethers for Children (LATCH
System) 0 106 for how and where to
install the child restraint using
LATCH. If a child restraint is secured
in the vehicle using a seat belt and
it uses a top tether, see Lower
Anchors and Tethers for Children
(LATCH System) 0 106 for top
tether anchor locations.
Do not secure a child seat in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored, or if
the instructions that come with the
child restraint say that the top tether
must be anchored. In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether be
attached.
If the child restraint or vehicle seat
position does not have the LATCH
system, you will be using the seat
belt to secure the child restraint. Be
sure to follow the instructions that
came with the child restraint.
If more than one child restraint
needs to be installed in the rear
seat, be sure to read Where to Put
the Restraint 0 104 .
Double Cab 1. Remove the head restraint or
headrest prior to installing a
forward-facing child restraint in
an outboard rear seating
position. See “ Head Restraint
or Headrest Removal and
Reinstallation ” under Lower
Anchors and Tethers for
Children (LATCH System)
0 106 .
2. Put the child restraint on
the seat.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - crc - 5/15/18

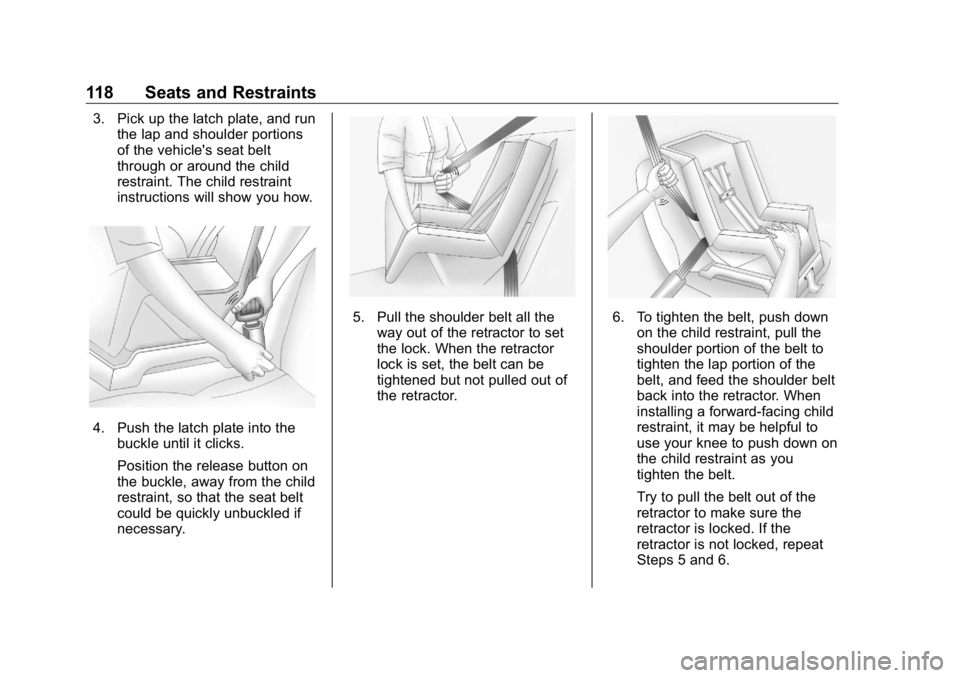

118 Seats and Restraints 3. Pick up the latch plate, and run
the lap and shoulder portions
of the vehicle's seat belt
through or around the child
restraint. The child restraint
instructions will show you how.
4. Push the latch plate into the
buckle until it clicks.
Position the release button on
the buckle, away from the child
restraint, so that the seat belt
could be quickly unbuckled if
necessary. 5. Pull the shoulder belt all the
way out of the retractor to set
the lock. When the retractor
lock is set, the belt can be
tightened but not pulled out of
the retractor. 6. To tighten the belt, push down
on the child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the
belt, and feed the shoulder belt
back into the retractor. When
installing a forward-facing child
restraint, it may be helpful to
use your knee to push down on
the child restraint as you
tighten the belt.
Try to pull the belt out of the
retractor to make sure the
retractor is locked. If the
retractor is not locked, repeat
Steps 5 and 6.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - crc - 5/15/18
Seats and Restraints 1197. For forward-facing child
restraints, attach and tighten
the top tether to the top tether
anchor (loop). Refer to the child
restraint instructions, the
vehicle LATCH anchor weight
limits, and instructions listed in
Lower Anchors and Tethers for
Children (LATCH System)
0 106 .
8. Before placing a child in the
child restraint, make sure it is
securely held in place. To
check, grasp the child restraint
at the seat belt path and
attempt to move it side to side
and back and forth. When the
child restraint is properly
installed, there should be no
more than 2.5 cm (1 in) of
movement.

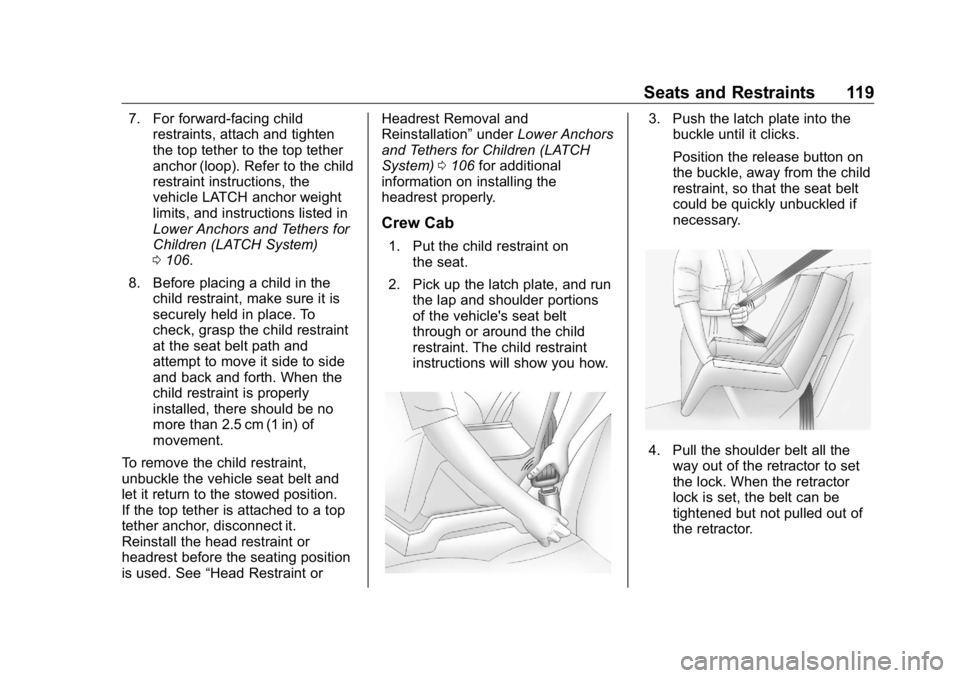

To remove the child restraint,
unbuckle the vehicle seat belt and
let it return to the stowed position.
If the top tether is attached to a top
tether anchor, disconnect it.
Reinstall the head restraint or
headrest before the seating position
is used. See “ Head Restraint or Headrest Removal and
Reinstallation ” under Lower Anchors
and Tethers for Children (LATCH
System) 0 106 for additional
information on installing the
headrest properly.
Crew Cab 1. Put the child restraint on
the seat.
2. Pick up the latch plate, and run
the lap and shoulder portions
of the vehicle's seat belt
through or around the child
restraint. The child restraint
instructions will show you how. 3. Push the latch plate into the
buckle until it clicks.
Position the release button on
the buckle, away from the child
restraint, so that the seat belt
could be quickly unbuckled if
necessary.
4. Pull the shoulder belt all the
way out of the retractor to set
the lock. When the retractor
lock is set, the belt can be
tightened but not pulled out of
the retractor.
