2019 GENESIS G80 Multimedia System Manual

Destination Search \hI 5-25
NameDescription
Display the selected point on the map scr\heen.
Move the selected item
up.
Move the selected item down.
Delete the selected item.
Select the button to fin-
ish editing.
Select the button to add waypoint.
Registering Locati\Con
Select the button at the desired
location to registe\hr the location.
Enter the detailed information of the loca-
tion to save.
Ro\bte G\bidance
Show route guidance de\htailed information.
Ro\bte G\bidance Scre\Cen
Name Description
Displays the distance and direction to the first
turn point.
Displays the distance and direction to t\hhe sec -
ond turn point.

Displays the lane infor-
mation at the current
location. Display the
recommended direc -
tion in white, travelable
direction in white, and the
non-travelable direction
in grey.
H_DH 19MY_G5.0[USA_EU]AVN_B1MS7BD001_.indb 252018-06-29 오전 10:28:28
0505
Done
Add Waypoint
Save

5-26 I Navigation
NameDescription

Displays the distance to the destination and
the estimated time of
arrival. Select the button
to check the detailed
information. If no way -
point is set, you will see
the remaining distance
or estimated time of
arrival in turn each time
you click the button.
Cancel the route.
Displays the turn list.
Split Screen d\bring\C Ro\bte G\bidance
Approaching the turning point, the det\hailed
road and travel information is automatica\hlly
displayed on the right side of the scr\heen.
Name Description

•
\burn Point: Display direction
and shape to turn shortly
•Distance to turn: Display dis -
tance to next turn point
\foad name to maneuver
Detail Distance Ba\hr: Display dis-
tance to next turn point.
Select the button to change display
view mode as below.
Name Description
Display the full map scree\hn.
Junction View, Split screen.
(Active only when images are
available)
Display \burn-by-turn information
additional info can be displayed
on Freeway.
H_DH 19MY_G5.0[USA_EU]AVN_B1MS7BD001_.indb 262018-06-29 오전 10:28:28
Details

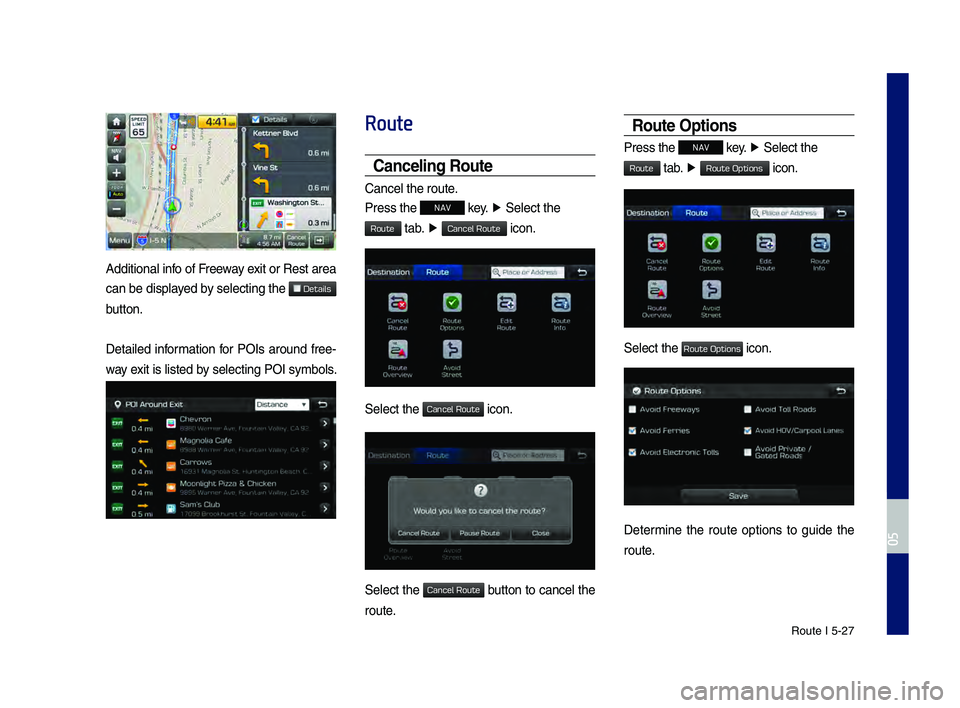

\foute I 5-27
Additional info of Freeway exit or \fest area
can be displayed by selecting the
button.
Detailed information for POIs around free-
way exit is listed by selecting POI symb\hols.
Route
Canceling Ro\bte
Cancel the route.
Press the
NAV key. ▶
Select the
tab. ▶ icon.
Select the icon.
Select the button to cancel the
route.
Ro\bte Options
Press the NAV
key. ▶
Select the
tab. ▶ icon.

Select the icon.
Determine the route options to guide the
route.
H_DH 19MY_G5.0[USA_EU]AVN_B1MS7BD001_.indb 272018-06-29 오전 10:28:29
0505
Details
Route
Cancel Route
Cancel Route
Cancel Route
Route
Route Options
Route Options

5-28 I Navigation
Editing Ro\bte
Edit the current ro\hute.
Press the
NAV key. ▶
Select the
tab. ▶ icon.
Select the icon.
Name Description
Display the selected poin\ht on the map screen.
Move the selected item \hup.
Move the selected item \hdown.
Delete the selected\h item.
Select the button to finish edi\hting.
Select the button to add an way-
point.
Add a waypoint through various searching
methods.
H_DH 19MY_G5.0[USA_EU]AVN_B1MS7BD001_.indb 282018-06-29 오전 10:28:29
Route
Edit Route
Edit Route

\foute I 5-29
Display Ro\bte Information
Press the NAV key. ▶
Select the
tab. ▶ icon.
Select the icon.
Check the information on the map. Select
the desired item to \hsee the map information.
Avoiding road
Select the button to avoid the
street or road.
Check the desired item and select the
button to finish.
Ro\bte Overview
Check the information on route including
the distance, estimated time, toll fees, etc.
Press the
NAV key. ▶
Select the
tab. ▶ icon.
Select the icon.
H_DH 19MY_G5.0[USA_EU]AVN_B1MS7BD001_.indb 292018-06-29 오전 10:28:29
0505
Route
Route Info.
Route info.
Avoid Street
Done
Route
Route Overview
Route Overview

5-30 I Navigation
NameDescription
Change the search op\htion.
You can check route information.
Edit the current ro\hute.
Avoid Street
Search new route by avoiding the selected
street(s).
Press the
NAV key. ▶
tab. ▶
icon.
Select the icon.
Select the button to plan new route
after selecting the street(s) that you want
to avoid.
Navigation Settings
Display
H_DH 19MY_G5.0[USA_EU]AVN_B1MS7BD001_.indb 302018-06-29 오전 10:28:30
Route
Avoid Street
Avoid Street
Done

Navigation Settings I \h5-31
0505
NameDescription
Unit: Select a unit of measure for
the distance displa\hy on the map.

Show Previous Destinations \hafter
Navigation Start-up: Set whether
to view previous destinations
when the navigation starts up.

Automatic \feturn after Scrolling:
Set whether to return to your
current location automatically
10 seconds after you move to
another location by swiping on
the map.
Save Previous Destinations: Set
whether to save your previous
destinations, frequently visited
points, and starting points auto
-
matically. If you activate this
option, the list of your previous
destinations will appear when
you access the map for the first
time after your system is turned
on.
Speed Limit: Set whether to dis-
play the speed limit.
GPS Information: View GPS sat-
ellite status and the coordinates
of your current locati\hon.
Select the to display the
detail GPS satelli\htes information.
Name Description
\feceivingActive when current posi-
tion is being calcu\hlated.
SearchingActive when searching for
satellite signal.
Location Display current position\h of
the vehicle.
ElevationDisplay current elevation
of the vehicle.
Traffic/G\bidance
H_DH 19MY_G5.0[USA_EU]AVN_B1MS7BD001_.indb 312018-06-29 오전 10:28:30
GPS Information

5-32 I Navigation
NameDescription
Source of \braffic Info: Select a
source to receive traffic infoma -
tion from.
\braffic-based \ferouting: Set to search the route on a regular
basis and to accept guidance
reflecting the latest traffic condi-
tions.

Number of Guidance Prompts:
Set whether to hear more or
fewer voice guidance prompts
before each maneuver.
Show \braffic Information: Set
whether to view traffic information
on the map.
Defa\blt
\feset the Navigation Settings to factory
default.
H_DH 19MY_G5.0[USA_EU]AVN_B1MS7BD001_.indb 322018-06-29 오전 10:28:30
