2019 FIAT 500E windshield wipers

▫Interior Light Timing (On/Right Position) ......62
▫ Dimmer Control ........................62
▫ Ambient Light ..........................62
▫ Cargo Area Lights .......................63
 WIPERS AND WASHERS ...................63
▫ Front Windshield Wiper Operation ...........63
▫ Rear Windshield Wiper ...................64
 CLIMATE CONTROLS .....................65
▫ Automatic Temperature Control Overview .....66
▫ Automatic Temperature Control (ATC) ........71
▫ Operating Tips .........................72
 WINDOWS .............................74
▫ Power Window Controls ..................74
▫ Auto-Down ............................75
▫ Wind Buffeting .........................75
 POWER SUNROOF — IF EQUIPPED ..........75▫
To Open ..............................76
▫ To Close ..............................76
▫ Wind Buffeting .........................76
▫ Sun Shade — If Equipped .................76
▫ Pinch Protect Feature .....................77
▫ Emergency Operation .....................77
 HOOD ................................78
▫ Opening .............................78
▫ Closing ...............................79
 INTERNAL EQUIPMENT ...................80
▫ Storage ..............................80
▫ Cupholders ...........................80
▫ Sun Visors .............................81
▫ Electrical Power Outlets ..................82
 LIFTGATE .............................84
▫ Opening .............................84
3
GETTING TO KNOW YOUR VEHICLE 15

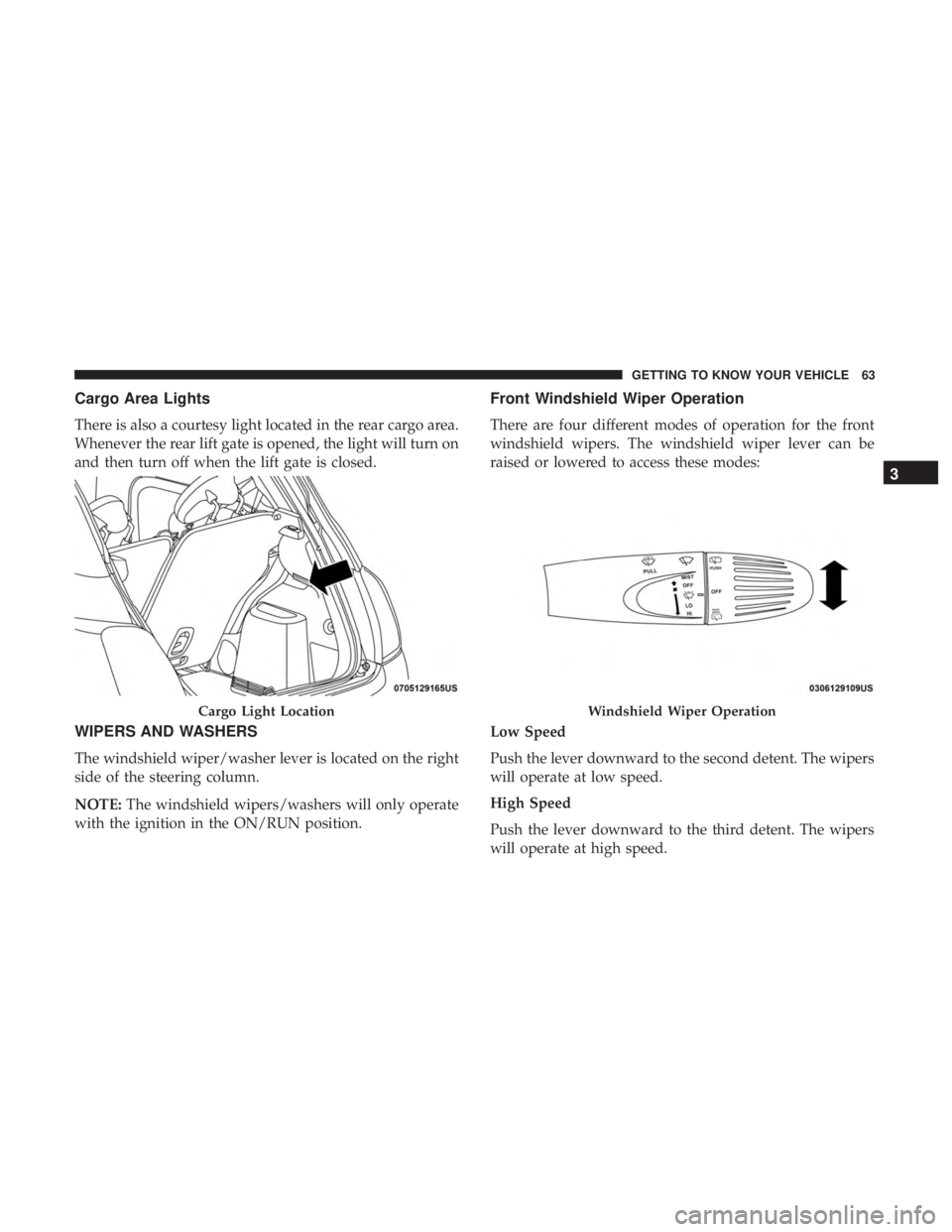

Cargo Area Lights
There is also a courtesy light located in the rear cargo area.
Whenever the rear lift gate is opened, the light will turn on
and then turn off when the lift gate is closed.
WIPERS AND WASHERS
The windshield wiper/washer lever is located on the right
side of the steering column.
NOTE:The windshield wipers/washers will only operate
with the ignition in the ON/RUN position.
Front Windshield Wiper Operation
There are four different modes of operation for the front
windshield wipers. The windshield wiper lever can be
raised or lowered to access these modes:
Low Speed
Push the lever downward to the second detent. The wipers
will operate at low speed.
High Speed
Push the lever downward to the third detent. The wipers
will operate at high speed.
Cargo Light LocationWindshield Wiper Operation
3
GETTING TO KNOW YOUR VEHICLE 63

Windshield Wiper Off
This is the normal position of the wiper lever.
Intermittent Wiper Operation
Push the lever downward to the first detent. The wipers
will operate intermittently.
NOTE:The Intermittent function only has one detent, but
wiper delay will vary with changes in vehicle speed. As
vehicle speed increases, the delay time will decrease.
Front Windshield Washer Operation
Pull the windshield wiper/washer lever toward the steer-
ing wheel to activate the washers. The wipers will activate
automatically for three cycles after the lever is released.
CAUTION!
• Turn the windshield wipers off when driving
through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper control is left in
any position other than off.
• In cold weather, always turn off the wiper switch and
allow the wipers to return to the park position before
(Continued)
CAUTION! (Continued)
turning off the vehicle. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.
• Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.
Manual High Speed/Mist
Push the lever upward from the off position. The wipers
will operate at high speed to clear off road mist or spray
from a passing vehicle. This operation will continue until
the lever is released. When the lever is released, the wipers
will return to the off position and automatically shut off.
Rear Windshield Wiper
Rotate the end of the windshield wiper/washer lever
upward to the first detent past the intermittent settings for
intermittent wipe operation. With the front windshield
wiper active, rotate the end of the windshield wiper/
washer lever upward. The rear wiper will operate in the
same mode as the front windshield wipers, but at half the
64 GETTING TO KNOW YOUR VEHICLE

frequency. When the transmission is placed into REVERSE,
the rear wiper will automatically operate at Low Speed and
return to normal operation when the transmission is placed
out of REVERSE.
NOTE:The windshield wipers/washers will only operate
with the ignition in the ON/RUN position. Rear Windshield Washer Operation
Push the windshield wiper/washer lever toward the in-
strument panel to activate the rear washer. Push and hold
the lever for more than a half second and the wipers will
activate automatically for three cycles after the lever is
released.
CLIMATE CONTROLS
The Climate Control System allows you to regulate the
temperature, air flow, and direction of air circulating
throughout the vehicle. The controls are located on the
touchscreen (if equipped) and on the instrument panel
below the radio.
Rear Wiper Operation
3
GETTING TO KNOW YOUR VEHICLE 65

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should be
lubricated periodically with a lithium based grease, such as
Mopar Spray White Lube to assure quiet, easy operation
and to protect against rust and wear. Prior to the applica-
tion of any lubricant, the parts concerned should be wiped
clean to remove dust and grit; after lubricating excess oil
and grease should be removed. Particular attention should
also be given to hood latching components to ensure
proper function. When performing other underhood ser-
vices, the hood latch, release mechanism and safety catch
should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as Mopar Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
The wiper blades and wiper arms should be inspected
periodically, not just when wiper performance problems
are experienced. This inspection should include the follow-
ing points:
• Wear or uneven edges
• Foreign material
• Hardening or cracking
• Deformation or fatigue
8
SERVICING AND MAINTENANCE 223

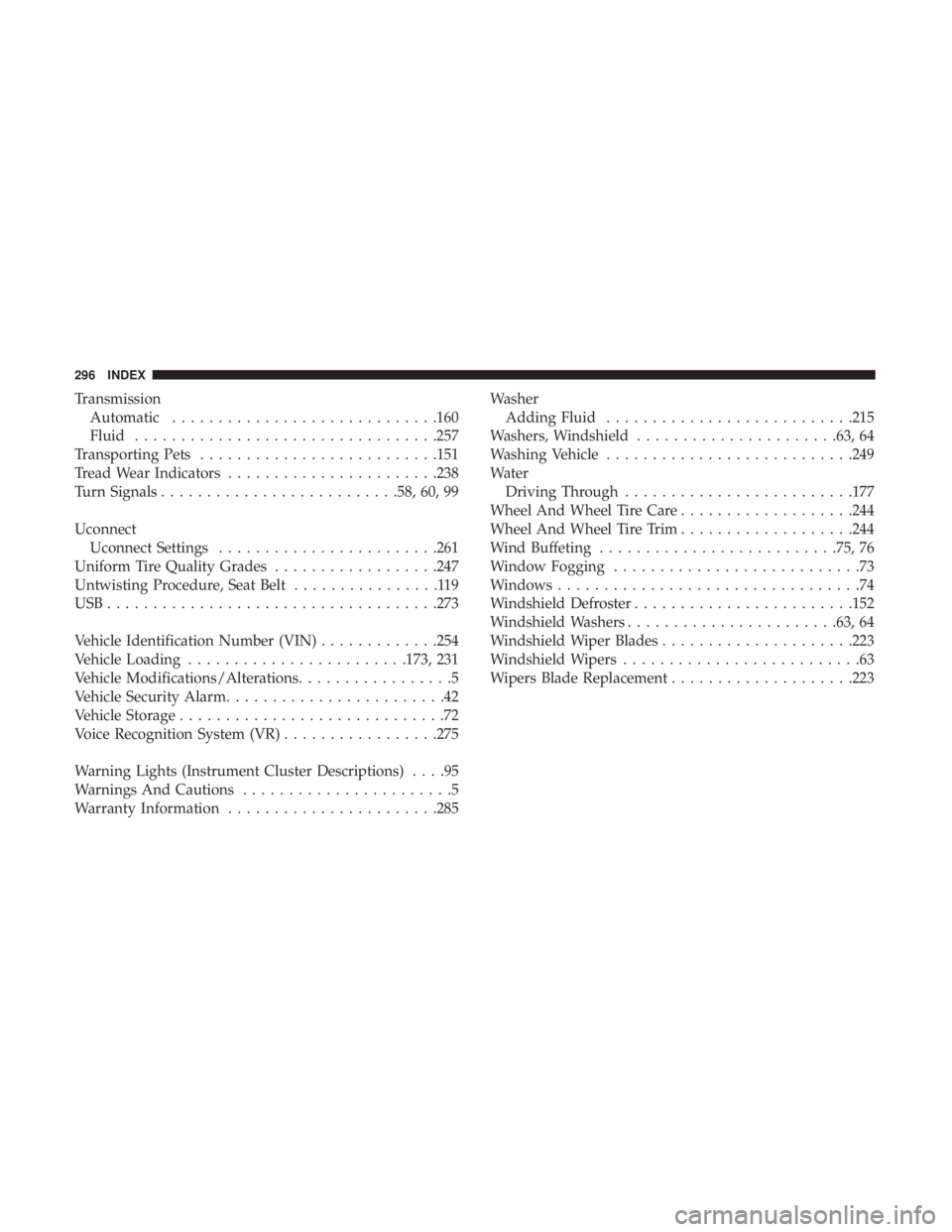

TransmissionAutomatic ............................ .160
Fluid ................................ .257
Transporting Pets ......................... .151
Tread Wear Indicators ...................... .238
Turn Signals ......................... .58, 60, 99
Uconnect Uconnect Settings ....................... .261
Uniform Tire Quality Grades ..................247
Untwisting Procedure, Seat Belt ................119
USB................................... .273
Vehicle Identification Number (VIN) .............254
Vehicle Loading ....................... .173, 231
Vehicle Modifications/Alterations .................5
Vehicle Security Alarm ........................42
Vehicle Storage .............................72
Voice Recognition System (VR) .................275
Warning Lights (Instrument Cluster Descriptions) ....95
Warnings And Cautions .......................5
Warranty Information ...................... .285Washer
Adding Fluid .......................... .215
Washers, Windshield ..................... .63, 64
Washing Vehicle .......................... .249
Water Driving Through ........................ .177
Wheel And Wheel Tire Care ...................244
Wheel And Wheel Tire Trim ...................244
Wind Buffeting ......................... .75, 76
Window Fogging ...........................73
Windows .................................74
Windshield Defroster ....................... .152
Windshield Washers ...................... .63, 64
Windshield Wiper Blades .....................223
Windshield Wipers ..........................63
Wipers Blade Replacement ....................223
296 INDEX
