2019 FIAT 500E light

INTRODUCTION
Congratulations on selecting your new FIAT 500e. Be
assured that your 500e represents an elegant marriage of
technology and Italian styling that is as good for the
environment as it is fun to drive!
This Owner’s Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint you
with the operation, understanding and maintenance of
your 500e. It is supplemented by Warranty Information,
and various customer-oriented documents. Please take the
time to read these publications carefully. Following the
instructions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
The enclosed Warranty Information lists the services that
FCA US LLC offers to its customers:
•The Warranty Certificate with terms and conditions for
maintaining its validity
• The range of additional services available to FCA US
LLC customers
NOTE: After reviewing the owner information, it should
be stored in the vehicle for convenient referencing and
remain with the vehicle when sold. When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained techni-
cians and genuine MOPAR® parts, and cares about your
satisfaction.
HOW TO USE THIS MANUAL
Essential Information
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the items
of equipment ordered, certain descriptions and illustra-
tions may differ from your vehicle’s equipment.
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.
Symbols
Some vehicle components have colored labels whose sym-
bols indicate precautions to be observed when using this
component. Refer to “Warning Lights and Messages” in
“Getting To Know Your Instrument Panel” for further
information on the symbols used in your vehicle.
4 INTRODUCTION

FRONT VIEW
Front View
1 — Exterior Mirrors3 — Underhood Compartment
2 — Windshield 4 — Headlights
8 GRAPHICAL TABLE OF CONTENTS

REAR VIEW
1 — Rear Lights
2 — Rear Windshield Wiper
3 — Liftgate
Rear View
2
GRAPHICAL TABLE OF CONTENTS 9

▫Central Lock/Unlock (Switch Safe Lock Device) —
If Equipped ............................44
 DOORS ...............................45
▫ Manual Lock ...........................45
▫ Power Door Locks ......................46
 SEATS ................................47
▫ Manual Adjustment Front Seats ..............47
▫ Heated Seats — If Equipped ...............50
▫ Manual Folding Rear Seat ..................51
 HEAD RESTRAINTS ......................52
▫ Reactive Head Restraints — Front Seats ........52
▫ Rear Head Restraints .....................54
 STEERING WHEEL .......................55
▫ Tilt Steering Column — If Equipped ..........55
 MIRRORS ..............................56
▫ Inside Day/Night Mirror ..................56
▫ Automatic Dimming Mirror — If Equipped .....56▫
Power Mirrors .........................57
▫ Folding Mirrors .........................57
▫ Spotter Mirror — If Equipped ...............58
▫ Heated Mirrors — If Equipped .............58
 EXTERIOR LIGHTS .......................58
▫ Multifunction Lever ......................58
▫ Headlights ............................58
▫ Daytime Running Lights ..................59
▫ High Beams ...........................59
▫ Flash-To-Pass ..........................59
▫ Parking Lights .........................59
▫ Follow Me Home/Headlight Delay ...........60
▫ Fog Lights — If Equipped .................60
▫ Turn Signals ...........................60
▫ Lane Change Assist ......................61
 INTERIOR LIGHTS .......................61
▫ Interior Light Timing (Center Position) ........62
14 GETTING TO KNOW YOUR VEHICLE

▫Interior Light Timing (On/Right Position) ......62
▫ Dimmer Control ........................62
▫ Ambient Light ..........................62
▫ Cargo Area Lights .......................63
 WIPERS AND WASHERS ...................63
▫ Front Windshield Wiper Operation ...........63
▫ Rear Windshield Wiper ...................64
 CLIMATE CONTROLS .....................65
▫ Automatic Temperature Control Overview .....66
▫ Automatic Temperature Control (ATC) ........71
▫ Operating Tips .........................72
 WINDOWS .............................74
▫ Power Window Controls ..................74
▫ Auto-Down ............................75
▫ Wind Buffeting .........................75
 POWER SUNROOF — IF EQUIPPED ..........75▫
To Open ..............................76
▫ To Close ..............................76
▫ Wind Buffeting .........................76
▫ Sun Shade — If Equipped .................76
▫ Pinch Protect Feature .....................77
▫ Emergency Operation .....................77
 HOOD ................................78
▫ Opening .............................78
▫ Closing ...............................79
 INTERNAL EQUIPMENT ...................80
▫ Storage ..............................80
▫ Cupholders ...........................80
▫ Sun Visors .............................81
▫ Electrical Power Outlets ..................82
 LIFTGATE .............................84
▫ Opening .............................84
3
GETTING TO KNOW YOUR VEHICLE 15

HIGH VOLTAGE BATTERY
Your vehicle is equipped with a Lithium-ion high voltage
battery that is used to power the electric powertrain
systems and the 12 volt vehicle electrical system.
The high voltage battery is located under the vehicle. The
high voltage battery is maintenance free and designed to
last for the life of the vehicle.
NOTE:Upon exiting the vehicle, ensure the ignition is in
the off position and the key is removed from the vehicle.
Lithium-ion batteries provide the following benefits:
•Lithium-ion batteries are much lighter than other types
of rechargeable batteries of the same size.
• Lithium-ion batteries hold their charge; they only lose
approximately 3 percent of their charge per month.
• Lithium-ion batteries have no memory, which means
that you do not have to completely discharge them
before recharging, as with some other batteries.
High Voltage Battery and Cable Locations
1 — High Voltage Cables
2 — High Voltage Battery
16 GETTING TO KNOW YOUR VEHICLE

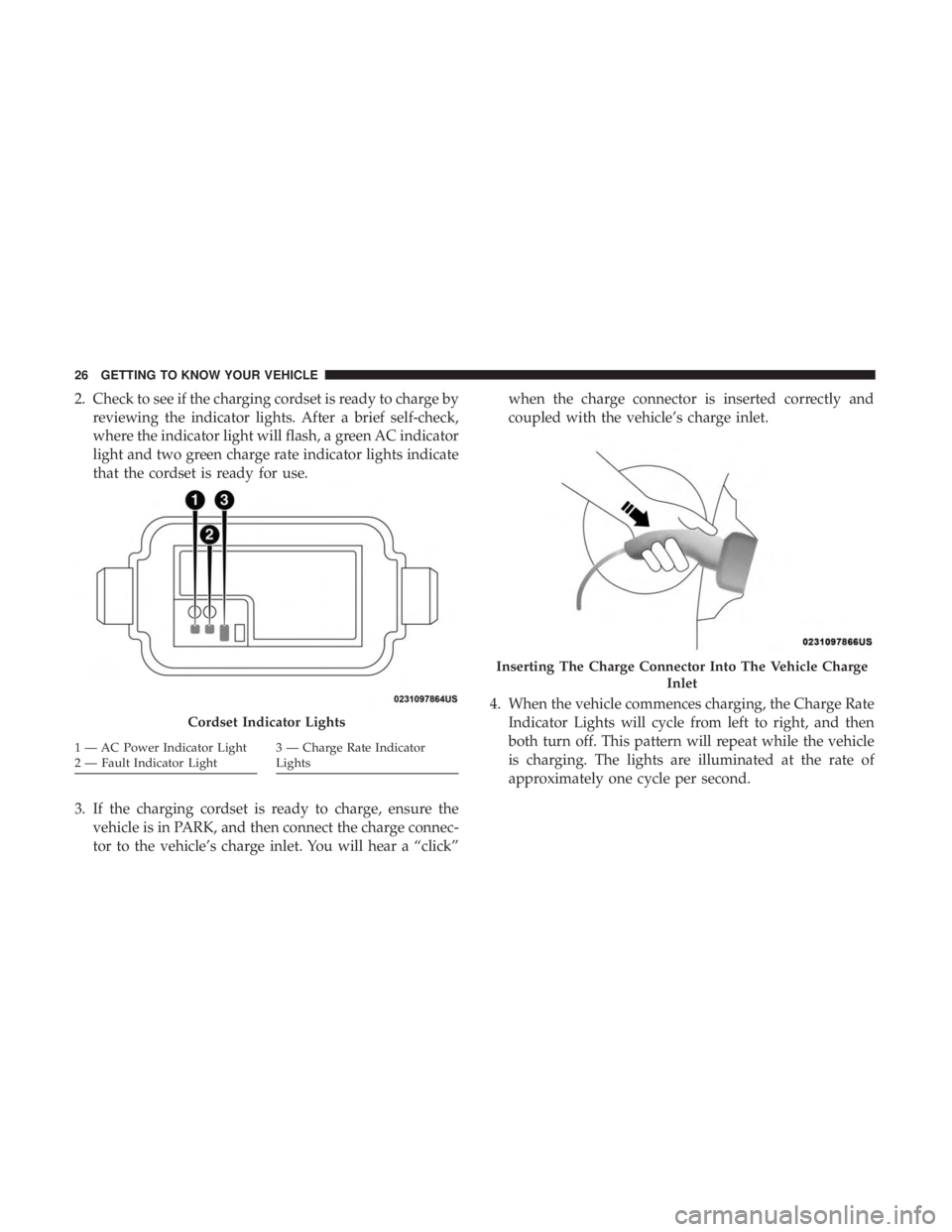

2. Check to see if the charging cordset is ready to charge byreviewing the indicator lights. After a brief self-check,
where the indicator light will flash, a green AC indicator
light and two green charge rate indicator lights indicate
that the cordset is ready for use.
3. If the charging cordset is ready to charge, ensure the vehicle is in PARK, and then connect the charge connec-
tor to the vehicle’s charge inlet. You will hear a “click” when the charge connector is inserted correctly and
coupled with the vehicle’s charge inlet.
4. When the vehicle commences charging, the Charge Rate Indicator Lights will cycle from left to right, and then
both turn off. This pattern will repeat while the vehicle
is charging. The lights are illuminated at the rate of
approximately one cycle per second.
Cordset Indicator Lights
1 — AC Power Indicator Light
2 — Fault Indicator Light3 — Charge Rate Indicator
Lights
Inserting The Charge Connector Into The Vehicle Charge
Inlet
26 GETTING TO KNOW YOUR VEHICLE

Troubleshooting Using The Status Indicator Display
If the vehicle is not charging properly, consult the status
indicator lights.
TheAC Power Indicator displays the status and safety of
the input power. If this indicator is green, the power is
within acceptable limits to charge the vehicle. If only the
AC Power Indicator is flashing red, then there is a problem
with the AC power at the electrical outlet. If the AC Power
Indicator does not return to green, then the outlet should
be inspected by a licensed electrician to ensure the voltage,
frequency, and grounding are complaint to national and
local electrical codes and ordinances. It may be possible to
attempt charging from a different outlet.
The Fault Indicator displays the status of the Portable
EVSE Cordset and the vehicle connection. The Portable
EVSE Cordset will not allow charging while the fault
indicator is red. If it is off, the Portable EVSE Cordset has
not detected any internal faults, or faults with the vehicle
connection. If the Fault Indicator is flashing red, there is a
fault detected either with the Portable EVSE Cordset,
electronics, or with the vehicle connection. The Portable
EVSE Cordset may attempt to retry to provide current to
the vehicle if the fault is cleared. If the Fault Indicator does not attempt to provide charge to the vehicle, the charge
connector will need to be removed from the vehicle to clear
the fault.
The fault code list in the table below provides a reference
for the important faults that are detected by the Portable
EVSE Cordset. When a fault is detected, the AC Power
Indicator, the Fault Indicator, or both the AC Power and
Fault Indicators will flash red. If only the AC Power
Indicator is red, there is a problem on the AC Power side of
the unit. If only the Fault Indicator is flashing red, there is
a problem internal to the unit or with the vehicle. If both
the AC Power and Fault Indicators are flashing red, an over
temperature condition is detected at either the AC plug or
within the enclosure. Additional information about the
faults is provided by a fault code that is displayed on the
two green Charge Rate Indicators. The fault code consists
of four digits, each with a value of 1 or 2. The value of a
digit is the number of indicators illuminated for that part of
the sequence. For example, fault code (1, 2, 1, 1) will
display the following sequence: One indicator will illumi-
nate for (0.3 seconds), then two indicators will illuminate,
then one indicator, and finally one indicator will illumi-
nate. After all four fault code digits have been displayed,
the indicators will remain off for one second before repeat-
ing the sequence.
28 GETTING TO KNOW YOUR VEHICLE
