INTRODUCTION
Congratulations on selecting your new FIAT 500e. Be
assured that your 500e represents an elegant marriage of
technology and Italian styling that is as good for the
environment as it is fun to drive!
This Owner’s Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint you
with the operation, understanding and maintenance of
your 500e. It is supplemented by Warranty Information,
and various customer-oriented documents. Please take the
time to read these publications carefully. Following the
instructions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
The enclosed Warranty Information lists the services that
FCA US LLC offers to its customers:
•The Warranty Certificate with terms and conditions for
maintaining its validity
• The range of additional services available to FCA US
LLC customers
NOTE: After reviewing the owner information, it should
be stored in the vehicle for convenient referencing and
remain with the vehicle when sold. When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained techni-
cians and genuine MOPAR® parts, and cares about your
satisfaction.
HOW TO USE THIS MANUAL
Essential Information
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the items
of equipment ordered, certain descriptions and illustra-
tions may differ from your vehicle’s equipment.
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.
Symbols
Some vehicle components have colored labels whose sym-
bols indicate precautions to be observed when using this
component. Refer to “Warning Lights and Messages” in
“Getting To Know Your Instrument Panel” for further
information on the symbols used in your vehicle.
4 INTRODUCTION

•Lithium-ion batteries can be recharged and discharged
thousands of times.
High Voltage Battery Service Disconnect
The high voltage battery service disconnect is located
under the rear passenger seat lower cushion. If your
vehicle requires service, see an authorized dealer.
WARNING!
Never try to remove the high voltage battery service
disconnect. The high voltage battery service disconnect
is used when your vehicle requires service by a trained
technician at an authorized dealer. Failure to follow
this warning can cause severe burns or electrical shock
that may result in serious injury or death.
Disposal of the High Voltage Battery
Your vehicle’s high voltage battery is designed to last the
life of your vehicle. See an authorized dealer for informa-
tion on the disposal of the battery if it should require
replacement. General Information
The vehicle is also equipped with a Battery Management
System that is designed to:
•
Ensure safe operation
• Maximize driving range
• Maximize the life expectancy of the high voltage battery
NOTE:
• During vehicle start up and shut down, a clicking noise
may be heard from within the vehicle. When the ignition
key is turned to the on position, the high voltage battery
contactors inside the battery are closed to make the
stored electricity inside available for vehicle use. The
clicking noise observed is the sound of these contactors
as they open and close and is normal operation for your
500e.
• The operating temperature range of the high voltage
battery is -22 °F to 122 °F (-30 °C to 50 °C). If it is
attempted to operate the vehicle with the battery outside
of these temperature extremes it will not function.
3
GETTING TO KNOW YOUR VEHICLE 17

E-Park is activated when the driver pushes the PARK
button. An electric motor activates the parking pawl and
locks the single-speed transmission when the vehicle is
placed into PARK. This will prevent any unwanted move-
ment of the vehicle.
NOTE:The engagement of the E-Park can be heard when
there is no noise in the interior of the vehicle, this is a
normal condition.
Climate Control (HVAC System)
Your 500e is equipped with an Automatic Temperature
Control (ATC) HVAC system. This HVAC system utilizes a
humidity sensor, cabin sensor, and ambient temperature
sensor to choose operation mode and control cabin com-
fort. These components allow the controller to operate the
HVAC system in a very efficient manner to maximize
driving range.
Your 500e also uses an electric air heater to provide heat to
the cabin.
Electric Air Conditioning Compressor
Your 500e uses an electric air conditioning compressor. The
air conditioning compressor is powered by the high volt-
age battery system and is used to cool the vehicle occu-
pants and the high voltage battery while the vehicle is
being driven or when it is being charged.
The high voltage battery may require cooling to keep the
vehicle running. The air conditioning compressor activates
without any input from the occupant.
NOTE: The AC system helps cool the high voltage battery.
If the air conditioning system should require service, see an
authorized dealer as soon as possible.
Electric Power Steering
Your vehicle is equipped with an Electric Power Steering
(EPS) system. The power steering system requires no
maintenance and operates without the use of power steer-
ing fluid.
3
GETTING TO KNOW YOUR VEHICLE 19

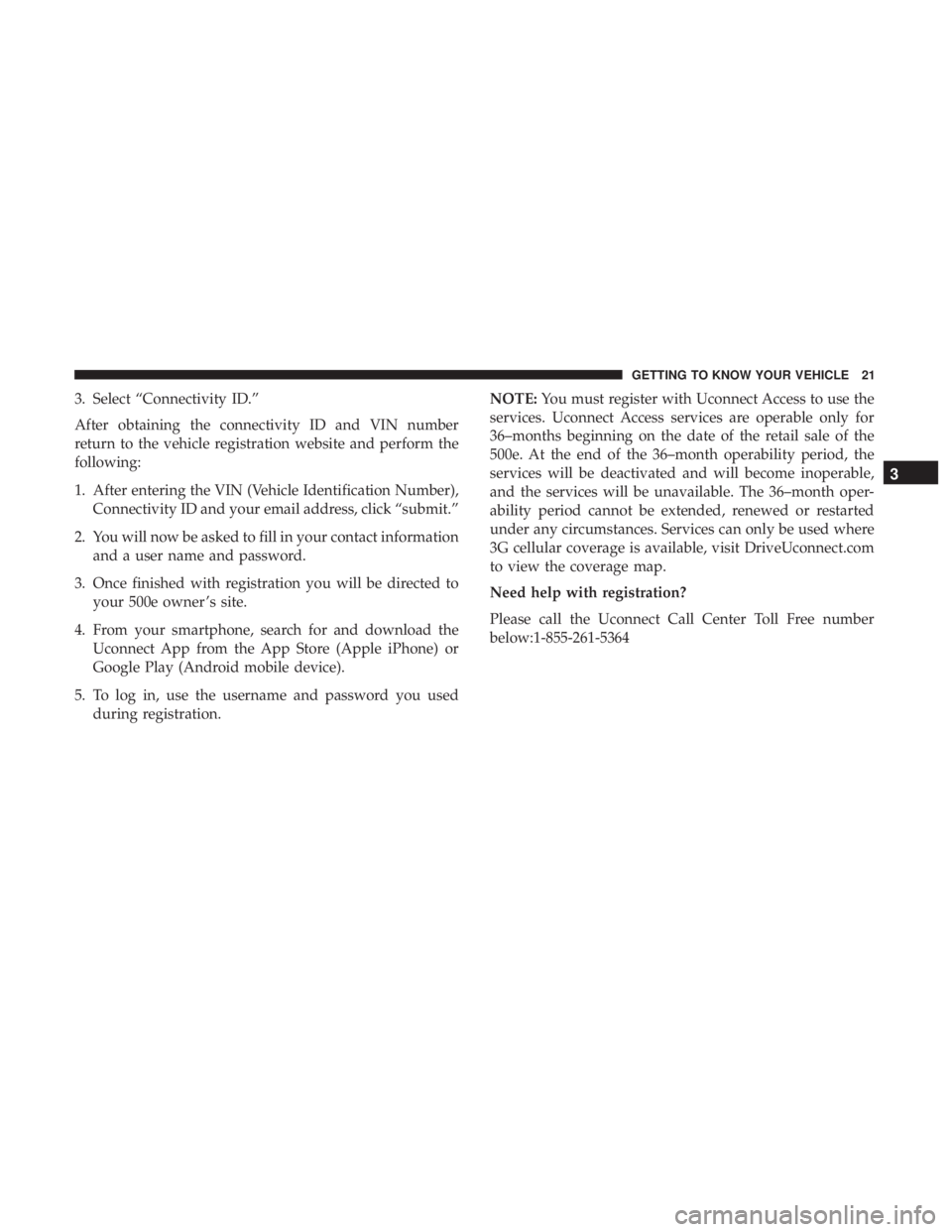

3. Select “Connectivity ID.”
After obtaining the connectivity ID and VIN number
return to the vehicle registration website and perform the
following:
1. After entering the VIN (Vehicle Identification Number),Connectivity ID and your email address, click “submit.”
2. You will now be asked to fill in your contact information and a user name and password.
3. Once finished with registration you will be directed to your 500e owner ’s site.
4. From your smartphone, search for and download the Uconnect App from the App Store (Apple iPhone) or
Google Play (Android mobile device).
5. To log in, use the username and password you used during registration. NOTE:
You must register with Uconnect Access to use the
services. Uconnect Access services are operable only for
36–months beginning on the date of the retail sale of the
500e. At the end of the 36–month operability period, the
services will be deactivated and will become inoperable,
and the services will be unavailable. The 36–month oper-
ability period cannot be extended, renewed or restarted
under any circumstances. Services can only be used where
3G cellular coverage is available, visit DriveUconnect.com
to view the coverage map.
Need help with registration?
Please call the Uconnect Call Center Toll Free number
below:1-855-261-5364
3
GETTING TO KNOW YOUR VEHICLE 21

WARNING!
Shock, fire, property damage, or personal injury may
occur if the Portable EVSE Cordset is not used prop-
erly. There are no serviceable parts contained in the
Portable EVSE Cordset. Any attempt to service it may
result in shock, fire, property damage, or personal
injury.
To access the charging cordset, remove the Level 1 EVSE
from its storage bin by lifting the rear cargo cover. NOTE:
The charging cordset is used for AC Level 1
charging only.
EVSE Rear Cargo Location
3
GETTING TO KNOW YOUR VEHICLE 23

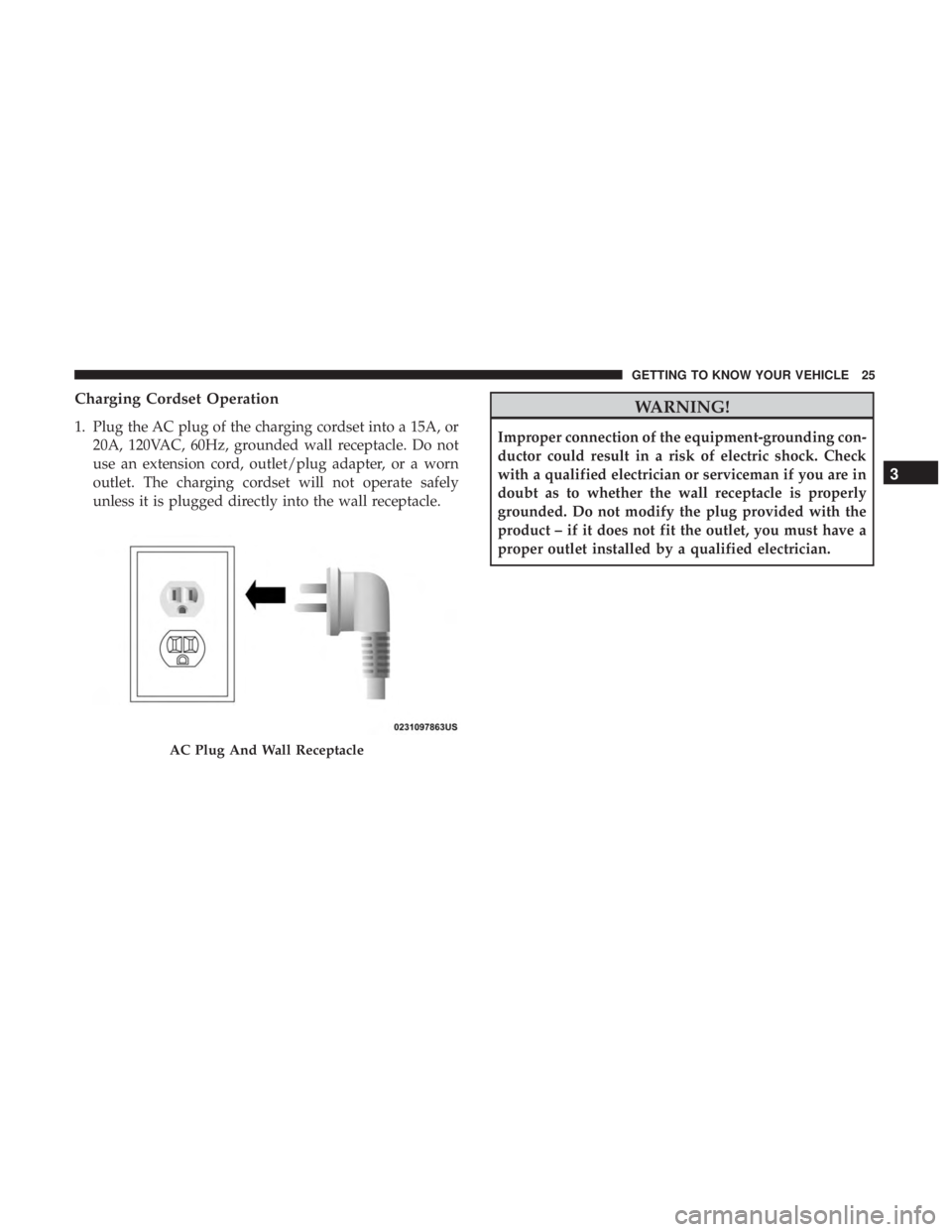

Charging Cordset Operation
1. Plug the AC plug of the charging cordset into a 15A, or20A, 120VAC, 60Hz, grounded wall receptacle. Do not
use an extension cord, outlet/plug adapter, or a worn
outlet. The charging cordset will not operate safely
unless it is plugged directly into the wall receptacle.
WARNING!
Improper connection of the equipment-grounding con-
ductor could result in a risk of electric shock. Check
with a qualified electrician or serviceman if you are in
doubt as to whether the wall receptacle is properly
grounded. Do not modify the plug provided with the
product – if it does not fit the outlet, you must have a
proper outlet installed by a qualified electrician.
AC Plug And Wall Receptacle
3
GETTING TO KNOW YOUR VEHICLE 25

Portable EVSE Cordset Fault Code List
Flashing Fault
Code Flashing
Indicator Fault Indication Recommended Actions
1, 2, 2, 2 AC Power Vehicle Current Draw is Too HighCheck Portable EVSE Cordset and Vehicle at a service location.
1, 1, 2, 1 AC Power Incorrect Electrical SupplyAttempt to charge the vehicle at a different outlet. Contact a
certified electrician to check the electrical outlet and AC Supply (house wiring).
1, 1, 2, 2 AC Power Incorrect Electrical SupplyAttempt to charge the vehicle at a different outlet. Contact a
certified electrician to check the electrical outlet and AC Supply (house wiring).
1, 2, 1, 1 AC Power Incorrect Electrical SupplyAttempt to charge the vehicle at a different outlet. Contact a
certified electrician to check the electrical outlet and AC Supply (house wiring).
1, 2, 1, 2 AC Power Incorrect Electrical SupplyAttempt to charge the vehicle at a different outlet. Contact a
certified electrician to check the electrical outlet and AC Supply (house wiring).
1, 2, 2, 1 AC Power Outlet Wiring Bad GroundAttempt to charge the vehicle at a different outlet. Contact a
certified electrician to check the electrical outlet and AC Supply (house wiring).
3
GETTING TO KNOW YOUR VEHICLE 29

Portable EVSE Cordset Fault Code List
Flashing Fault
Code Flashing
Indicator Fault Indication Recommended Actions
1, 1, 1, 1 Fault Portable EVSE Cordset Internal FaultUnplug the Portable EVSE Cordset from the vehicle charge inlet
and retry to charge. If the issue is not corrected, check the Por- table EVSE Cordset and Vehicle at a service location.
1, 1, 1, 2 Fault Portable EVSE Cordset Internal FaultUnplug the Portable EVSE Cordset from the vehicle charge inlet
and retry to charge. If the issue is not corrected, check the Por- table EVSE Cordset and Vehicle at a service location.
1, 2, 1, 1 Fault Portable EVSE Cordset Internal FaultCheck Portable EVSE Cordset and Vehicle at a service location.
1, 2, 1, 2 Fault CCID Leakage Current DetectedDisconnect charge connector and retry charging. If problem per-
sists, check the Portable EVSE Cordset and Vehicle at a service location.
2, 2, 2, 1 Fault Vehicle Interface ConnectorError with the Vehicle Charge Connector Interface — Check for
water or other contamination in the vehicle charge inlet or charge connector.
2, 2, 2, 2 Fault Vehicle Interface ConnectorError with the Vehicle Charge Connector Interface — Check for
water or other contamination in the vehicle charge inlet or charge connector.
30 GETTING TO KNOW YOUR VEHICLE
