2019 FIAT 500E instrument panel

Follow Me Home/Headlight Delay
When this feature is selected, the driver can choose to have
the headlights remain on for a preset period of time.
Activation
Remove the key or turn the ignition to the STOP (OFF/
LOCK) position, and pull the multifunction lever toward
the steering wheel within two minutes. Each time the lever
is pulled, the activation of the lights will be extended by 30
seconds. The activation of the lights can be extended to a
maximum of 210 seconds.
Deactivation
Pull the multifunction lever toward the steering wheel and
hold it for more than two seconds.
Fog Lights — If Equipped
The fog light switch is located on the center stack of the
instrument panel, just below the radio.Push the switch once to turn the front fog lights on. Push
the switch a second time to turn the front fog lights off.
Turn Signals
Push the multifunction lever upward to signal a right turn
or downward to signal a left turn. The corresponding
indicator in the instrument cluster display will blink to
indicate the operation of the turn signal.
Fog Light Switch
60 GETTING TO KNOW YOUR VEHICLE

Interior Light Timing (Center Position)
There are four different modes of operation that can be
activated in this position:
•When one door is opened, a three minute timer is
activated.
• When the key is removed from the ignition (within two
minutes of the ignition being turned OFF), a 10 second
timer is activated.
• When the doors are unlocked with the key fob, a 10
second timer is activated.
• When the doors are locked with the key fob, the lights
will turn off.
Interior Light Timing (On/Right Position)
When all doors are closed a 15-minute timer is activated.
NOTE: The timer is deactivated when the key is moved
into the ON/RUN position.
Dimmer Control
The brightness of the instrument panel lighting can be
regulated by pushing the buttons on the right side of the
instrument cluster. The (+) button increases the brightness
and the (-) button decreases the brightness. You can control
brightness of the radio by itself or the entire instrument
panel. Refer to “Uconnect Settings” in “Multimedia” for
more information.
Ambient Light
The vehicle is equipped with ambient light on the center
stack. The ambient light will be on when the headlights are
turned on by rotating the end of the multifunction lever.
62 GETTING TO KNOW YOUR VEHICLE

frequency. When the transmission is placed into REVERSE,
the rear wiper will automatically operate at Low Speed and
return to normal operation when the transmission is placed
out of REVERSE.
NOTE:The windshield wipers/washers will only operate
with the ignition in the ON/RUN position. Rear Windshield Washer Operation
Push the windshield wiper/washer lever toward the in-
strument panel to activate the rear washer. Push and hold
the lever for more than a half second and the wipers will
activate automatically for three cycles after the lever is
released.
CLIMATE CONTROLS
The Climate Control System allows you to regulate the
temperature, air flow, and direction of air circulating
throughout the vehicle. The controls are located on the
touchscreen (if equipped) and on the instrument panel
below the radio.
Rear Wiper Operation
3
GETTING TO KNOW YOUR VEHICLE 65

IconDescription
Modes Control: Push the button in the center of the knob to change the airflow distribution mode. The airflow distri-
bution mode can be adjusted so air comes from the instrument panel outlets, floor outlets, defrost outlets and demist outlets. The Mode settings are as follows:
Panel Mode
Panel Mode
Air comes from the outlets in the instrument panel. Each of these outlets can be individually
adjusted to direct the flow of air. The air vanes of the center outlets and outboard outlets can be
moved up and down or side to side to regulate airflow direction. There is a shut off wheel lo-
cated below the air vanes to shut off or adjust the amount of airflow from these outlets.
Floor Mode
Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and side
window demister outlets.
Bi-Level Mode
Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed
through the defrost and side window demister outlets. To access this mode, press both the Panel
and Floor Mode buttons.
NOTE:
Bi-Level mode is designed under comfort conditions to provide cooler air out of the panel out-
lets and warmer air from the floor outlets.
3
GETTING TO KNOW YOUR VEHICLE 69

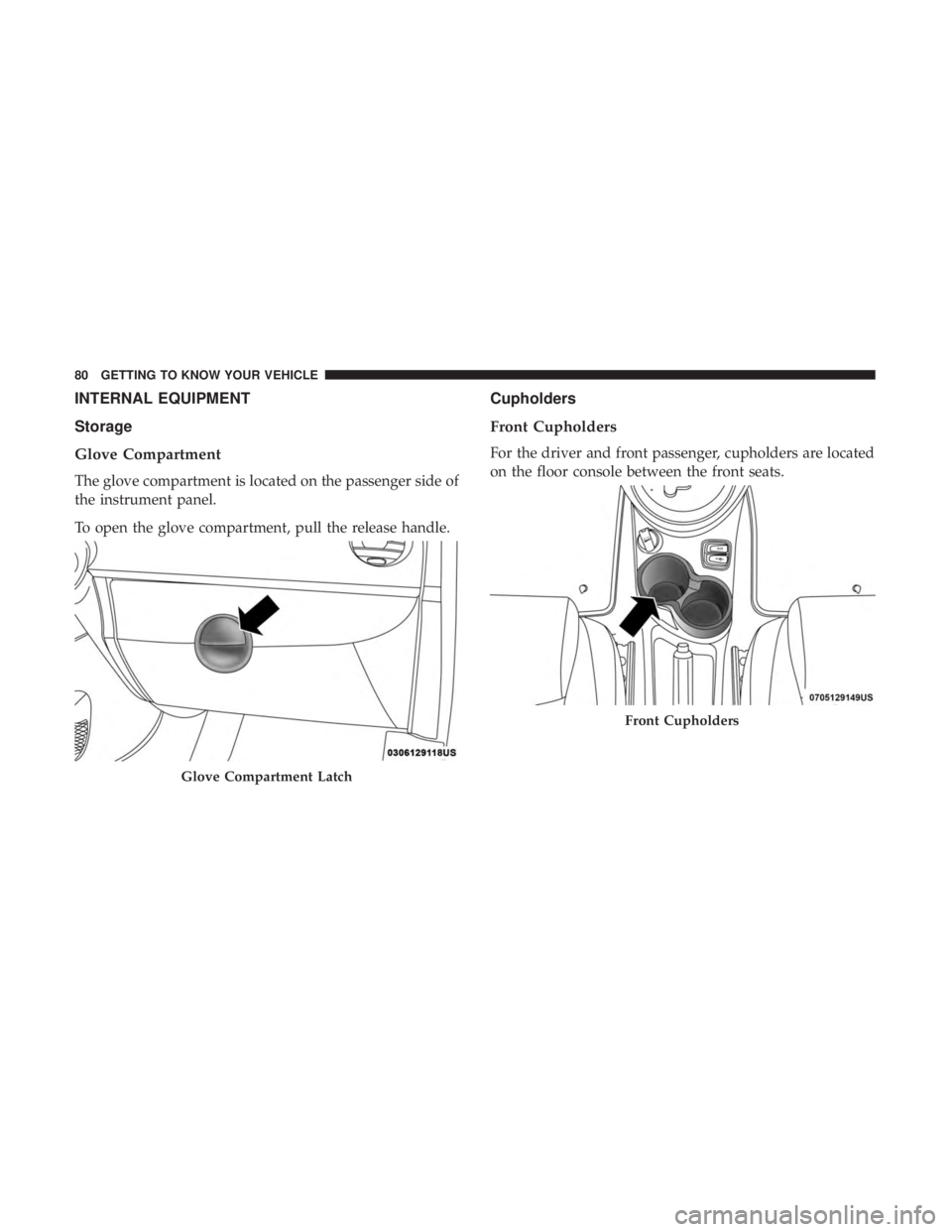

INTERNAL EQUIPMENT
Storage
Glove Compartment
The glove compartment is located on the passenger side of
the instrument panel.
To open the glove compartment, pull the release handle.
Cupholders
Front Cupholders
For the driver and front passenger, cupholders are located
on the floor console between the front seats.
Glove Compartment Latch
Front Cupholders
80 GETTING TO KNOW YOUR VEHICLE

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ...................86
▫ Instrument Cluster Descriptions .............86
 INSTRUMENT CLUSTER DISPLAY ............87
▫ Instrument Cluster Display And Controls .......87
▫ Display Menu Set-Up .....................89
 TRIP COMPUTER .........................90
▫ Trip Button ............................90
▫ Trip Functions ..........................91
▫ Values Displayed ........................91
WARNING LIGHTS AND MESSAGES ..........92
▫ Red Warning Lights ......................92
▫ Yellow Warning Lights ....................95
▫ Yellow Indicator Lights ...................98
▫ Green Indicator Lights ....................99
▫ White Indicator Lights ....................99
▫ Blue Indicator Lights ....................100
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .100
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .1004

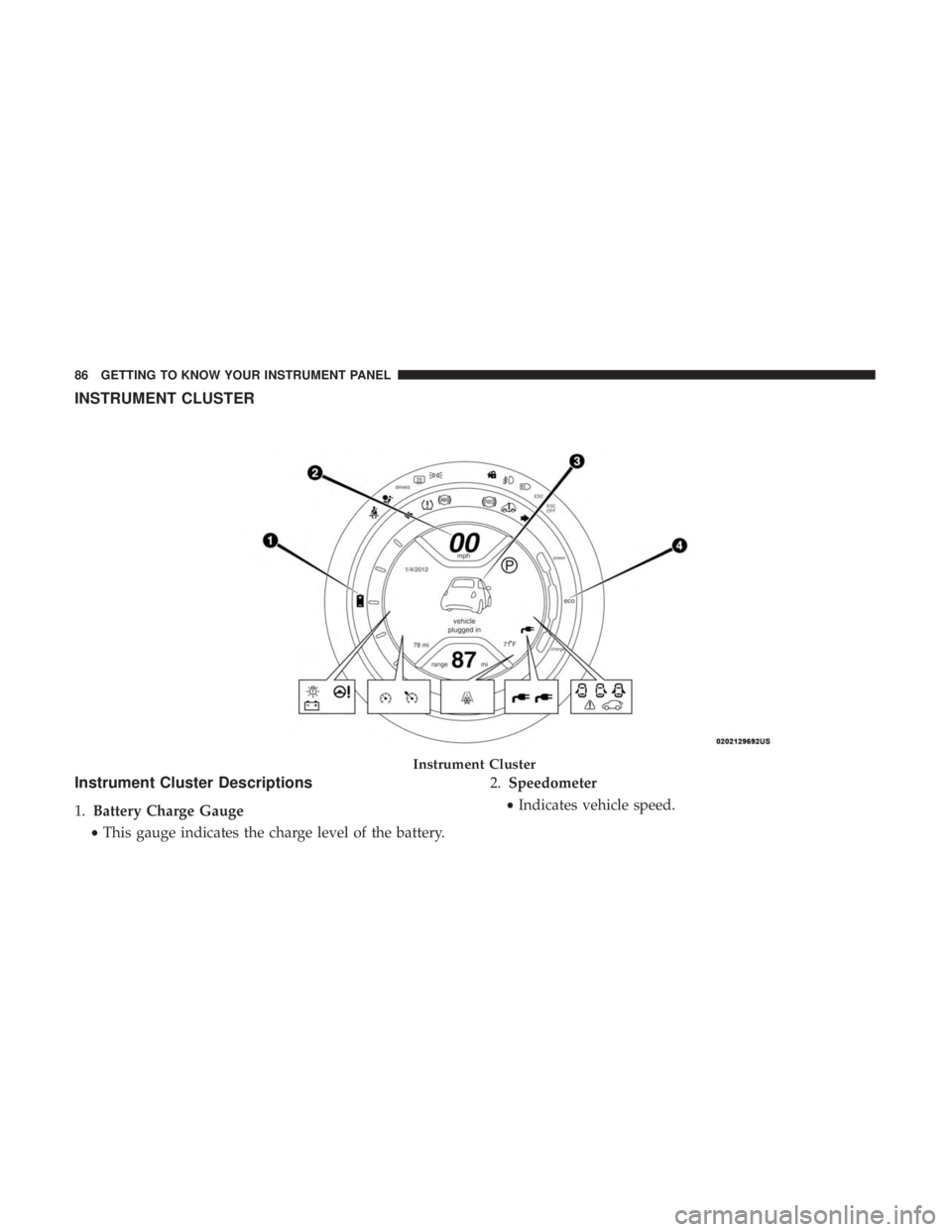

INSTRUMENT CLUSTER
Instrument Cluster Descriptions
1.Battery Charge Gauge
• This gauge indicates the charge level of the battery. 2.
Speedometer
• Indicates vehicle speed.
Instrument Cluster
86 GETTING TO KNOW YOUR INSTRUMENT PANEL

3.Instrument Cluster Display
• The instrument cluster display shows messages, when
the appropriate conditions exist. Refer to “Instrument
Cluster Display” in “Getting To Know Your Instru-
ment Panel” for further information.
4. Power Flow Gauge
This gauge indicates how battery energy is being used by
the vehicle: •ECO Mode (Green): The vehicle is conserving energy.
• POWER Mode (Red): The vehicle is utilizing energy.
• CHARGE Mode (Purple): The vehicle is regenerating
energy.
INSTRUMENT CLUSTER DISPLAY
Your vehicle may be equipped with an instrument cluster
display, which offers useful information to the driver. With
the ignition in the STOP/OFF position, opening/closing of
a door will activate the display for viewing, and display
the total miles, or kilometers, in the odometer. The instru-
ment cluster display is designed to display important
information about the vehicle’s systems and features. Us-
ing a driver interactive display located on the instrument
panel, your instrument cluster display can show you how
systems are working and give you warnings when they aren’t. The steering wheel mounted controls allow you to
scroll through and enter the main menus and submenus.
You can access the specific information you want and make
selections and adjustments.
Instrument Cluster Display And Controls
The instrument cluster display features a driver-interactive
display that is located in the instrument cluster.
The instrument cluster display consists of the following:
•
System Status
• Vehicle Information Warning Message Displays
Instrument Cluster Display
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 87
