2019 DODGE GRAND CARAVAN mirror

FRONT VIEW
Front View
1 — Doors3 — Wheels/Tires5 — Windshield
2 — Exterior Mirrors 4 — Headlights6 — Hood/Engine Compartment
8 GRAPHICAL TABLE OF CONTENTS

▫Manual Adjustment (Rear Seats) .............35
▫ Power Seats — If Equipped ................45
▫ Heated Seats — If Equipped ...............47
▫ Plastic Grocery Bag Retainer Hooks ...........49
 HEAD RESTRAINTS ......................49
▫ Supplemental Active Head Restraints — Front
Seats .................................50
▫ Head Restraints — Second Row Quad Seats .....52
▫ Head Restraints — Second Row Bench .........52
▫ Head Restraints — Third Row ..............53
 STEERING WHEEL .......................55
▫ Tilt/Telescoping Steering Column ............55
▫ Heated Steering Wheel — If Equipped ........55
 MIRRORS ..............................56
▫ Automatic Dimming Mirror — If Equipped .....56
▫ Automatic Dimming Mirror With Rear View
Camera Display — If Equipped .............57
▫ Outside Mirrors ........................58 ▫
Interior Observation Mirror ................58
▫ Power Mirrors — If Equipped ..............59
▫ Outside Mirrors Folding Feature ............60
▫ Heated Mirrors — If Equipped .............60
▫ Illuminated Vanity Mirrors — If Equipped .....60
 EXTERIOR LIGHTS .......................61
▫ Headlight Switch ........................61
▫ Multifunction Lever .....................61
▫ Daytime Running Lights (DRL) — If Equipped . .62
▫ High/Low Beam Switch ..................62
▫ Flash-To-Pass ..........................62
▫ Automatic Headlights ....................62
▫ Headlights On With Wipers — If Equipped .....62
▫ Headlight Delay — If Equipped .............63
▫ Lights-On Reminder .....................63
▫ Front Fog Lights — If Equipped .............63
▫ Turn Signals ...........................63
14 GETTING TO KNOW YOUR VEHICLE

•Push the heated steering wheel buttona second time
to turn the heating element off.
NOTE: The engine must be running for the heated steering
wheel to operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the heated
steering wheel can be programed to come on during a
remote start. Refer to “Instrument Cluster Display” in
“Getting To Know Your Instrument Panel” for further
information.
WARNING!
• Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion, or other physical conditions must exercise care
when using the steering wheel heater. It may cause
burns even at low temperatures, especially if used
for long periods.
• Do not place anything on the steering wheel that
insulates against heat, such as a blanket or steering
wheel covers of any type and material. This may
cause the steering wheel heater to overheat.
MIRRORS
Automatic Dimming Mirror — If Equipped
The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to center
on the view through the rear window.
This mirror automatically adjusts for headlight glare from
vehicles behind you.
NOTE: The Automatic Dimming feature is disabled when
the vehicle is in REVERSE to improve rear view viewing.
The Automatic Dimming feature can be turned on or off
through the touchscreen.
• Press the mirror dimmer button once to turn the feature
on.
• Press the mirror dimmer button a second time to turn
the feature off.
56 GETTING TO KNOW YOUR VEHICLE

CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror With Rear View Camera
Display — If Equipped
A single ball joint mirror is provided in the vehicle. It is a
twist on mirror that has a fixed position at the windshield.
The mirror installs on the windshield button with a coun-
terclockwise rotation and requires no tools for mounting.
The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to center
on the view through the rear window.
This mirror automatically adjusts for headlight glare from
vehicles behind you.
Automatic Dimming Mirror
3
GETTING TO KNOW YOUR VEHICLE 57

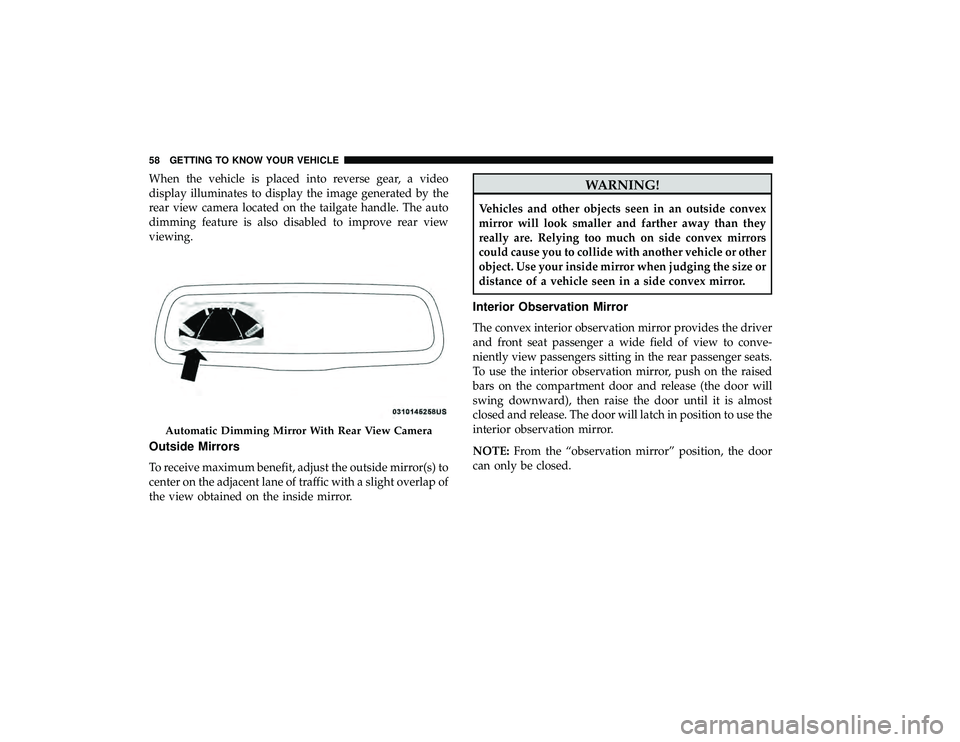

When the vehicle is placed into reverse gear, a video
display illuminates to display the image generated by the
rear view camera located on the tailgate handle. The auto
dimming feature is also disabled to improve rear view
viewing.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s) to
center on the adjacent lane of traffic with a slight overlap of
the view obtained on the inside mirror.
WARNING!
Vehicles and other objects seen in an outside convex
mirror will look smaller and farther away than they
really are. Relying too much on side convex mirrors
could cause you to collide with another vehicle or other
object. Use your inside mirror when judging the size or
distance of a vehicle seen in a side convex mirror.
Interior Observation Mirror
The convex interior observation mirror provides the driver
and front seat passenger a wide field of view to conve-
niently view passengers sitting in the rear passenger seats.
To use the interior observation mirror, push on the raised
bars on the compartment door and release (the door will
swing downward), then raise the door until it is almost
closed and release. The door will latch in position to use the
interior observation mirror.
NOTE:From the “observation mirror” position, the door
can only be closed.
Automatic Dimming Mirror With Rear View Camera
58 GETTING TO KNOW YOUR VEHICLE

To return to the full open position, the door must first be
closed and then opened by pushing the latch again to
release.
Power Mirrors — If Equipped
The power mirror controls are located on the driver-side
door trim panel.The power mirror controls consist of mirror select buttons
and a four-way mirror control switch. To adjust a mirror,
push either the L (left) or R (right) to select the mirror that
you want to adjust.
NOTE:
A light in the selected button will illuminate
indicating the mirror is activated and can be adjusted.
Using the mirror control switch, push on any of the four
arrows for the direction that you want the mirror to move.
Observation Mirror
Power Mirror Controls
3
GETTING TO KNOW YOUR VEHICLE 59

Outside Mirrors Folding Feature
All outside mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions:
•Full forward position
• Full rearward position
• Normal position
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on the
rear window defroster (if equipped). Refer to “Climate
Controls” in “Getting To Know Your Vehicle” for further
information.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is located on the sun visor. To
use the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights turn on automatically.
Closing the mirror cover turns off the lights.
Lift Mirror Cover
60 GETTING TO KNOW YOUR VEHICLE

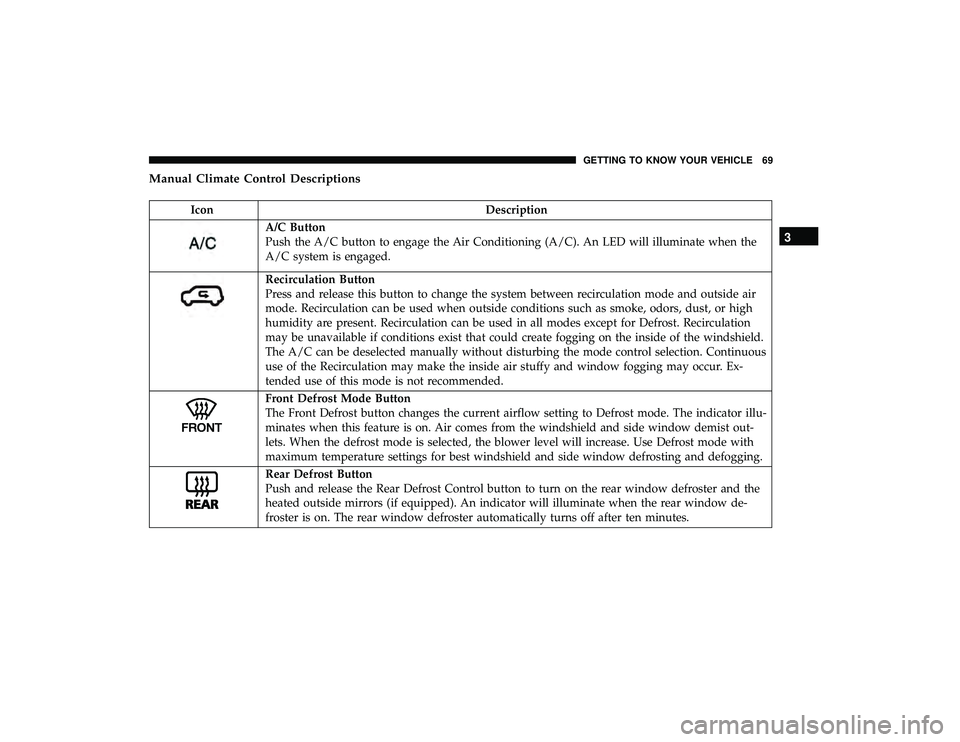

Manual Climate Control Descriptions
IconDescription
A/C Button
Push the A/C button to engage the Air Conditioning (A/C). An LED will illuminate when the
A/C system is engaged.
Recirculation Button
Press and release this button to change the system between recirculation mode and outside air
mode. Recirculation can be used when outside conditions such as smoke, odors, dust, or high
humidity are present. Recirculation can be used in all modes except for Defrost. Recirculation
may be unavailable if conditions exist that could create fogging on the inside of the windshield.
The A/C can be deselected manually without disturbing the mode control selection. Continuous
use of the Recirculation may make the inside air stuffy and window fogging may occur. Ex-
tended use of this mode is not recommended.
Front Defrost Mode Button
The Front Defrost button changes the current airflow setting to Defrost mode. The indicator illu-
minates when this feature is on. Air comes from the windshield and side window demist out-
lets. When the defrost mode is selected, the blower level will increase. Use Defrost mode with
maximum temperature settings for best windshield and side window defrosting and defogging.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-
froster is on. The rear window defroster automatically turns off after ten minutes.
3
GETTING TO KNOW YOUR VEHICLE 69
