2019 CADILLAC CT6 Owner's Manual

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
56 KEYS, DOORS, AND WINDOWS
Troubleshooting
See your dealer for service if a blue
screen and
3are displayed in the
mirror, and the display shuts off. Also,
push the tab as indicated to return to
the automatic dimming mode.
The Rear Camera Mirror may not work
properly or display a clear image if:
. There is glare from the sun or
headlamps. This may obstruct
objects from view. If needed, push
the tab to turn off the display.
.
Dirt, snow, or other debris blocks
the camera lens. Clean the lens
with a soft damp cloth, or if
equipped, with the Rear Camera
Washer. See Windshield Wiper/
Washer 0120.
. The camera’s mounting on the
vehicle has been damaged, and/or
the position or the mounting angle
of the camera has changed.
Windows
{Warning
Never leave a child, a helpless adult,
or a pet alone in a vehicle,
especially with the windows closed
in warm or hot weather. They can
be overcome by the extreme heat
and suffer permanent injuries or
even death from heat stroke.
The vehicle aerodynamics are
designed to improve fuel economy
performance. This may result in a

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
KEYS, DOORS, AND WINDOWS 57
pulsing sound when either rear
window is down and the front
windows are up. To reduce the sound,
open either a front window or the
sunroof, if equipped.
Power Windows
{Warning
Children could be seriously injured
or killed if caught in the path of a
closing window. Never leave the
Remote Keyless Entry (RKE)
transmitter in a vehicle with
children. When there are children in
the rear seat, use the window
lockout switch to prevent operation
of the windows. SeeKeys028.
Power windows work when the
ignition is on, in ACC/ACCESSORY,
or when Retained Accessory Power
(RAP) is active. See Retained Accessory
Power (RAP) 0206.
Using the window switch, press to
open or pull to close the window.
The windows may be temporarily
disabled if they are used repeatedly
within a short time.
Window Lockout
This feature stops the rear passenger
windows from working.
. Press
Zto engage the rear
window lockout feature. The
indicator light is on when engaged.
. Press
Zagain to disengage.
Window Express Movement
All windows can be opened without
holding the window switch. Press the
switch down fully and quickly release
to express open the window.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
58 KEYS, DOORS, AND WINDOWS
If equipped, pull the window switch
up fully and quickly release to express
close the window.
Briefly press or pull the window
switch in the same direction to stop
that window’s express movement.
Window Automatic Reversal
System
The express-close feature will reverse
window movement if it comes in
contact with an object. Extreme cold
or ice could cause the window to
auto-reverse. The window will operate
normally after the object or condition
is removed.
Automatic Reversal System
Override
{Warning
If automatic reversal system
override is active, the window will
not reverse automatically. You or
others could be injured and the
window could be damaged. Before
using automatic reversal system(Continued)
Warning (Continued)
override, make sure that all people
and obstructions are clear of the
window path.
When the engine is on, override the
automatic reversal system by pulling
and holding the window switch if
conditions prevent it from closing.
Programming the Power
Windows
Programming may be necessary if the
vehicle battery has been disconnected
or discharged. If the window is unable
to express-up, program each
express-close window: 1. Close all doors.
2. Turn the ignition on or to ACC/ ACCESSORY.
3. Partially open the window to be programmed. Then close it and
continue to pull the switch
briefly after the window has fully
closed. 4. Open the window and continue
to press the switch briefly after
the window has fully opened.
Remote Window Operation
If equipped, this feature allows all the
windows to be opened remotely.
If enabled in vehicle personalization,
press and hold
Kon the RKE
transmitter. See Vehicle Personalization
0 157.
Sun Visors

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
KEYS, DOORS, AND WINDOWS 59

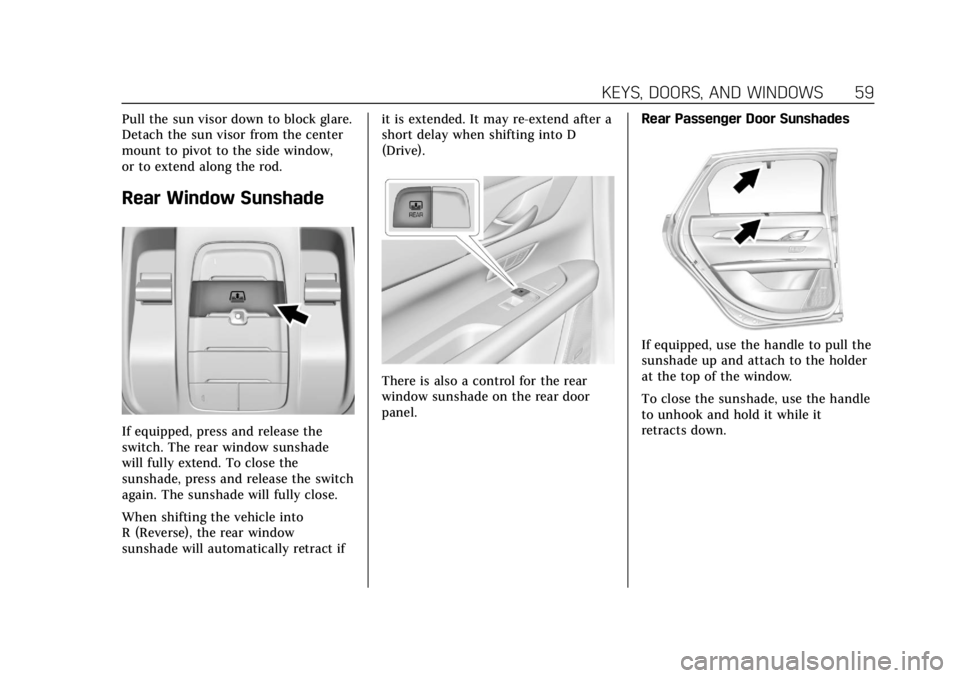

Pull the sun visor down to block glare.
Detach the sun visor from the center
mount to pivot to the side window,
or to extend along the rod.
Rear Window Sunshade
If equipped, press and release the
switch. The rear window sunshade
will fully extend. To close the
sunshade, press and release the switch
again. The sunshade will fully close.
When shifting the vehicle into
R (Reverse), the rear window
sunshade will automatically retract ifit is extended. It may re-extend after a
short delay when shifting into D
(Drive).
There is also a control for the rear
window sunshade on the rear door
panel.
Rear Passenger Door Sunshades
If equipped, use the handle to pull the
sunshade up and attach to the holder
at the top of the window.
To close the sunshade, use the handle
to unhook and hold it while it
retracts down.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
60 KEYS, DOORS, AND WINDOWS
Roof
Sunroof
If equipped with a sunroof, the
ignition must be on or in ACC/
ACCESSORY, or Retained Accessory
Power (RAP) must be active, to
operate the sunroof. SeeIgnition
Positions 0201 and
Retained Accessory Power (RAP) 0206.
1. SLIDE Switch
2. TILT Switch
Slide Switch
Express-Open/Express-Close : Press
the rear or front of
D(1) to the
second detent and release to
express-open or express-close the
sunroof.
Open/Close (Manual Mode) : Press
the rear of
D(1) to the first detent
and hold to open the sunroof. Press
the front of
D(1) to the first detent
and hold to close the sunroof.
Tilt Switch
Vent Feature : Press and hold the
front of
E(2) to vent the sunroof.
Press and hold the rear of
E(2) to
close the sunroof vent.
Power Sunshades
If equipped, pressFto open or
close the front sunroof sunshade.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
KEYS, DOORS, AND WINDOWS 61
If equipped, pressGto open or
close the rear sunroof sunshade.
The rear door panels have controls for
the rear sunroof sunshade. Press
Q
to open or close.
Automatic Reversal System
The sunroof has an automatic reversal
system that is only active when the
sunroof is operated in
express-close mode.
If an object is in the path while
express closing, the reversal system
will detect an object, stop, and open
the sunroof again.
If frost or other conditions prevent
closing, override the feature by closing
the sunroof in manual mode. To stop
movement, release the switch.
Dirt and debris may collect on the
sunroof seal or in the track. This
could cause an issue with sunroof
operation or noise. It could also plug
the water drainage system.
Periodically open the sunroof and
remove any obstacles or loose debris.
Wipe the sunroof seal and roof sealing
area using a clean cloth, mild soap,
and water. Do not remove grease from
the sunroof.
If water is seen dripping into the
water drainage system, this is normal.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
62 SEATS AND RESTRAINTS
Seats and Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . . . . . . 63
Front Seats
Power Seat Adjustment . . . . . . . . . . . 65
Lumbar Adjustment . . . . . . . . . . . . . . . 65
Thigh Support Adjustment . . . . . . . . 66
Reclining Seatbacks . . . . . . . . . . . . . . . 67
Memory Seats . . . . . . . . . . . . . . . . . . . . . . 67
Heated and Ventilated FrontSeats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Massage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Rear Seats
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Lumbar Adjustment . . . . . . . . . . . . . . . 74
Heated and Ventilated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Rear Seat Pass-Through Door . . . . . 75
Seat Belts
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
How to Wear Seat Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . 79
Seat Belt Use During Pregnancy . . . . . . . . . . . . . . . . . . . . . . . . . 82
Seat Belt Extender . . . . . . . . . . . . . . . . . 82 Safety System Check . . . . . . . . . . . . . . 82
Seat Belt Care . . . . . . . . . . . . . . . . . . . . . . 83
Replacing Seat Belt System Parts
after a Crash . . . . . . . . . . . . . . . . . . . . . . 83
Airbag System
Airbag System . . . . . . . . . . . . . . . . . . . . . 84
Where Are the Airbags? . . . . . . . . . . . 85
When Should an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
What Makes an Airbag Inflate? . . . 88
How Does an Airbag Restrain? . . . 88
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Passenger Sensing System . . . . . . . . 90
Servicing the Airbag-Equipped Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Adding Equipment to the Airbag-Equipped Vehicle . . . . . . . . 94
Airbag System Check . . . . . . . . . . . . . . 95
Replacing Airbag System Parts after a Crash . . . . . . . . . . . . . . . . . . . . . . 95
Child Restraints
Older Children . . . . . . . . . . . . . . . . . . . . . 96
Infants and Young Children . . . . . . 97
Child Restraint Systems . . . . . . . . . 100
Where to Put the Restraint . . . . . . 101
Lower Anchors and Tethers forChildren (LATCH System) . . . . . . 102 Replacing LATCH System Parts
After a Crash . . . . . . . . . . . . . . . . . . . . 108
Securing Child Restraints (With the Seat Belt in the
Rear Seat) . . . . . . . . . . . . . . . . . . . . . . . 108
Securing Child Restraints (With the Seat Belt in the
Front Seat) . . . . . . . . . . . . . . . . . . . . . . 111

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
SEATS AND RESTRAINTS 63
Head Restraints
The vehicle’s front seats have
adjustable head restraints in the
outboard seating positions.
{Warning
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/spinal
injury in a crash. Do not drive until
the head restraints for all occupants
are installed and adjusted properly.
If your vehicle has rear head
restraints that fold down, always
return them to the full upright
position whenever an occupant is
seated in the seat.
Adjust the head restraint so that the
top of the restraint is at the same
height as the top of the occupant's
head. This position reduces the
chance of a neck injury in a crash.
Front Seats
The vehicle's front seats have
adjustable head restraints in the
outboard seating positions.
Pull the head restraint up to raise it.
Try to move the head restraint to
make sure that it is locked in place.
To lower the head restraint, press the
button located on top of the seatback,
and push the head restraint down. Try
to move the head restraint after the
button is released to make sure that it
is locked in place.
