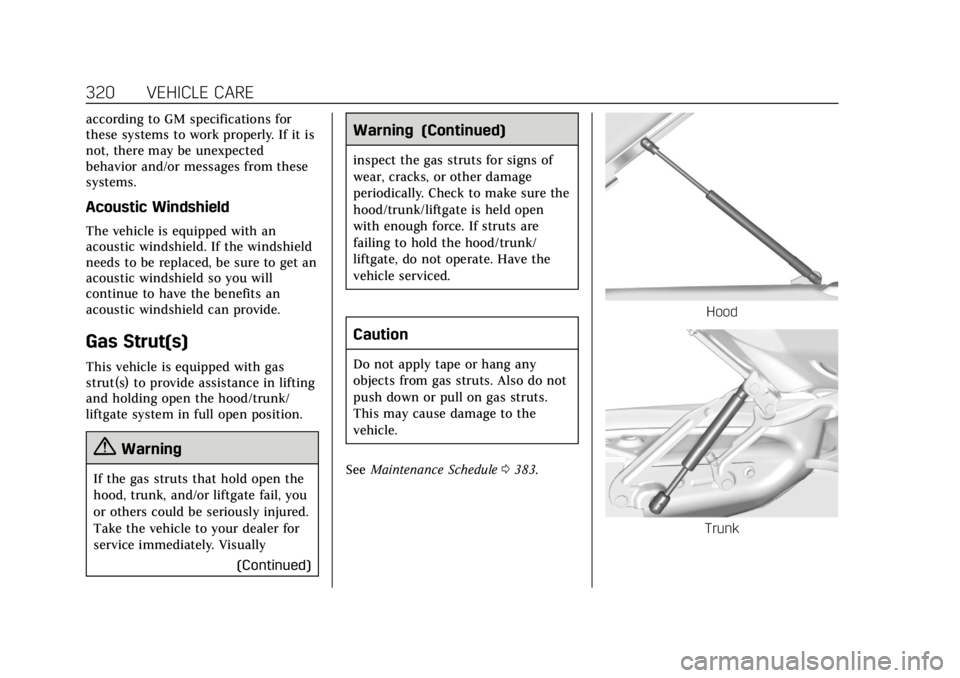

Acoustic Windshield
The vehicle is equipped with an
acoustic windshield. If the windshield
needs to be replaced, be sure to get an
acoustic windshield so you will
continue to have the benefits an
acoustic windshield can provide.
Gas Strut(s)
This vehicle is equipped with gas
strut(s) to provide assistance in lifting
and holding open the hood/trunk/
liftgate system in full open position.
{Warning
If the gas struts that hold open the
hood, trunk, and/or liftgate fail, you
or others could be seriously injured.
Take the vehicle to your dealer for
service immediately. Visually(Continued)
Warning (Continued)
inspect the gas struts for signs of
wear, cracks, or other damage
periodically. Check to make sure the
hood/trunk/liftgate is held open
with enough force. If struts are
failing to hold the hood/trunk/
liftgate, do not operate. Have the
vehicle serviced.
Caution
Do not apply tape or hang any
objects from gas struts. Also do not
push down or pull on gas struts.
This may cause damage to the
vehicle.
See Maintenance Schedule 0383.
Hood
Trunk

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
VEHICLE CARE 321
Liftgate
Headlamp Aiming
Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.
Bulb Replacement
For the proper type of replacement
bulbs, or any bulb changing procedure
not listed in this section, contact your
dealer.
Caution
Do not replace incandescent bulbs
with aftermarket LED replacement
bulbs. This can cause damage to
the vehicle electrical system.
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
322 VEHICLE CARE
Electrical System
Electrical System Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is too
heavy, the circuit breaker opens and
closes, protecting the circuit until the
current load returns to normal or the
problem is fixed. This greatly reduces
the chance of circuit overload and fire
caused by electrical problems.
Fuses and circuit breakers protect
power devices in the vehicle.
Replace a bad fuse with a new one of
the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be borrowed.
Choose some feature of the vehicle
that is not needed to use and replace
it as soon as possible.
Headlamp Wiring
An electrical overload may cause the
lamps to go on and off, or in some
cases to remain off. Have the
headlamp wiring checked right away if
the lamps go on and off or remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop. Wiper function is
available immediately after the wiper
switch is set to off, and back to on.
To protect the wiper motor from
overheating, the wipers may slow
down when the windshield is dry for a
long period of time. If a period of dry
operation, or little moisture, exceeds
10 minutes, the wipers may switch to
intermittent operation, and remain
there. When moisture is again
detected on the windshield, wiper
operation will return to the operator
selected speed.
Although the circuit is protected from
electrical overload, overload due to
heavy snow or ice may cause wiperlinkage damage. Always clear ice and
heavy snow from the windshield
before using the windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by electrical
problems.
{Danger
Fuses and circuit breakers are
marked with their ampere rating.
Do not exceed the
specified amperage rating when
replacing fuses and circuit breakers.
Use of an oversized fuse or circuit
breaker can result in a vehicle fire.
You and others could be seriously
injured or killed.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
VEHICLE CARE 323
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace a
bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage can be
temporarily borrowed from another
fuse location, if a fuse goes out.
Replace the fuse as soon as possible.
Engine Compartment Fuse
Block
2.0L, 3.0L and 3.6L Engines
This fuse block is on the driver side of
the engine compartment.
Lift the fuse block cover to access the
fuses.The vehicle may not be equipped with
all of the fuses and relays shown.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the covers
on any electrical component.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
324 VEHICLE CARE
FusesUsage
1 –
2 –
3 –
4 –
5 Transfer case control/Transmission
control module
ignition
6 –
7 Starter motor
8 Starter pinion
9 Horn
10 –
11 –
12 –
13 High-beam headlamps left/right
18 Right cornering LED
21 Air conditioning clutch

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
VEHICLE CARE 325
FusesUsage
22 Transmission auxiliary oil pump
cooling
23 –
24 Cabin heater pump
26 Engine control module ignition
27 Steering column lock ignition
28 Rear heated seats ignition
29 Front heated seats ignition
30 –
31 Headlamp/Daytime running lamps/Right
headlamp
32 –
33 –
34 –
35 Engine control module ignition –2 Fuses
Usage
36 Engine control module ignition –1
37 Coolant pump/ Ignition coils –odd
38 Ignition coils –even/
Non walk 2
39 Non walk
40 Electric brake control module1/Instrument
cluster/central
gateway module
ignition
41 –
42 Fuel tank zone module/Ignition
43 Heated steering wheel module/
Reflective light aux
display/HVAC IGN/
Automatic occupant
sensing display
44 Aeroshutter
45 Washer Fuses
Usage
46 Front short range radar sensors
47 Left cornering LED
54 –
55 –
56 –
57 –
58 –
59 –
60 Antilock brake system pump/Electric
brake control
module–1
61 Front wiper
62 Headlamp leveling
63 –
64 –
66 Transfer case control module
67 –
68 –

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
326 VEHICLE CARE
FusesUsage
69 –
70 –
71 Antilock brake system valve
72 –
73 –
Relays Usage
14 Air conditioning control
15 Starter motor
16 Starter pinion
17 Run/Crank
19 –
20 High-beam headlamp
25 Cabin heater pump
48 –
49 –
50 Engine control module
51 Wiper speed Relays
Usage
52 Wiper control
53 Headlamp control
65 –
4.2L Engine
The 4.2L engine has an underhood
fuse block on each side of the engine
compartment.
Driver Side Fuse Block
Lift the fuse block cover to access the
fuses.
The vehicle may not be equipped with
all of the fuses and relays shown.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the covers
on any electrical component.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-12533370) -
2019 - crc - 1/23/19
VEHICLE CARE 327
FusesUsage
F1 –
F2 –
F3 –
F4 –
F5 High-beam headlamps left/right Fuses
Usage
F6 –
F7 Front wiper
F8 –
F9 Instrument cluster/ Electric brake control
module 1/Central
gateway module
ignition Fuses
Usage
F10 –
F11 Transmission control/Transfer case
control module
ignition
F12 –
F13 Front heated seats ignition
F14 Exhaust valve solenoid
F15 Rear heated seats ignition
F16 Fuel tank zone module ignition
F17 –
F18 –
F19 –
F20 –
F21 Heated steering wheel module/
Reflective light aux
