2018 YAMAHA MT-03 Owners Manual

DIC183
MT-03
MTN320-A
OWNER’S MANUAL
B9A-F8199-E0
MOTORCYCLE
[English (E)]
Read this manual carefully before oper-
ating this vehicle.

EAU46094
Read this manual carefully before operatin g this vehicle. This manual
shoul d stay with this vehicle if it is sol d.
UB9AE0E0.book Page 1 Thursday, March 23, 2017 2:48 PM

Introduction
EAU10103
Welcome to the Yamaha world of motorcycling!
As the owner of the MTN320-A, you are benefiting from Yamaha’s vast experi-
ence and newest technology regarding the design and manufacture of high-qual-
ity products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages
of your MTN320-A. The Owner’s Manual does not only instruct you in how to op-
erate, inspect and maintain your motorcycle, but also in how to safeguard yourself
and others from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in
the best possible condition. If you have any further questions, do not hesitate to
contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put
safety first!
Yamaha continually seeks advancements in product design and quality. There- fore, while this manual contains the most current product information available at
the time of printing, there may be minor discrepancies between your motorcycle
and this manual. If there is any question concerning this manual, please consult a
Yamaha dealer.
WARNING
EWA10032
Please rea d this manual carefully an d completely before operating this mo-
torcycle.
UB9AE0E0.book Page 1 Thursday, March 23, 2017 2:48 PM

Important manual information
EAU63350
Particularly important information is distinguished in this manual by the following
notations:
*Product and specifications are subject to change without notice.
EAUN0430
This is the safety alert symbol. It is use d to
alert you to potential personal injury haz-
ar ds. O bey all safety messag es that follow
this symb ol to avoid possi ble injury or death.
A WARNING in dicates a hazar dous situation
which, if not avoi ded , coul d result in d eath or
serious injury.
A NOTICE in dicates special precautions that
must be taken to avoi d d amag e to the vehi-
cle or other property.
A TIP provides key information to make proce-
dures easier or clearer.
MTN320-A
OWNER’S MANUAL
©2017 PT Yamaha In donesia Motor
Manufacturin g
1st e dition, June 2017
All ri ghts reserve d.
Any reprintin g or unauthorize d use
without the written permission of
PT Yamaha In donesia Motor Manufac-
turing
is expressly prohi bite d.
Printe d in In donesia.
WARNING
NOTICE
TIP
UB9AE0E0.book Page 1 Thursday, March 23, 2017 2:48 PM

Table of contents
Safety information ............................1-1
Description ........................................2-1
Left view ..........................................2-1
Right view........................................2-2
Controls and instruments ................2-3
Instrument an d control functions ....3-1

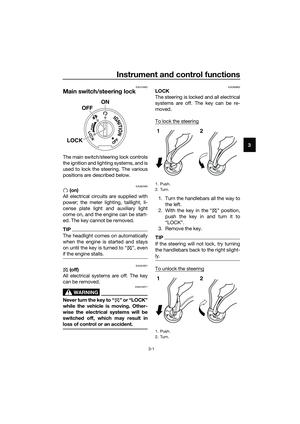

Main switch/steering lock ...............3-1
Indicator lights and warning lights...............................3-2

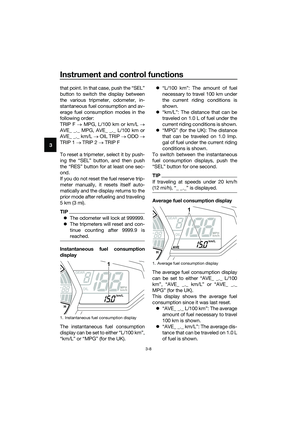

Multi-function meter unit .................3-4
Handlebar switches.......................3-11
Clutch lever ...................................3-12
Shift pedal .....................................3-13
Brake lever ....................................3-13
Brake pedal ...................................3-14
ABS ...............................................3-14
Fuel tank cap.................................3-15
Fuel................................................3-16
Fuel tank overflow hose ................3-17
Catalytic converter ........................3-18
Seats .............................................3-18
Helmet holders ..............................3-20
Storage compartment ...................3-21
Adjusting the shock absorber assembly ....................3-21
Luggage strap holders ..................3-22
Sidestand ......................................3-23
Ignition circuit cut-off system........3-23
For your safety – pre-
operation checks ..............................4-1
Operation an d important
ri din g points ......................................5-1
Starting the engine ..........................5-2

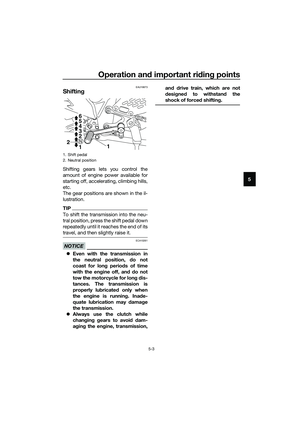

Shifting ............................................5-3
Engine break-in ...............................5-4
Parking ............................................5-4
Perio dic maintenance
an d a djustment .................................6-1
Owner’s tool kit ...............................6-2
Periodic maintenance chart for the emission control system ........6-3 General maintenance
and lubrication chart.................... 6-4
Checking the spark plugs ............... 6-7
Canister........................................... 6-8
Engine oil and oil filter cartridge ..... 6-8
Coolant ......................................... 6-11
Replacing the air filter element and cleaning the check hose..... 6-13
Checking the throttle grip free play.............................. 6-14
Valve clearance ............................. 6-15
Tires .............................................. 6-15
Cast wheels .................................. 6-17

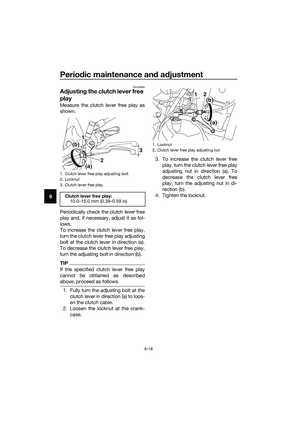

Adjusting the clutch
lever free play ............................ 6-18
Checking the brake lever free play ............................ 6-19
Brake light switches ...................... 6-19
Checking the front and rear brake pads ......................... 6-20
Checking the brake fluid level....... 6-21
Changing the brake fluid............... 6-22
Drive chain slack ........................... 6-22
Cleaning and lubricating the drive chain ........................... 6-24
Checking and lubricating
the cables .................................. 6-24
Checking and lubricating the throttle grip and cable ......... 6-25
Checking and lubricating the brake and shift pedals ............... 6-25

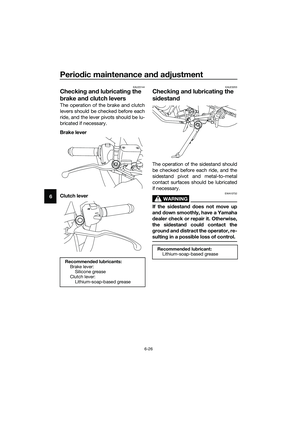

Checking and lubricating the
brake and clutch levers ............. 6-26
Checking and lubricating the sidestand ............................. 6-26
Lubricating the swingarm pivots ........................ 6-27
Checking the front fork ................. 6-27
Checking the steering ................... 6-28
Checking the wheel bearings ....... 6-28
Battery .......................................... 6-29
Replacing the fuses ...................... 6-30
Replacing the headlight bulb ........ 6-32
Auxiliary light ................................. 6-33
Tail/brake light .............................. 6-33
UB9AE0E0.book Page 1 Thursday, March 23, 2017 2:48 PM

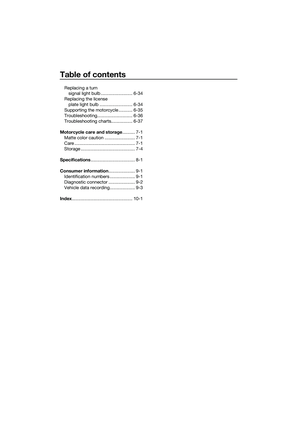

Table of contents
Replacing a turn
signal light bulb ......................... 6-34
Replacing the license plate light bulb .......................... 6-34
Supporting the motorcycle ........... 6-35
Troubleshooting............................ 6-36
Troubleshooting charts................. 6-37
Motorcycle care an d stora ge.......... 7-1
Matte color caution ........................ 7-1
Care ................................................ 7-1
Storage ........................................... 7-4
Specifications ................................... 8-1
Consumer information ..................... 9-1
Identification numbers .................... 9-1
Diagnostic connector ..................... 9-2
Vehicle data recording.................... 9-3
In dex ................................................ 10-1
UB9AE0E0.book Page 2 Thursday, March 23, 2017 2:48 PM

1-1
1
Safety information
EAU1028C
Be a Responsible Owner
As the vehicle’s owner, you are re-
sponsible for the safe and proper oper-
ation of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements be-
fore riding this motorcycle.
He or she should: z Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.
z Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.
z Obtain qualified training in safe
and proper riding techniques.
z Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.
z Never operate a motorcycle with-
out proper training or instruction.
Take a training course. Beginners
should receive training from a cer-
tified instructor. Contact an autho-
rized motorcycle dealer to find out
about the training courses nearest
you.
Safe Ri din g
Perform the pre-operation checks
each time you use the vehicle to make
sure it is in safe operating condition.
Failure to inspect or maintain the vehi-
cle properly increases the possibility of an accident or equipment damage.
See page 4-1 for a list of pre-operation
checks.
z This motorcycle is designed to
carry the operator and a passen-
ger.
z The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been
caused by an automobile driver
who did not see the motorcycle.
Making yourself conspicuous ap-
pears to be very effective in reduc-
ing the chance of this type of
accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when you are approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
• Ride where other motorists can see you. Avoid riding in another
motorist’s blind spot.
• Never maintain a motorcycle without proper knowledge.
Contact an authorized motorcy-
cle dealer to inform you on ba-
sic motorcycle maintenance.
Certain maintenance can only
be carried out by certified staff.
UB9AE0E0.book Page 1 Thursday, March 23, 2017 2:48 PM

Safety information
1-2
1z
Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent motorcycle license.
• Make sure that you are qualified and that you only lend your mo-
torcycle to other qualified oper-
ators.
• Know your skills and limits. Staying within your limits may
help you to avoid an accident.
• We recommend that you prac- tice riding your motorcycle
where there is no traffic until you
have become thoroughly famil-
iar with the motorcycle and all of
its controls.
z Many accidents have been
caused by error of the motorcycle
operator. A typical error made by
the operator is veering wide on a
turn due to excessive speed or un-
dercornering (insufficient lean an-
gle for the speed).
• Always obey the speed limit and never travel faster than warrant-
ed by road and traffic condi-
tions.
• Always signal before turning or changing lanes. Make sure that
other motorists can see you.
z The posture of the operator and
passenger is important for proper
control.
• The operator should keep both hands on the handlebar and
both feet on the operator foot-
rests during operation to main-
tain control of the motorcycle. • The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.
Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.
z Never ride under the influence of
alcohol or other drugs.
z This motorcycle is designed for
on-road use only. It is not suitable
for off-road use.
Protective Apparel
The majority of fatalities from motorcy-
cle accidents are the result of head in-
juries. The use of a safety helmet is the
single most critical factor in the pre-
vention or reduction of head injuries. z Always wear an approved helmet.
z Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.
z The use of a jacket, heavy boots,
trousers, gloves, etc., is effective
in preventing or reducing abra-
sions or lacerations.
z Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.
z Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust sys-
tem become very hot during or af-
ter operation and can cause
burns.
z A passenger should also observe
the above precautions.
UB9AE0E0.book Page 2 Thursday, March 23, 2017 2:48 PM
