Specifications
8-2
8
4th:1.087 (25/23)
5th: 0.920 (23/25)
6th:
0.800 (24/30)
Chassis:
Frame type:Diamond
Caster angle:
25.0 °
Trail: 95 mm (3.7 in)
Front tire:
Type:Tubeless
Size:
110/70-17M/C (54H)
Manufacturer/model: MICHELIN/PILOT STREET
Rear tire:
Type:
Tubeless
Size: 140/70-17M/C (66H)
Manufacturer/model: MICHELIN/PILOT STREET
Loa din g:
Maximum load:
160 kg (353 lb)
(Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measure d on col d
tires):
Up to 90 kg (198 lb) load:
Front: 200 kPa (2.00 kgf/cm², 29 psi)
Rear: 250 kPa (2.50 kgf/cm², 36 psi)
90 kg (198 lb) load - maximum load:
Front: 200 kPa (2.00 kgf/cm², 29 psi)
Rear:
250 kPa (2.50 kgf/cm², 36 psi)
Front wheel:
Wheel type:Cast wheel
Rim size:
17M/C x MT2.75
Rear wheel:
Wheel type: Cast wheel
Rim size:
17M/C x MT4.00
Front brake:
Type:
Hydraulic single disc brake
Specified brake fluid:
DOT 4
Rear brake:
Type:
Hydraulic single disc brake
Specified brake fluid:
DOT 4
Front suspension:
Type:Telescopic fork
Spring: Coil spring
Shock absorber:
Hydraulic damper
Wheel travel: 130 mm (5.1 in)
Rear suspension:
Type:
Swingarm
Spring: Coil spring
Shock absorber: Hydraulic damper
Wheel travel:
125 mm (4.9 in)
Electrical system:
System voltage:12 V
Ignition system:
TCI
Charging system: AC magneto
Battery:
Model:
GTZ8V
Voltage, capacity: 12 V, 7.0 Ah (10 HR)
Hea dlig ht:
Bulb type:
Halogen bulb
UB9AE0E0.book Page 2 Thursday, March 23, 2017 2:48 PM

Specifications
8-3
8
Bulb watta ge:
Headlight:
H4, 60.0 W/55.0 W
Brake/tail light:
LED
Front turn signal light: 10.0 W
Rear turn signal light: 10.0 W
Auxiliary light:
LED
Meter lighting: LED
Neutral indicator light: LED
High beam indicator light: LED
Oil pressure warning light:
LED
Turn signal indicator light: LED
Engine trouble warning light: LED
ABS warning light:
LED
Fuse(s):
Main fuse:30.0 A
Headlight fuse:
15.0 A
Signaling system fuse: 7.5 A
Ignition fuse: 15.0 A
Radiator fan motor fuse:
7.5 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse:
15.0 A
Backup fuse: 7.5 A
UB9AE0E0.book Page 3 Thursday, March 23, 2017 2:48 PM

Consumer information
9-1
9
EAU53562
Id entification num bers
Record the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU62971Vehicle i dentification num ber The vehicle identification number is
stamped into the frame under the pas-
senger seat. (See page 3-18.)
TIP
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.
EAU26442En
gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26521Mo del la bel
The model label is affixed to the frame
under the passenger seat. (See page
3-18.) Record the information on this
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
UB9AE0E0.book Page 1 Thursday, March 23, 2017 2:48 PM

Consumer information
9-2
9label in the space provided. This infor-
mation will be needed when ordering
spare parts from a Yamaha dealer.
EAU69910
Dia
gnostic connector

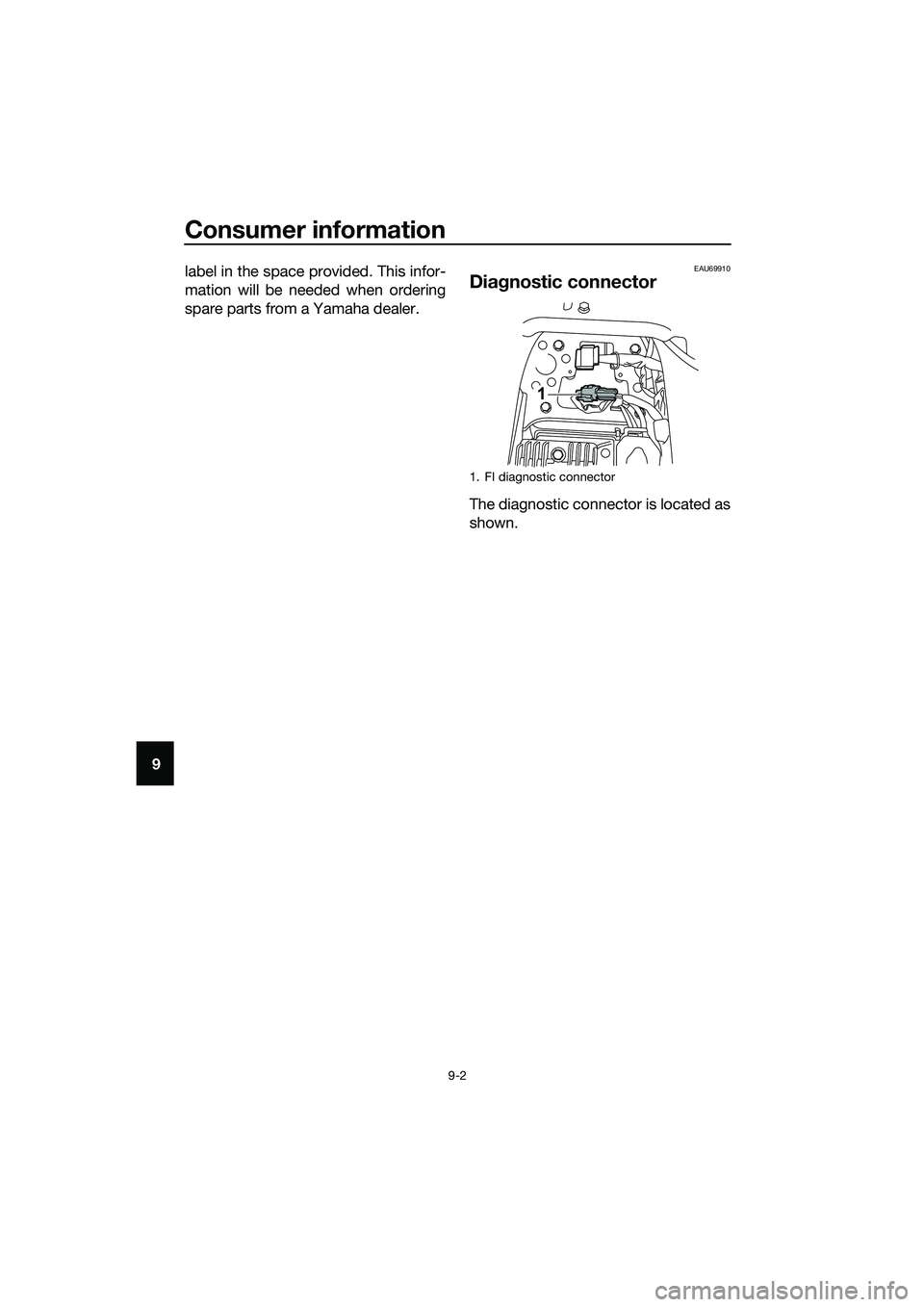

The diagnostic connector is located as
shown.
1. FI diagnostic connector
1
UB9AE0E0.book Page 2 Thursday, March 23, 2017 2:48 PM

Consumer information
9-3
9
EAU74702
Vehicle data record ing
This model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research and de-
velopment purposes. This data will be
uploaded only when a special Yamaha
diagnostic tool is attached to the vehi-
cle, such as when maintenance checks
or service procedures are performed.
Although the sensors and recorded
data will vary by model, the main data
points are:
z Vehicle status and engine perfor-
mance data
z Fuel-injection and emission-relat-
ed data
Yamaha will not disclose this data to a third party except: z With the consent of the vehicle
owner
z Where obligated by law
z For use by Yamaha in litigation
z For general Yamaha-conducted
research purposes when the data
is not related to an individual vehi-
cle nor owner
UB9AE0E0.book Page 3 Thursday, March 23, 2017 2:48 PM

10-1
10
Index
A
ABS ....................................................... 3-14
ABS warning light ................................... 3-3
Air filter element and check hose,
replacing and cleaning ....................... 6-13
Auxiliary light......................................... 6-33
B
Battery .................................................. 6-29
Brake and clutch levers, checking
and lubricating .................................... 6-26
Brake and shift pedals, checking and lubricating .................................... 6-25
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever ............................................ 3-13
Brake lever free play, checking............. 6-19
Brake light switches.............................. 6-19
Brake pedal........................................... 3-14
C
Cables, checking and lubricating ......... 6-24
Canister................................................... 6-8
Care ........................................................ 7-1
Catalytic converter ................................ 3-18
Clutch lever ........................................... 3-12
Clutch lever free play, adjusting ........... 6-18
Coolant ................................................. 6-11
D
Data recording, vehicle ........................... 9-3
Diagnostic connector.............................. 9-2
Dimmer switch ...................................... 3-11
Drive chain, cleaning and lubricating .... 6-24
Drive chain slack................................... 6-22
E
Engine break-in....................................... 5-4
Engine oil and oil filter cartridge ............. 6-8
Engine serial number .............................. 9-1
Engine stop switch ............................... 3-12
Engine trouble warning light ................... 3-3
F
Front and rear brake pads, checking.... 6-20
Front fork, checking .............................. 6-27
Fuel ....................................................... 3-16
Fuel tank cap ........................................ 3-15
Fuel tank overflow hose ........................ 3-17
Fuses, replacing.................................... 6-30
H
Handlebar switches .............................. 3-11
Headlight bulb, replacing ...................... 6-32
Helmet holders...................................... 3-20
High beam indicator light........................ 3-2 Horn switch .......................................... 3-12
I
Identification numbers ............................ 9-1
Ignition circuit cut-off system............... 3-23
Indicator lights and warning lights ......... 3-2
L
License plate light bulb, replacing........ 6-34
Luggage strap holders ......................... 3-22
M
Main switch/steering lock....................... 3-1
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission
control system ..................................... 6-3
Matte color, caution ............................... 7-1
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-4
N
Neutral indicator light ............................. 3-2
O
Oil pressure warning light ....................... 3-2
P
Parking ................................................... 5-4
Part locations ......................................... 2-1
Pass switch .......................................... 3-11
S
Safety information .................................. 1-1
Seats .................................................... 3-18
Shifting ................................................... 5-3
Shift pedal ............................................ 3-13
Shift timing indicator light....................... 3-4
Shock absorber assembly, adjusting............................................. 3-21
Sidestand ............................................. 3-23
Sidestand, checking and lubricating .... 6-26
Spark plugs, checking ............................ 6-7
Specifications ......................................... 8-1
Starting the engine ................................. 5-2
Start switch .......................................... 3-12
Steering, checking................................ 6-28
Storage ................................................... 7-4
Storage compartment .......................... 3-21
Supporting the motorcycle................... 6-35
Swingarm pivots, lubricating ................ 6-27
T
Tail/brake light ...................................... 6-33
Throttle grip and cable, checking and lubricating .................... 6-25
Throttle grip free play, checking........... 6-14
Tires ...................................................... 6-15
Tool kit.................................................... 6-2
UB9AE0E0.book Page 1 Thursday, March 23, 2017 2:48 PM

Index
10-2
10
Troubleshooting ................................... 6-36
Troubleshooting charts ........................ 6-37
Turn signal indicator light ....................... 3-2
Turn signal light bulb, replacing ........... 6-34
Turn signal switch ................................ 3-12
V
Valve clearance .................................... 6-15
Vehicle identification number ................. 9-1
W
Wheel bearings, checking .................... 6-28
Wheels.................................................. 6-17
UB9AE0E0.book Page 2 Thursday, March 23, 2017 2:48 PM
