2018 VOLVO S90 Owner´s Manual

MAINTENANCE AND SERVICE
607
•
Replacing windshield wiper blades (p. 604)
• Using the windshield wipers (p. 179)

S P E C I F I C A T I O N S

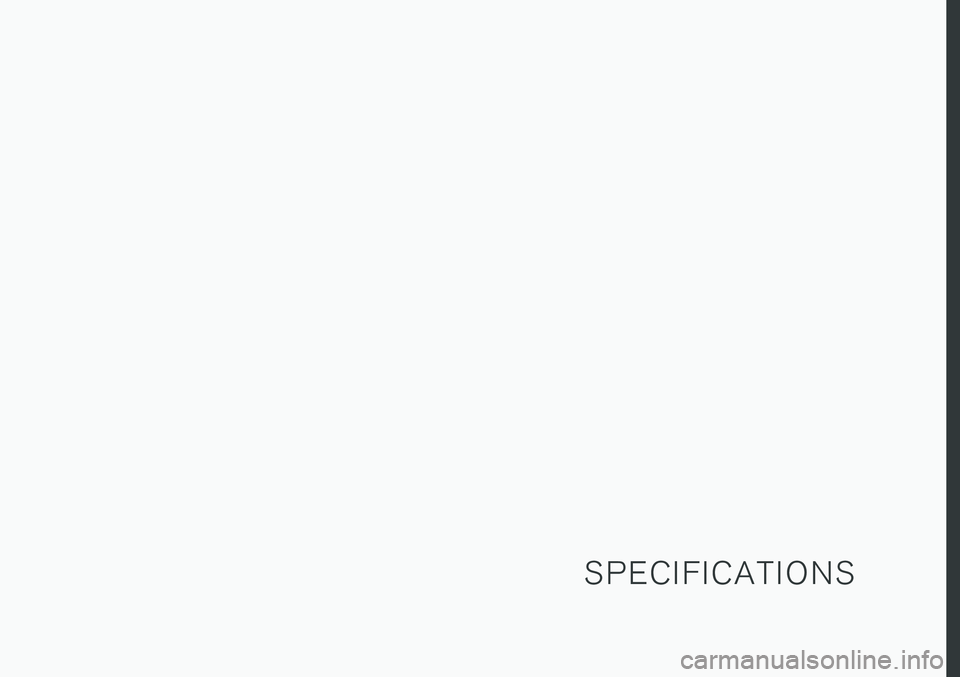

SPECIFICATIONS
610
Type designations
The decals in the vehicle contain information such as chassis number, type designation, colorcode, etc.
Location of decals
The illustration is general and details may vary depending on market and model.

SPECIFICATIONS
}}
611
Vehicle Emission Control Information. US
models. Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by the certification label on the underside of the hood.For further information regarding these regula-tions, please consult your Volvo retailer.
Vehicle Emission Control Information.
Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi- denced by the certification label on the undersideof the hood. For further information regardingthese regulations, please consult your Volvoretailer.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle Identification Number(VIN) should always be quoted in all correspond-ence concerning your vehicle with the retailer andwhen ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the factory.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada). Your
Volvo is designed to meet all applicable safetystandards, as evidenced by the certification labelon the driver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rear of thedriver's door opening). This label also includescodes for paint color, etc. For further informationregarding these regulations, please consult yourVolvo retailer. U.S. models have the upper decal;Canadian models have the lower one.

||
SPECIFICATIONS
612
Engine oil. This label contains the recom-
mended engine oil specifications.
Decal A/C. Refrigerant R134a.
NOTE
The decals shown in the Owner's Manual do not claim to be exact reproductions of thosefound in the vehicle. The purpose is to showapproximately how they look and about wherethey are located on the vehicle. The informa-tion that applies for your vehicle in particularis found on the decal on the vehicle.
Related information
•Air conditioning specifications (p. 620)

SPECIFICATIONS
}}
613
DimensionsThe vehicle's length, height, etc. are shown in the table.
Dimensionsmminches
A Ground clearance A
141 5.6
B Wheelbase 3061 120.5 C Length 5083 200.1
D Load length, floor, folded backrest 2098 82.6
E Load length, floor 1149 45.2 F Height 1450 57.1Dimensionsmminches
G Load height 435 17.1
H Wheel track, front 1628B
1618 C
1617 D64.1
B
63.7 C
63.7 D
I Wheel track, rear 1629B
1619 C
1618 D64.1
B
63.7 C
63.7 DDimensionsmminches
J Load width, floor 1014 39.9
K Width 1879E
1890 F74.0
E
74.4 F

||
SPECIFICATIONS
614
Dimensionsmminches
L Width incl. rearview mirrors 2019 79.5
M Width incl. folded rear- view mirrors 1895 74.6
A
At curb weight + 2 people. Varies slightly depending on tire dimensions, chassis, etc.)
B Vehicles with 17/18-inch wheels.
C Vehicles with 19-inch wheels.
D Vehicles with 20-inch wheels.
E Chassis width.
F At door moldings.
Related information
• Weights (p. 615)
