2018 VAUXHALL MOVANO_B Owner's Manual

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.
Seat position 3 42, Seat adjustment
3 43.
Backrests inclination
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 42, Seat adjustment
3 43.
Seat height
Lever motion
up:seat higherdown:seat lower
Seat position 3 42, Seat adjustment
3 43.

8In briefHead restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 41.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25 °).
To unfasten belt, press red button on belt buckle.
Seat position 3 42, Seat belts
3 51, Airbag system 3 55.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Interior mirror, Wide view mirror
3 36.

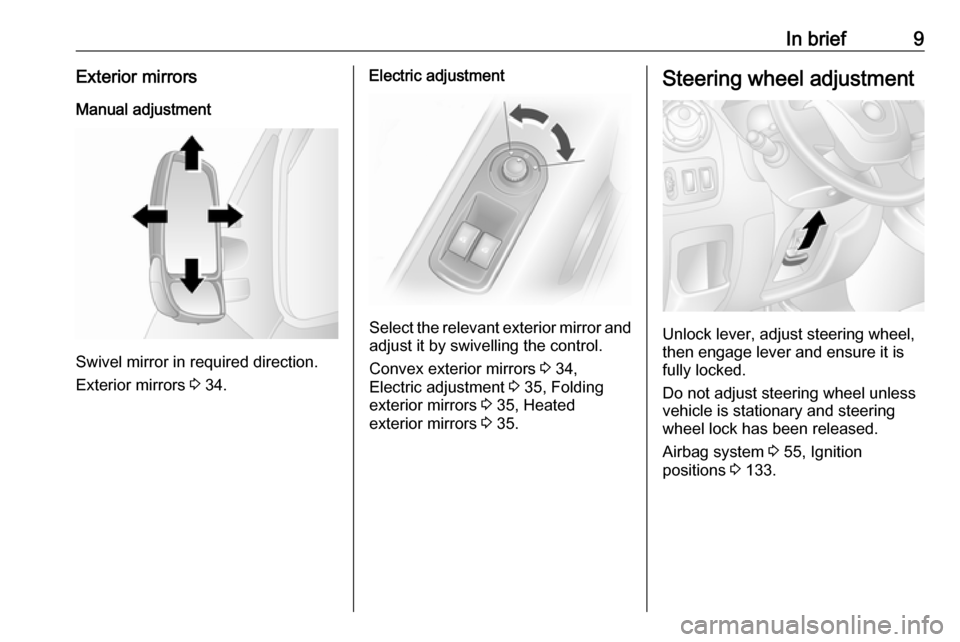

In brief9Exterior mirrorsManual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 34.
Electric adjustment
Select the relevant exterior mirror and
adjust it by swivelling the control.
Convex exterior mirrors 3 34,
Electric adjustment 3 35, Folding
exterior mirrors 3 35, Heated
exterior mirrors 3 35.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 55, Ignition
positions 3 133.

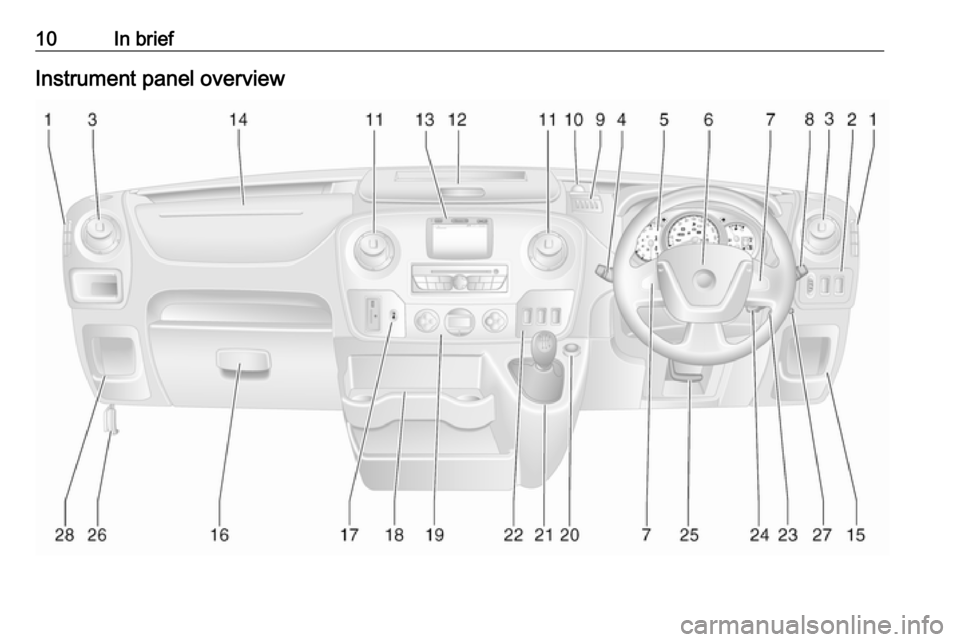

10In briefInstrument panel overview

In brief111Fixed air vents .................... 129
2 Headlight range
adjustment ......................... 109
Ultrasonic parking assist .....162
Traction control system ......155
Electronic Stability
Program ............................. 156
3 Side air vents .....................128
4 Light switch ........................ 107
Turn and lane-change
signals ................................ 110
High beam and low beam,
headlight flash ....................108
Sidelights ............................ 107
Automatic light control .......107
Exit lighting ......................... 114
Front fog lights ...................111
Rear fog light ...................... 111
High beam assist ................108
5 Instruments .......................... 88
Transmission display ............92Driver Information Centre .... 101
Trip computer ...................... 103
6 Horn ..................................... 83
Driver airbag ........................ 58
7 Remote control on
steering wheel .......................83
Cruise control .....................158
8 Windscreen wiper,
windscreen washer system ..84
Trip computer ...................... 103
9 Coin tray ............................... 71
10 Power outlet, USB slot ..........86
11 Centre air vents .................. 128
12 Storage compartment ...........71
13 Info-display .......................... 101
14 Front passenger airbag .........58
15 Storage compartment ..........71
16 Glovebox .............................. 72
17 Seat belt reminder ................. 95
Front passenger airbag
deactivation ........................... 59
18 Cupholders ........................... 7219Climate control system ....... 115
Electronic climate control
system ................................. 117
20 Cigarette lighter .................... 88
Power outlet ......................... 86
21 Gear lever, Manual
transmission ........................ 149
Manual transmission
automated ........................... 149
22 Cruise control and speed
limiter ................................. 158
Manual transmission
automated,
Winter and Laden modes ....151
Idle speed control ...............135
Stop-start system ................135
ECO mode .......................... 132
23 Ignition switch with
steering wheel lock ............133
24 Steering column controls .....83
25 Steering wheel adjustment ..83
26 Bonnet release lever ..........175
27 Auxiliary heater ...................122

12In brief28Storage compartment ..........71
Fuse box ............................ 195Exterior lighting
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Lighting 3 107, Automatic light
control 3 107, Headlight warning
device 3 102, Adaptive forward
lighting 3 110.
Front and rear fog lights
Turn inner light switch:
>:front fog lightsø:rear fog lights
Front and rear fog lights 3 111,
3 111.

In brief13Headlight flash, high beam and
low beam
Pull lever.
High beam 3 108, Headlight flash
3 109.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 110.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 110.

14In briefHorn
Press j.
Horn 3 83.
Washer and wiper systems
Windscreen wiper0:offP /AUTO:timed interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 84, Wiper
blade replacement 3 183.
Windscreen washer
Pull lever.
short
pull:wiper swipes once and
washer fluid is sprayed onto
the windscreenlong
pull:wiper swipes for a few strokes and washer fluid is
sprayed onto the
windscreen
Windscreen washer 3 84, Washer
fluid 3 179.
