Storage71StorageStorage compartments................71
Instrument panel storage ...........71
Glovebox ................................... 72
Cupholders ................................ 72
Front storage ............................. 72
Overhead console .....................73
Underseat storage .....................73
Overcab storage ........................74
Load compartment .......................74
Lashing eyes ............................. 74
Cargo management system ......75
Safety net .................................. 78
Load compartment grille ............78
Warning triangle ........................78
First aid kit ................................. 79
Fire extinguisher ........................79
Roof rack system .........................80
Roof rack ................................... 80
Loading information .....................80Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise vehicle
occupants could be injured by
objects being thrown around in the
event of hard braking, a sudden
change in direction or an accident.
Instrument panel storage
Storage compartments, pockets and
trays are located in the instrument
panel.
A phone holder and/or a coin holder
with a clip for holding tickets is located on the top of the instrument panel.
The tray located centrally on top of the instrument panel has a lid.
Document holder
Withdraw the document holder from
the instrument panel by pulling the
base towards you and then swivelling it downwards.

72StorageTo fold away, raise the base until thedocument holder is horizontal, then
push fully in.
Glovebox
The glovebox should be closed whilst driving.
Glovebox cooler 3 129.
Cupholders Cupholders are located at either end
of the instrument panel and centrally
in the lower instrument panel.
The cupholders can also be used to
hold the portable ashtray unit 3 88.
Additionally, cupholders may be
located in the rear side of the front
centre passenger seat. Folding
passenger seatback 3 72.
Depending on model, cupholders
may also be located in the lower front
part of the rear seats.
Front storage Depending on model, coat hooks orstorage nets may be located on the
cabin bulkhead.
The front door pockets contain bottle
holders.Folding front centre passenger
seatback
Pull backrest release lever on the
front centre passenger seat towards
front of vehicle before folding down
the backrest to the horizontal
position.
The rear side of the backrest features storage compartments, cupholders
and a swivelling shelf, which can be
used for writing or documents.
Return the swivelling shelf to its
original position before pulling
backrest release lever and raising the
backrest.

Storage73Overhead console
The total weight in these
compartments must not exceed 5 kg.
Underseat storage
Using the two loops on the passenger
seat cushion, pull the cushion
forwards to gain access to the storage
under the seat.
Rear bench seat
Raise seat base at front and remove
to gain access to storage
compartment under the bench seat.
Depending on model, bench seats
may also contain storage
compartments at the lower front part
of the seat and a storage net on the
outboard side of the seat.

74StorageOvercab storage
The total weight in this compartment
must not exceed 35 kg.
Rear storage
Combi, Bus
Objects can be stored in the overhead
storage compartments above the rear passenger seats.
The total weight must not exceed
20 kg evenly distributed.
Load compartment9 Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or vehicle.
Use the grab handles, located beside
the rear and sliding side door(s), to
assist during entry and exit of the load compartment.
Lashing eyes
Lashing eyes are mounted in the load
compartment to enable cargo to be secured in position using lashing
straps or a luggage floor net.

Storage75
Lashing eyes may be located on the
vehicle floor and/or in the sidewall.
The number and location of the
lashing eyes may vary depending on the vehicle.
The maximum force applied to the
lashing eyes should not exceed
625 daN/6.25 kN/6250 N.
Depending on country, the maximum
force (e.g. 500 daN /5 kN /5000 N) may
be shown on a label.
Notice
Specifications on the label always
have priority over those given in this manual.
Loading information 3 80.
Removable lashing eyesThe removable lashing eyes can be
secured to the side, floor or roof load rails. Refer to "Cargo management
system" below for further information.
To reposition, press down on the
centre cap and slide to the desired
position. Ensure the lashing eyes
engage correctly in the recesses.
Loading information 3 80.
Cargo management system
Depending on vehicle, objects in the load compartment can be secured
into position or prevented from sliding
excessively by attaching the
appropriate cargo management
feature to the side, floor or roof load
rails using removable lashing eyes (if
required).
Lower and also upper side load rails
may be present, depending on
version.
Moveable partition wall
The moveable partition wall can be
used between the floor and roof load
rails.

76Storage
To move, pull down on the latch to
release and position the wall as
required. Ensure the latch engages fully and the partition wall is upright.
Store the partition wall to one side of
the load compartment when not in
use.

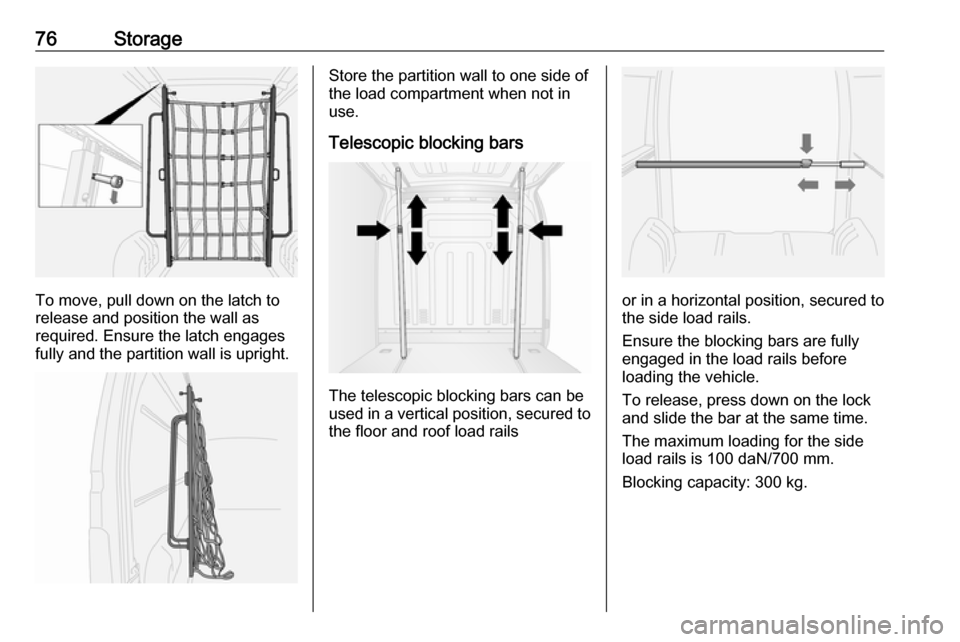

Telescopic blocking bars
The telescopic blocking bars can be
used in a vertical position, secured to the floor and roof load rails
or in a horizontal position, secured to
the side load rails.
Ensure the blocking bars are fully
engaged in the load rails before
loading the vehicle.
To release, press down on the lock
and slide the bar at the same time.
The maximum loading for the side
load rails is 100 daN/700 mm.
Blocking capacity: 300 kg.

Storage77Blocking bar with safety net
The blocking bar can be secured to
the upper side load rails; rotate
handle to fix blocking bar into
position. Ensure blocking bar
engages fully.
The integrated safety net can then be attached to the removable lashing
eyes in the side and floor load rails
(see illustration).
Ratchet straps Using the appropriate ratchet straps,
objects can be secured in position
using the removable lashing eyes in
the side or floor load rails.
The maximum loading for the floor
load rails is 500 daN/700 mm.
Lashing capacity: 800 daN instrapping.
Steel fastener capacity: 170 daN in
direct tension.The maximum loading for the side
load rails is 100 daN/700 mm.
Lashing capacity: 300 daN in strapping.
Removable lashing eyes 3 74,
Loading information 3 80.

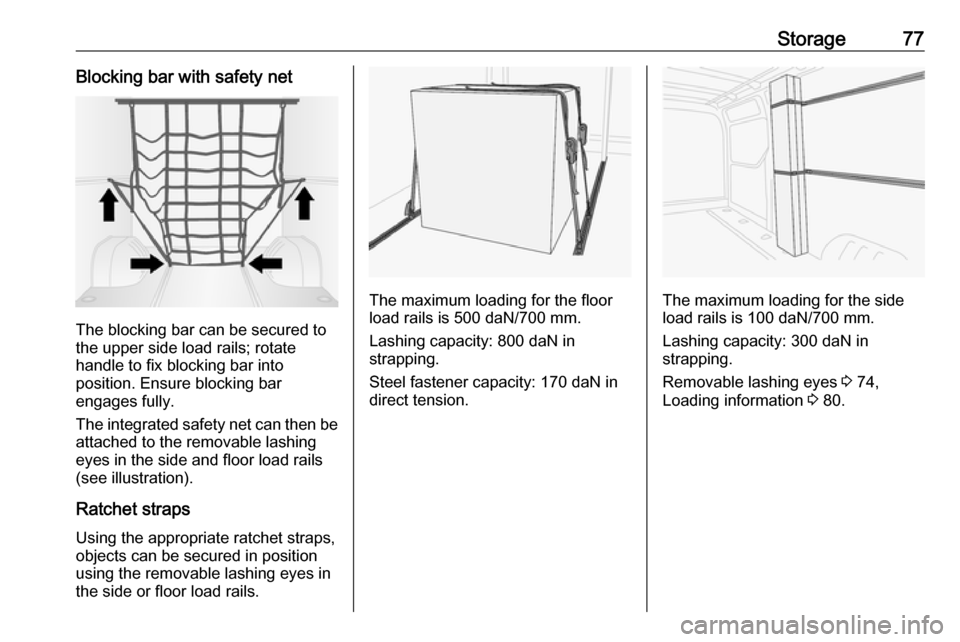

78StorageSafety net
Lower the safety net from the roof
area and attach to the lashing eyes in the vehicle floor 3 74.
Adjust the tension on the straps to
ensure the load is secure.
When not in use the safety net should be stored in the roof area.
Loading information 3 80.

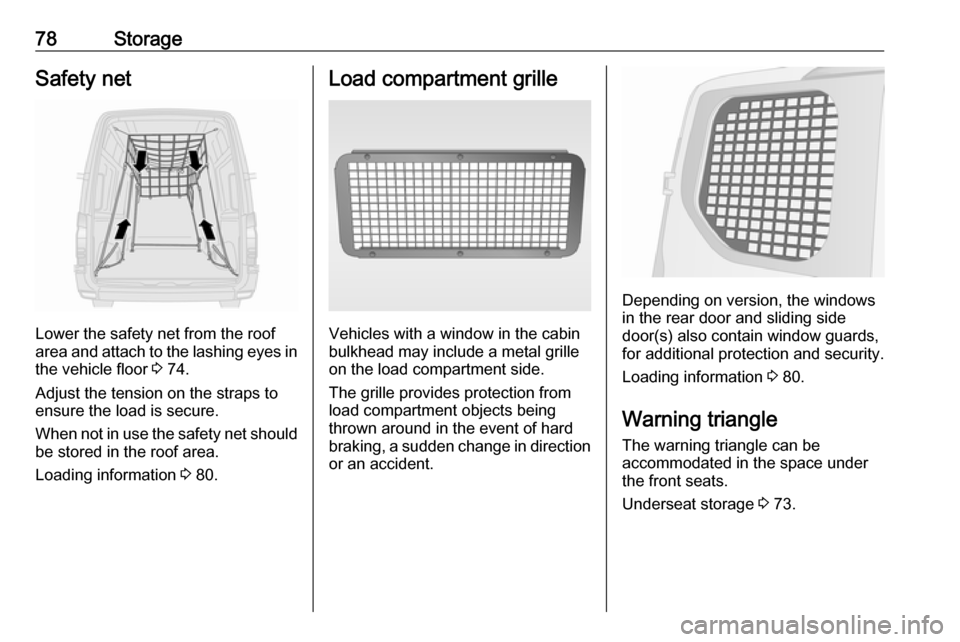

Load compartment grille
Vehicles with a window in the cabin
bulkhead may include a metal grille
on the load compartment side.
The grille provides protection from
load compartment objects being
thrown around in the event of hard
braking, a sudden change in direction or an accident.
Depending on version, the windows
in the rear door and sliding side
door(s) also contain window guards,
for additional protection and security.
Loading information 3 80.
Warning triangle The warning triangle can be
accommodated in the space under
the front seats.
Underseat storage 3 73.
