2018 TOYOTA YARIS engine

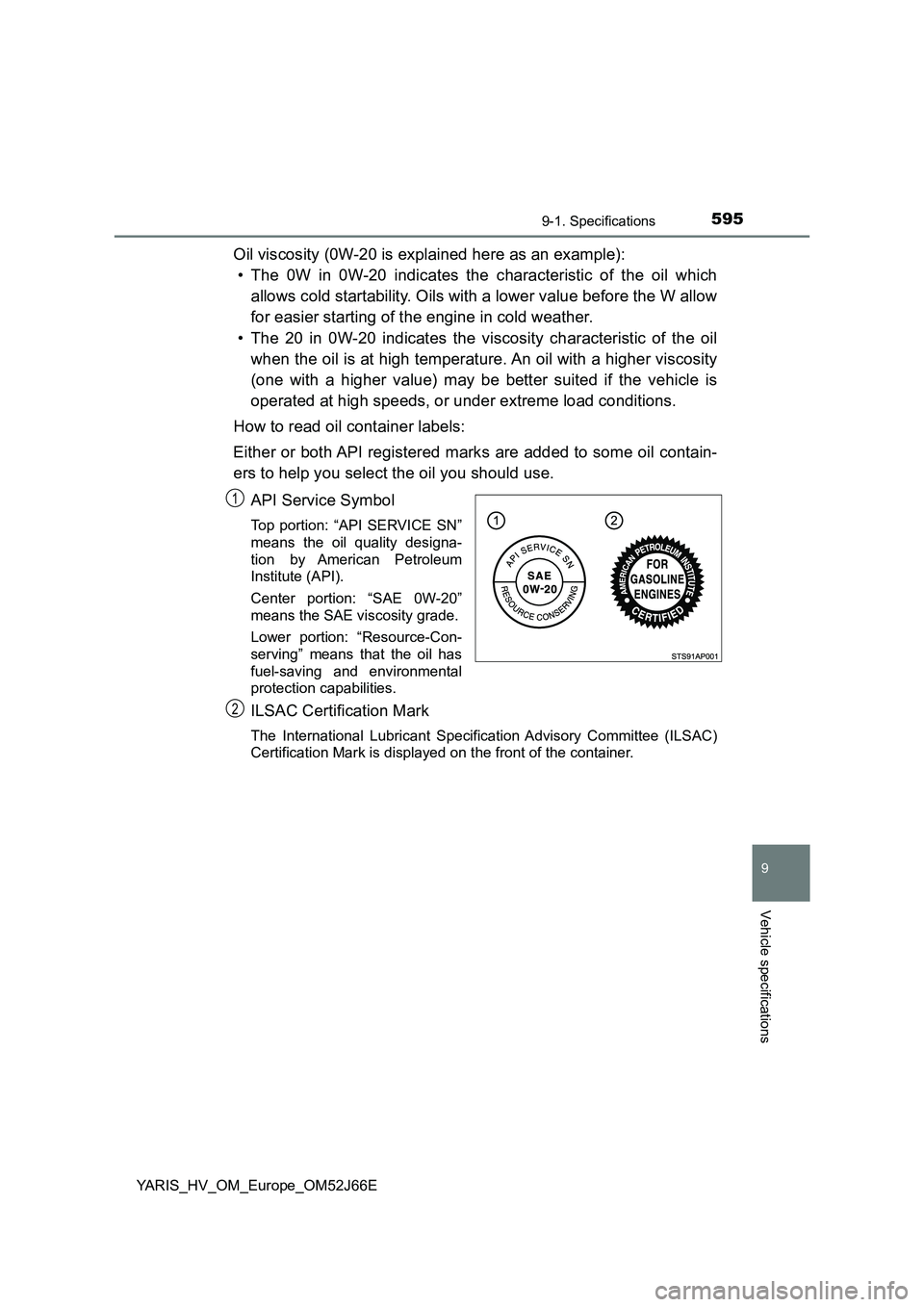

5959-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

5969-1. Specifications
YARIS_HV_OM_Europe_OM52J66E
Cooling system
Capacity
(Reference)
Gasoline engine
4.5 L (4.8 qt., 4.0 Imp.qt.)
Power control unit
1.6 L (1.7 qt., 1.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK16R-A8
Gap0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage* at
20°C (68°F):
12.0 V or higher
If the specific voltage is lower than the standard
value, charge the battery.
(*: Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates 3  4 A max.

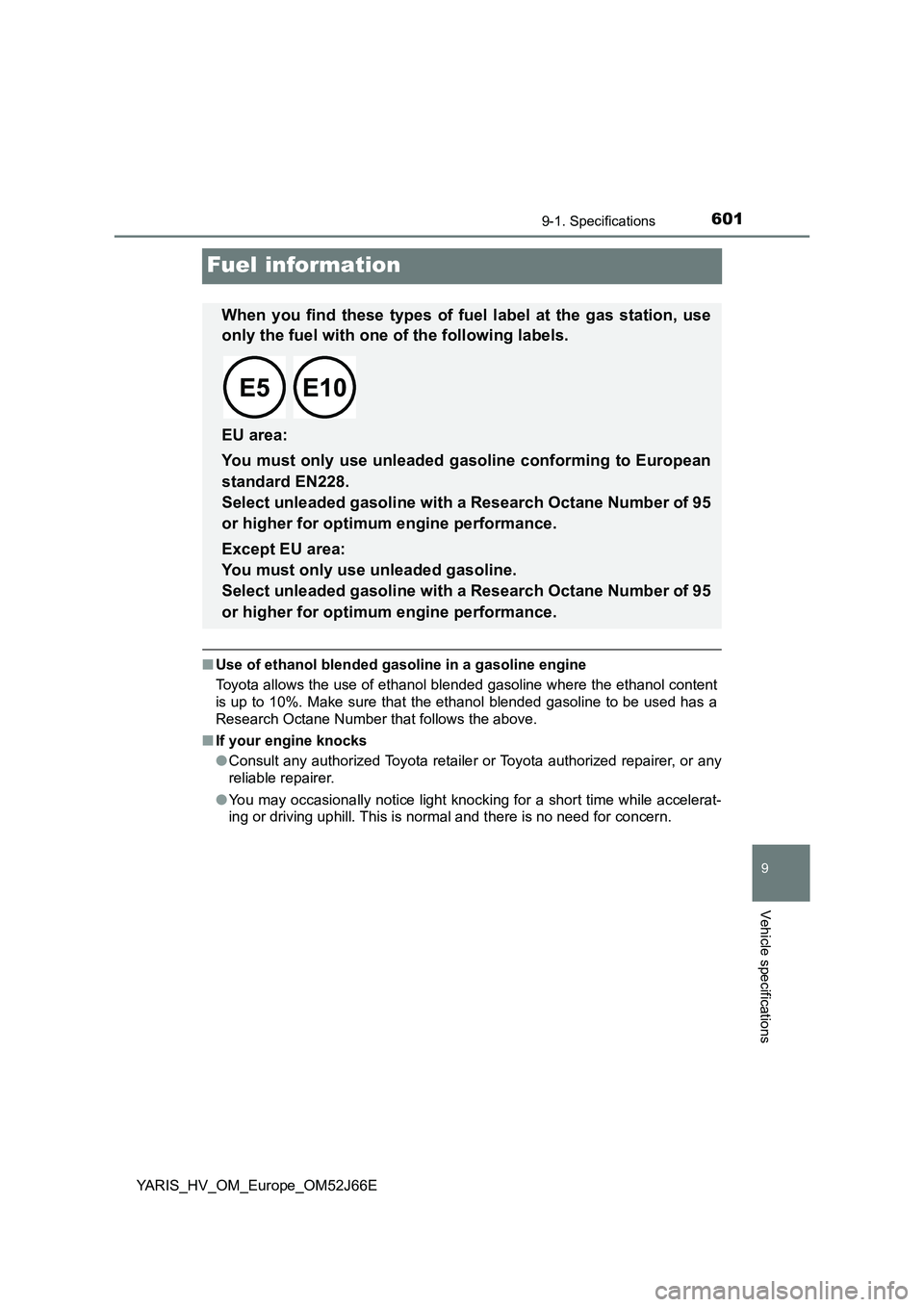

6019-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

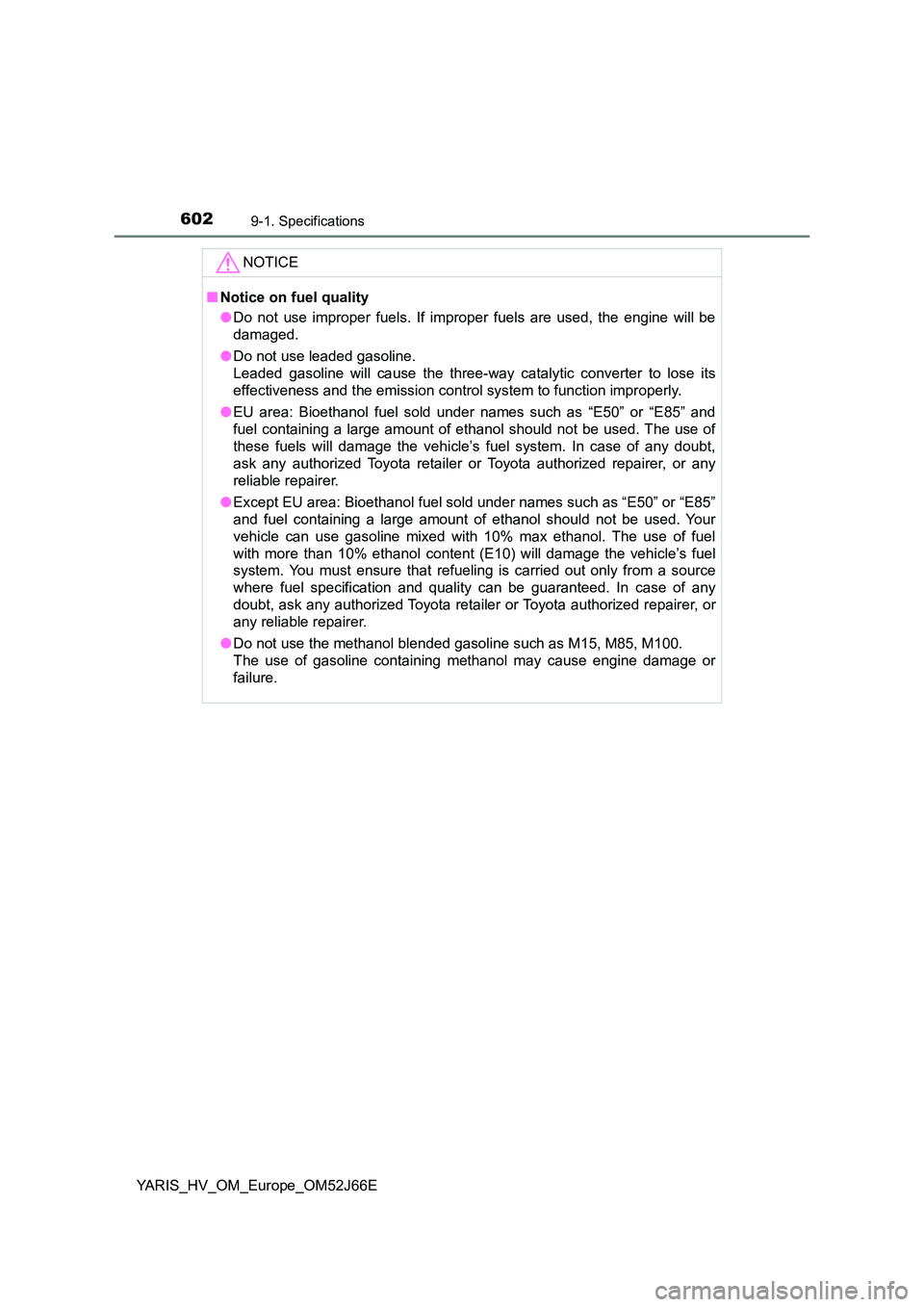

6029-1. Specifications
YARIS_HV_OM_Europe_OM52J66E
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.

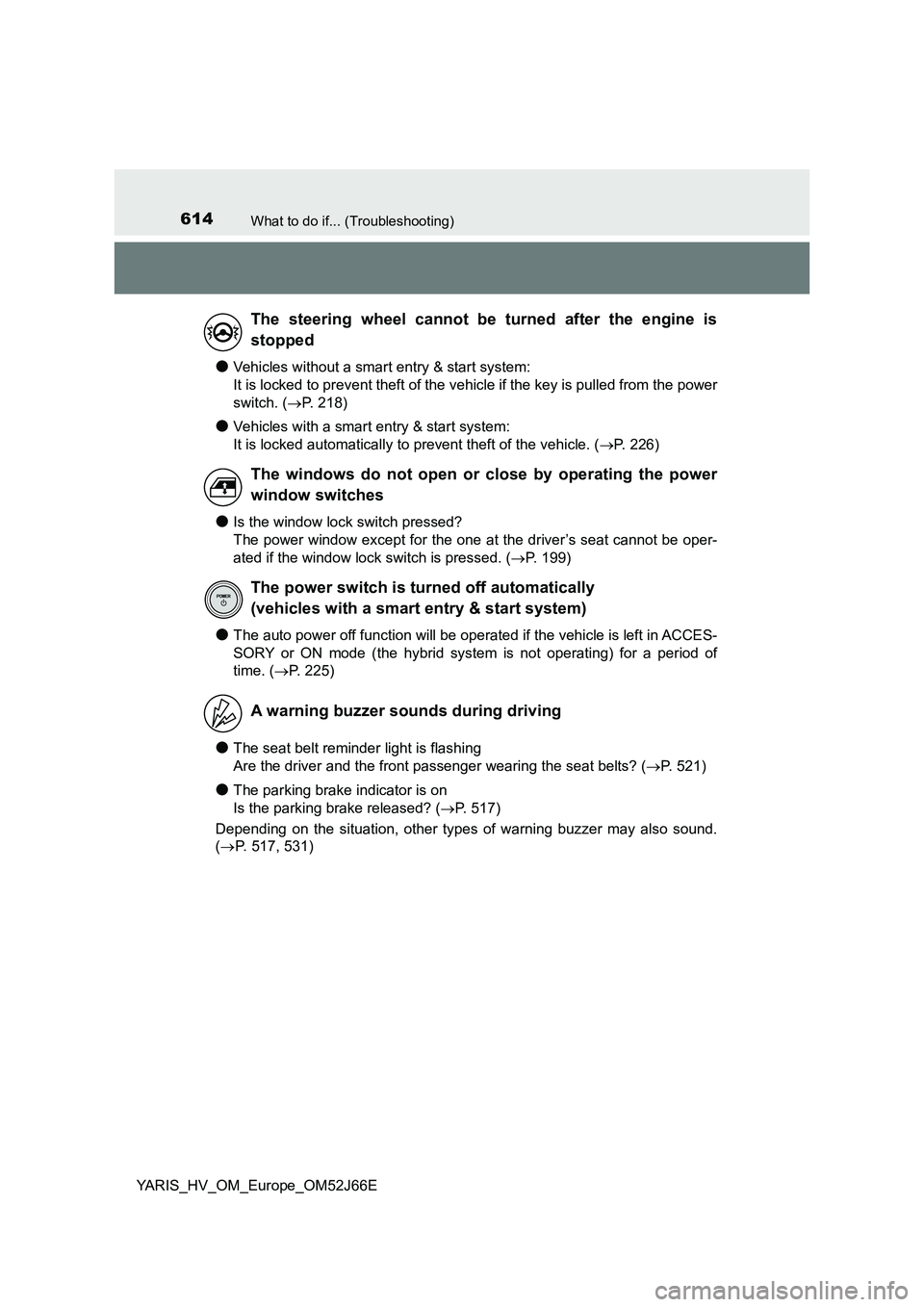

614What to do if... (Troubleshooting)
YARIS_HV_OM_Europe_OM52J66E
●Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from the power
switch. ( P. 218)
●Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. ( P. 226)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 199)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or ON mode (the hybrid system is not operating) for a period of
time. ( P. 225)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 521)
●The parking brake indicator is on
Is the parking brake released? ( P. 517)
Depending on the situation, other types of warning buzzer may also sound.
( P. 517, 531)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The power switch is turned off automatically
(vehicles with a smart entry & start system)
A warning buzzer sounds during driving

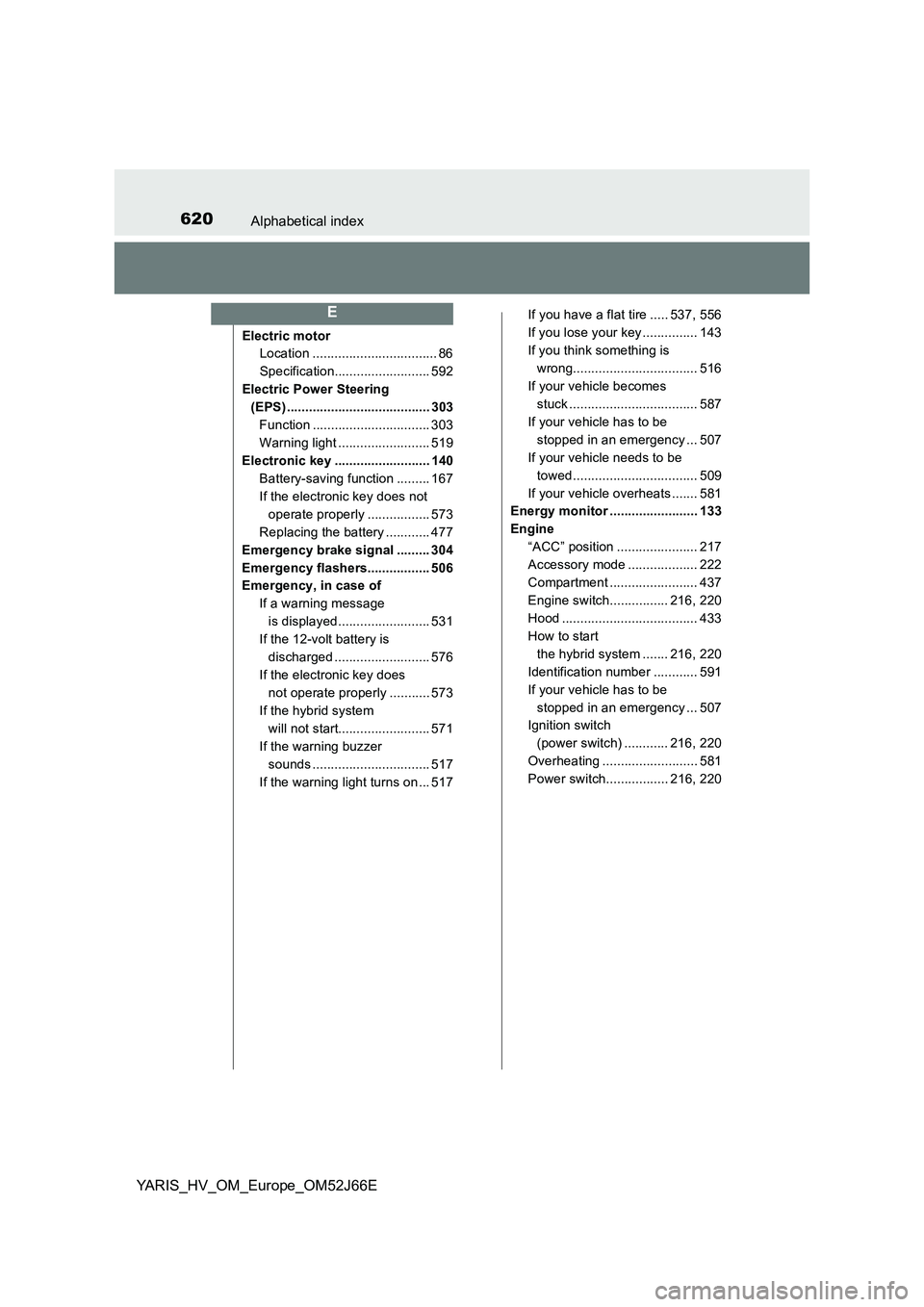

620Alphabetical index
YARIS_HV_OM_Europe_OM52J66E
Electric motor
Location .................................. 86
Specification.......................... 592
Electric Power Steering
(EPS) ....................................... 303
Function ................................ 303
Warning light ......................... 519
Electronic key .......................... 140
Battery-saving function ......... 167
If the electronic key does not
operate properly ................. 573
Replacing the battery ............ 477
Emergency brake signal ......... 304
Emergency flashers................. 506
Emergency, in case of
If a warning message
is displayed ......................... 531
If the 12-volt battery is
discharged .......................... 576
If the electronic key does
not operate properly ........... 573
If the hybrid system
will not start......................... 571
If the warning buzzer
sounds ................................ 517
If the warning light turns on ... 517
If you have a flat tire ..... 537, 556
If you lose your key ............... 143
If you think something is
wrong.................................. 516
If your vehicle becomes
stuck ................................... 587
If your vehicle has to be
stopped in an emergency ... 507
If your vehicle needs to be
towed .................................. 509
If your vehicle overheats ....... 581
Energy monitor ........................ 133
Engine
“ACC” position ...................... 217
Accessory mode ................... 222
Compartment ........................ 437
Engine switch................ 216, 220
Hood ..................................... 433
How to start
the hybrid system ....... 216, 220
Identification number ............ 591
If your vehicle has to be
stopped in an emergency ... 507
Ignition switch
(power switch) ............ 216, 220
Overheating .......................... 581
Power switch................. 216, 220
E

621Alphabetical index
YARIS_HV_OM_Europe_OM52J66E
Engine coolant ......................... 441
Capacity ................................ 596
Checking ............................... 441
Preparing and checking
before winter....................... 313
Engine coolant temperature
warning light .......................... 518
Engine oil.................................. 438
Capacity ................................ 593
Checking ............................... 438
Oil pressure warning light ..... 518
Oil pressure warning
messages ........................... 531
Preparing and checking
before winter....................... 313
Engine switch................... 216, 220
Auto power off function ......... 225
Changing power switch
positions ............................. 217
Changing the power switch
modes................................. 222
If your vehicle has to
be stopped
in an emergency ................. 507
Starting the hybrid
system ........................ 216, 220
EPS (Electric Power
Steering) ................................. 303
Function ................................ 303
Warning light ......................... 519
EV drive mode .......................... 229
EV indicator ................................ 88
Flat tire.............................. 537, 556
Floor mats .................................. 32
Fluid
Brake .................................... 597
Transmission ........................ 597
Washer ................................. 443
Fog lights ................................. 244
Replacing light bulbs..... 489, 502
Switch ................................... 244
Wattage ................................ 600
Follow me home system ......... 239
Front passenger’s seat belt
reminder light ........................ 521
Front position lights ................ 238
Light switch ........................... 238
Replacing light bulbs..... 492, 502
Wattage ................................ 600
Front seats ............................... 182
Adjustment ............................ 182
Cleaning................................ 419
Correct driving posture ........... 34
Head restraints ..................... 188
Seat heaters ......................... 396
F

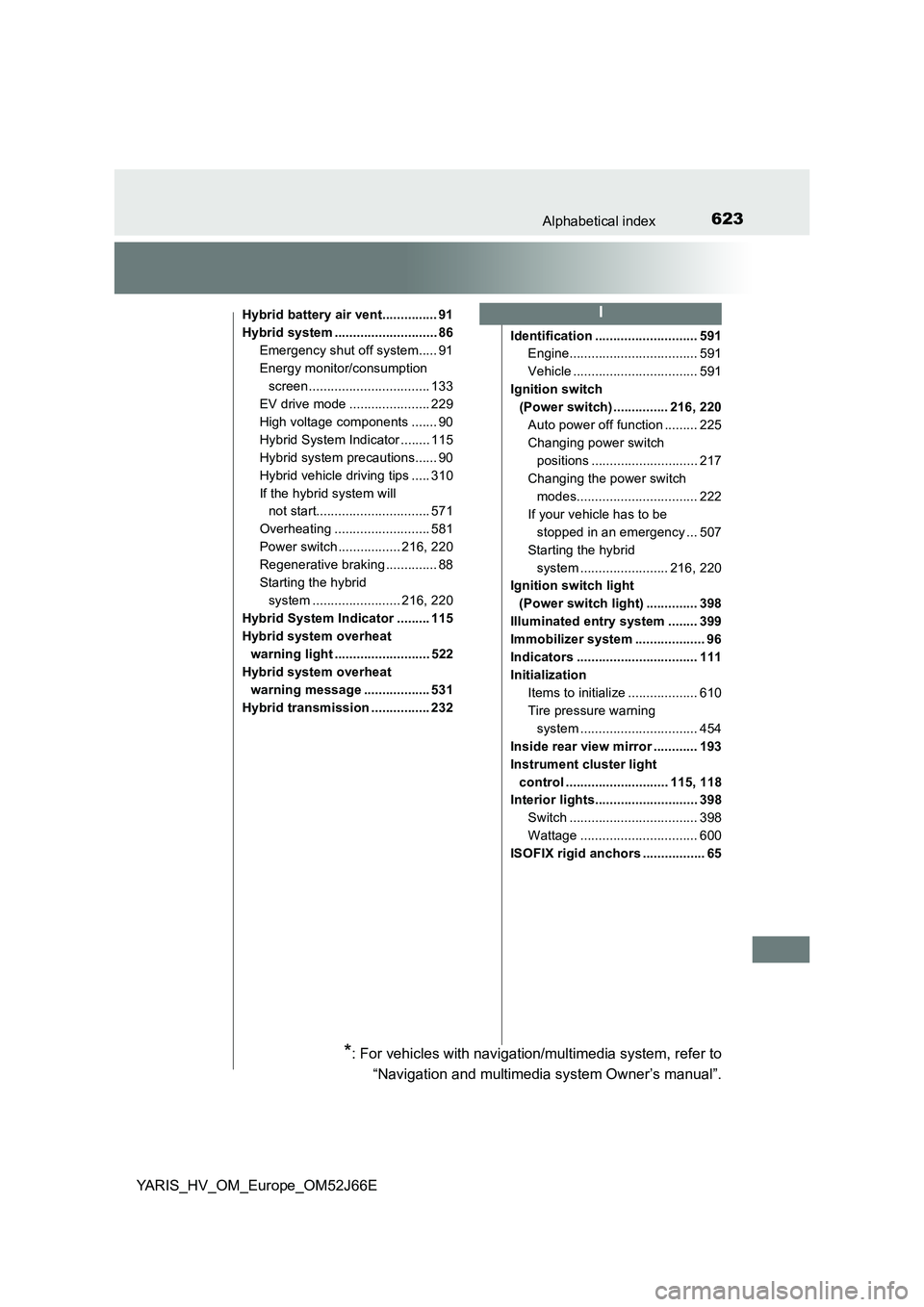

623Alphabetical index
YARIS_HV_OM_Europe_OM52J66E
Hybrid battery air vent............... 91
Hybrid system ............................ 86
Emergency shut off system..... 91
Energy monitor/consumption
screen................................. 133
EV drive mode ...................... 229
High voltage components ....... 90
Hybrid System Indicator ........ 115
Hybrid system precautions...... 90
Hybrid vehicle driving tips ..... 310
If the hybrid system will
not start............................... 571
Overheating .......................... 581
Power switch ................. 216, 220
Regenerative braking .............. 88
Starting the hybrid
system ........................ 216, 220
Hybrid System Indicator ......... 115
Hybrid system overheat
warning light .......................... 522
Hybrid system overheat
warning message .................. 531
Hybrid transmission ................ 232
Identification ............................ 591
Engine................................... 591
Vehicle .................................. 591
Ignition switch
(Power switch) ............... 216, 220
Auto power off function ......... 225
Changing power switch
positions ............................. 217
Changing the power switch
modes................................. 222
If your vehicle has to be
stopped in an emergency ... 507
Starting the hybrid
system ........................ 216, 220
Ignition switch light
(Power switch light) .............. 398
Illuminated entry system ........ 399
Immobilizer system ................... 96
Indicators ................................. 111
Initialization
Items to initialize ................... 610
Tire pressure warning
system ................................ 454
Inside rear view mirror ............ 193
Instrument cluster light
control ............................ 115, 118
Interior lights............................ 398
Switch ................................... 398
Wattage ................................ 600
ISOFIX rigid anchors ................. 65
I
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual”.
