2018 TOYOTA YARIS engine

4817-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E

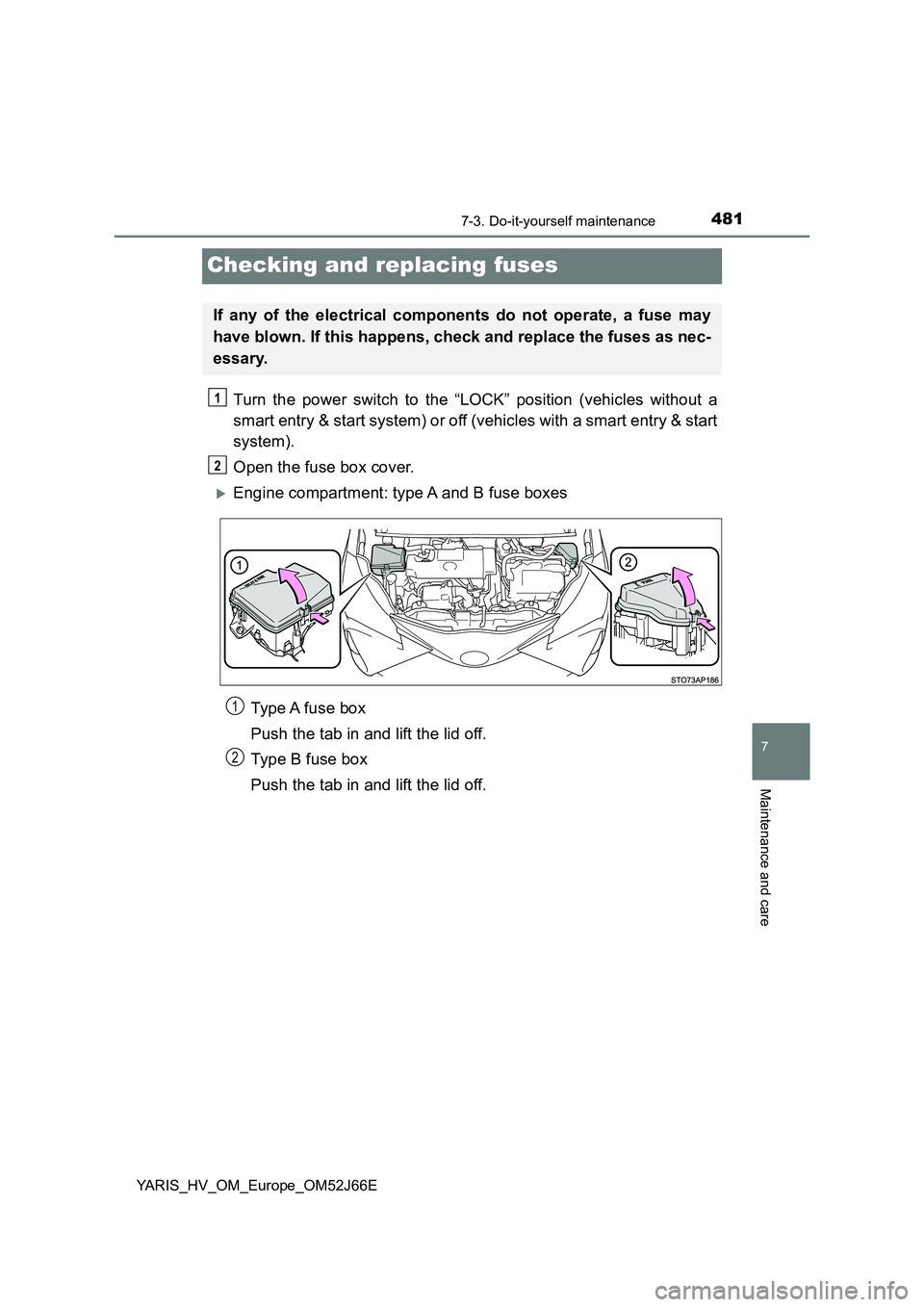

Checking and replacing fuses
Turn the power switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry & start
system).
Open the fuse box cover.
Engine compartment: type A and B fuse boxes
Type A fuse box
Push the tab in and lift the lid off.
Type B fuse box
Push the tab in and lift the lid off.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
1
2

5168-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E
If you think something is wrong
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal)
● Flat-looking tires or uneven tire wear
● Vehicles with monochrome display: High engine coolant tempera-
ture warning light flashes or comes on
Vehicles with color display: Engine coolant temperature gauge nee-
dle continually points higher than normal
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
● Engine misfire, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

5188-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E
*4
*5

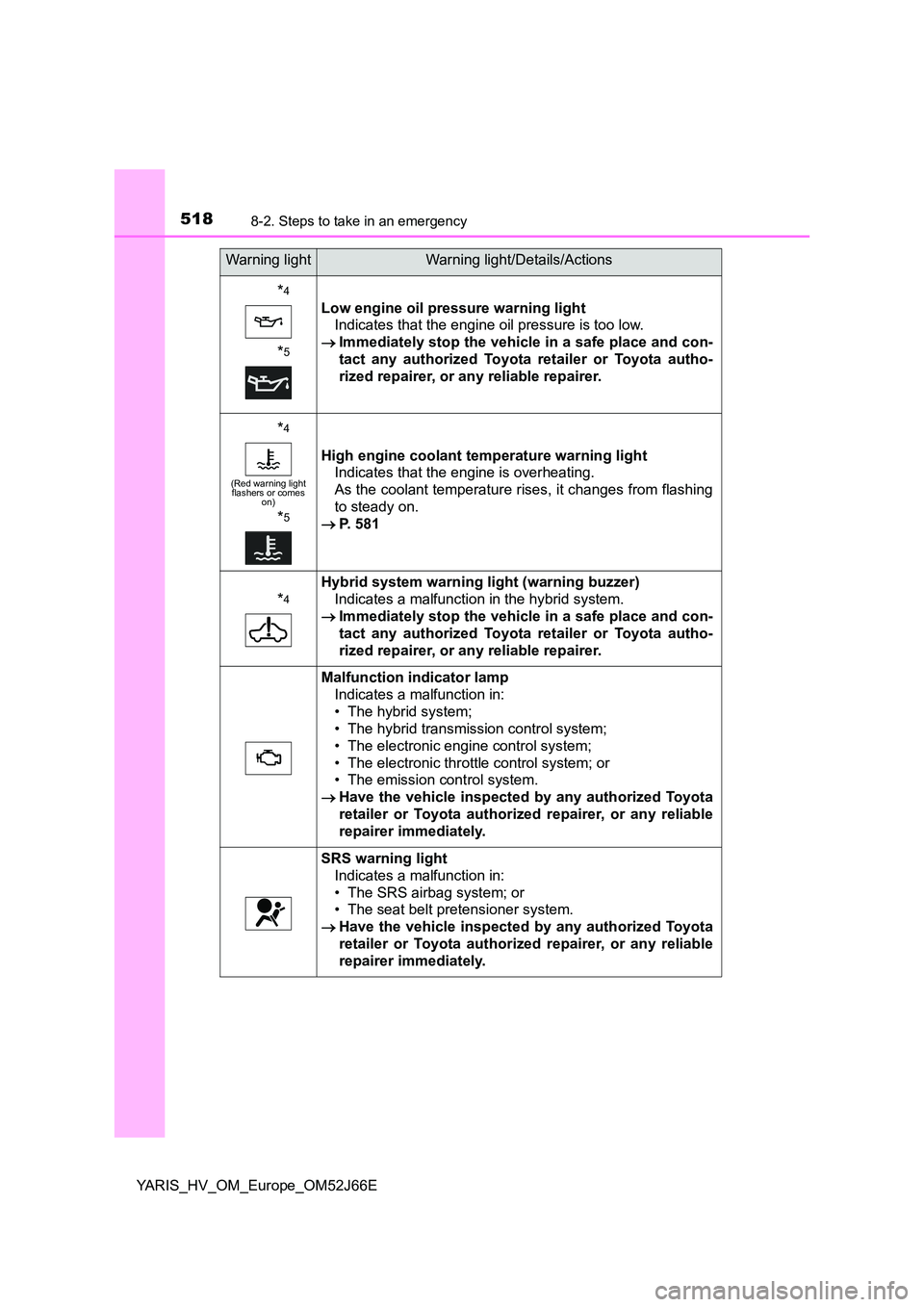

Low engine oil pressure warning light
Indicates that the engine oil pressure is too low.
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
*4
(Red warning light flashers or comes on)
*5
High engine coolant temperature warning light
Indicates that the engine is overheating.
As the coolant temperature rises, it changes from flashing
to steady on.
 P. 581
*4
Hybrid system warning light (warning buzzer)
Indicates a malfunction in the hybrid system.
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The hybrid transmission control system;
• The electronic engine control system;
• The electronic throttle control system; or
• The emission control system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

5338-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E

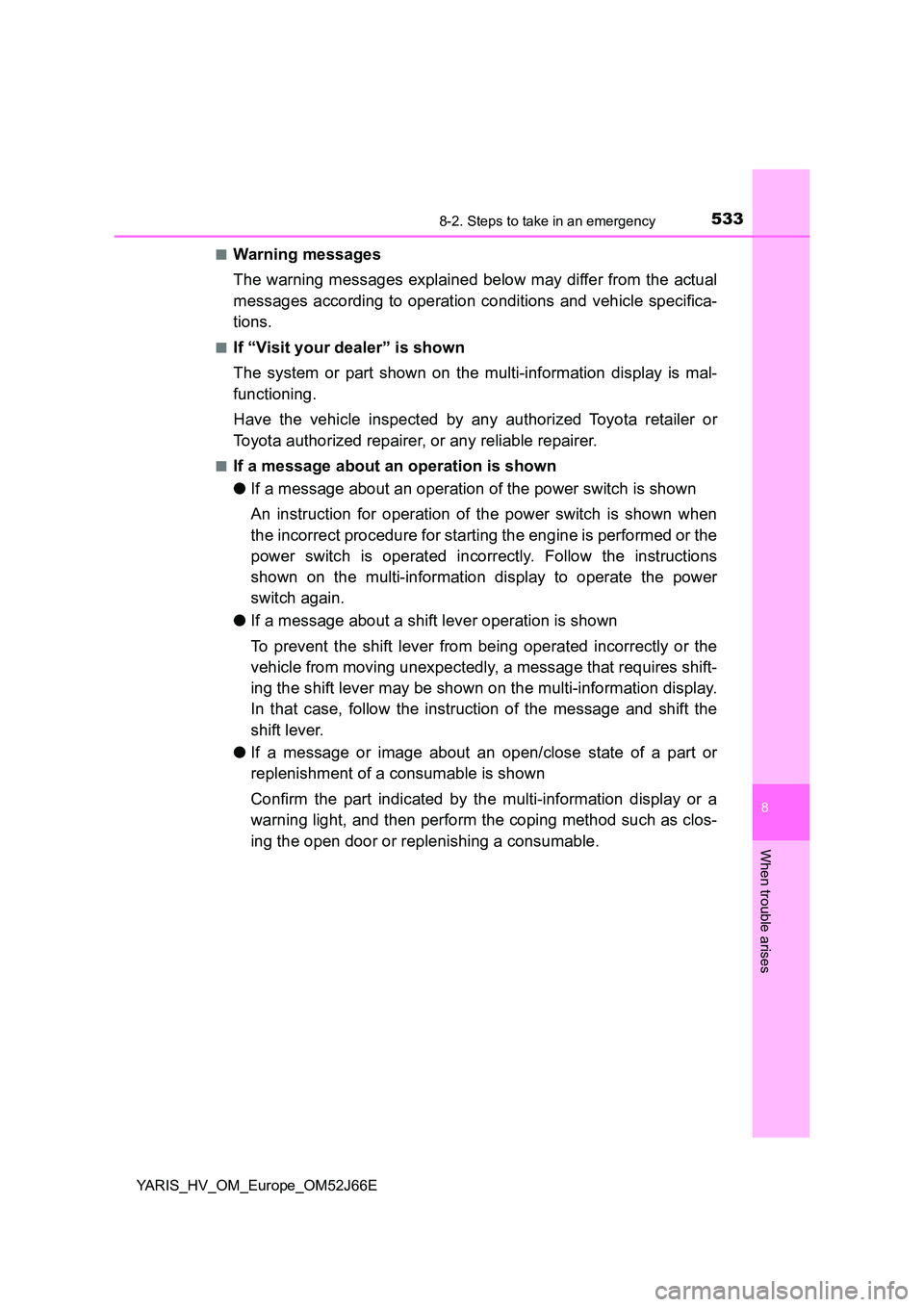

■Warning messages
The warning messages explained below may differ from the actual
messages according to operation conditions and vehicle specifica-
tions.
■If “Visit your dealer” is shown
The system or part shown on the multi-information display is mal-
functioning.
Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■If a message about an operation is shown
● If a message about an operation of the power switch is shown
An instruction for operation of the power switch is shown when
the incorrect procedure for starting the engine is performed or the
power switch is operated incorrectly. Follow the instructions
shown on the multi-information display to operate the power
switch again.
● If a message about a shift lever operation is shown
To prevent the shift lever from being operated incorrectly or the
vehicle from moving unexpectedly, a message that requires shift-
ing the shift lever may be shown on the multi-information display.
In that case, follow the instruction of the message and shift the
shift lever.
● If a message or image about an open/close state of a part or
replenishment of a consumable is shown
Confirm the part indicated by the multi-information display or a
warning light, and then perform the coping method such as clos-
ing the open door or replenishing a consumable.

5348-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E

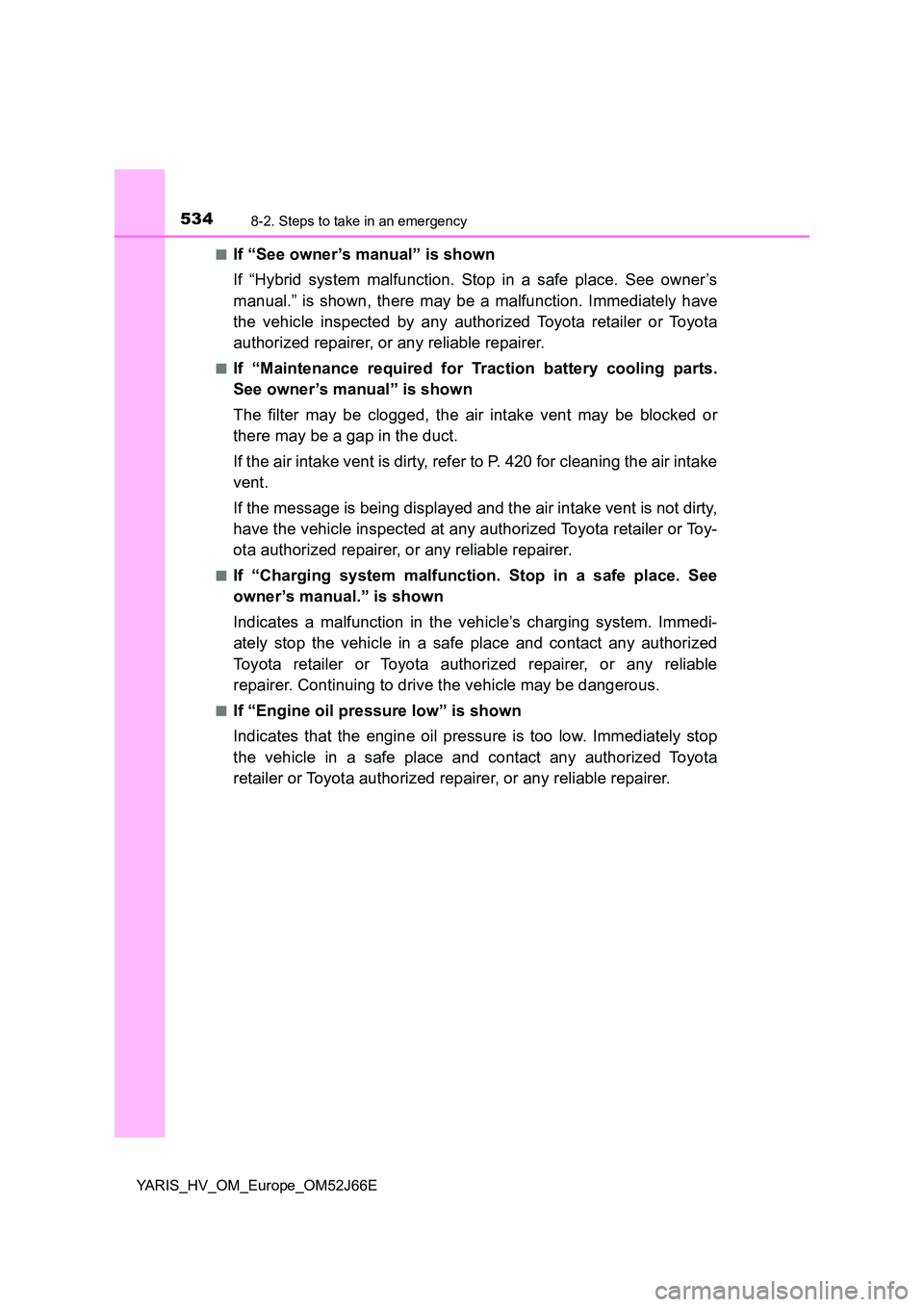

■If “See owner’s manual” is shown
If “Hybrid system malfunction. Stop in a safe place. See owner’s
manual.” is shown, there may be a malfunction. Immediately have
the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
■If “Maintenance required for Traction battery cooling parts.
See owner’s manual” is shown
The filter may be clogged, the air intake vent may be blocked or
there may be a gap in the duct.
If the air intake vent is dirty, refer to P. 420 for cleaning the air intake
vent.
If the message is being displayed and the air intake vent is not dirty,
have the vehicle inspected at any authorized Toyota retailer or Toy-
ota authorized repairer, or any reliable repairer.
■If “Charging system malfunction. Stop in a safe place. See
owner’s manual.” is shown
Indicates a malfunction in the vehicle’s charging system. Immedi-
ately stop the vehicle in a safe place and contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable
repairer. Continuing to drive the vehicle may be dangerous.
■If “Engine oil pressure low” is shown
Indicates that the engine oil pressure is too low. Immediately stop
the vehicle in a safe place and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.

5698-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E
WARNING

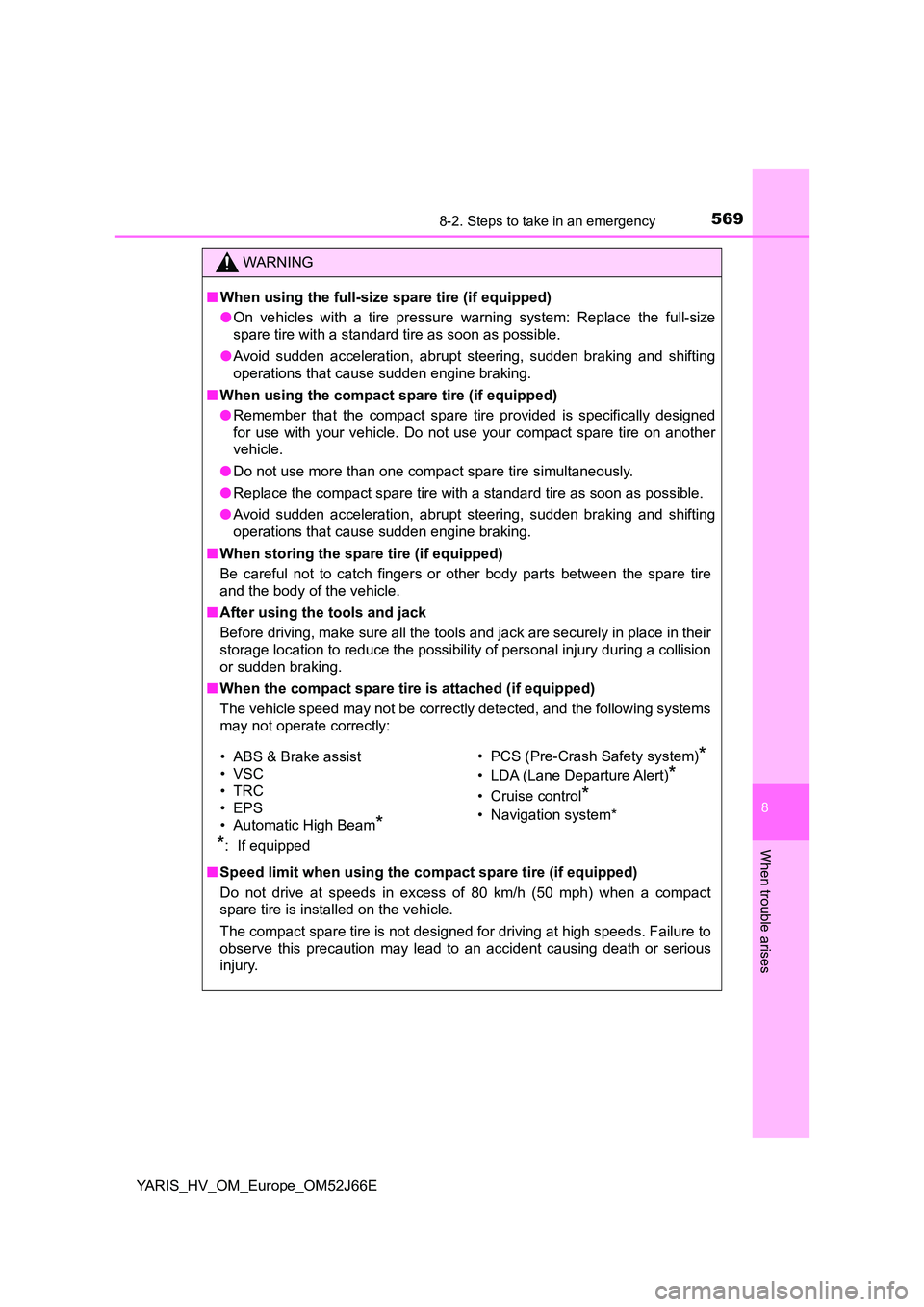

■When using the full-size spare tire (if equipped)
● On vehicles with a tire pressure warning system: Replace the full-size
spare tire with a standard tire as soon as possible.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■ When using the compact spare tire (if equipped)
● Remember that the compact spare tire provided is specifically designed
for use with your vehicle. Do not use your compact spare tire on another
vehicle.
● Do not use more than one compact spare tire simultaneously.
● Replace the compact spare tire with a standard tire as soon as possible.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■ When storing the spare tire (if equipped)
Be careful not to catch fingers or other body parts between the spare tire
and the body of the vehicle.
■ After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
■ When the compact spare tire is attached (if equipped)
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
■ Speed limit when using the compact spare tire (if equipped)
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
• ABS & Brake assist
• VSC
•TRC
• EPS
• Automatic High Beam*
*: If equipped
• PCS (Pre-Crash Safety system)*
• LDA (Lane Departure Alert)*
• Cruise control*
• Navigation system*

5778-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E

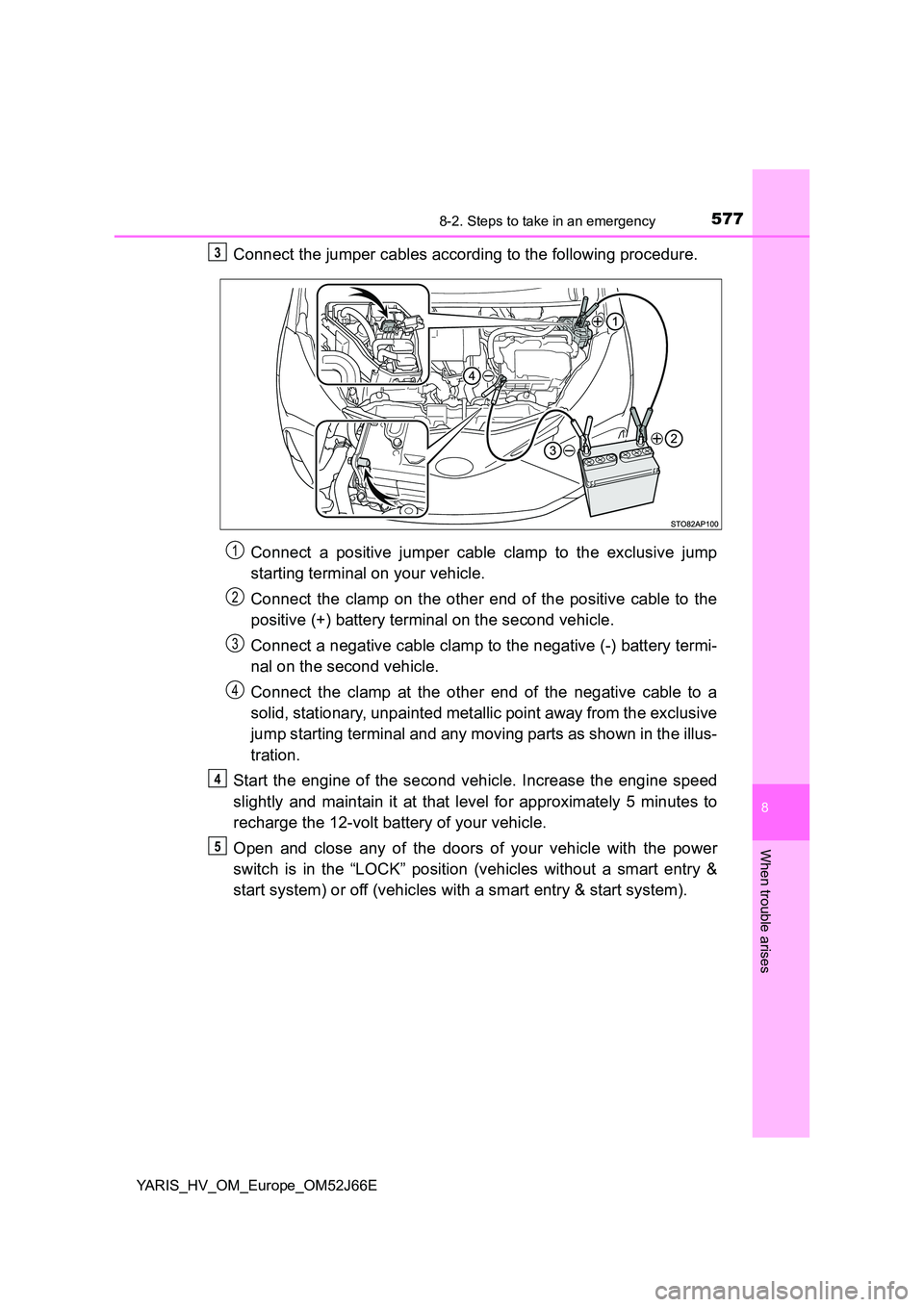

Connect the jumper cables according to the following procedure.
Connect a positive jumper cable clamp to the exclusive jump
starting terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the exclusive
jump starting terminal and any moving parts as shown in the illus-
tration.
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain it at that level for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.
Open and close any of the doors of your vehicle with the power
switch is in the “LOCK” position (vehicles without a smart entry &
start system) or off (vehicles with a smart entry & start system).
3
1
2
3
4
4
5

5788-2. Steps to take in an emergency
YARIS_HV_OM_Europe_OM52J66E
Maintain the engine speed of the second vehicle and start the
hybrid system of your vehicle by turning the power switch to “ON”
position (vehicles without a smart entry & start system) or ON mode
(vehicles with a smart entry & start system).
Make sure the “READY” indicator comes on. If the indicator does
not come on, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Once the hybrid system has started, remove the jumper cables in
the exact reverse order from which they were connected.
Close the exclusive jump starting terminal cover, and reinstall the
fuse box cover to its original position.
When installing, first hook the fuse box cover onto the two rear
tabs.
Once the hybrid system starts, have the vehicle inspected at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

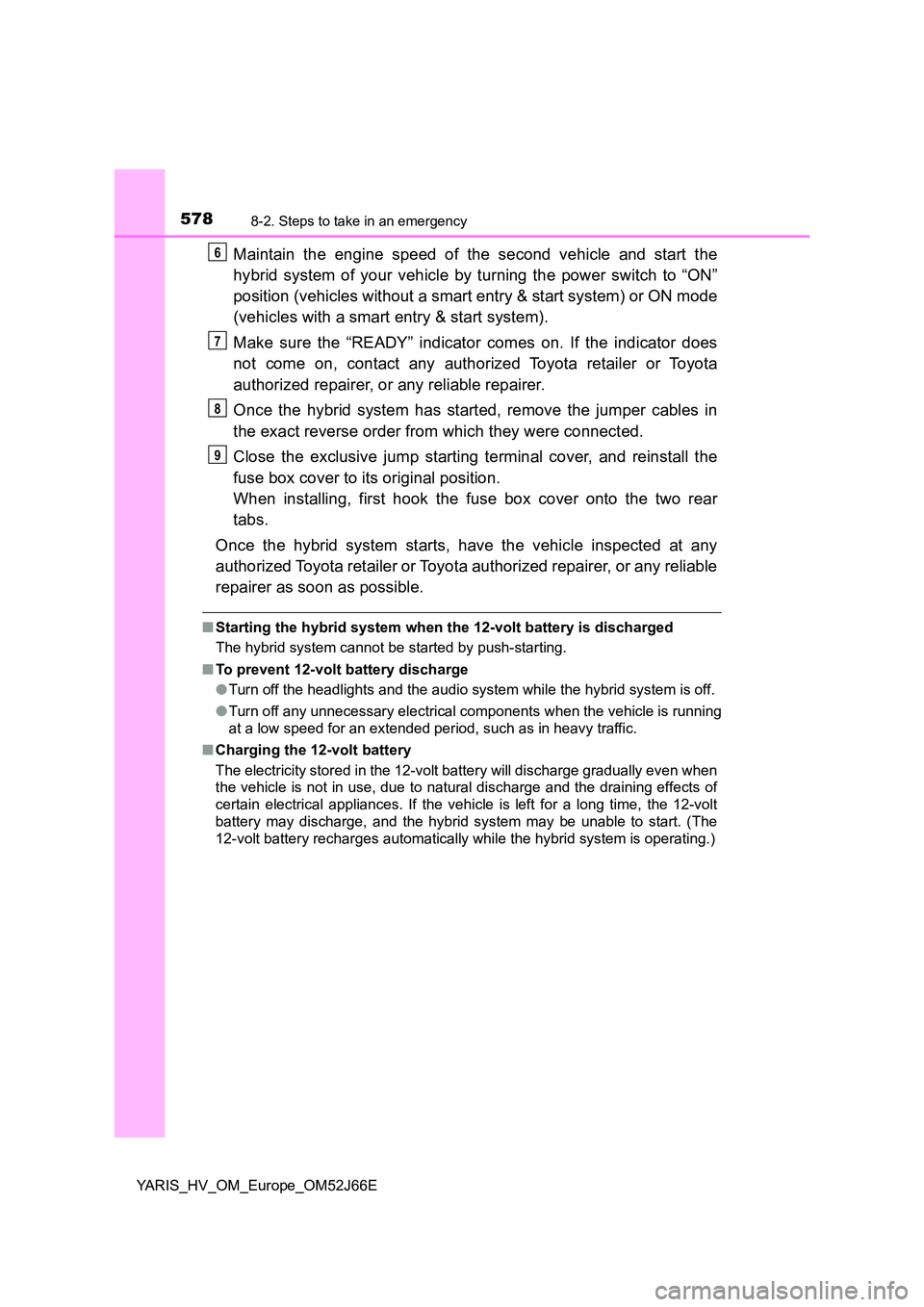

■ Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■ To prevent 12-volt battery discharge
● Turn off the headlights and the audio system while the hybrid system is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects of
certain electrical appliances. If the vehicle is left for a long time, the 12-volt
battery may discharge, and the hybrid system may be unable to start. (The
12-volt battery recharges automatically while the hybrid system is operating.)
6
7
8
9
