2018 TOYOTA YARIS child restraint

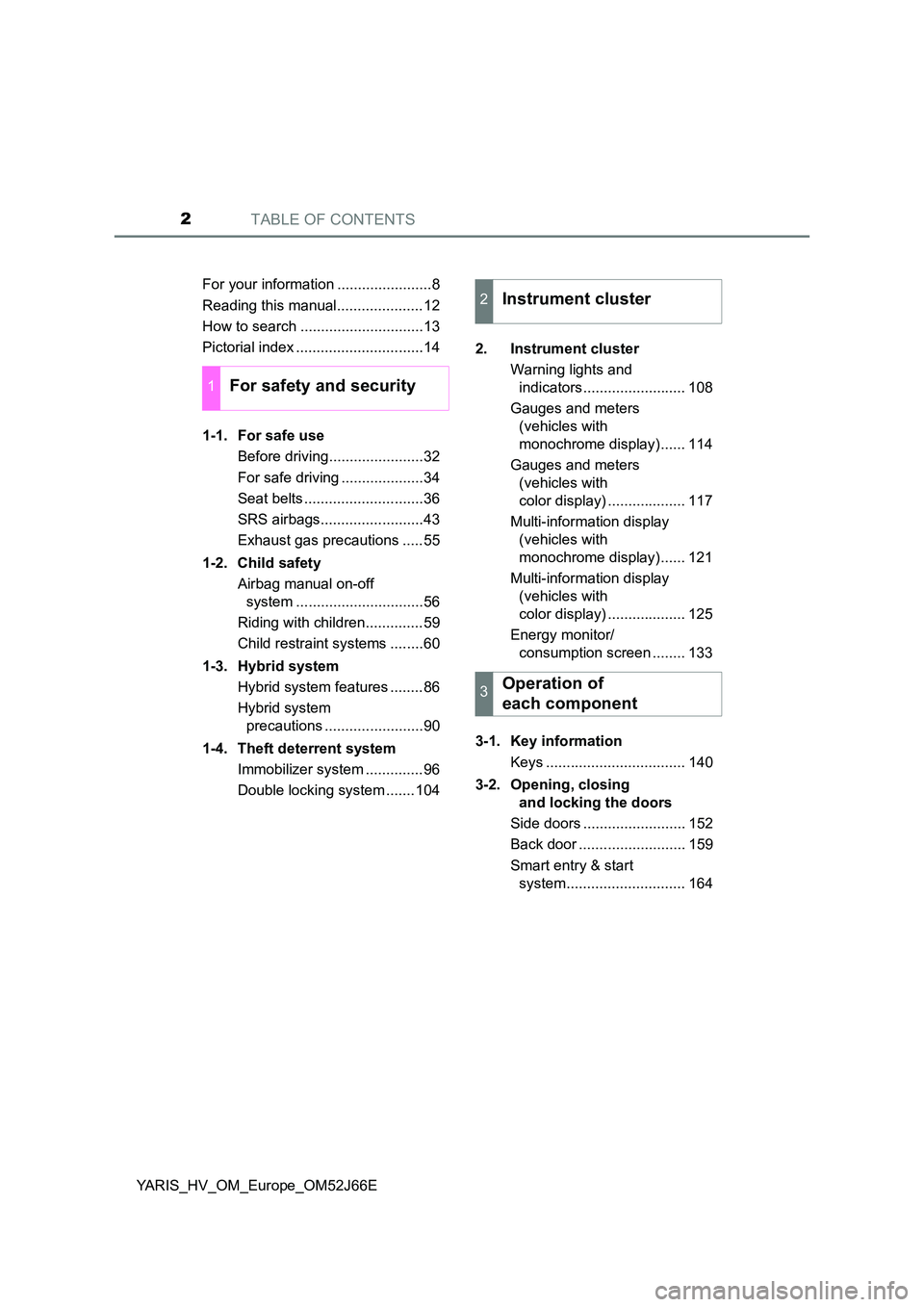

TABLE OF CONTENTS2
YARIS_HV_OM_Europe_OM52J66E
For your information .......................8
Reading this manual.....................12
How to search ..............................13
Pictorial index ...............................14
1-1. For safe use
Before driving.......................32
For safe driving ....................34
Seat belts .............................36
SRS airbags.........................43
Exhaust gas precautions .....55
1-2. Child safety
Airbag manual on-off
system ...............................56
Riding with children..............59
Child restraint systems ........60
1-3. Hybrid system
Hybrid system features ........86
Hybrid system
precautions ........................90
1-4. Theft deterrent system
Immobilizer system ..............96
Double locking system .......104
2. Instrument cluster
Warning lights and
indicators......................... 108
Gauges and meters
(vehicles with
monochrome display)...... 114
Gauges and meters
(vehicles with
color display) ................... 117
Multi-information display
(vehicles with
monochrome display)...... 121
Multi-information display
(vehicles with
color display) ................... 125
Energy monitor/
consumption screen ........ 133
3-1. Key information
Keys .................................. 140
3-2. Opening, closing
and locking the doors
Side doors ......................... 152
Back door .......................... 159
Smart entry & start
system............................. 164
1For safety and security
2Instrument cluster
3Operation of
each component

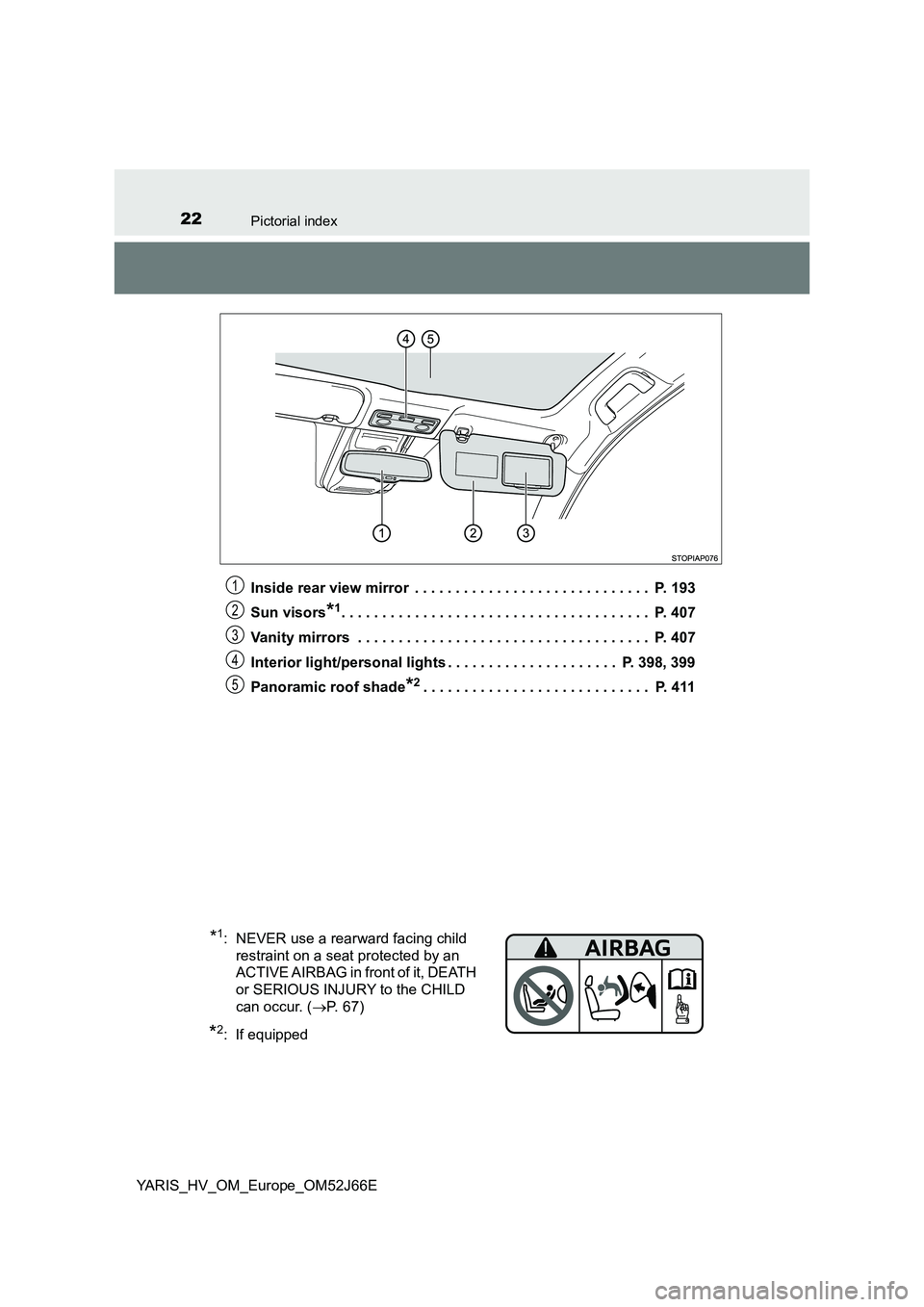

22Pictorial index
YARIS_HV_OM_Europe_OM52J66E
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Sun visors*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 407
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 407
Interior light/personal lights . . . . . . . . . . . . . . . . . . . . . P. 398, 399
Panoramic roof shade*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 411
1
2
3
4
5
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. ( P. 6 7 )
*2: If equipped

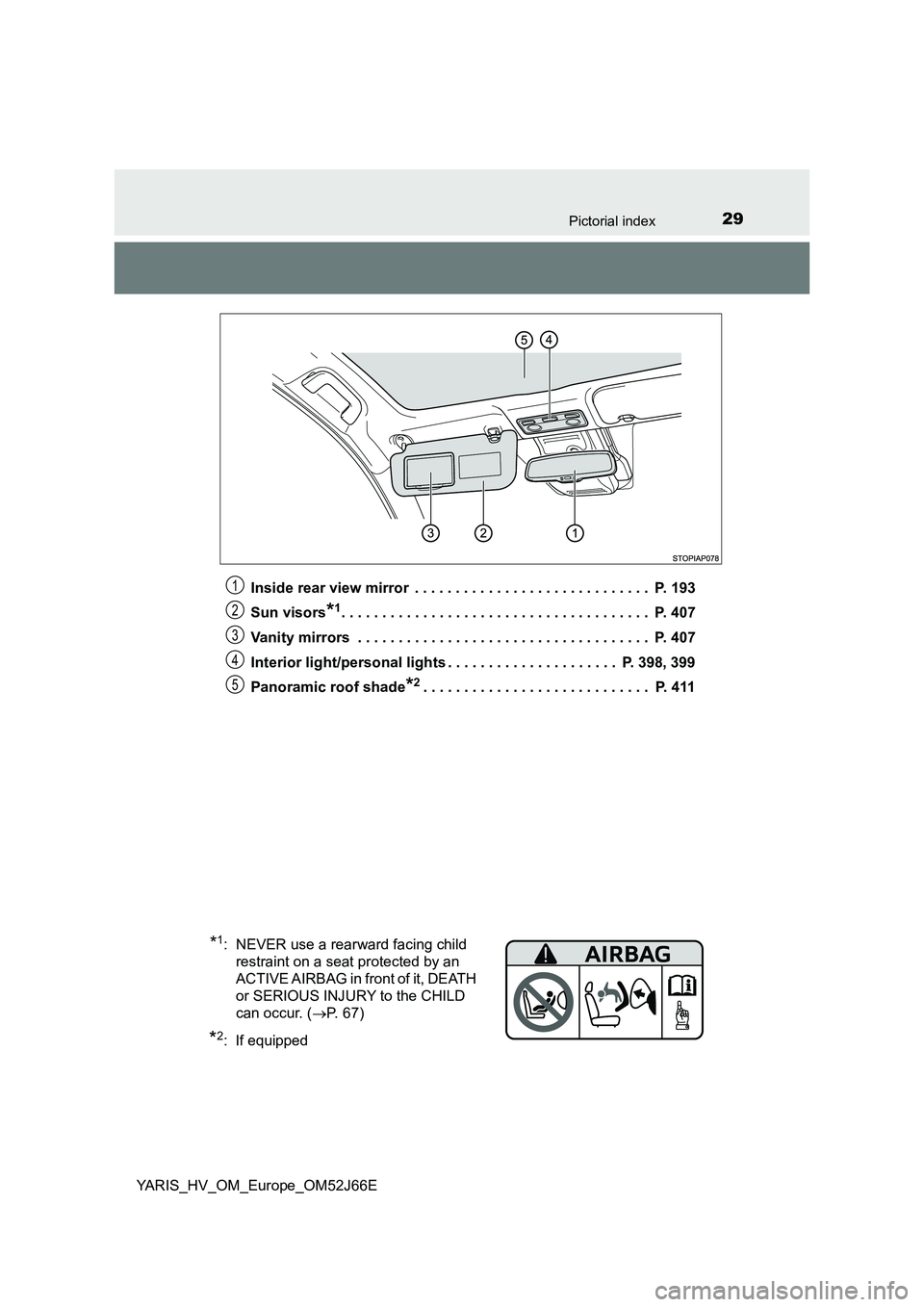

29Pictorial index
YARIS_HV_OM_Europe_OM52J66E
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Sun visors*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 407
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 407
Interior light/personal lights . . . . . . . . . . . . . . . . . . . . . P. 398, 399
Panoramic roof shade*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 411
1
2
3
4
5
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. ( P. 6 7 )
*2: If equipped

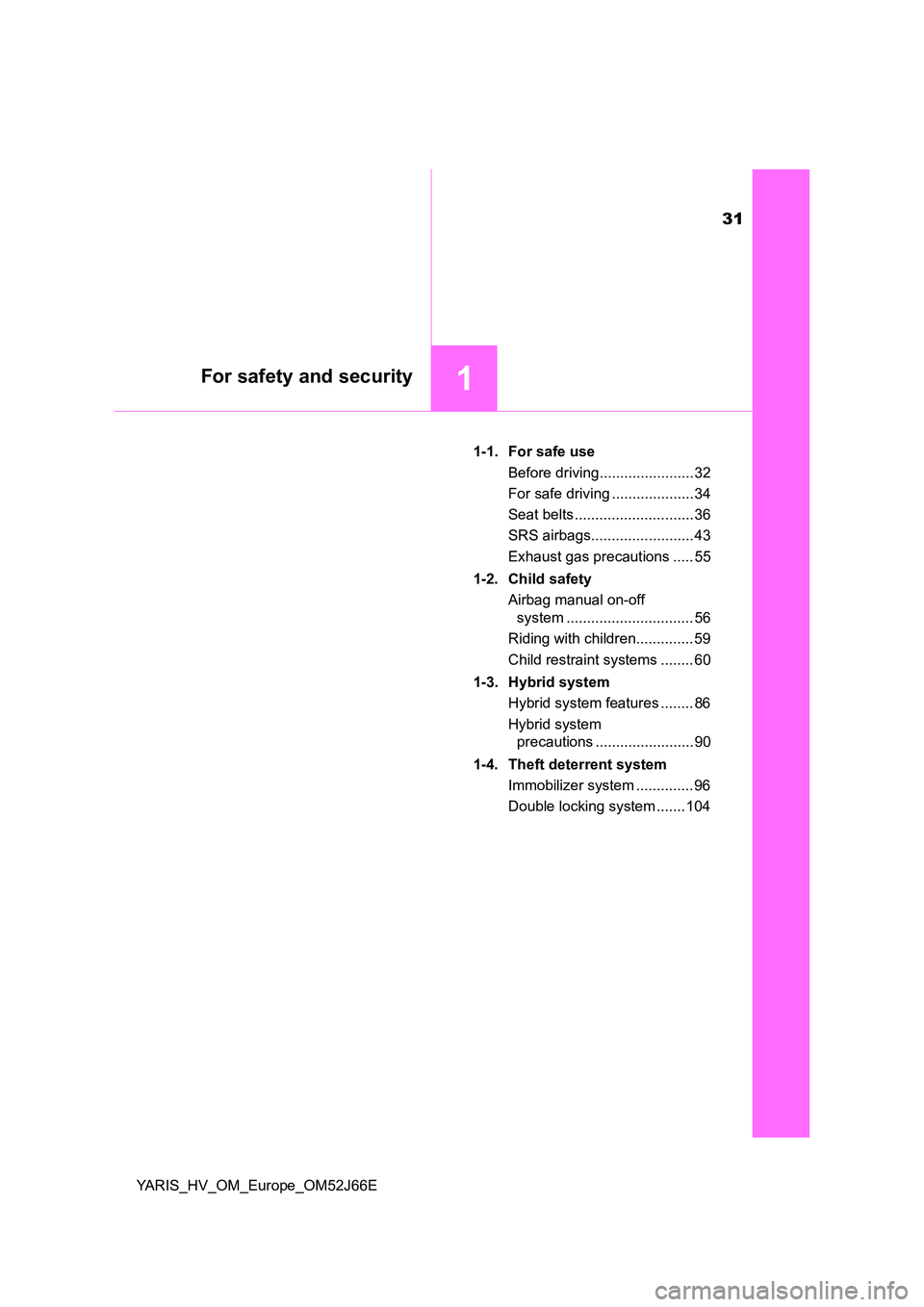

31
1For safety and security
YARIS_HV_OM_Europe_OM52J66E
1-1. For safe use
Before driving....................... 32
For safe driving .................... 34
Seat belts ............................. 36
SRS airbags......................... 43
Exhaust gas precautions ..... 55
1-2. Child safety
Airbag manual on-off
system ............................... 56
Riding with children.............. 59
Child restraint systems ........ 60
1-3. Hybrid system
Hybrid system features ........ 86
Hybrid system
precautions ........................ 90
1-4. Theft deterrent system
Immobilizer system .............. 96
Double locking system ....... 104

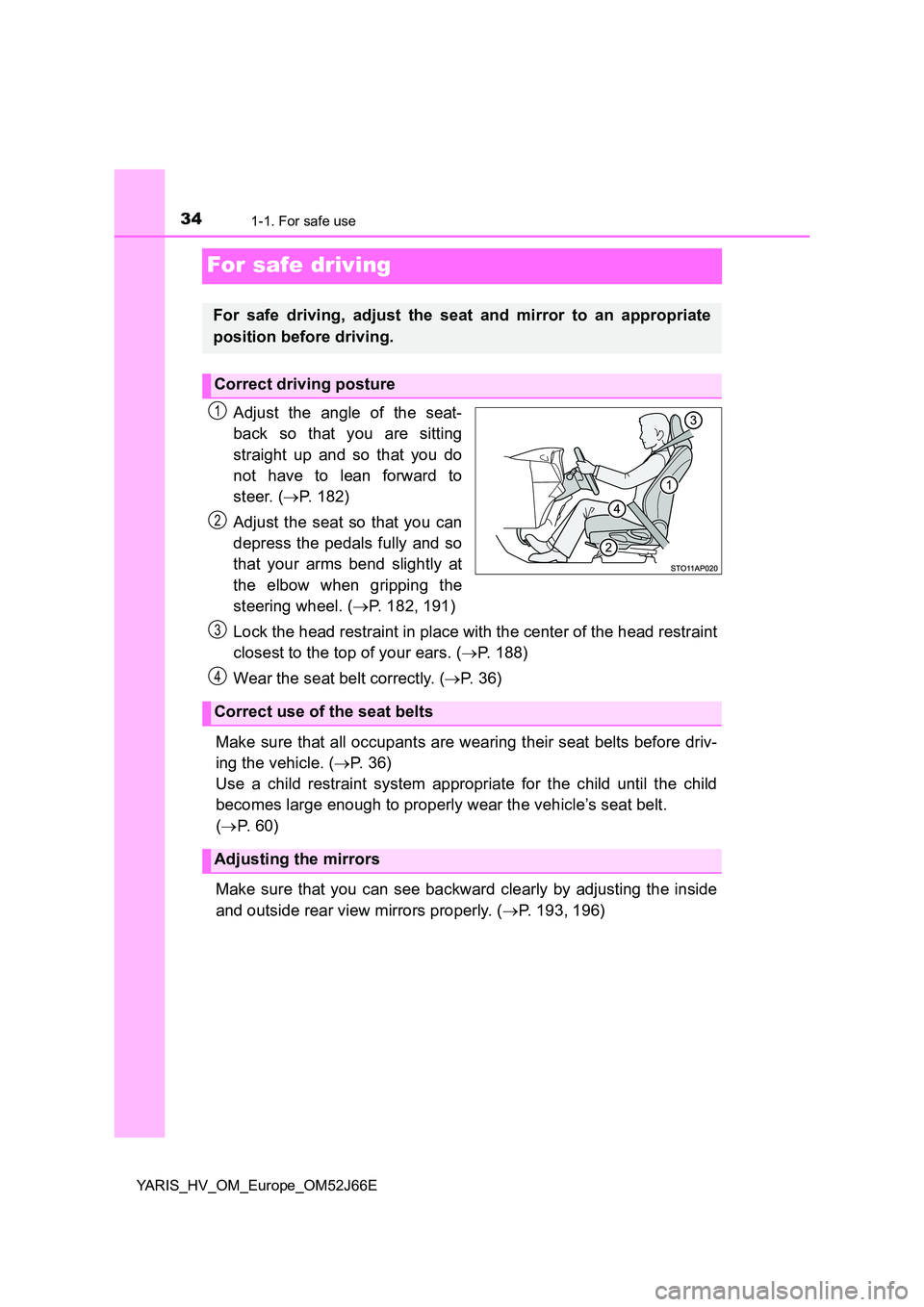

341-1. For safe use
YARIS_HV_OM_Europe_OM52J66E
For safe driving
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 182)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 182, 191)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 188)
Wear the seat belt correctly. ( P. 3 6 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 3 6 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 6 0 )
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 193, 196)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

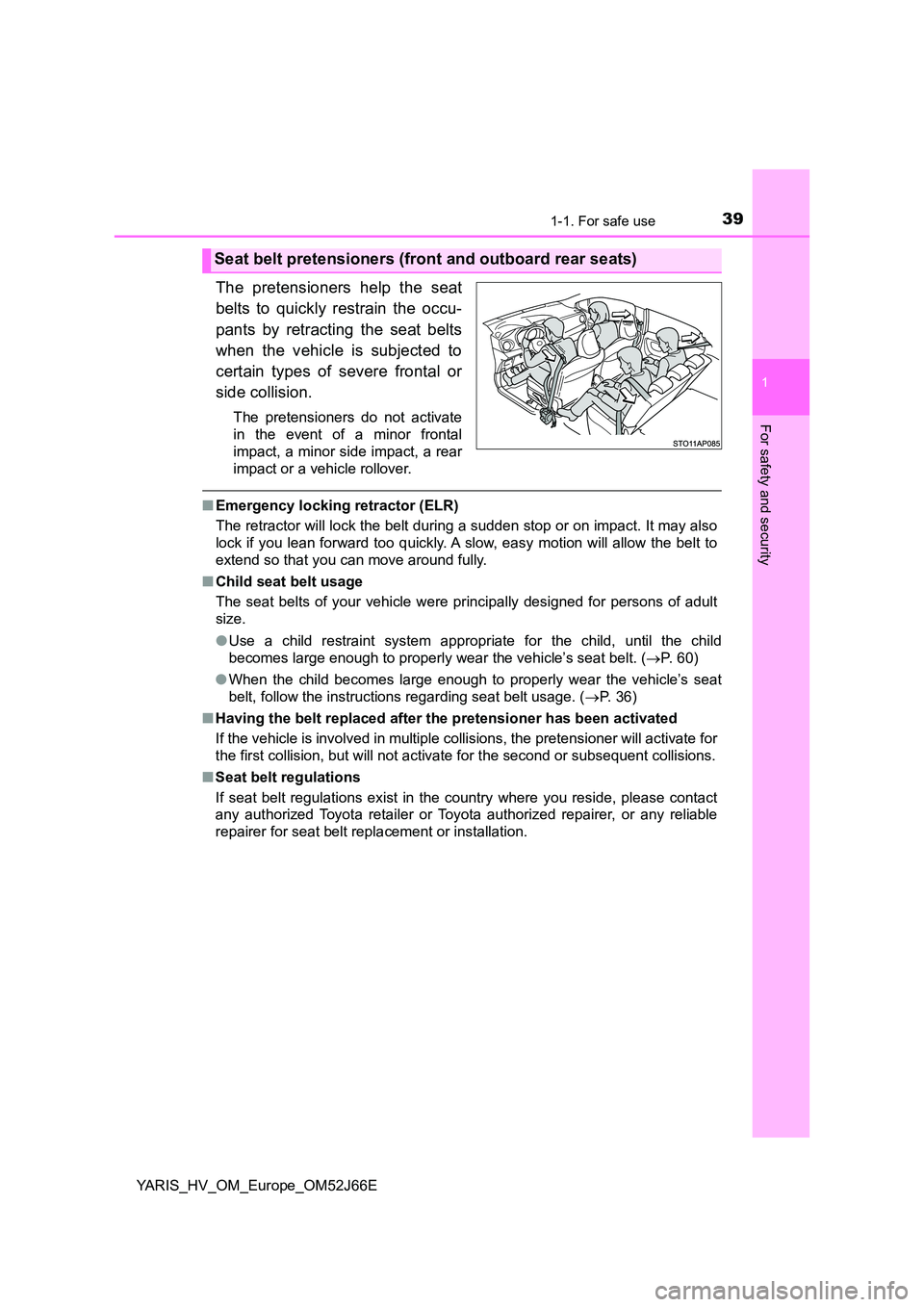

391-1. For safe use
1
For safety and security
YARIS_HV_OM_Europe_OM52J66E
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact, a rear
impact or a vehicle rollover.
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
● Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( P. 6 0 )
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. ( P. 36)
■ Having the belt replaced after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
■ Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for seat belt repl acement or installation.
Seat belt pretensioners (front and outboard rear seats)

401-1. For safe use
YARIS_HV_OM_Europe_OM52J66E
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
■ Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. ( P. 36)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

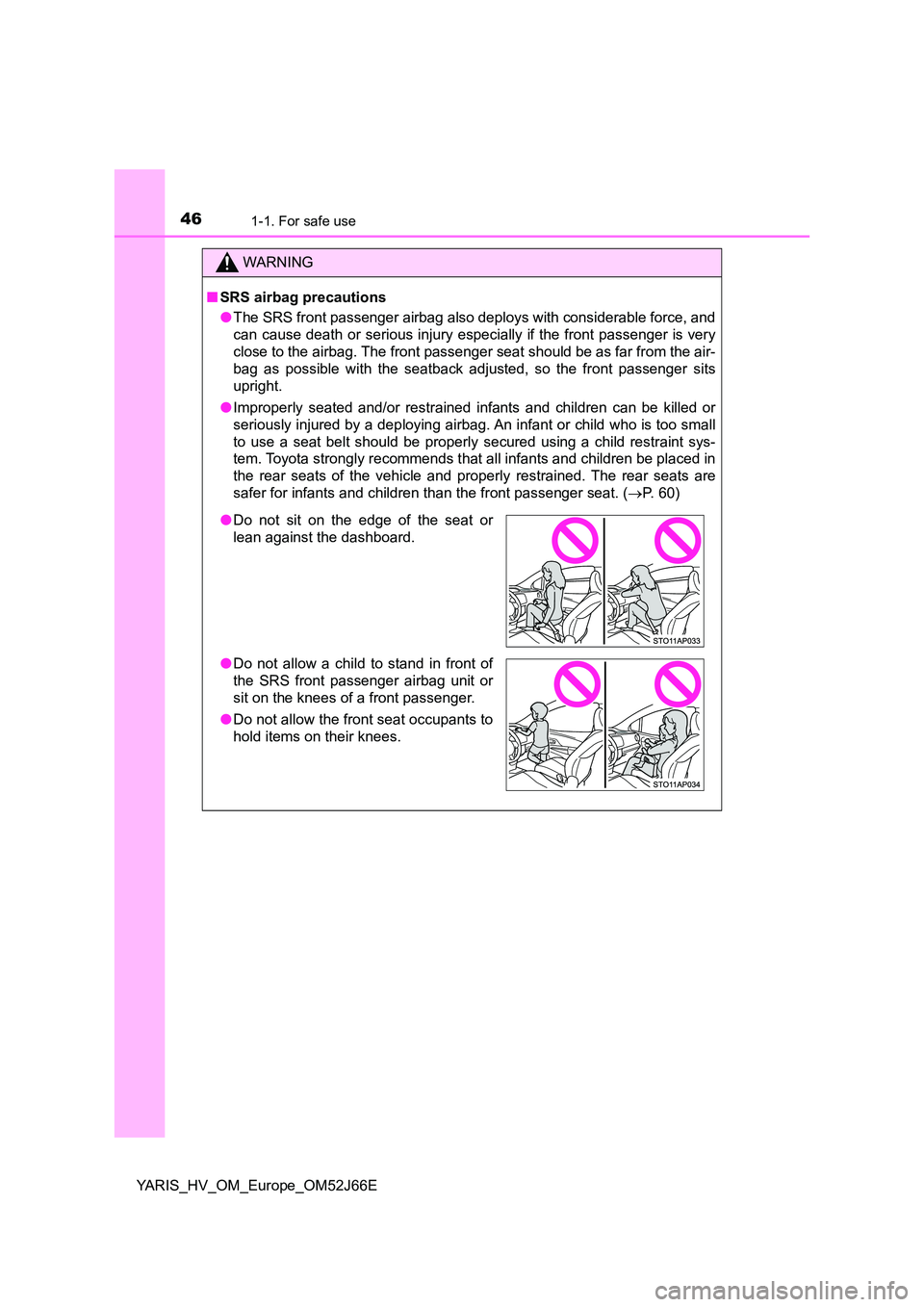

461-1. For safe use
YARIS_HV_OM_Europe_OM52J66E
WARNING
■SRS airbag precautions
● The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback adjusted, so the front passenger sits
upright.
● Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and proper ly restrained. The rear seats are
safer for infants and children than the front passenger seat. ( P. 60)
●Do not sit on the edge of the seat or
lean against the dashboard.
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants to
hold items on their knees.
