2018 TOYOTA YARIS iA Owners Manual (in English)

YARIS iA_OM_OM99Q46z_(U)
4094-4. Interior Equipment
4
Interior Features
Lift the trunk mat.
Always hang clothes on the coat
hooks and the assist grips without
hangers.
Cargo Sub-Compartment
Rear Coat Hooks
WARNING
■Never hang heavy or sharp objects on the assist grips and coat hooks
Hanging heavy or sharp-ended objects such as a coat hanger from the
assist grips or coat hooks is dangerous as they can fly off and hit an occu-
pant in the cabin if a curtain air bag was to deploy, which could result in seri-
ous injury or death.

410
YARIS iA_OM_OM99Q46z_(U)
4-4. Interior Equipment

411
YARIS iA_OM_OM99Q46z_(U)
5Maintenance and Care
5-1. Essential InformationIntroduction ....................... 412
5-2. Scheduled Maintenance Maintenance Monitor ........ 414
5-3. Owner Maintenance Owner Maintenance Precautions ..................... 417
Hood ................................. 419
Engine Compartment Overview ......................... 421
Engine Oil ......................... 422
Engine Coolant ................. 425
Brake/Clutch Fluid............. 428
Window Washer Fluid ....... 429
Body Lubrication ............... 430
Wiper Blades..................... 431
Battery............................... 434
Key Battery Replacement ................... 436
Tires .................................. 439
Light Bulbs ........................ 445
Fuses ................................ 455
5-4. Appearance Care Exterior Care ..................... 462
Interior Care ...................... 470

412
YARIS iA_OM_OM99Q46z_(U)
5-1. Essential Information
Introduction
Be careful not to hurt yourself when inspecting your vehicle, replacing
a tire, or doing some kind of maintenance such as car washing.
In particular, wear thick work gloves such as cotton gloves when
touching areas that are difficult to see while inspecting or working on
your vehicle. Doing inspections or procedures with your bare hands
could cause injury.
If you are unsure about any procedu re it describes, we strongly urge
you to have a reliable and qualified service shop perform the work,
preferably your Toyota dealer.
Factory-trained Toyota technicians and genuine Toyota parts are best
for your vehicle. Without this expe rtise and the parts that have been
designed and made especially for your Toyota, inadequate, incom-
plete, and insufficient servicing may result in problems. This could
lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult your Toyota dealer.
To continue warranty eligibility and to protect your investment, it is
your responsibility to pr operly maintain your vehicle according to fac-
tory recommended schedul es outlined in this manual. Keep a copy of
the repair order. It proves that the maintenance that has been per-
formed is under warranty coverage. If any problem should arise while
your vehicle is under warranty, your Toyota dealer will promptly take
care of it.
This evidence may consist of the following: • The Maintenance Log, found within the Warranty and Maintenance Guide, must be completely filled out showing mileage, repair order
number, date for each service, and signed by a qualified automotive
service technician who service vehicles.
• Original copies of repair orders or other receipts that include the mileage and date the vehicle was serviced. Each receipt should be
signed by a qualified automot ive service technician.
• For self maintenance, a statemen t that you completed the mainte-
nance yourself, displaying mileag e and the date the work was per-
formed. Also, receipts for the replac ement parts (fluid, filters, etc.)
indicating the date and mileage mu st accompany this statement.

YARIS iA_OM_OM99Q46z_(U)
4135-1. Essential Information
5
Maintenance and Care
Claims against the warranty resulting from lack of maintenance, as
opposed to defective materials or authorized Toyota workmanship, will
not be honored.
Any auto repair shop using parts equivalent to your Toyota’s original
equipment may perform maintenance. But we recommend that it
always be done by your Toyota dealer using genuine Toyota parts.
Selecting “Maintenance Monitor” enables the system to notify you of
your vehicle’s approaching inspection/servicing period (→P. 414).
The malfunction diagnosis connecto r is designed exclusively for con-
necting the specially designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed mal-
function diagnosis devices for servic ing. If any device other than the
malfunction diagnosis device is connec ted, it may affect the vehicle’s
electrical devices or lead to damage such as battery depletion.
If you elect to perform maintenance yourself or have your vehicle serviced at
a location other than your Toyota dealer, Toyota requires that all fluids, parts
and materials must meet Toyota standards for durability and performance as
described in this manual.
Malfunction
diagnosis
connector

414
YARIS iA_OM_OM99Q46z_(U)
5-2. Scheduled Maintenance
Maintenance Monitor
Based on the engine operating conditions, the onboard computer in
your vehicle calculates the remaining oil life in the United States and
Puerto Rico. The wrench indicator light in the instrument cluster will
be illuminated when remaining oil life becomes less than 600 miles
(1000 km), or remaining days are less than 15 (whichever comes
first). The system must be rese t whenever replacing the engine oil.
■Reset method
Press and hold the dashboard
illumination knob with the igni-
tion switched off, then switch it
on. Keep pressing the dash-
board illumination knob for
more than 5 seconds. The mas-
ter warning light will flash for a
few seconds when the reset is
completed.
Select the icon on the home screen to display the “Applica-
tions” screen.
Select “Vehicle Status Monitor”.
Select “Maintenance” to display the maintenance list screen.
Switch the tab and select the se tting item you want to change.
Maintenance Monitor (Type A audio)
Dashboard illumination knob
Maintenance Monitor (Type B audio)
1
2
3
4

YARIS iA_OM_OM99Q46z_(U)
4155-2. Scheduled Maintenance
5
Maintenance and Care
You can customize settings in the setup display as follows:
Ta bItemExplanation
Scheduled
SettingNotification can be switched on/off.
Time (months)
Displays the time or distance until main-
tenance is due.
Select this item to set the maintenance
period.
The wrench indication/indicator light in
the instrument cluster will be illuminated
when the remaining distance is less than
600 miles or 1000 km, or the remaining
number of days is less than 15 (which-
ever comes first).
Distance
(mile or km)
Reset
Resets the time and distance to the initial
values.
Once the system turns on, it needs to be
reset whenever carrying out mainte-
nance.
Tire Rotation
SettingNotification can be switched on/off.
Distance
(mile or km)
Displays the distance until tire rotation
is due.
Select this item to set the tire rotation
distance.
The wrench indication/indicator light in
the instrument cluster will be illumi-
nated when the remaining distance is
less than 600 miles or 1000 km.
Reset
Resets the remaining distance to the
initial value.
Once the system turns on, it needs to
be reset whenever rotating the tires.

4165-2. Scheduled Maintenance
YARIS iA_OM_OM99Q46z_(U)

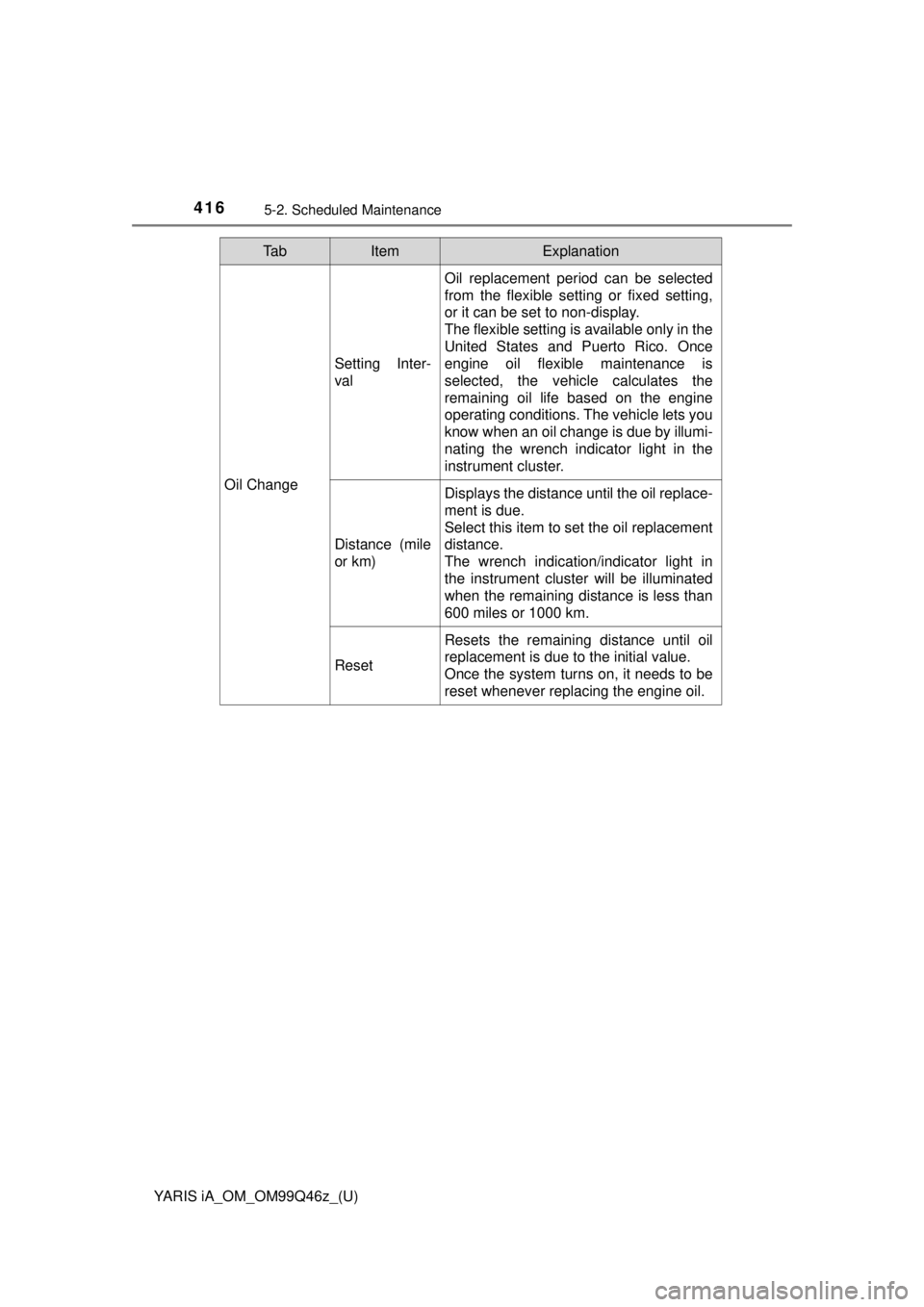

Oil Change
Setting Inter-
val
Oil replacement period can be selected
from the flexible setting or fixed setting,
or it can be set to non-display.
The flexible setting is available only in the
United States and Puerto Rico. Once
engine oil flexible maintenance is
selected, the vehicle calculates the
remaining oil life based on the engine
operating conditions. The vehicle lets you
know when an oil change is due by illumi-
nating the wrench indicator light in the
instrument cluster.
Distance (mile
or km)
Displays the distance until the oil replace-
ment is due.
Select this item to set the oil replacement
distance.
The wrench indication/indicator light in
the instrument cluster will be illuminated
when the remaining distance is less than
600 miles or 1000 km.
Reset
Resets the remaining distance until oil
replacement is due to the initial value.
Once the system turns on, it needs to be
reset whenever replacing the engine oil.
Ta bItemExplanation
