1573-2. Combination Meter and Display
3
When Driving
These lights turn on or flash to notify the user of the system operation
status or a system malfunction.
*1: The light turns on when the ignition is switched on for an operation chec\
k, and turns off a few seconds later or when the engine is started. If the light
does not turn on or remains turned on, have the vehicle inspected at your
Toyota dealer.
*2: The light turns on continuously when the parking brake is applied.
Warning Lights
*1Master Warning Light
(→P. 501)*1Air Bag/Front Seat Belt
Pretensioner System
Warning Light ( →P. 501)
*1, 2Brake System Warning
Light (→P. 501) Low Fuel Warning Light
(
→P. 501)
*1ABS Warning
Light ( →P. 501)*1Check Fuel Cap
Warning Light ( →P. 501)
*1Charging System
Warning Light (→P. 501) Seat Belt Warning Light
(Front seat) (
→P. 501)
*1Engine Oil Warning
Light (→P. 501) Door-Ajar Warning Light
(
→P. 501)
*1Check Engine Light
(→P. 501)
(If equipped)
Low Washer Fluid Level
Warning Light ( →P. 501)
*1
(Red)
High Engine Coolant
Temperature Warning
Light (→P. 501)*1
(If equipped)
Tire Pressure Monitoring
System Warning Light
(→P. 501)
*1
(If equipped)
Automatic Transaxle
Warning Light ( →P. 501)*1
(Red)
KEY Warning Light
(→P. 501)
*1Power Steering
Malfunction Indicator
Light ( →P. 501)
(Amber)
(If equipped)
Smart City Brake
Support (SCBS)
Warning Light ( →P. 501)

YARIS iA_OM_OM99Q46z_(U)
2414-1. Climate Control System
4
Interior Features
Set the mode selector dial to the position.
Set the temperature control dial to the cold position.
Set the fan control dial to the desired speed.
Turn on the air conditioner by pressing the A/C switch.
After cooling begins, adjust the fan control dial and temperature
control dial as needed to maintain maximum comfort.
● When maximum cooling is desired, set the temperature control dial to the
extreme cold position and set the air intake selector to the recirculated air
position, then set the fan control dial to position 4.
● If warmer air is desired at floor level, set the mode selector dial to the
position and adjust the temperature control dial to maintain maximum com-
fort.
● The air to the floor is warmer than air to the face (except when the tempera-
ture control dial is set at the extreme hot or cold position).
Cooling
NOTICE
If the air conditioner is used while driving up long hills or in heavy traffic,
monitor the engine coolant temperature warning light to see if it is illumi-
nated or flashing ( →P. 148).
The air conditioner may cause engine overheating. If the warning light is
illuminated or flashing, turn the air-conditioning off ( →P. 496).
1
2
3
4
5

417
YARIS iA_OM_OM99Q46z_(U)
5-3. Owner Maintenance
5
Maintenance and Care
Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle
inspections at the indicated inte rvals to ensure safe and dependable
operation.
Bring any problem to the attention of your Toyota dealer or qualified
service technician as soon as possible.
■When Refueling • Brake and clutch fluid level ( →P. 428)
• Engine coolant level ( →P. 425)
• Engine oil level ( →P. 424)
• Washer fluid level ( →P. 429)
■At Least Monthly
• Tire inflation pressures ( →P. 439)
■At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have
some mechanical ability and a few basic tools and if you closely fol-
low the directions in this manual.
• Engine coolant ( →P. 425)
• Engine oil ( →P. 422)
Improper or incomplete service may result in problems. This section
gives instructions only for items that are easy to perform.
As explained in the Introduction ( →P. 412), several procedures can be
done only by a qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect
warranty coverage. Refer to Introduction ( →P. 412) for owner’s
responsibility in protecting your in vestment. For details, read the sep-
arate Toyota Warranty and Mainten ance Guide provided with the vehi-
cle. If you are unsure about any se rvicing or maintenance procedure,
have it done by your Toyota dealer.
There are strict environmental laws regarding the disposal of waste oil
and fluids. Please dispose of your waste properly and with due regard
to the environment.
We recommend that you entrust the oil and fluid changes of your vehi-
cle to your Toyota dealer.

425
YARIS iA_OM_OM99Q46z_(U)
5-3. Owner Maintenance
5
Maintenance and Care
Engine Coolant
Inspect the antifreeze protection and coolant level in the coolant res-
ervoir at least once a year—at t he beginning of the winter season—
and before traveling where temperatures may drop below freezing.
Inspect the condition and connecti ons of all cooling system and
heater hoses.
Replace any that are swollen or deteriorated.
The coolant should be at full in the
radiator and between the F and L
marks on the coolant reservoir
when the engine is cool.
Cooling fan
Cooling system cap
Coolant reservoir
If it is at or near L, add enough coolant to the coolant reservoir to pro-
vide freezing and corrosion protecti on and to bring the level to F.
Securely tighten the coolant reserv oir tank cap after adding coolant.
If the coolant reservoir is empty or new coolant is required frequently,
consult your Toyota dealer.
Changing the coolant should be done by your Toyota dealer.
Inspecting Coolant Level
1
2
3

496
YARIS iA_OM_OM99Q46z_(U)
6-5. Overheating
Overheating
If the high engine coolant temperature warning light turns on:Drive safely to the side of the road and park off the right-of-way.
Put a vehicle with an automatic tr ansaxle in park (P), a manual tran-
saxle in neutral.
Apply the parking brake.
Turn off the air conditioner.
Check whether coolant or steam is escaping from the engine com-
partment.
If steam is coming from the engine compartment
Do not go near the front of the vehicle. Stop the engine.
Wait until the steam dissipates, then open the hood and start the
engine.
If neither coolant nor steam is escaping
Open the hood and idle the engine until it cools.
Make sure the cooling fan is operating, then turn off the engine after
the temperature has decreased.
When cool, check the coolant level.
If it is low, look for coolant leaks from the radiator and hoses.
■If you find a leak or other damage , or if coolant is still leaking:
Stop the engine and call your Toyota dealer.
Cooling fan
Cooling system cap
Coolant reservoir
If the high engine coolant temperature warning light turns on,
the vehicle loses power, or you hear a loud knocking or pinging
noise, the engine is probably too hot.
1
2
3
4
5
6
7
1
2
3

5046-7. Warning/Indicator Lights and Warning Sounds
YARIS iA_OM_OM99Q46z_(U)
■Power Steering Malfunction Indicator Light
●If the indicator light illuminates/flashes, the power steering will not operate
normally. If this happens, the steering wheel can still be operated, however,
the operation may feel heavy compared to normal, or the steering wheel
could vibrate when turning.
● Repeatedly jerking the steering wheel left and right while the vehicle is
stopped or moving extremely slowly will cause the power steering system to
go into protective mode which will make the steering feel heavy, but this
does not indicate a problem. If this occurs, park the vehicle safely and wait
several minutes for the system to return to normal.
WARNING
■Do not drive with the brake system warning light illuminated. Contact
your Toyota dealer to have the brakes inspected as soon as possible
Driving with the brake system warning light illuminated is dangerous. It indi-
cates that your brakes may not work at all or that they could completely fail
at any time. If this light remains illuminated, after checking that the parking
brake is fully released, have the brakes inspected immediately.
In addition, the effectiveness of the braking may diminish so you may need
to depress the brake pedal more strongly than normal to stop the vehicle.
■ Do not drive with both the ABS warning light and brake warning light
illuminated. Have the vehicle towed to your Toyota dealer to have the
brakes inspected as soon as possible
Driving when the brake system warning light and ABS warning light are illu-
minated simultaneously is dangerous.
When both lights are illuminated, the rear wheels could lock more quickly in
an emergency stop than under normal circumstances.
NOTICE
■ Charging System Warning Light
Do not continue driving when the charging system warning light is illumi-
nated because the engine could stop unexpectedly.
■ Engine Oil Warning Light
● Do not run the engine if the oil pressure is low. Otherwise, it could result in
extensive engine damage.
● Do not run the engine if the oil level is low. Otherwise, it could result in
extensive engine damage.
■ High Engine Coolant Temperature Warning Light
Do not drive the vehicle with the high engine coolant temperature warning
light illuminated. Otherwise, it could result in damage to the engine.

5578-2. Specifications
YARIS iA_OM_OM99Q46z_(U)
8
Specifications
Refer to Introduction on P. 412 for owner’s responsibility in protecting your
investment.
Approximate Quantities:
Check oil and fluid levels with dipsticks or reservoir gauges.

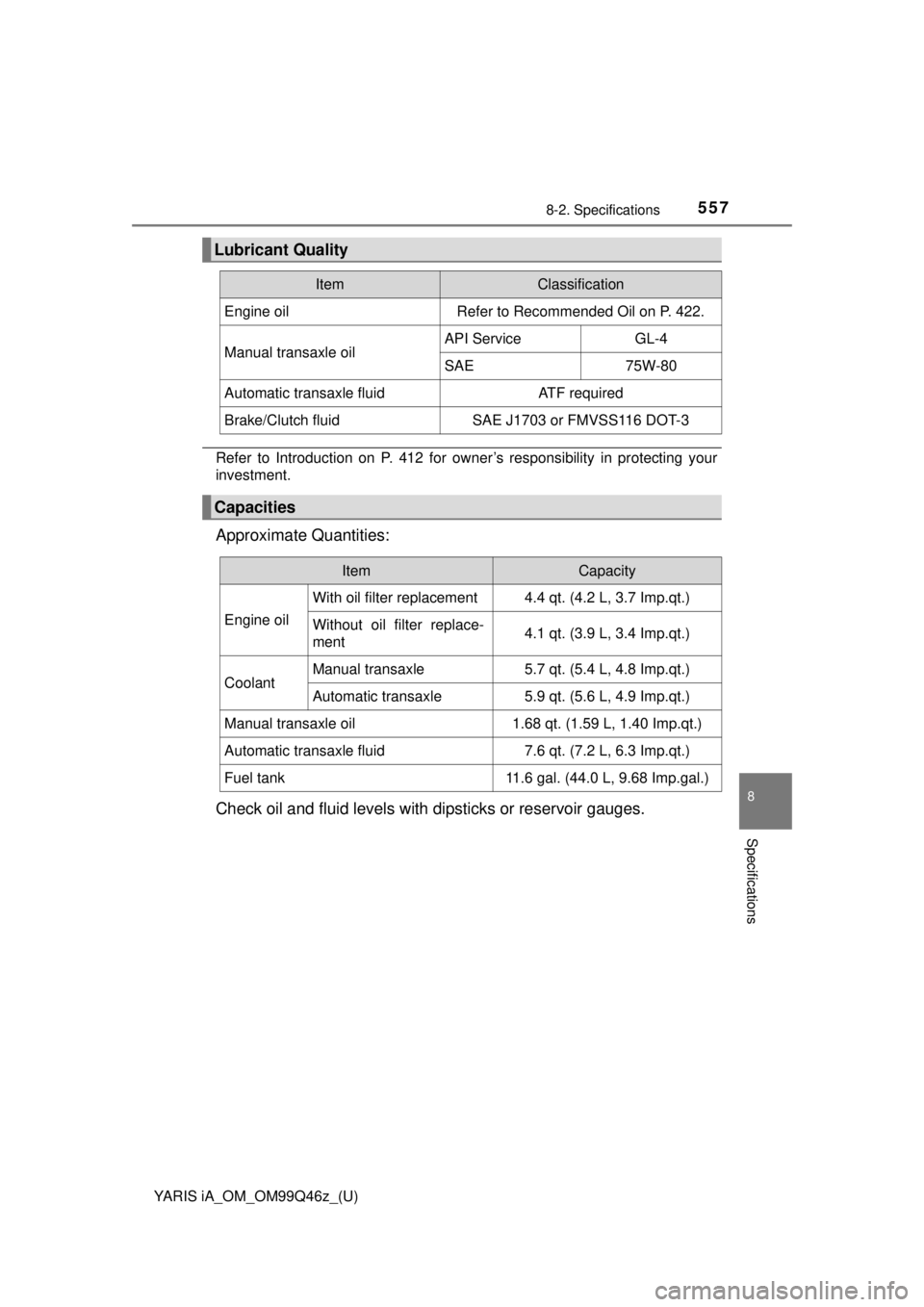

Lubricant Quality
ItemClassification
Engine oilRefer to Recommended Oil on P. 422.
Manual transaxle oilAPI ServiceGL-4
SAE75W-80
Automatic transaxle fluidATF required
Brake/Clutch fluidSAE J1703 or FMVSS116 DOT-3
Capacities
ItemCapacity
Engine oil
With oil filter replacement4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without oil filter replace-
ment4.1 qt. (3.9 L, 3.4 Imp.qt.)
CoolantManual transaxle5.7 qt. (5.4 L, 4.8 Imp.qt.)
Automatic transaxle5.9 qt. (5.6 L, 4.9 Imp.qt.)
Manual transaxle oil1.68 qt. (1.59 L, 1.40 Imp.qt.)
Automatic transaxle fluid7.6 qt. (7.2 L, 6.3 Imp.qt.)
Fuel tank11.6 gal. (44.0 L, 9.68 Imp.gal.)

572Alphabetical index
YARIS iA_OM_OM99Q46z_(U)
Exhaust Gas ............................. 109
Exterior Care ............................ 462Aluminum Wheel Maintenance ....................... 468
Bright-Metal Maintenance ..... 467
Maintaining the Finish ........... 464
Plastic Part Maintenance ...... 469
Flasher Hazard warning..................... 186
Headlights ............................. 175
Flat Tire..................................... 477 Mounting the Spare Tire ....... 487
Removing a Flat Tire ............ 483
Floor Mat .................................. 128
Fluid Brake/Clutch ......................... 428
Washer ................................. 429
Fluids
Classification......................... 557
Fog Lights ................................ 179
Foot Brake ................................ 187
Front Seat ................................... 21
Fuel Filler lid and cap.................... 110
Gauge ................................... 151
Requirements ....................... 107
Tank capacity........................ 557
Fuel Consumption Display ..... 200
Fuel Economy Monitor ............ 199
Ending display ...................... 200
Fuel consumption display ..... 200
Fuses ........................................ 455 Panel description .................. 458
Replacement......................... 455
Gauges ..................................... 148
Glove Compartment ................ 408 Hazard Warning Flasher ......... 186
Hazardous Driving................... 127
Head Restraint ........................... 27
Headlights
Coming home light................ 177
Control .................................. 175
Flashing ................................ 176
High-low beam...................... 176
Leaving home light ............... 177
Hill Launch Assist (HLA) ........ 191
Hood Release........................... 419
Horn .......................................... 112
If a Warning Light Turns On or Flashes ........................ 501
Ignition
Switch ................................... 140
Ignition not switched off (STOP) warning beep............ 516
Illuminated Entry System ....... 402
Immobilizer System................. 120
Indicator Lights ....................... 158 Low engine coolant temperature ........................ 159
Wrench ................................. 159
Inside Trunk Release Lever .... 105
Inspecting Brake/Clutch
Fluid Level ............................. 428
Inspecting Coolant Level ........ 425
Inspecting Engine Oil Level ... 424
Inspecting Washer Fluid Level ....................................... 429
F
G
H
I
