2018 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

5536-3. Using the storage features
PRIUS PHV_OM_OM47C99E_(EE)
6
Interior features
Cup holders
FrontRear
Front cup holders:
When placing a mug, push the partition
down.
When placing cans, bottles, etc., push the
partition once more to return it to its origi-
nal position.
WARNING
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.

5546-3. Using the storage features
PRIUS PHV_OM_OM47C99E_(EE)
●When storing a bottle, close the cap.
●The bottle may not be stored depending on its size or shape.
Bottle holders/door pockets
Front doorsRear doors
NOTICE
Put the cap on before stowing a bottle. Do not place open bottles or glass
and paper cups containing liquid in the bottle holders.
The contents may spill and glasses may break.

5556-3. Using the storage features
PRIUS PHV_OM_OM47C99E_(EE)
6
Interior features
Auxiliary boxes
Ty pe AType B (if equipped)
Press in the lid.
The overhead console is useful for
temporarily storing small items.
Vehicles with the wireless char-
ger: P. 563
Type C (if equipped)Type D
Lift the lid while pulling up the
knob.
WARNING
Type A:
Do not store items heavier than 200 g (0.44 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.

5566-3. Using the storage features
PRIUS PHV_OM_OM47C99E_(EE)
Luggage compartment features
■When installing the deck board
Auxiliary boxes
CenterRight side
Pull the strap upwards to lift up
the deck board.
The luggage cover, charging cable,
tool bag, etc. can be stowed.
Pull the strap upwards to lift up
the deck board.
Insert the claw in to the hole, and return
the deck board.

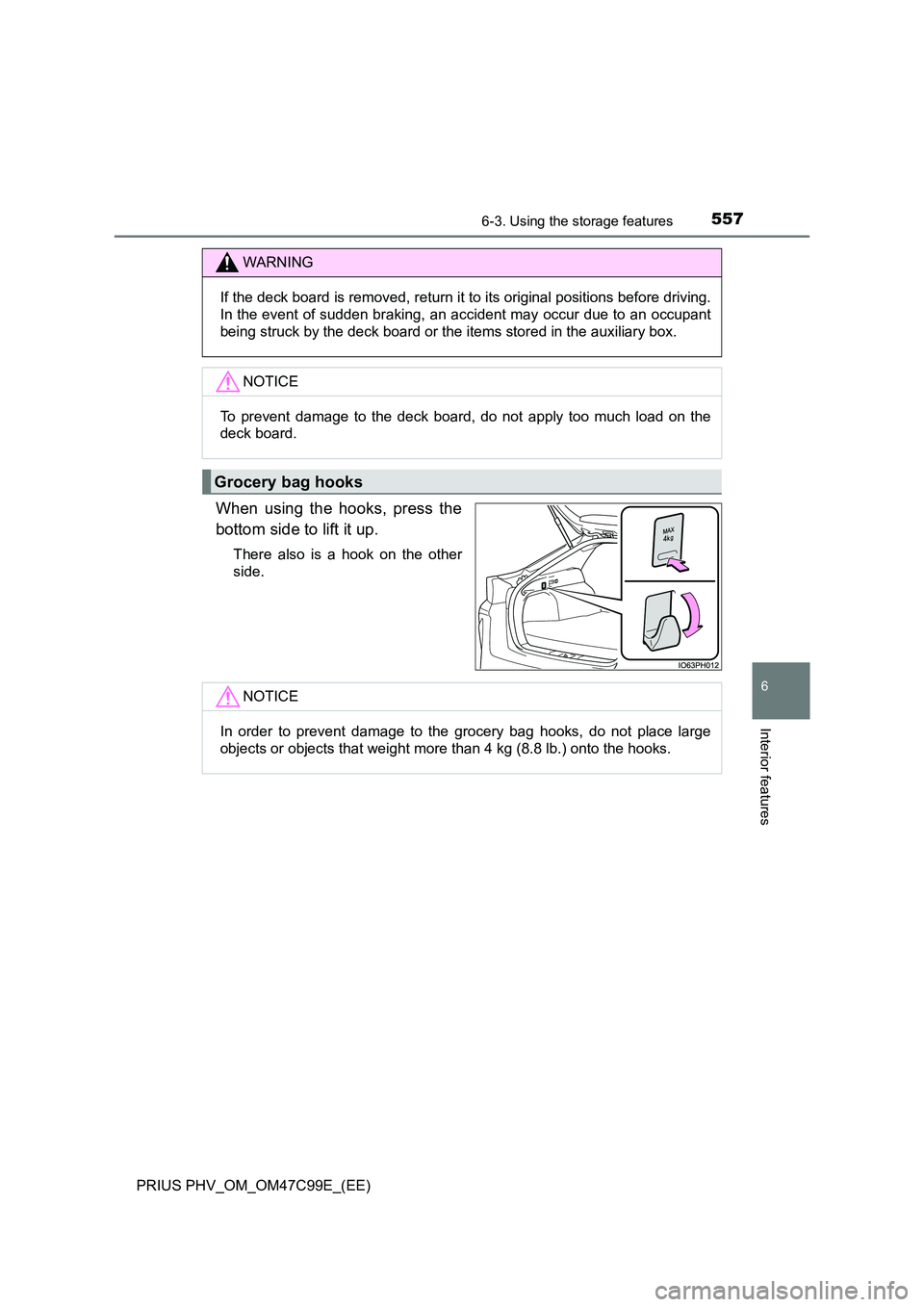

5576-3. Using the storage features
PRIUS PHV_OM_OM47C99E_(EE)
6
Interior features
When using the hooks, press the
bottom side to lift it up.
There also is a hook on the other
side.
WARNING
If the deck board is removed, return it to its original positions before driving.
In the event of sudden braking, an accident may occur due to an occupant
being struck by the deck board or the items stored in the auxiliary box.
NOTICE
To prevent damage to the deck board, do not apply too much load on the
deck board.
Grocery bag hooks
NOTICE
In order to prevent damage to the grocery bag hooks, do not place large
objects or objects that weight more than 4 kg (8.8 lb.) onto the hooks.

5586-3. Using the storage features
PRIUS PHV_OM_OM47C99E_(EE)
The warning reflector can be
stowed.
(The warning reflector itself is not
included as an original equipment)
Depending on the size and shape of the warning reflector case, etc., you may
not be able to store it.
Warning reflector storage space
WARNING
When storing the warning reflector, etc., make sure that it is properly stored.
If the warning reflector is not properly stored, it may fly out during emer-
gency braking and lead to an accident.

5596-3. Using the storage features
PRIUS PHV_OM_OM47C99E_(EE)
6
Interior features
■Installing the luggage cover
Install one side of the luggage
cover to the holder. While push-
ing that side in, install the other
side to the opposite holder.
■Using the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
■Removing the luggage cover
Push one end of the luggage
cover inward and remove it
from the holder.
Luggage cover

5606-3. Using the storage features
PRIUS PHV_OM_OM47C99E_(EE)
■Stowing the luggage cover
Remove the deck boards.
Store cover in the center aux-
iliary box.
Return the deck boards to its original position and close it.
1
2
WARNING
● Do not place anything on the luggage cover. In the event of sudden brak-
ing or turning, the item may go flying and strike an occupant. This could
lead to an unexpected accident, resulting in death or serious injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
● Make sure that the rear edge of the cover is laying flat. If the cover is
installed with the rear edge raised, t he view from the rear window may be
obstructed, which could cause an accident.
● Make sure that seat belts are not caught up in the luggage cover. If a seat
belt is caught up in the cover, it may not be able to restrain passengers
properly.
3
