1.SETUPOPERATION
1Displ ay the “Setup” scr een. ( →P.8 9)
2Select “Vehicle”.
3Select the desired item
7. VEHICLE SETTINGS
Vehicle model specific
customization settings can be
changed
105

1.SETUP OPERATION
6


NAVIGATION
SYSTEM
1


BASIC INFORMATION
BEFORE OPERATION

1. QUICK REFERENCE ...... ............ 108
2. DISPLAYING THE NA VIGATION
SCREEN.. ....... .............................. 112
DISPLAYING MAP SCREEN ............... 112
DISPLAYING THE NAVIGATION
MENU SCREEN.................................... 112
3. NAVIGATION SYSTEM FUNCTION
INDEX ...... .................................... 114
2 MAP SCREEN OPERATION
AND MAP ICONS

1 . MAP SCREEN OPERATION ...... . 116
CURRENT VEHICLE POSITION
DISPLAY……………………….............. 116
MAP CONFIGURATIONS……….......... 118
2. MAP ICONS……. ......................... 120
DISPLAYING VARIOUS
INFORMATION ON THE MAP........... 120
POI* ICONS……………………. ......... 120
3 DESTINATION SEARCH
1. DESTINATION SEARCH INDEX. . 123
2. SEARCH OPERATION………….. 124

BY REGISTERED POINTS ................ 124
FROM PREVIOUS DESTINATIONS.... 124
BY PHONE BOOK ............................... 125
BY ADDRESS...................................... 125
BY POIs*.............................................. 126
BY NAME…………............................... 127
BY CATEGORY…................................ 128
ON THE MAP....................................... 130
BY COORDINATES............................. 130
4

ROUTE GUIDANCE
1. STARTING ROUTE GUIDANCE ... 132
STARTING ROUTE GUIDANCE
SCREEN………………………............... 132
ADJUSTING THE ROUTE…..….......... 133
2. ROUTE GUID ANCE….................... 134
ROUTE GUIDANCE SCREEN......... 134
VOICE GUIDANCE…………….......... 135
*: Point of Interest
106

6

NAVIGATION SYSTEM


3 . SETTING AND DELETING THE
ROUTE……………………….... ...... 137
STOPPING ROUTE GUIDANCE........ . 138
ADDING AND EDITING WAY POINTS. 138
DISPLAYING ROUTE INFORMATION.. 140
DISPLAYING THE TURN LIST……..... 141
BLOCKING ROAD AHEAD……..…..... 141
DETOURING A SEGMENT O N THE
ROUTE…………………………….…..... 142
5 FAVORITE DESTINATION S
1 . REGISTERING AN ENTRY…....... 143
REGISTERING A NEW ENTRY........... 143
2. DISPLAYING AND EDITING THE
ENTRY INFORMATION………. ..... 1 47
DISPLAYING AND EDITING THE
ENTRY INFORMATION………............ 147
3. AUTO -NAVIGATION TO ENTRY.. 1 49
SETTING UP AUTO -NAVIGATION...... 149
4. SENDING AND RESTORING
STORED CONTACTS USING A
USB MEMORY……………….. ...... 150
SENDING STORED CONTACTS TO A
USB MEMORY…………………... ......... 150
RESTORING STORED CONTACTS
FROM A USB MEMORY……….. ......... 151
6
NAVIGATION SETTING
1. MAP SETTINGS………………….. 152
SETTING THE MAP………………….. 152
2. ROUTE SETTINGS……………….. 155
SETTING THE ROUTE OPTIONS….... 155
7
NAVIGATION SYSTEM
INFORMATION


1. LIMITATIONS OF THE
NAVIGATION SYSTEM. .... ........... 156
2. NAVIGATION DATABASE
UPDATES.. ................................... 158




107

1. BASIC INFORMATION BEFORE OPERATION
1. QUICK REFERENCE
1. BASIC INFORMATION BEFORE OPERATION


“Navigation” MENU SCREEN


















No. Function Page
Select any of the listed favorite destinations to set as destination or
waypoint. 124
Select to display and manage the “Favorite destination” list. 143
Select to enter an address for destination or waypoint. 138
Select to display the list of previous destinations. 124
Select to search among available POIs. 126
Select to search in the phone book for contacts with an address. 125
To display the “Navigation” menu screen, press the “MEDIA” button.
Each time the “
MEDIA” button is pressed the Premium Audio System
will switch between MAP and the la st audio mode used. While on the
MAP when
is selected, the Navigation screen that was last
displayed will be shown. Select to display the “Navigation” menu
screen or press the “MEDIA ” button to show the map. From these
screens destinations can be entered and route related settings can be
changed.
1
2
3
4
5
6
1. QUICK REFERENCE

108

1. BASIC INFORMATION BEFORE OPERATION
1. QUICK REFERENCE
1. BASIC INFORMATION BEFORE OPERATION

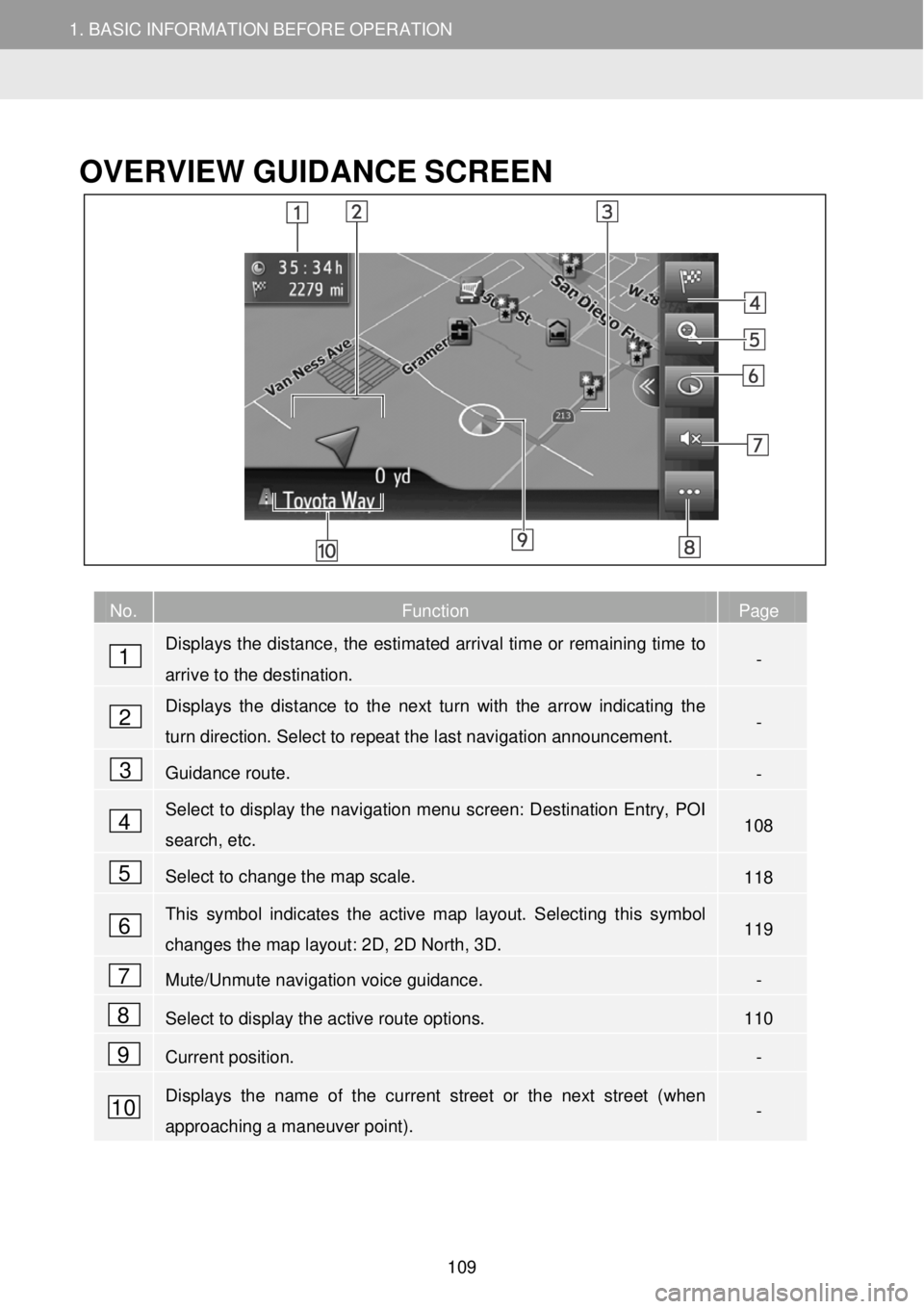

OVERVIEW GUID ANCE SCREEN












No. Function Page
Displays the distance, the estimated arrival time or remaining time to
arrive to the destination. -
Displays the distance to the next turn with the arrow indicating the
turn direction. Select to repeat the last navigation announcement. -
Guidance route. -
Select to display the navigation menu screen: Destination Entry, POI
search, etc. 108
Select to change the map scale. 118
This symbol indicates the active map layout. Selecting this symbol
changes the map layout: 2D, 2D North, 3D. 119
Mute/Unmute navigation voice guidance. -
Select to display the active route options. 110
Current position. -
Displays the name of the current street or the next street (when
approaching a maneuver point). -

1
2
3
4
5
6
7
8
9
10
109

1. BASIC INFORMATION BEFORE OPERATION
1. QUICK REFERENCE
1. BASIC INFORMATION BEFORE OPERATION

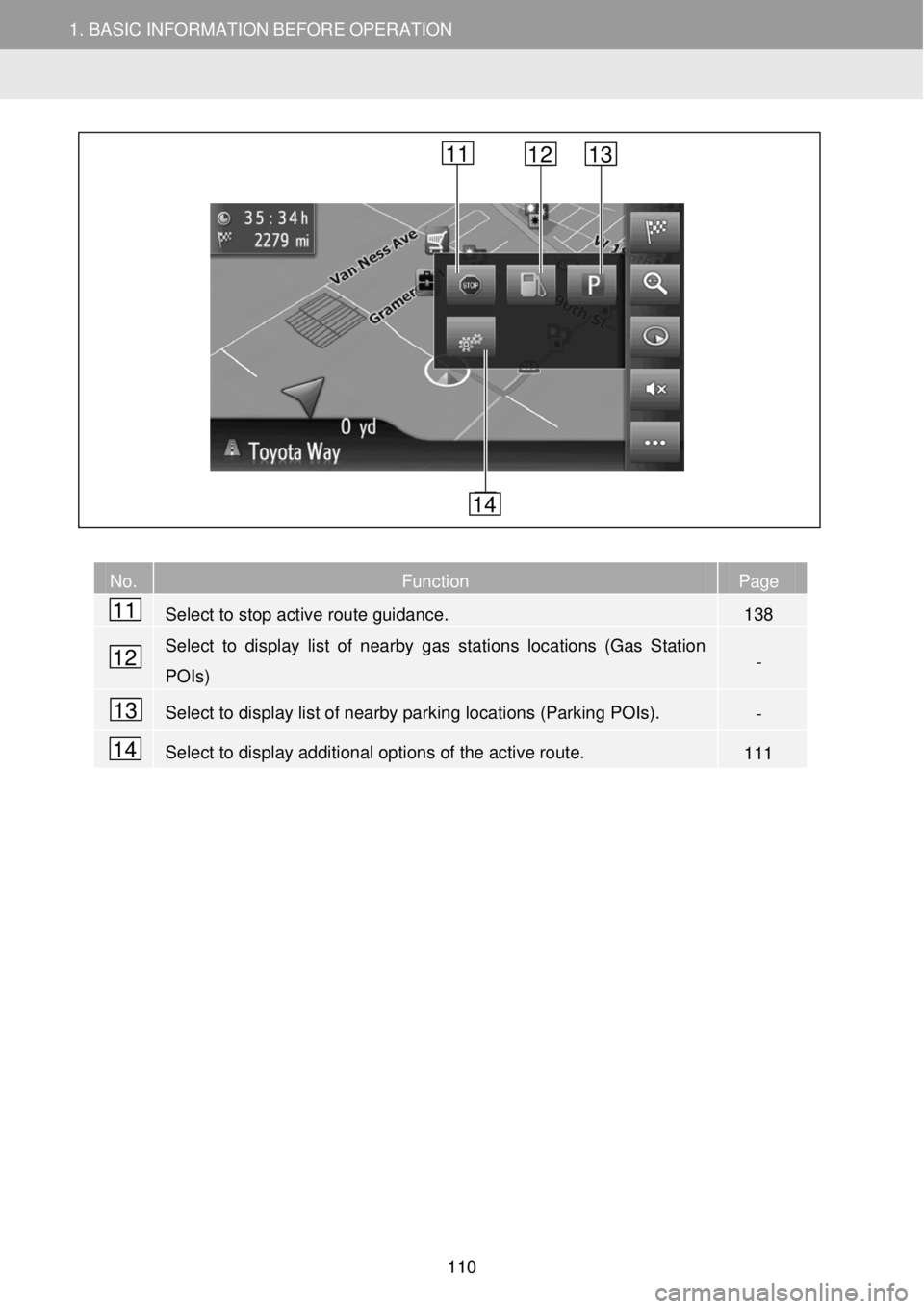

No. Function Page
Select to stop active route guidance. 138
Select to display list of nearby gas stations locations (Gas Station
POIs) -
Select to display list of nearby parking locations (Parking POIs). -
Select to display additional options of the active route. 111
11
12
13
14
11 12 13
14
110

1. BASIC INFORMATION BEFORE OPERATION 1. BASIC INFORMATION BEFORE OPERATION



OPTIONS FOR A CTIVE ROUTE

Additional settings are ac cessible through the Setup menu. Press the button
and select “Map settings” for Day/Night mode, Arrival information, Speed limits,
Automatic map zoom, etc.













No. Function Page
Select to change the map scale. 118
Select to display the current location, geo-coordinates and GPS
information, destination and waypoint information. 140
Select to display a list of different segments of the route. It is also
possible to define a detour. 141
Select to block a fixed distance on the road ahead. 141
Select to change the route options and the avoidance criteria for the
active route. 133
*: During route guidan ce
2
1 *
3 *
4 *
5 *
111

1. BASIC INFORMATION BEFORE OPERATION 1. BASIC INFORMATION BEFORE OPERATION


No. Functi on
Sele ct any of the listed favorite destinations to set as destination o r
waypoint.
Sele ct to display and mana ge the
“Favo rite destination” list.
Sele ct to enter an address for
destination or waypoint.
Select to display the list of previous
destinations.
Sele ct the search among the
available POIs.
Select to sear ch in the phone book
for contacts with an addr ess.

DISPLAY ING MAP SCR EEN
1 Press the “ MEDIA” button.
 Each time t he “ MEDIA ” button is
pressed th e system will switch the
scre en between MAP and the last
au dio mod e used.
DISPLAYING THE
NAVIGATION MENU SCREEN
1 Press the “MEDIA” butt on. Each
time the “MEDIA ” button is pressed
the system w ill switch the scr een
betw een MAP and the last audi o
mo de used


2
Select
3 Th
e main “ Navigatio n” screen will
b e displa yed


















 Wh en is selected on the map
screen, the screen t hat was las t displ ayed
is returne d to. Se lect
or p ress t he
“ MEDIA ” button to displa y th e map
screen.

Each time the “ MEDIA” button is
pr esse d the Premium Audio System w ill
switch t he screen between MAP and the
last audio mode us ed.
2. DISPLAYING THE NAVIGATION SCREEN
