6209-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

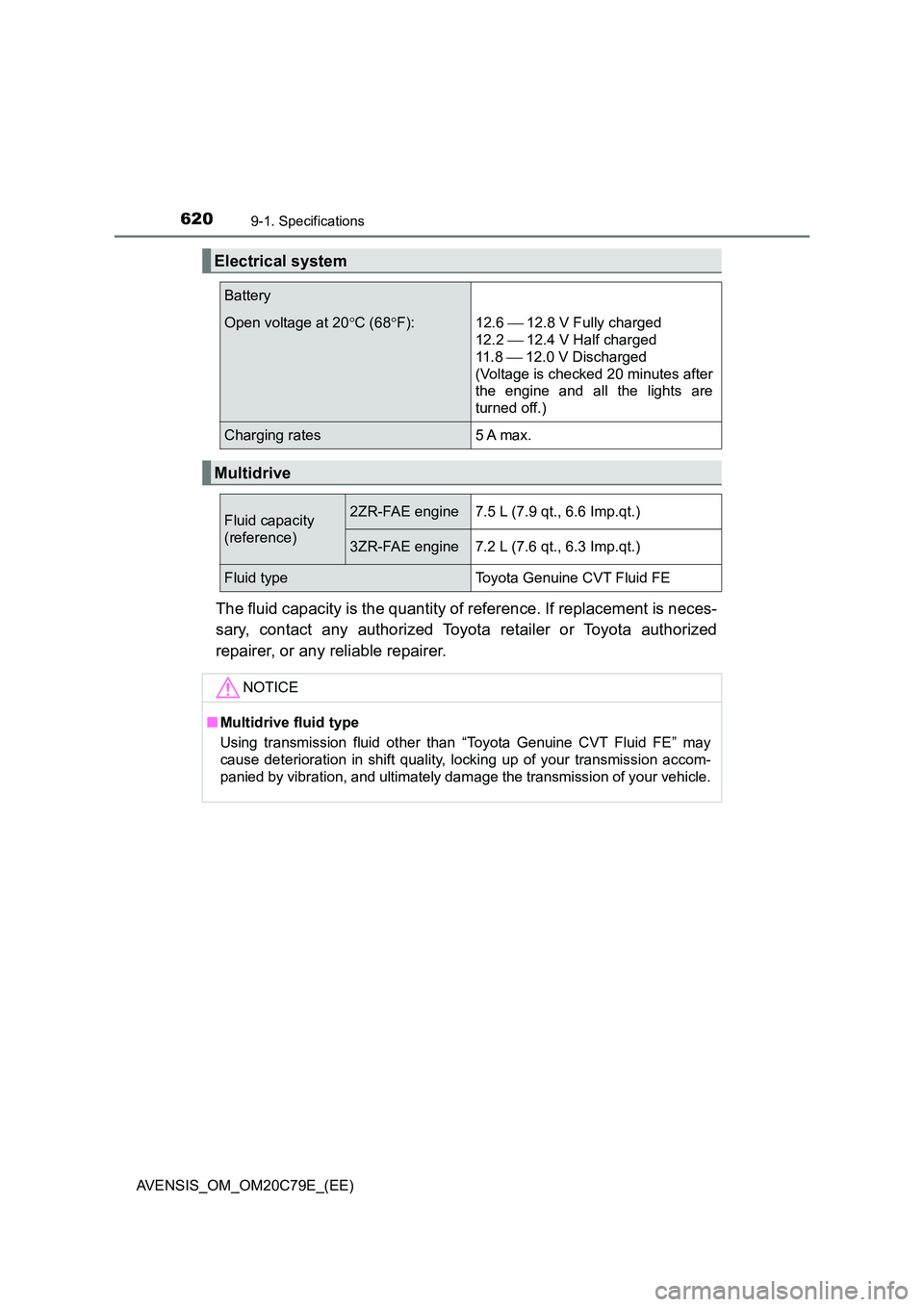

Electrical system
Battery
Open voltage at 20 C (68F): 12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.
Multidrive
Fluid capacity
(reference)
2ZR-FAE engine7.5 L (7.9 qt., 6.6 Imp.qt.)
3ZR-FAE engine7.2 L (7.6 qt., 6.3 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using transmission fluid other than “Toyota Genuine CVT Fluid FE” may
cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately dam age the transmission of your vehicle.
648Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Emergency tire puncture
repair kit ................................. 554
Engine
“ACC” position....................... 210
Accessory mode ................... 215
Before stopping the engine
(diesel engine) .................... 189
Compartment ........................ 453
Engine switch ................ 209, 212
Hood ..................................... 450
How to start the
engine......................... 209, 212
Identification number............. 608
Idling time.............................. 189
If the engine will not start ...... 586
If your vehicle has to be
stopped in an emergency ... 519
Ignition switch
(engine switch) ........... 209, 212
Overheating .......................... 600
Engine compartment
cover ....................................... 455
Engine coolant
Capacity ................................ 618
Checking ............................... 461
Preparing and checking
before winter....................... 312
Engine coolant temperature
gauge ...................................... 106
Engine immobilizer system ...... 78
Engine oil
Capacity ................................ 612
Checking ............................... 456
Oil pressure warning
message ............................. 537
Preparing and checking
before winter....................... 312Engine oil maintenance
data ......................................... 459
Engine switch .................. 209, 212
Auto power off function ......... 216
Changing the engine switch
mode .................................. 215
Changing the engine
switch position .................... 210
If your vehicle has to be
stopped in an emergency ... 519
Starting the engine........ 209, 212
Engine switch light
(ignition switch)..................... 409
EPS (Electronic Power Steering)
Function ................................ 306
Warning light ......................... 531
Warning message ................. 541
First-aid kit storage belt .......... 418
Flat tire.............................. 570, 554
Floor mat .................................... 30
Fluid
Brake .................................... 622
Clutch.................................... 622
Multidrive .............................. 620
Steering ................................ 622
Transmission ........................ 620
Washer ................................. 466
Fog lights
Replacing light bulbs..... 505, 515
Switch ................................... 241
Wattage ................................ 625
Follow me home system ......... 237
Front fog lights
Replacing light bulbs............. 505
Switch ................................... 241
Wattage ................................ 625
F
