AVENSIS_OM_OM20C79E_(EE)
9
7
6-3. Using the storage features
List of storage features ......412
• Glove box ......................413
• Console box ..................414
• Overhead console .........414
• Cup holders/bottle
holders ...........................415
• Coin box ........................417
Trunk features (sedan) ......418
Luggage compartment
features (wagon)..............420
6-4. Using the other interior
features
Other interior features ........427
• Sun visors ......................427
• Vanity mirror ..................427
• Power outlet ..................428
• Armrest ..........................429
• Trunk/luggage
compartment
storage extension ..........430
• Panoramic roof shade
(wagon) .........................431
• Coat hooks ....................433
• Assist grips ....................433
7-1. Maintenance and care
Cleaning and
protecting the
vehicle exterior ................ 436
Cleaning and
protecting the
vehicle interior ................. 440
7-2. Maintenance
Maintenance
requirements ................... 443
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 446
Hood.................................. 450
Positioning a floor jack ...... 452
Engine compartment ......... 453
Tires .................................. 468
Tire inflation pressure........ 486
Wheels .............................. 488
Air conditioning filter .......... 491
Wireless remote control/
electronic key battery ...... 493
Checking and replacing
fuses ............................... 496
Light bulbs ......................... 501
7Maintenance and care

1223-1. Key information
AVENSIS_OM_OM20C79E_(EE)
Press the button to open the key.
To stow, press the button then fold
the key.
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(P. 592)
■When required to leave the vehicle’s key with a parking attendant (for
right-hand drive vehicles with smart entry & start system)
Lock the glove box as circumstances demand. (P. 413)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■If you lose your keys
New genuine keys can be made by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer using the other key and the key
number stamped on your key number plate. Keep the plate in a safe place
such as your wallet, not in the vehicle.
Using the key (if equipped)
Using the mechanical key (if equipped)

1533-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C79E_(EE)■Note for the entry function
●Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to
the rear bumper center when the trunk or back door is locked/unlocked.
• The electronic key is on the instrument panel, package tray (sedan), lug-
gage cover (wagon), floor or in the glove box when the engine is started
or engine switch modes are changed.
●Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.
●The doors may unlock or lock if a large amount of water splashes on the
door handle, such as in the rain or in a car wash when the electronic key is
within the effective range. (The doors will automatically be locked after
approximately 30 seconds if the doors are not opened and closed.)
●If the key is kept near the vehicle while it is being washed, water applied to a
door handle may cause the door to lock and unlock repeatedly. In this event,
place the key in a location 2 m (6 ft.) or more from the vehicle, taking care
not to lose the key.
●If the key is inside the vehicle while it is being washed, water applied to a
door handle may cause a buzzer to sound and a message to be displayed.
In this event, locking all doors will cause the message to extinguish and the
buzzer to stop sounding.
●It may not be possible to lock the doors if the sensor area is covered by
mud, ice, snow etc. In this event, try locking again after cleaning the area, or
lock by touching the sensor area on the underside of the door handle.
●Gripping the door handle when wearing a glove may not unlock or lock the
door.
●If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the smart entry & start system. (Use the wireless remote control
to unlock the doors.)
●A sudden approach to the effective range or door handle operation may pre-
vent the doors from being unlocked. In this case, return the door handle to
the original position and check that the doors unlock before pulling the door
handle again.

1944-1. Before driving
AVENSIS_OM_OM20C79E_(EE)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When the vehicle is parked
● Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
• The temperature inside the vehicle may cause the plastic lenses and
plastic material of glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehicle’s
electrical components.
● Do not leave cigarette lighters in the vehicle. If a cigarette lighter is in a
place such as the glove box or on the floor, it may be lit accidentally when
luggage is loaded or the seat is adjusted, causing a fire.
● Do not attach adhesive discs to the windshield or windows. Do not place
containers such as air fresheners on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehi-
cle.
● Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one. Reflected sunlight may cause
the glass to act as a lens, causing a fire.
● Always shift the shift lever to P (vehicles with Multidrive), apply the parking
brake, stop the engine and lock the vehicle.
Do not leave the vehicle unattended while the engine is running.
If the vehicle is parked with the shift lever in P but the parking brake is not
set, the vehicle may start to move, possibly leading to an accident.
● Do not touch the exhaust pipe while the engine is running or immediately
after turning the engine off.
Doing so may cause burns.

383
5
5-10. Bluetooth®
Audio system
AVENSIS_OM_OM20C79E_(EE)
Bluetooth®
■When using the Bluetooth® audio/phone
●In the following situations, the system may not function.
• The portable player does not support Bluetooth
®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or
console box, or metal material covers or touches the device
●There may be a delay if a cellular phone connection is made
during Bluetooth
® audio play.
●Depending on the type of portable audio player that is connected
to the system, operation may differ slightly and certain functions
may not be available.
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being
improperly accessed. (P. 370)

391
6Interior features
AVENSIS_OM_OM20C79E_(EE)6-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................. 392
Automatic air conditioning
system ............................. 398
Power heater ..................... 405
Seat heaters ...................... 407
6-2. Using the interior lights
Interior lights list................. 409
• Personal/interior light
main switch.................... 410
• Personal/interior
lights .............................. 410
• Personal lights ............... 4106-3. Using the storage features
List of storage features ...... 412
• Glove box ...................... 413
• Console box .................. 414
• Overhead console ......... 414
• Cup holders/bottle
holders........................... 415
• Coin box ........................ 417
Trunk features (sedan) ...... 418
Luggage compartment
features (wagon).............. 420
6-4. Using the other interior
features
Other interior features ........ 427
• Sun visors...................... 427
• Vanity mirror .................. 427
• Power outlet .................. 428
• Armrest .......................... 429
• Trunk/luggage
compartment
storage extension .......... 430
• Panoramic roof shade
(wagon) ......................... 431
• Coat hooks .................... 433
• Assist grips .................... 433

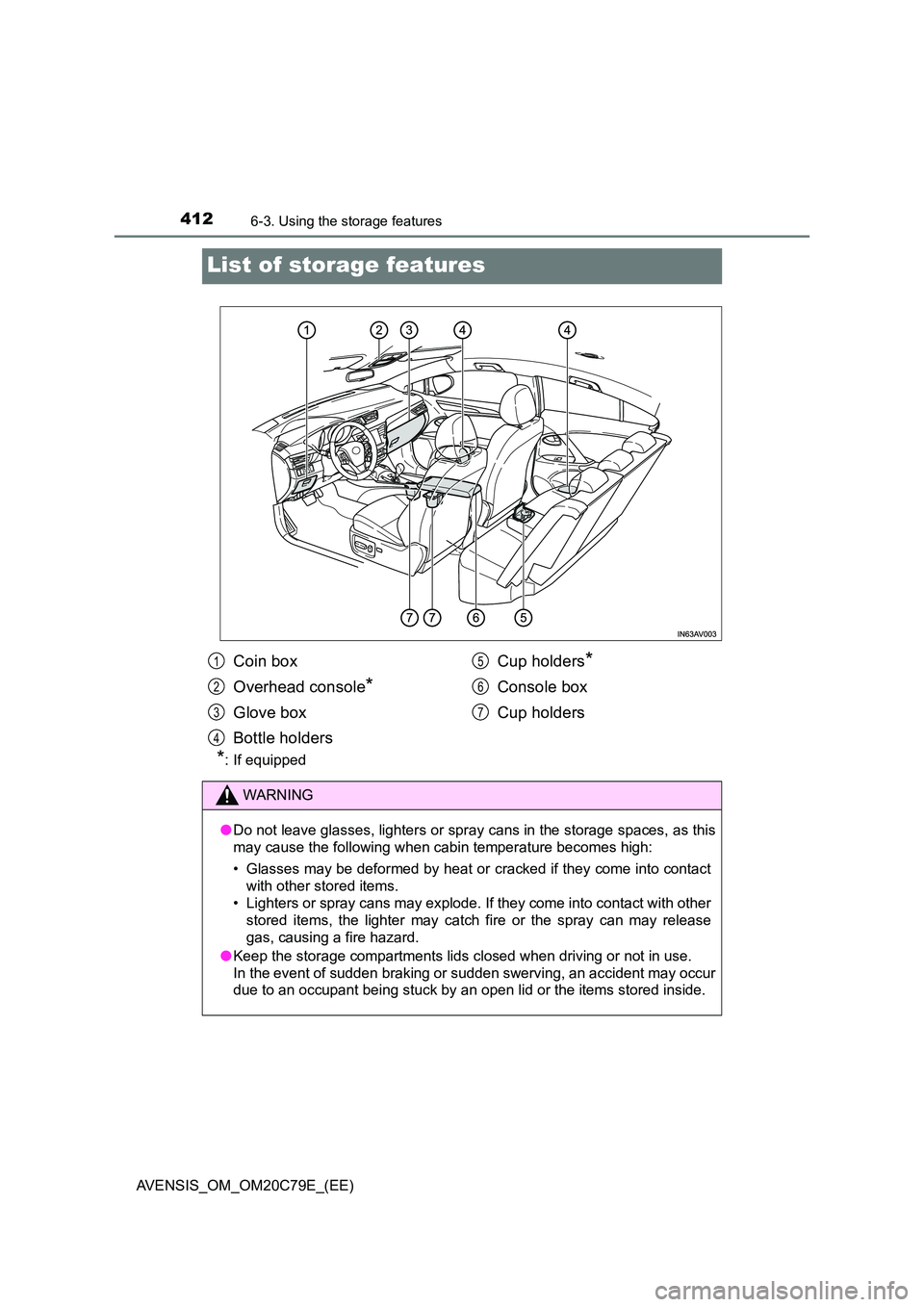

4126-3. Using the storage features
AVENSIS_OM_OM20C79E_(EE)
List of storage features
*: If equipped
Coin box
Overhead console*
Glove box
Bottle holders
Cup holders*
Console box
Cup holders
WARNING
● Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
● Keep the storage compartments lids closed when driving or not in use.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being stuck by an open lid or the items stored inside.
1
2
3
4
5
6
7

4136-3. Using the storage features
AVENSIS_OM_OM20C79E_(EE)
6
Interior features
Left-hand drive vehicles
Pull up the lever to open the glove
box.
Right-hand drive vehicles
The glove box can be opened by pulling the lever, locked and
unlocked by using the key.
Open
Lock
Unlock
The glove box light turns on when the tail lights are on.
Glove box
1
2
3
