Page 457 of 592
4577-3. Do-it-yourself maintenance
UK AURIS_HV_HB_EE (OM12M49E)
7
Maintenance and care
Turn the power switch off.
Open the glove box. Slide off
the damper.
Push in the glove box on the
vehicle’s outer side to discon-
nect the claws. Then pull out
the glove box and disconnect
the lower claws.
Remove the filter cover.

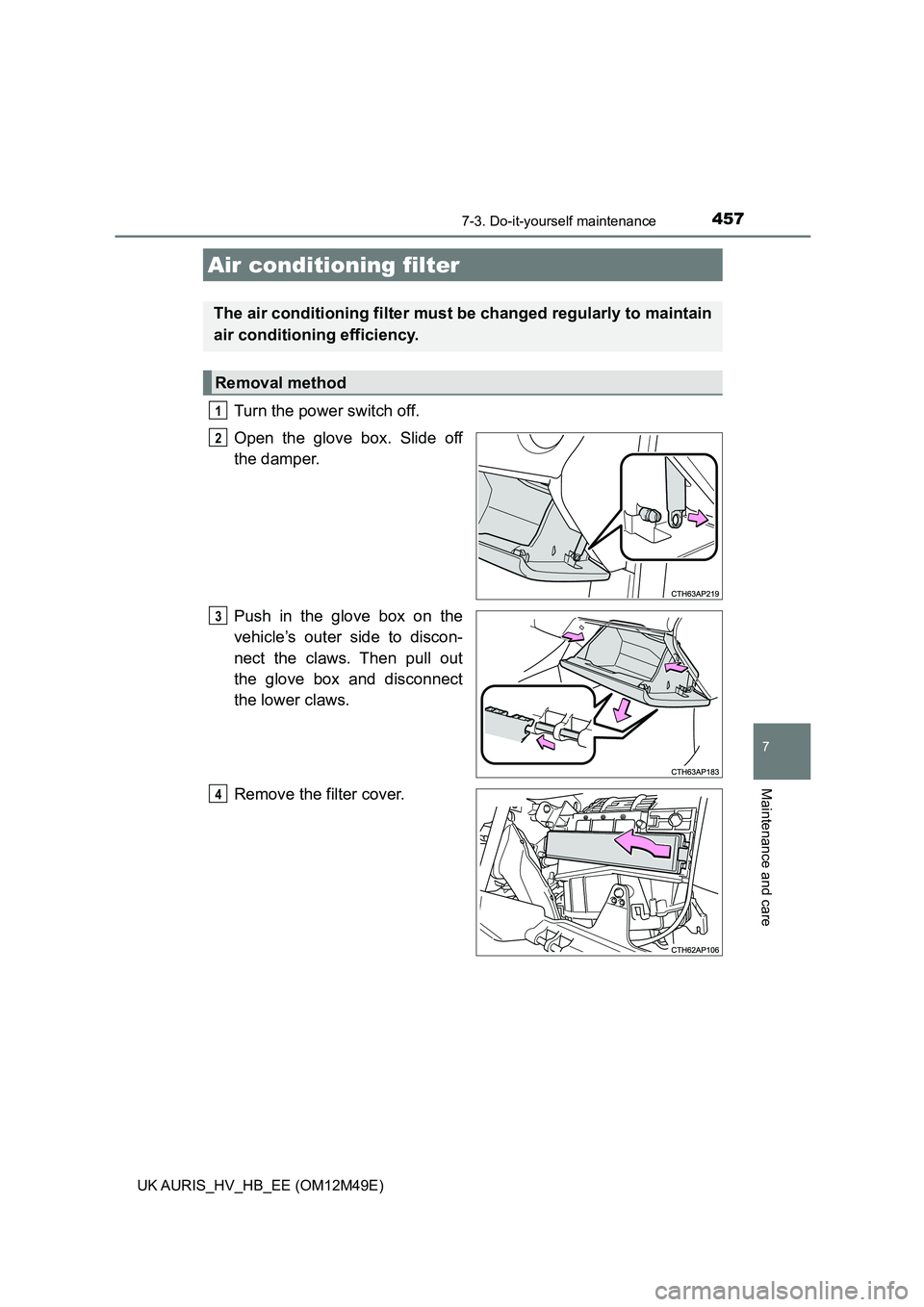

Air conditioning filter
The air conditioning fi lter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
4
Page 464 of 592
4647-3. Do-it-yourself maintenance
UK AURIS_HV_HB_EE (OM12M49E)
Ty p e B :
Open the glove box. Slide off
the damper.
Push in each side of the glove
box disconnect the upper
claws. Then pull out the glove
box and disconnect the lower
claws.
Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
1
2
3
Page 583 of 592

583Alphabetical index
UK AURIS_HV_HB_EE (OM12M49E)
Flat tire
Vehicles with a spare tire ...... 507
Vehicles without a spare
tire....................................... 519
Floor mats .................................. 30
Fluid
Brake..................................... 559
Hybrid transmission .............. 559
Washer.................................. 432
Fog lights.................................. 235
Replacing light bulbs ............. 467
Switch ................................... 235
Wattage................................. 563
Follow me home system ......... 231
Front fog lights ........................ 235
Replacing light bulbs ............. 467
Switch ................................... 235
Wattage................................. 563
Front personal lights ............... 392
Wattage................................. 563
Front position lights ................ 229
Light switch ........................... 229
Replacing light bulbs ............. 467
Front seats ............................... 173
Adjustment ............................ 173
Cleaning ................................ 416
Correct driving posture............ 32
Head restraints...................... 177
Seat heaters.......................... 389
Front sensor ............................. 248
Front turn signal lights............ 227
Replacing light bulbs ............. 467
Turn signal lever ................... 227
Wattage................................. 563
Fuel ........................................... 243
Capacity ................................ 554
Fuel gauge ............................ 103
Information ............................ 564
Refueling............................... 243
Type .............................. 243, 554
Warning light ......................... 493
Fuel filler door.......................... 243
Refueling............................... 243
Fuses ........................................ 462
Gauges ..................................... 103
Glove box ................................. 395
Grocery bag hooks .................. 399
Hands-free system
(for cellular phone)*............. 370
Head restraints ........................ 177
Headlight cleaners................... 237
Headlights ................................ 229
Automatic High Beam
system .......... ...................... 270
Follow me home system ....... 231
Light switch ........................... 229
Replacing light bulbs............. 467
Wattage ................................ 563
Heaters
Outside rear view mirrors...... 384
Seat heaters ......................... 389
High voltage components......... 75
Hill-start assist control............ 305
F
G
H
*: For vehicles with navigation/multimedia system, refer to “Navigation
and multimedia system Owner’s manual”.
