2018 TOYOTA AURIS width

2684-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12M49E)
■If “Check LDA system.” is displayed on the multi-information display
If the LDA indicator does not come on when the LDA switch is pressed to turn
the system on, the system may be malfunctioning. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately.
■ Operation conditions
This function operates when all of the following conditions are met.
● LDA is turned on.
● Vehicle speed is approximately 50 km/h (32 mph) or more.
● System recognizes white (yellow) lines.
● Width of traffic lane is approximately 3 m (9.8 ft.) or more.
● Turn signal lever is not operated.
● Vehicle is driven on a straight road or around a gentle curve with a radius of
more than approximately 150 m (492 ft.).
● No system malfunctions are detected. (P. 491)
■ Temporary cancellation of functions
When operation conditions are no longer met, a function may be temporarily
canceled. However, when the operation conditions are met again, operation
of the function is automatically restored.
■ Lane departure alert function
The warning buzzer may be difficult to hear due to external noise, audio play-
back, etc.
■ White (yellow) lines are only on one side of road
The LDA system will not operate for the side on which white (yellow) lines
could not be recognized.
■ After the vehicle has been parked in the sun
The LDA system may not be available and a warning message may be dis-
played for a while after starting off. When the temperature in the cabin
decreases and the temperature around the front sensor ( P. 248) becomes
suitable for its operation, the system will begin to operate.
■ If there are lane markers on only one side of the vehicle
The lane departure warning will not operate for the side on which lane mark-
ers could not be recognized.

3044-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12M49E)
NOTICE
■When using the Simple-IPA
● Check that the parking space is suitable. (Width of the space, if there are
any obstacles, road surface condition, etc.)
● Simple-IPA will not operate properly if the vehicle at the front or back of the
parking space moves, or if an obstacle enters the parking space after the
sensors have detected the parking space. Always check the surrounding
area during parking assist operation.
● The sensors may not be able to detect curbs. The vehicle may drive onto
the curb depending on the situation, such as if a vehicle at the front or
back of the parking space has driven on the curb.
Check the surrounding area to prevent the tires and wheels from being
damaged.
● The vehicle may not be able to be parked at a target parking space if the
vehicle moves forward when the shift position is in R or reverses when the
shift position is in a position other than R, such as when parking on a
slope.
● When reversing, reverse the vehicle
slowly to prevent the front end of the
vehicle from hitting an obstacle in the
front of the vehicle.
● When reversing, reverse the vehicle
slowly to prevent the front end of the
vehicle from hitting the vehicle parked in
front of the parking space.

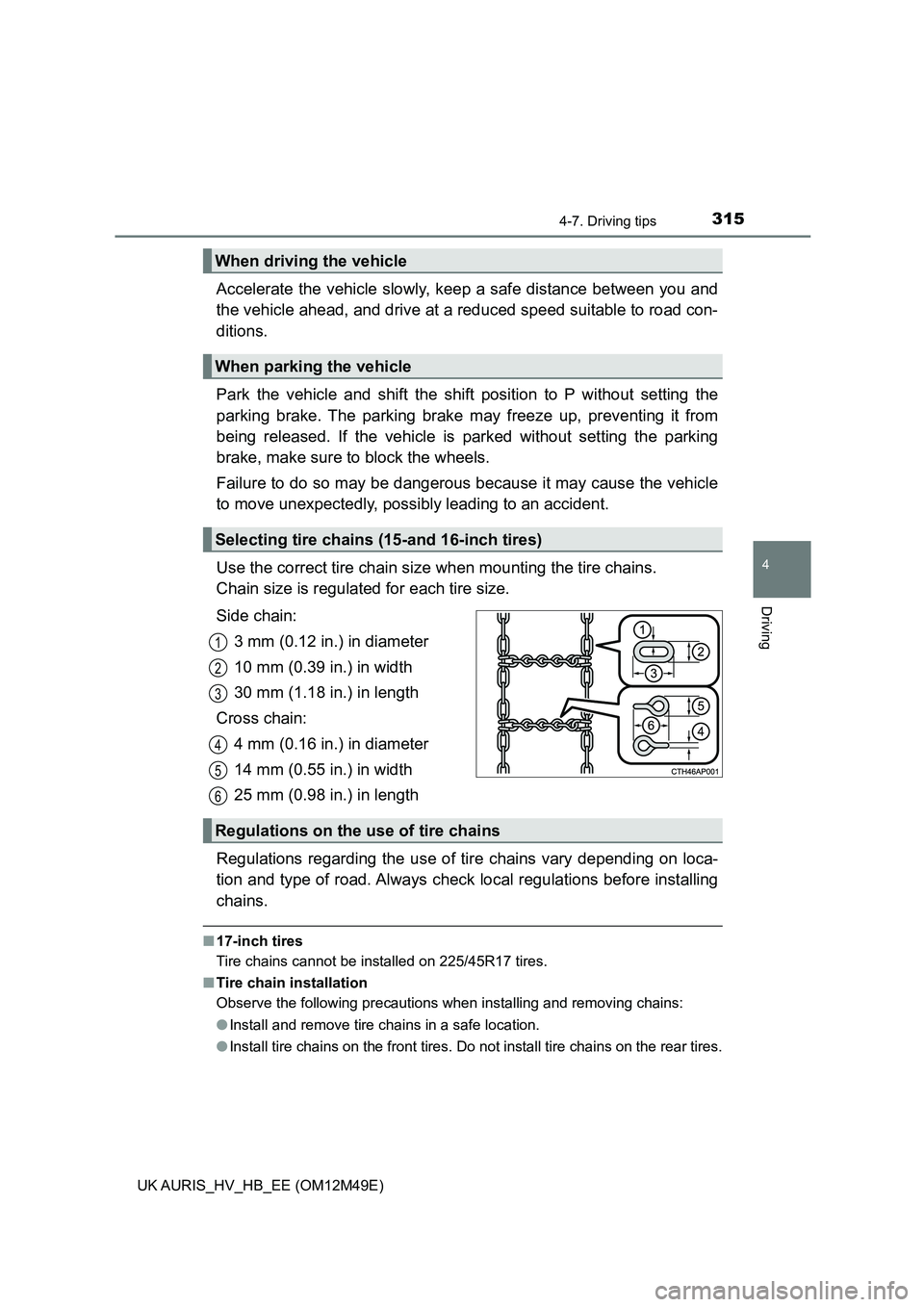

3154-7. Driving tips
UK AURIS_HV_HB_EE (OM12M49E)
4
Driving
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
Park the vehicle and shift the shift position to P without setting the
parking brake. The parking brake may freeze up, preventing it from
being released. If the vehicle is parked without setting the parking
brake, make sure to block the wheels.
Failure to do so may be dangerous because it may cause the vehicle
to move unexpectedly, possibly leading to an accident.
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain:
3 mm (0.12 in.) in diameter
10 mm (0.39 in.) in width
30 mm (1.18 in.) in length
Cross chain:
4 mm (0.16 in.) in diameter
14 mm (0.55 in.) in width
25 mm (0.98 in.) in length
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Al ways check local regulations before installing
chains.
■ 17-inch tires
Tire chains cannot be installed on 225/45R17 tires.
■ Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the front tires. Do not install tire chains on the rear tires.
When driving the vehicle
When parking the vehicle
Selecting tire chains (15-and 16-inch tires)
1
2
3
4
5
6
Regulations on the use of tire chains

4557-3. Do-it-yourself maintenance
UK AURIS_HV_HB_EE (OM12M49E)
7
Maintenance and care
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset*.
Replacement wheels are available at any authorized Toyota dealer or
repairer, or another duly qua lified and equipped professional.
*: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
● Use only Toyota wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.
■ When replacing wheels (vehicles with a tire pressure warning system)
The wheels of your vehicle (except spare tire) are equipped with tire pressure
warning valves and transmitters that allow the tire pressure warning system
to provide advance warning in the event of a loss in tire inflation pressure.
Whenever wheels are replaced, tire pressure warning valves and transmitters
must be installed. ( P. 440)
Wheels
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.
Wheel selection
Aluminum wheel precautions

552
UK AURIS_HV_HB_EE (OM12M49E)
9-1. Specifications
*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 225/45R17 tires
*5: Gross vehicle mass is specified on the information tag (manufacturer’s
label). (P. 204)
*6: Vehicles with towing package (P. 201)
Maintenance data (f uel, oil level, etc.)
Dimensions and weights
Overall length 4330 mm (170.5 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11475 mm (58.1 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front
1535 mm (60.4 in.)*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4
Rear
1525 mm (60.0 in.)*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*4
Gross vehicle mass*51840 kg (4057 lb.)
1815 kg (4002 lb.)
Maximum permis-
sible axle capacity
Front 1020 kg (2249 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load*655 kg (121 lb.)
Towing capacity*6385 kg (848 lb.)
